Лидер продаж барабанная флейка из нержавеющей стали для конденсации воды высокого качества
- Категория: >>>
- Поставщик: Shanghai Greawoo Machinery Equipment Co. Ltd.
Сохранить в закладки 1600071367786:
Описание и отзывы
Характеристики
Product Description

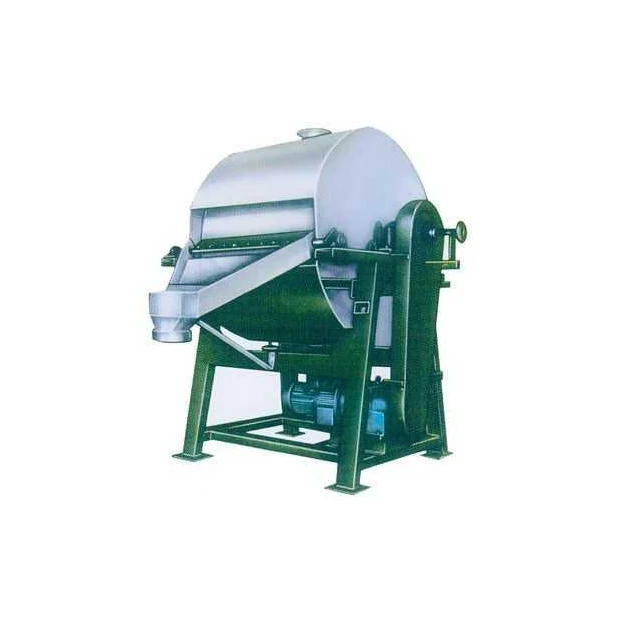

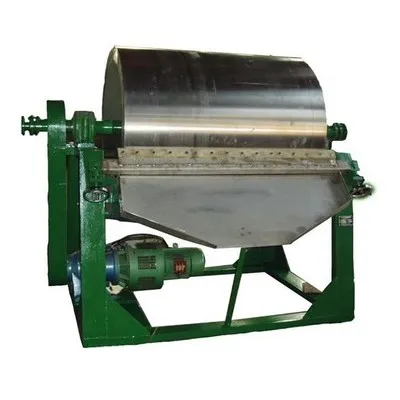

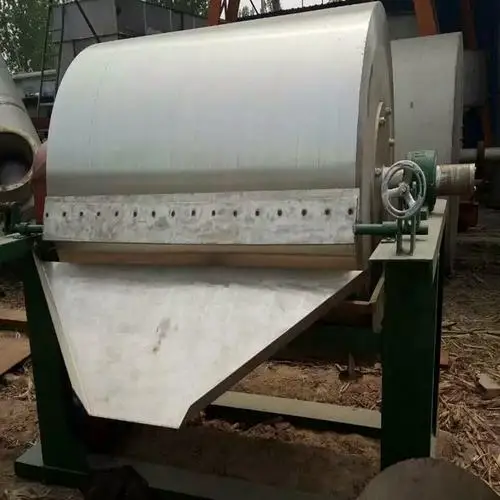

Rotary drum flaker, it is a kind of cooling and crystallization process, the fluid in feeding tray contacted with the surface of
cooled drum and form the material film on the surfuace of rotary drum, then the material film was cooled and crystallized by the heat exchange between the fluid and drum wall, the crystallized material was scraped off by the scraper in the status of flakes.
It is applicable to the flake solid transformed from the high-temperature fluid via the cold and heat exchange on the moving surface of the inner cooling roller. It can be universally used in chemical industry and pharmacy.
cooled drum and form the material film on the surfuace of rotary drum, then the material film was cooled and crystallized by the heat exchange between the fluid and drum wall, the crystallized material was scraped off by the scraper in the status of flakes.
It is applicable to the flake solid transformed from the high-temperature fluid via the cold and heat exchange on the moving surface of the inner cooling roller. It can be universally used in chemical industry and pharmacy.
flaker is mainly composed of dryer body, scraper, driving system, water chilling unit, product discharge system and control system etc.
Advantage of Flaker
Advantage of Flaker
- High heating efficiency
- Wide application
- Short drying time
- Easy operation
Application
- Chemical product
- Dyes
- Food
- Pharmaceutical product
- Cloth
- Food
FEATURES
1.High heat efficiency: The heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical with operation circle. Most of the heats can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2.Flexible operation elasticity and wide application: Various drying factors of the dryer can be adjusted, such as concentration of the liquid, thickness of material film, temperature of heating medium, rotating speed of the drum, and etc. These factors can change drying efficiency of the cylinder dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry different materials and meet different production requirements.
3.Short drying period: The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive
materials. It also can be pressure reducing operated if it is put in vacuum vessel.
4.Fast drying rate: The thickness of the material film on the wall of the cylinder is very thin. Normal, thickness is 0.3 to
1.5mm. The directions of heat and mass transmittal are identical so the evaporation strength on the surface of material film can be 20-70 kg.H2O/m2.h.
1.High heat efficiency: The heat transfer of the cylinder dryer is heat conduction and the conducting direction keeps identical with operation circle. Most of the heats can be used for evaporation of wet materials on the wall the cylinder. The efficiency can reach 70-80%.
2.Flexible operation elasticity and wide application: Various drying factors of the dryer can be adjusted, such as concentration of the liquid, thickness of material film, temperature of heating medium, rotating speed of the drum, and etc. These factors can change drying efficiency of the cylinder dryer. As these factors have no interrelations each other, it brings great convenience to dry operation and makes it applicable to dry different materials and meet different production requirements.
3.Short drying period: The drying period of materials is normally 10 to 300 seconds, so it is suitable for heat-sensitive
materials. It also can be pressure reducing operated if it is put in vacuum vessel.
4.Fast drying rate: The thickness of the material film on the wall of the cylinder is very thin. Normal, thickness is 0.3 to
1.5mm. The directions of heat and mass transmittal are identical so the evaporation strength on the surface of material film can be 20-70 kg.H2O/m2.h.
1) Plywood case packing if necessery.
2) Packed by plastic bags if for very big machines.
3) Trade term: FOB or CIF.
4) Sea shipping.
About Lead Time
A------Usually it takes about 30-40 days after we receive your down payment and drawing confirmation. About Payment Term
A------By T/T in Advance, or Irrevocable L/C as Sight.
Our machines can be customized, leave an inquiry to know more details about price, packing and shipping.
2) Packed by plastic bags if for very big machines.
3) Trade term: FOB or CIF.
4) Sea shipping.
About Lead Time
A------Usually it takes about 30-40 days after we receive your down payment and drawing confirmation. About Payment Term
A------By T/T in Advance, or Irrevocable L/C as Sight.
Our machines can be customized, leave an inquiry to know more details about price, packing and shipping.
Specification
Model | Drum Size (mm) | Efficient heating area (m2) | Drying Capacity (kg/h) | Steam Consumption (kg/h) |
GW-800 | 800x1200 | 2.26 | 90-130 | 225-325 |
GW-1000 | 1000x1400 | 3.3 | 130-190 | 325-475 |
GW-1200 | 1200x1500 | 4.24 | 160-250 | 400-625 |
GW-1600 | 1600x 1800 | 6.79 | 270-400 | 675-1000 |
Similar products :
15 Tons Dry Flake Ice Machine for Fishery//China 10ton Ice Maker Machine for Seafood Preservation//Seawater Flake Ice Machine, Flake Ice Machine//Fishing Cooling 10mt Flake Ice Machine//Seawater Flake Ice Machine//1ton Flake Ice Machi nie, Commercial Use Ice Maker, for Fishery/Meat Factory//Seawater Flake Ice Machine//Seawater Flake Ice Machines// Seawater Flake Ice Machine//3000kgs Air Cooled Sea Water Flake Ice Maker//Beautiful Design 1ton Flake Ice Machine Plus Ice Storage Bin//China Icesta Portable Bin Ice Machine//Day Fishing Boat Ice Machine Salt Water Ice Maker//Boat Use Seawater Ice Making System//Fishing Boat Using Salt Water Ice Flake Maker//Salt Water PLC Touch Screen Flake Ice Maker Machine//2000kg Capacity Flaker Ice Evaporator Flake Ice Drum//Flake Ice Drum/ Ice Maker Drum/ Ice Flaker Evaporator//5ton/24h Freshwater or Seawater Flake Ice Drum Evaporator//Flake Ice Evaporator Drum with High Quality//
500-800kg/H Auto Sunflower Coconut Oil Extracting Machine with Filter Drum//5 Tons Flake Ice Evaporator Drum//20 Ton -s Flake Ice Making Machine in Fishing Boats Carbon Steel Evaporator Drum//Widely Use 3000kg Flake Ice Evaporator Drum//Ice Evaporator for Flake Ice Salt Water Flake Ice Drums ...
Packing & Delivery
Company Profie
FAQ
contact us
Bill Greawoo
Shanghai Greawoo Machinery Equipment Co.Ltd
website ： www.greawoo.com
bill@greawoo.com
Wechat & whatsoapp 8617602122738
No.10, lane 255, xiaotang road, fengxian
Похожие товары

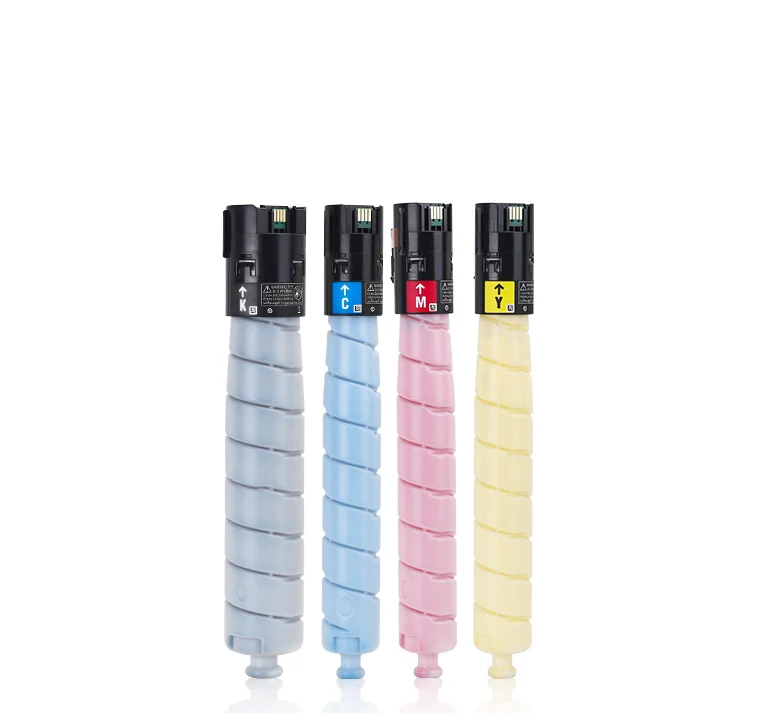

Тонер-картридж 3371, цветной тонер-картридж для 5571 VI4471 C2271 для xerox Тонер 3370
240,00 $ - 250,00 $

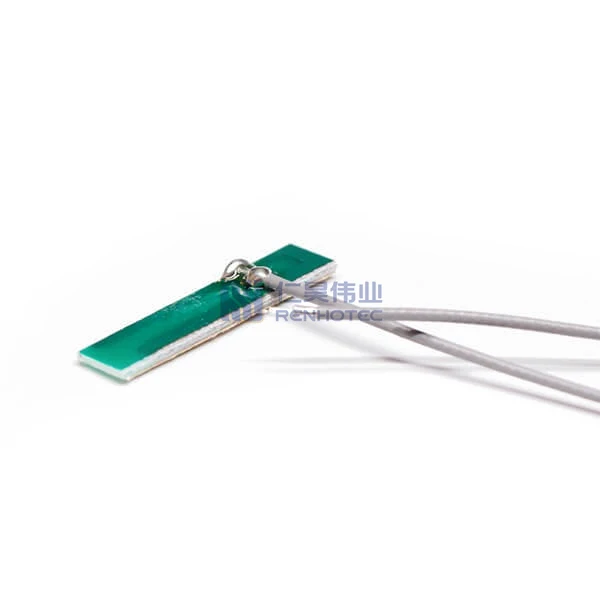

3dBi WiFi PCB антенна с женским IPEX 1,37 1,13 0,81 кабелем
0,62 $ - 0,68 $

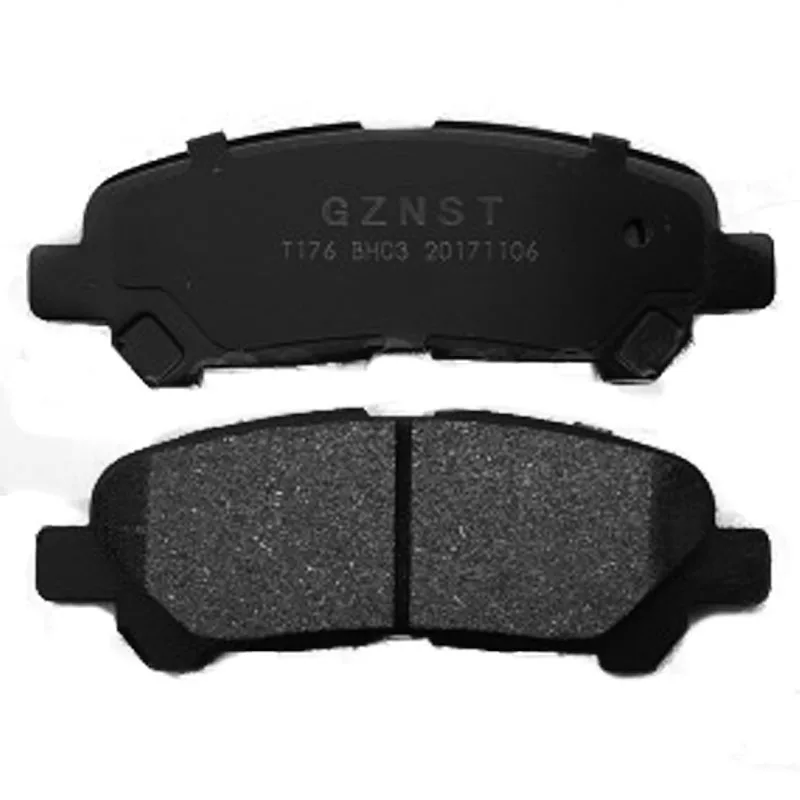

Высокопроизводительная керамическая тормозная колодка cemi для Highlander XU40

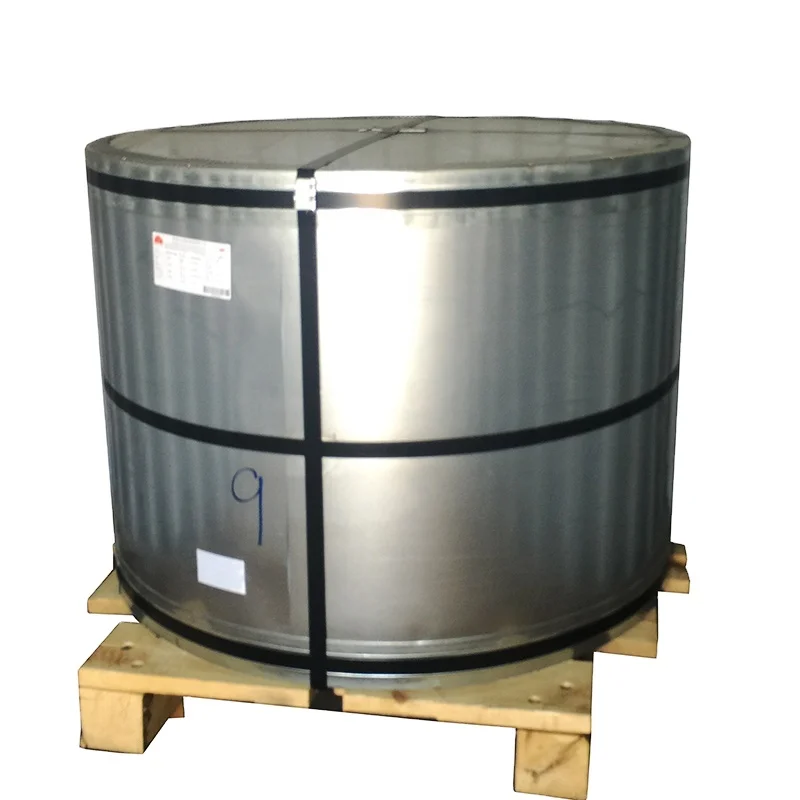

Z60g z80g 55% Al 43.4% Zn 1.6% Si 0,65 мм Толстая устойчивая к отпечаткам пальцев катушка с алюминиево-цинковым покрытием лист пластины galvalume
520,00 $ - 580,00 $

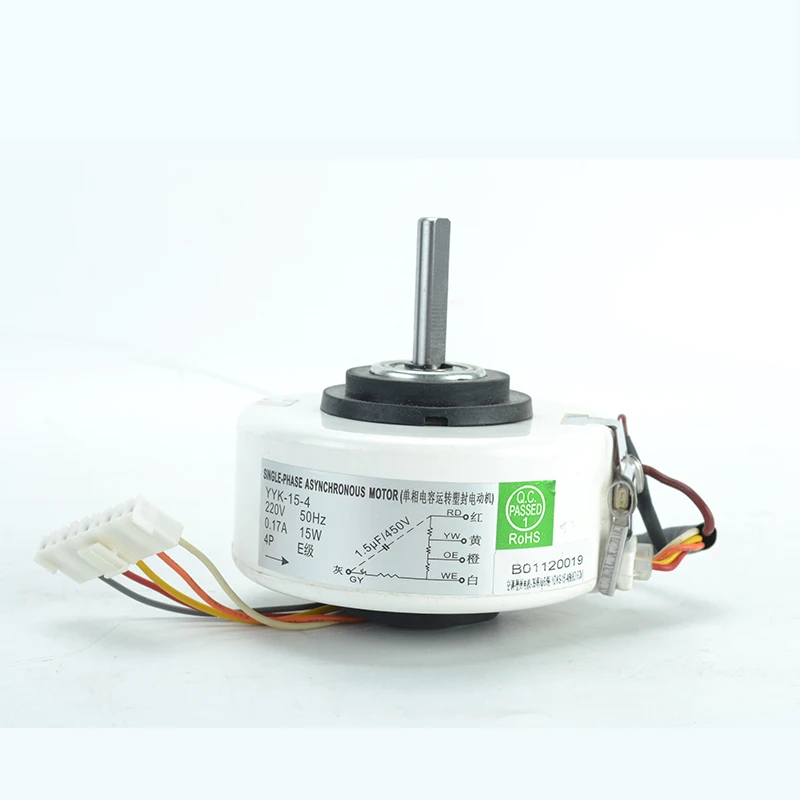

Sunchonglic 15 Вт 220 В YDKS - 15-4 однофазный асинхронный двигатель вентилятора кондиционера
6,69 $ - 7,31 $

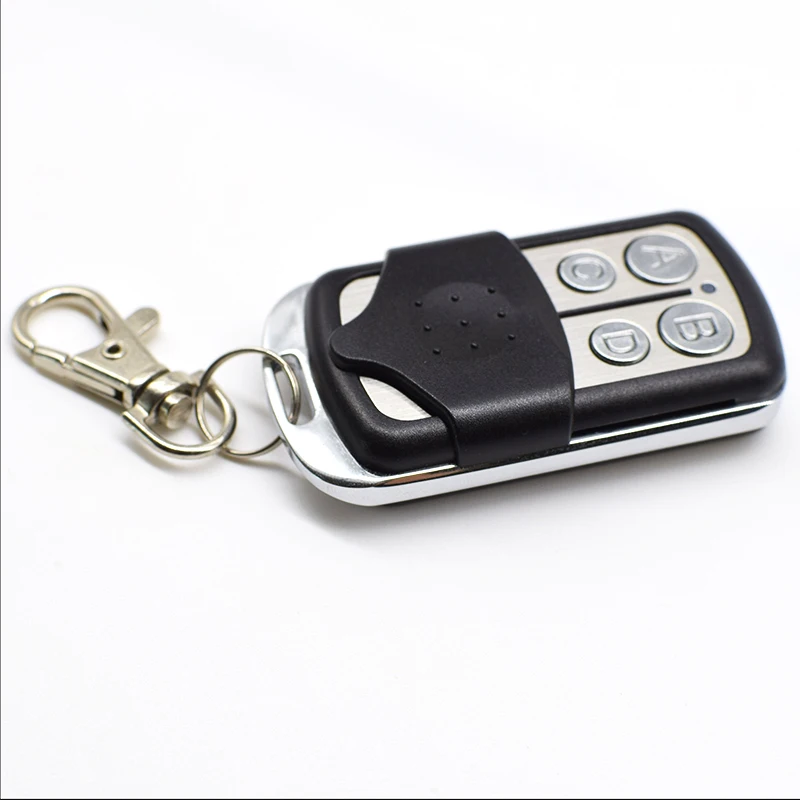

SMG-020ECA ECA ворота гаража двери дистанционного управления совместим электронной техники в австралийском стиле ECA 433 МГц Роллинг-код

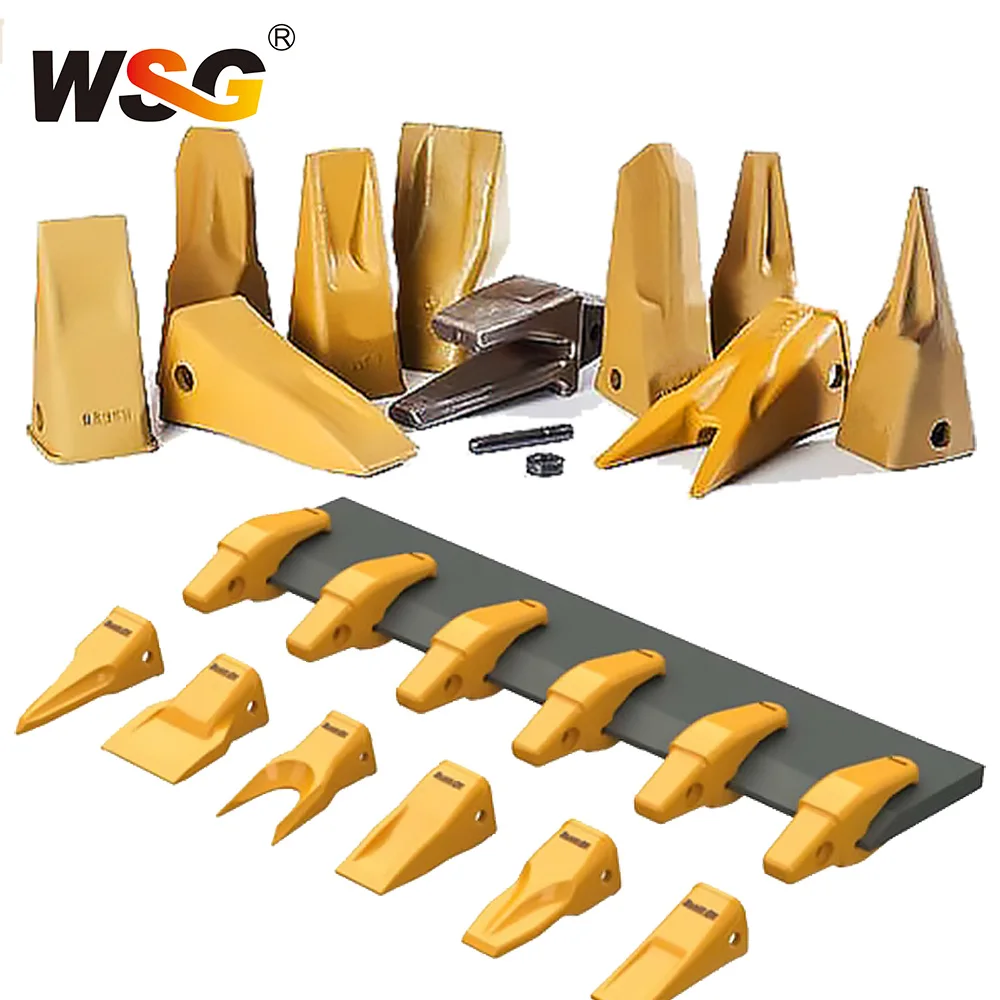

Заводская прямая продажа зубчатый ковш для экскаватора
