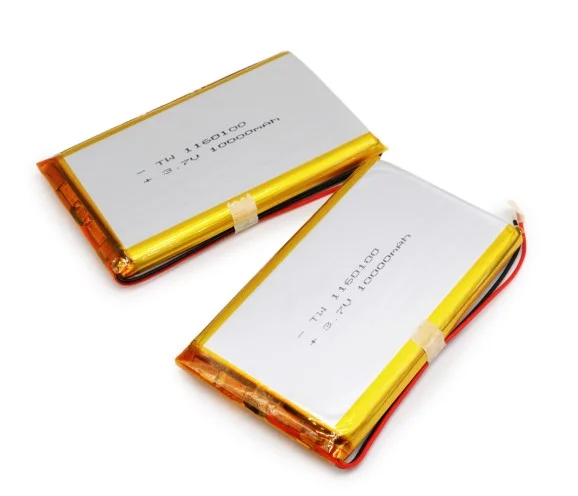

Оптовая продажа заводская цена высокое качество 1160100 3 7 в 10000 мАч перезаряжаемый литий-полимерный аккумулятор для внешнего аккумулятора
780,01-826,58 ₽
1 мВт lifepo4 система хранения энергии все в одном Смарт Вкл/Выкл сетки контейнерные ESS 1MWH для производства возобновляемой
- Категория: >>>
- Поставщик: Shenzhen Yichen S-Power Tech Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600071445789:
Описание и отзывы
Характеристики
Product Description
1MW lifepo4 all in one Smart on/off Grid Energy Storage System Containerised ESS 1MWH for renewable power generation

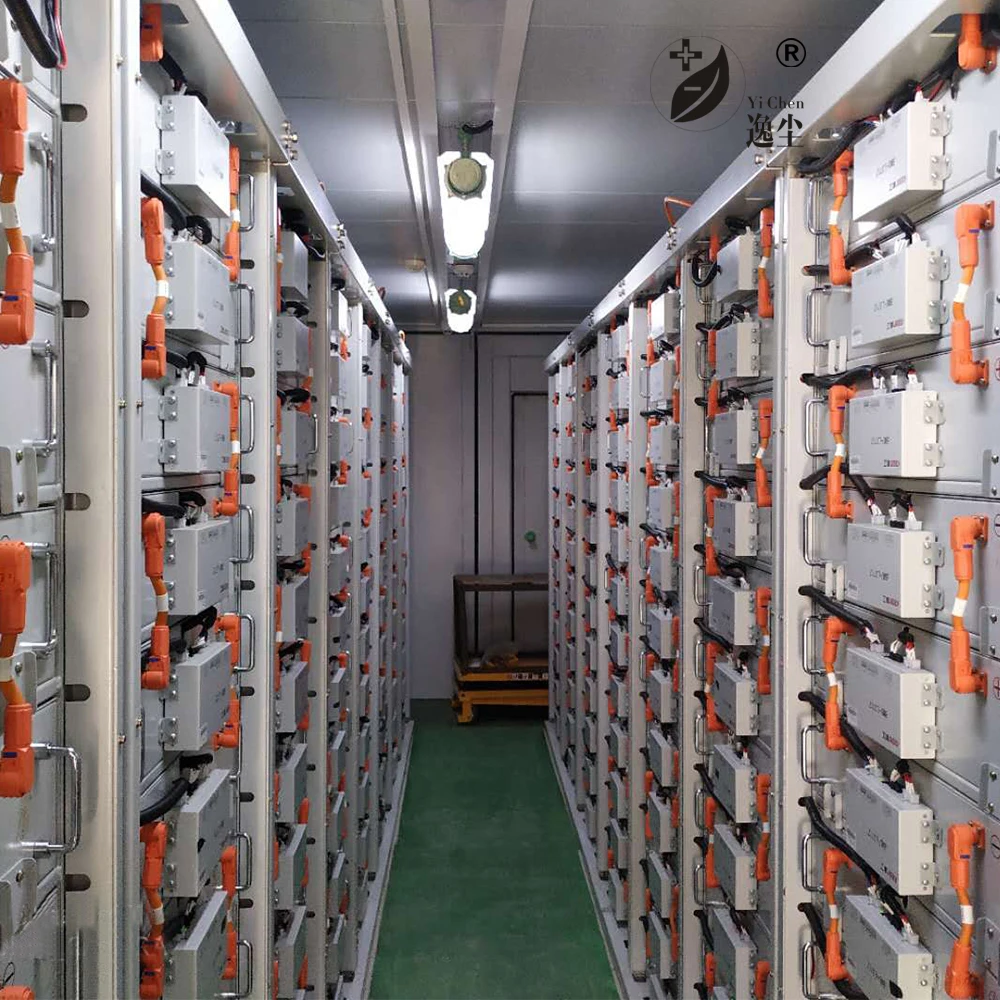

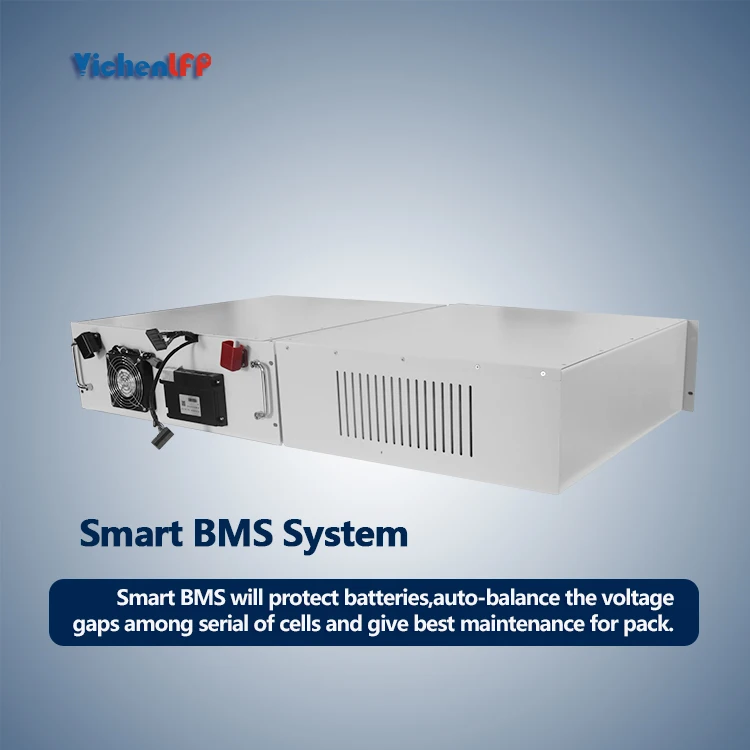

YiChen 1MWH Energy Storage Container Battery Pack System,based on the advanced LFP battery technology, intelligent battery management system,reliable power conversion system,Yichen is able to provide integrated containerized solution according to clients' demand.

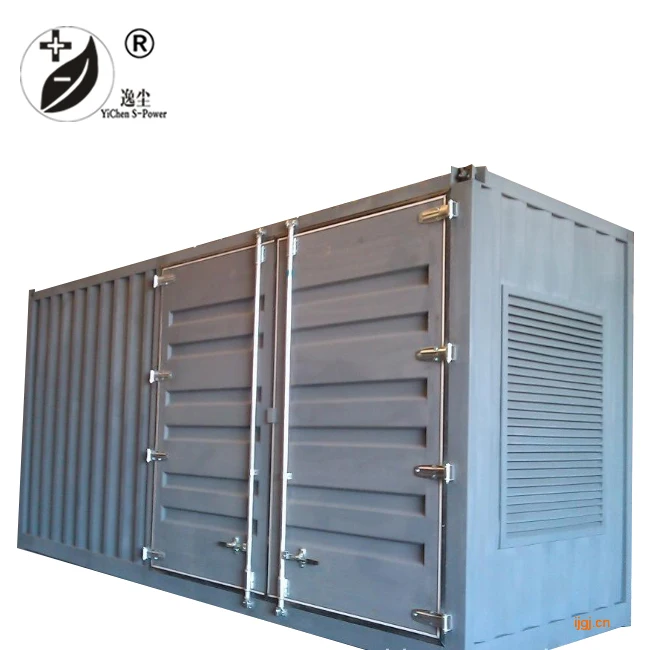

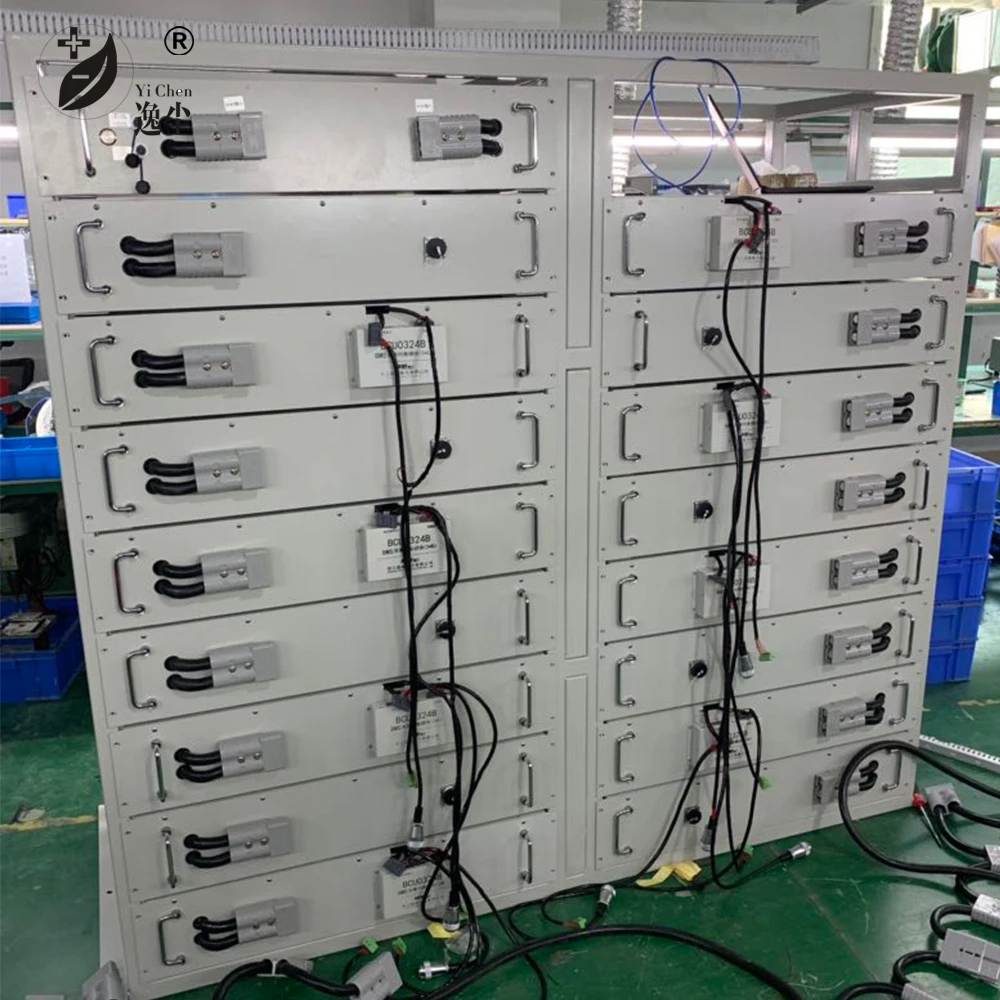

The integration of the cabinets into a containerized enclosure ensures a particularly easy application. It is easy to transport the containers and they can be positioned where requird.Based on the above configuration,the system can be scale to virtually any multi-KW/MW power and energy capacity.
Uses:
* Load shifting
* Peak shaving,load levelling
* UPS
* Capacity market
* Firm frequency response
* Distribution support
Specification
Electrical Characteristics | Nominal Voltage | 614.4V |
Nominal capacity | 1650Ah | |
Energy | 1013.76KWh | |
Internal Resistance | ≤ 100mΩ | |
Cycle life | ≥3000 cycles @1C 80%DOD | |
Months Self Discharge | <3% | |
Efficiency of Charge | 100% @0.5C | |
Efficiency of Discharge | 96~99% @1C | |
Standard Charge | Charge Voltage | 691.2V±0.2V |
Charge Mode | 0.2C to 691.2V, then 691.2V,charge current to 0.02C (CC/CV) | |
Charge Current | 500A | |
Max. Charge Current | 800A | |
Charge Cut-off voltage | 691.2V±0.2V | |
Standard Discharge | Continuous Current | 500A |
Max. Pulse Current | 800A | |
Discharge Cut-off Voltage | 480V±0.2V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP65 | |
Mechanical | Case Material | Cold rolled steel container |
Dimensions (mm) | 12*2.4*2.6m | |
Weight | 1500kg | |
Terminal | 380v high voltage shackle insulator | |
Inverter | Inverter voltage | AC380V three phase |
Inverter capacity | 250KVA | |
Frequency | 50Hz |
Features
* High Rate Capability
* High Safety performance
* Fast charging (can up to 3C)
* Good performance under high temperature
* High energy density
* Light weight and small volume, about 1/3 of Lead acid batteries
Hits:
1,Smart on/off grid function
2,10 year warranty
3,long cycle life lifepo4 battery
4,Intergratable with wind or solar PV renewable power generation
5,UPS function
Customization Service
Which parts are customizable? | ||
Battery pack's Capacity | customizable | |
Battery pack's size | customizable | |
PCS | customizable | |
Battery pack's voltage | customizable | |
Inverter | Costomizable | |
Packing & Delivery
Packing
Our Normal Packing:
1)SLA replacement batteries and light weight batteries,are usually packed in single carton(per piece in 1 carton), protected by foam from top and button.
2)For heavy high voltage/high capacity batteries,are usualy packed with wooden frame for safe delivery.
OEM packing:
Since we're direct factory,we also support package customzition.While reach the OEM QTY,we can design and make according to your requirements.
Delivery
1) Sample order
Normally,the samples will be delivered by express(DHL,Fedex,TNT,UPS) or Air depending on different products. Large scale batteries will be probably delivered by ship.
2) Mass order
Air,Ship for selection,will deliver according to clients' decision.
3) We have got UN38.3,MSDS and other shipping port certificate.
Company Profie
Shenzhen Yichen S-Power Tech Co., Ltd. founded in 2015, has become a comprehensive battery manufacturer with the combination of R&D, manufacturing, marketing and service. The founder has more than 12years experience with Lithium battery. We focus on design and development of High Voltage, Large Capacity Long cyclelife LiFePO4 battery, LTO Battery and system,offer global technical support,Yichen S-Power equipped with advanced production and testing facilities, to supply valuable and high quality products.Currently, we can support CANBUS/Bluetooth App/Rs485/Rs232/ solution, and developed battery self-heating and Self-cooling(Water cooling).Solve the High Temperatrue and Low Temperatrue environment battery problem.To have Longer Cycle life and More Power.These products are used on Solar, Home storage battery,UPS,AGV, RVcar, Telecom Base Station, Golf Trolley Cart,Fishing Boat, Car Start-Stop system battery.
The products passed TUV , UL , CE ,CSA ,CEC ,JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co.,Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
The products passed TUV , UL , CE ,CSA ,CEC ,JET certifications. Have been exported to more than 50 different countries. OEM/ODEM service offered.
Shenzhen Yichen S-Power Tech Co.,Ltd. with great passion and faithfulness, are willing to provide you with perfect services and striding forward with you to create a bright future.
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement.
For normal in stock product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC-62133,PSE and others, please consult with us.
Похожие товары
Литий-ионный Литий-полимерный аккумулятор 3 7 В 4 2 60 мАч 500 850 1000 4000 10000
448,43 ₽
10000 мАч 5S 25c lipo аккумулятор для UAV
9 523,03-10 943,33 ₽
15kWh 20kWh 30kWh 40kWh 50kWh Высоковольтная батарея LifePO4 ARK литиевая Hv солнечная система хранения энергии ELEGE
114 090,04-137 373,72 ₽

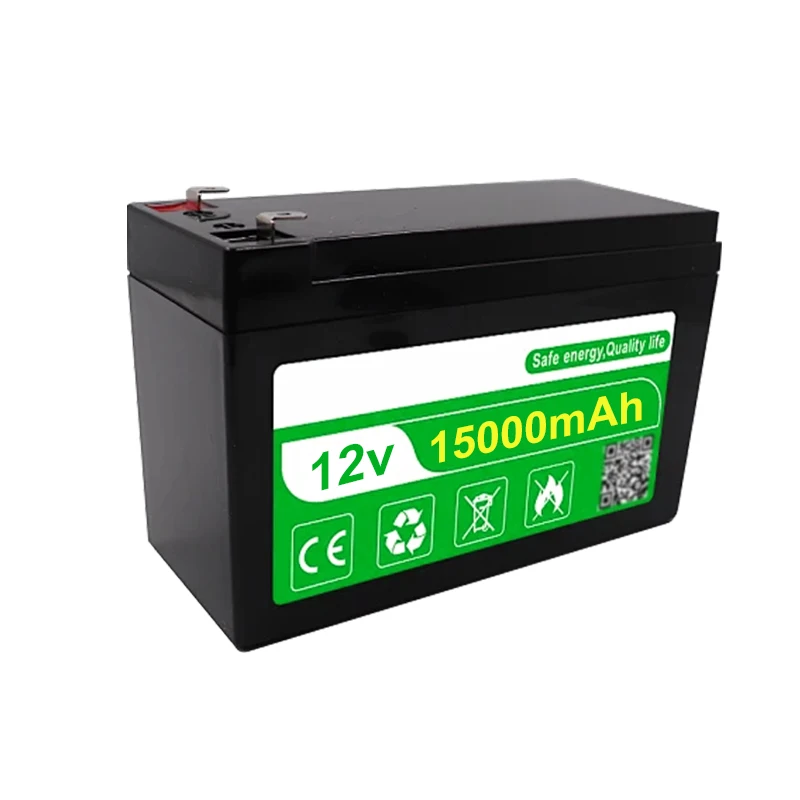

Литий-Железный аккумулятор 12 В 15 А/ч домашняя энергия 8 24 20 30 50 литий-ионный фосфатный
3 259,72-5 238,83 ₽

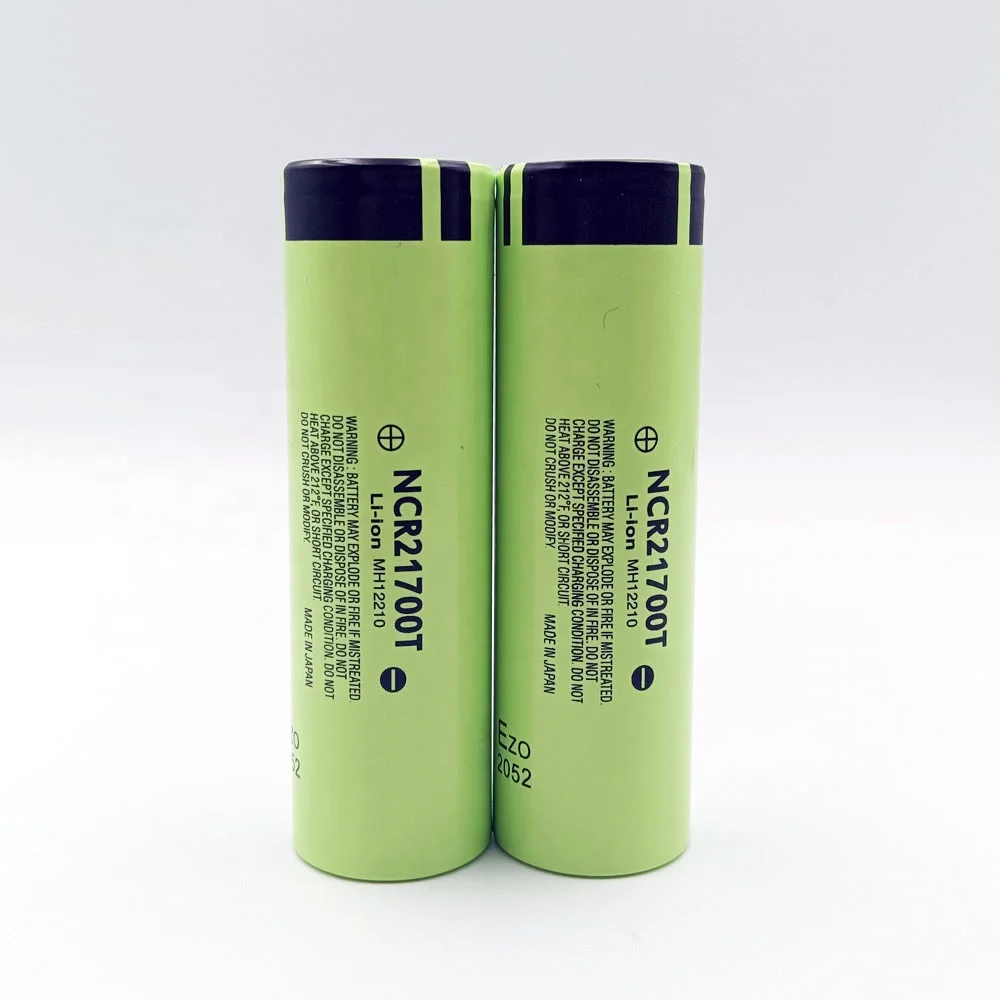

Лучшая цена NCR21700T 3 6 В 5000 мАч 5C разрядная батарея Tesla перезаряжаемая литий-ионная для электрического велосипеда аккумуляторная
