16ton hydraulic hammer pile driving hammer

Applicable scope of  FHP Hydraulic Impact Hammer

Pipe pile, square pile, I-steel pile, steel casing pile

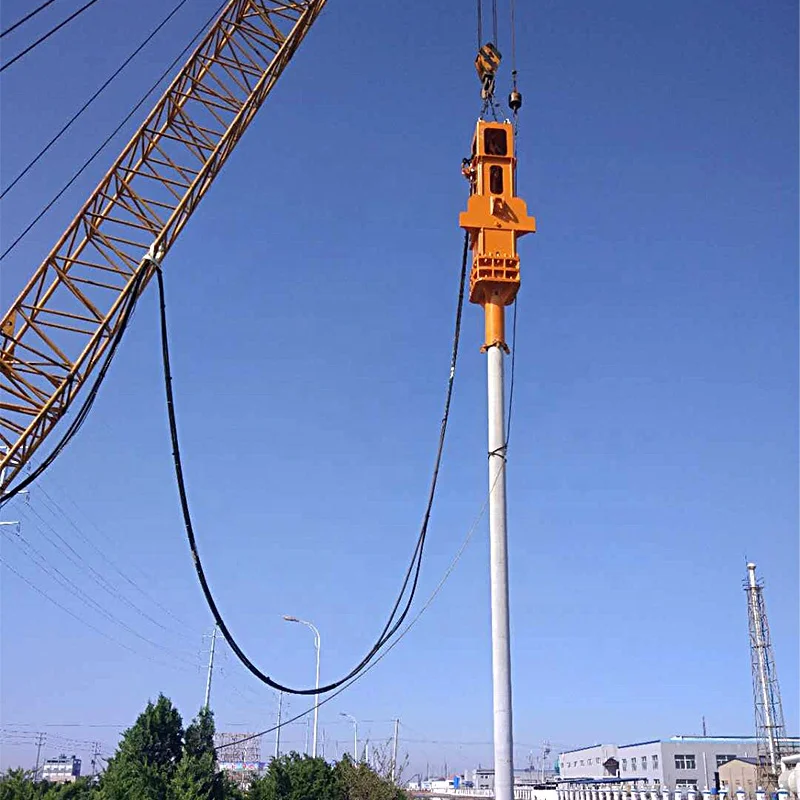

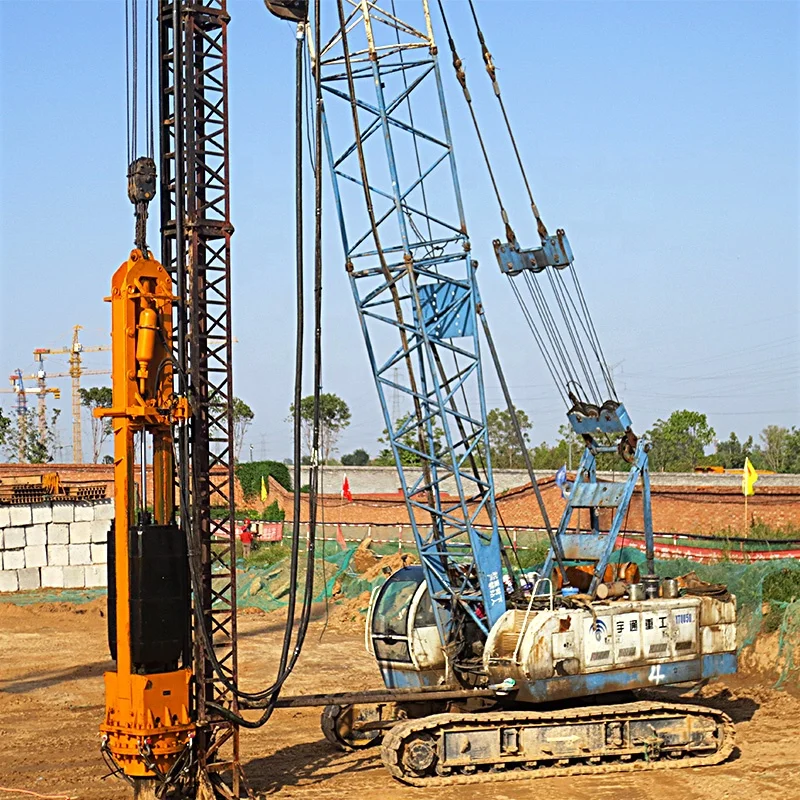

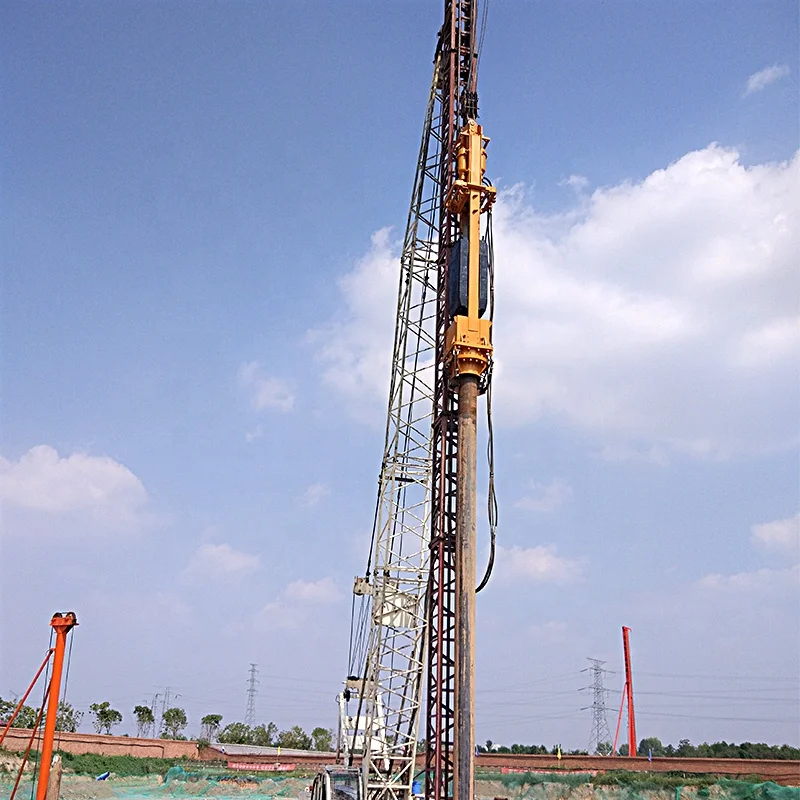

FANYATOP hydraulic piling hammer can be used for fixed pile leader or crane suspended , the installation type can be customized according to client's base machine. Our machine also can be used to extract piles or modified with adoptable parts to for quick impacts and other work,etc.

The hydraulic marine pile driver can be operated with an existing power source or work with FANYATOP power pack

All electrical and hydraulic system can be managed by control panel and remote control box, the closed loop typed of hydraulic system adjusts speed and oil pressure. It is very reliable and environmental friendly

Single-acting hydraulic pile crane hammer use hydraulic actuators and pumps to push the plunger back to the top of the stroke. Once the hammer reaches the top of the stroke, the hammer will loosen and fall freely under the force of gravity, striking the anvil. One advantage of the hydraulic hammer is the height of the free fall, so that the energy transferred to the pile can be controlled more accurately.

Main components

1. Cylinder

2.Battery

It has high and low pressure functions. It reduces the impact pressure and controls the ram to drop at 130% of the free acceleration.

3.piston rod

4. Ram stroke range

Operator can see ram drop height easily and can adjust ram stroke height during pile driving through remote control box

5. Ram

It is comprised of one or more ram segments and stands complicated physical and chemical tests before application

6.Drive cap

All the cushions are inserted in it. They could protect the hammer structure , components and piles ,reducing the noisy

7. Power pack
