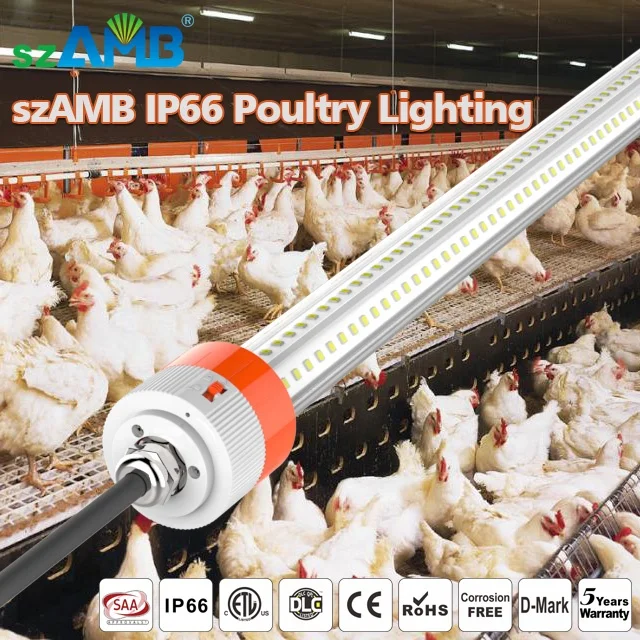

Антикоррозийное освещение IP66 для птицы лампа курицы
- Категория: LED птицы свет >>>
- Поставщик: Shenzhen AMB Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600072339912:
Описание и отзывы
Характеристики
Product Presentation
The element part of the chicken brooder light
Product Name | chicken brooder light |
AC100-120 for North America,AC220-240 for Europe | |
Style |
chicken brooder light detail
Power | Type | Length | Total lumen | Dimming Method | Material |
9W | WP2E-T8-9W-V | 600mm | 1170lm | Triac | PC+Aluminum |
20W | WP4E-T8-20W-V | 1200mm | 2600lm | Triac | PC+Aluminum |
24W | WP5E-T8-20W-W | 1500mm | 3120lm | Triac | PC+Aluminum |
Detailed Images
Poultry lighting advantage details
Unique rotation cap design allow customer can change the beam angle easily without taking the lamps down.

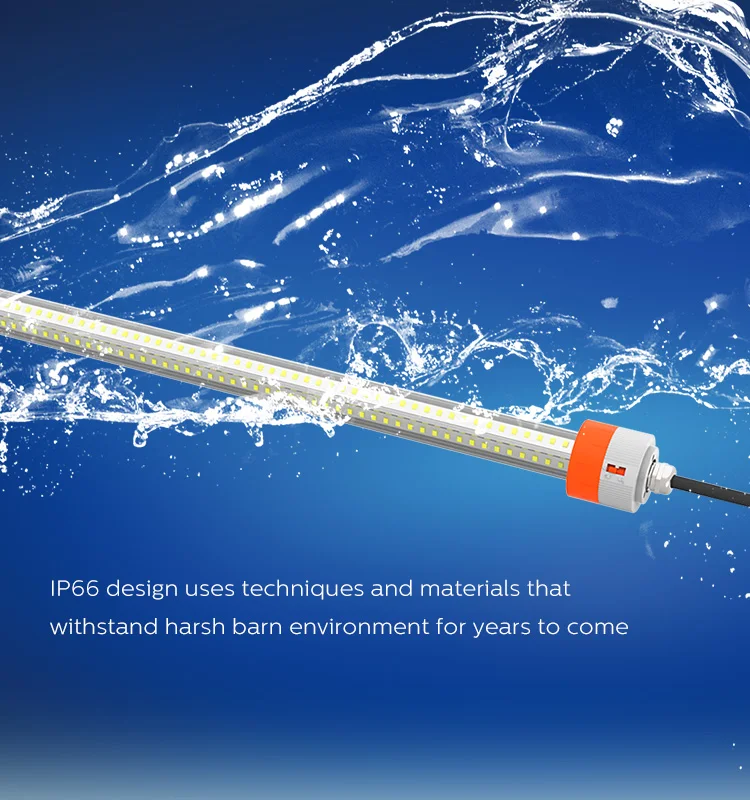

High protection IP level of the female & male connector ensure there is very safe when famer flush the poultry house without any worry about the electricity shock.
Quick linkable connection provide a very fast way of installation and save the labor cost even for the replacement of the broken ones.
chicken brooder light component details
LED CHIP
Adopt high lumen output SMD 2835, the entire lumen will be 2600lm
Cable details
2x1.5mm2 rubber cable allow the poultry lighting can connect as many as possible,60-70pcs per line.

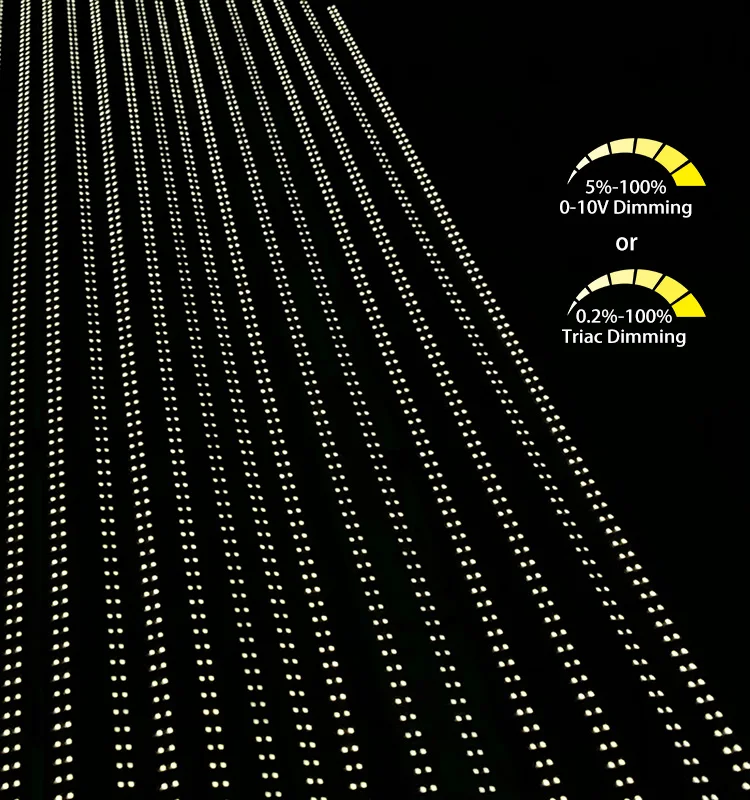

Dimming range
Precise Triac dimming provide a very smooth dimming as low as 0.2% without any flicker to ensure that there is a very comfortable environment for the chickens.
Super heat aluminum design
V shape design at angle 150 degree offer a very wide and uniform light output in the poultry house. which is also provide a good struction for the heat dissipation
Installation Instructions
V shape for ceiling
V shape design for ceiling roof, user just need to fix the led tube with screw on the ceiling.

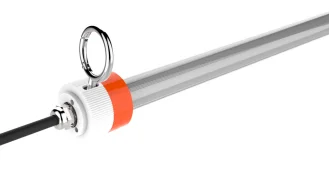

Ring Hook Installation.
Ring Hook offer a very easy method for the farmer to save the time of installation.
Hanging Installation
Hanging installation provide a vertical way for the installation if the ceiling are very high.
Chicken brooder light&Understanding poultry light biology and environment
Light is critical for egg production and pullet growth. Domestic poultry see and respond to a different range of light color spectrum and have different spectral intensity responses than humans. While humans respond to light from around 400–750 nm, chickens can see UV-A light (315–400 nm) in addition to 400–750 nm. Additionally, the magnitude of sensitivity for red and blue spectra is much higher for chickens with additional peaks of light sensitivity around 480 nm and 630 nm.
Poultry light biology
Chickens detect light not only through the retinal cone receptors in the eyes, but also via extra retinal photoreceptors in the pineal gland and the hypothalamic gland. The response to light controls the circadian rhythm, a 24-hour cycle in the bird’s hormonal and behavioural aspects. Humans are trichromatic and have retinal cones that can determine red, green and blue. Chickens are tetrachromatic, with an additional double cone whose function may be related to tracking movement.
In poultry, red light is vital for stimulating sexual maturity and egg production. Birds exposed to red light versus blue, green or white light consistently have higher egg production than the other color groups. Red light is able to penetrate the skull to stimulate the extra retinal photoreceptors. Red light (around 650 nm) penetrates the skull and brain (hypothalamus) four to 50 times more efficiently than blue, green and yellow-orange light. The hypothalamus is important in regulating the production of hormones important for egg production.
In poultry, red light is vital for stimulating sexual maturity and egg production. Birds exposed to red light versus blue, green or white light consistently have higher egg production than the other color groups. Red light is able to penetrate the skull to stimulate the extra retinal photoreceptors. Red light (around 650 nm) penetrates the skull and brain (hypothalamus) four to 50 times more efficiently than blue, green and yellow-orange light. The hypothalamus is important in regulating the production of hormones important for egg production.
Light environments
Chickens are affected by the duration, intensity and spectrum of light. Light can be utilized as a management tool to help optimize pullet growth, age of sexual maturity, egg weight and egg production in laying hens in a variety of environments.
Duration
As a general rule, decreasing light duration is utilized for growing pullets and increasing light duration is used to stimulate layers. Light stimulation (usually an increase of as little as one hour) has an immediate effect on the production of reproductive hormones. The standard level of light for maximum production is 16 hours. It is ideal to reach 16 hours of light by 30–35 weeks to help prolong peak production
Spectrum
Understanding the color spectrum given off by a light source will assist producers in selecting a light bulb which can deliver the proper amounts of red, green and blue light. Light bulb color can be expressed in degrees Kelvin (K) and color rendering index (CRI).
![]()
However, neither of these measurements expresses the spectral peak intensity in the red, green, and blue spectra that are important for poultry growth and production. Research on broilers has shown that blue and green LED lights enhance growth. Research on layer pullets indicates that LED lights with a greater portion of blue and green spectra result in better body weights and uniformity compared to incandescent bulbs, although more data is needed (Settar, unpublished data). Overall, pullets may be reared with warm or cool lights, but laying hens should have lights with a sufficient red spectrum3 (2700K–3000K). Light bulb manufacturers usually provide information on degrees Kelvin, or a spectrometer can be used.
Intensity
Light intensity, measured in lux, clux or foot candles, is also important for poultry production. In general, light intensity below 5 lux is too dark to stimulate proper growth and production, while higher light intensity (above 50 lux) may cause nervousness and aberrant behaviour.
The standard recommendation for growing pullets is to brood for 2 to 3 weeks at 30–50 lux, and then dim to 10–15 lux until 14 weeks. Two weeks prior to the transfer, gradually increase the light intensity to match the levels in the layer house. Laying hens should be kept at an average of 30 lux at the level of the feed trough.
Maintaining uniform light intensity in a modern poultry facility can be difficult. To measure light distribution in conventional cage or colony houses with manure belts, it is ideal to take a measurement at the feed trough every 25 cm (or 1 foot) between lights and at every level. This will typically require between 30 and 100 light readings to accurately assess the light distribution.
In floor houses, measure at the wall, at feeder and drinker lines beneath the lights and 2–3 times in between lights for a total of 10 to 50 measurements.
In open-sided houses, use window shades and curtains to prevent direct sunlight from coming into the house. Even with these interventions, the light intensity in open houses can easily reach above 1000 lux.
Certificate
Certification for the Poultry lighting
Product packaging
poultry house lighting package: Polyfoam inside to ensure the goods is very safe during the long way shipping.
25pcs/carton, Carton size 1330*323*330, 3000pcs /20GP, LOGO printed on outer carton will be provided for the order exceed 2500pcs, 100 Cartons.
Exhibition
2017 HK lighting fair
2018 HK lighting fair
2019 HK lighting fair.
Customer Photos
Company Profile
Shenzhen AMB Technology.co.,LTD
Based in Shenzhen China. There, we develop, produce and stock LED Poultry light for direct delivery to producers, retailers and wholesalers. Here, our product developers work in close collaboration with professional electricians / professional users/ Wholesales /Installation company /Poultry Equipment company,
At szAMB we stock a large range of widths and depths that enable customized solutions. We work with you as a manufacturer, retailer or wholesaler to meet the needs and application techniques demanded by the client and the professional user. No matter the scope or technical specification. From idea design to transport and delivery.Technical complexity, high quality and ease of installation go hand in hand.
Our product developers have high technical expertise and always collaborate with professional Poultry experts / Professional electricians to find the right technology and application solution that makes the work smoother and facilitates the electrician's practical everyday life. Good energy efficiency and light scattering without glare are combined with ease of use.
Short delivery times regardless of order.
With our own development, production and warehousing in Shenzhen China . our customers and retailers quickly get hold of products. In cases where a product is developed or adjusted, a ready-made solution and possible delivery is presented within only 2 months.
