Однофазный контролируемый беспроводной электронный измеритель мощности Ddzy1218 с дистанционным управлением/переносной связью
1,70 $ - 2,00 $

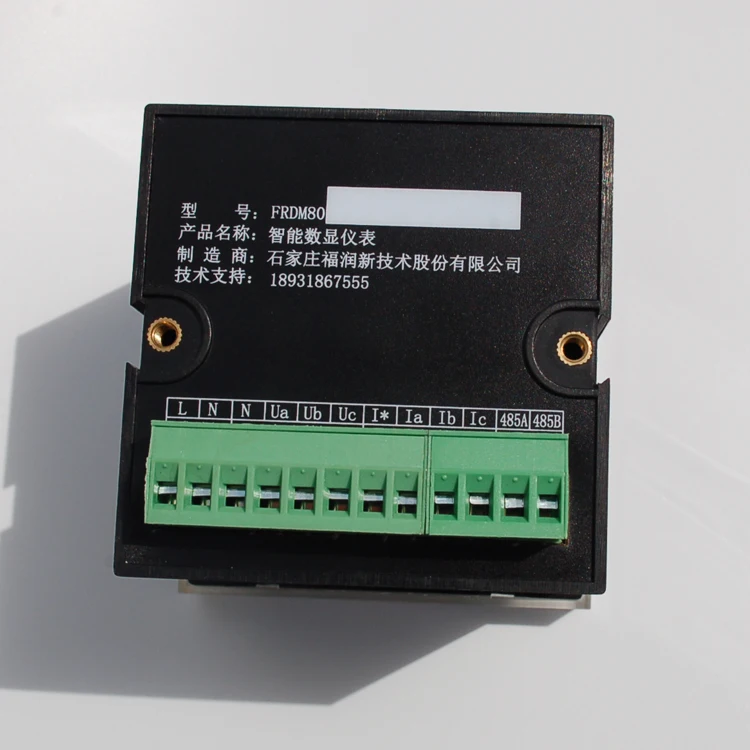

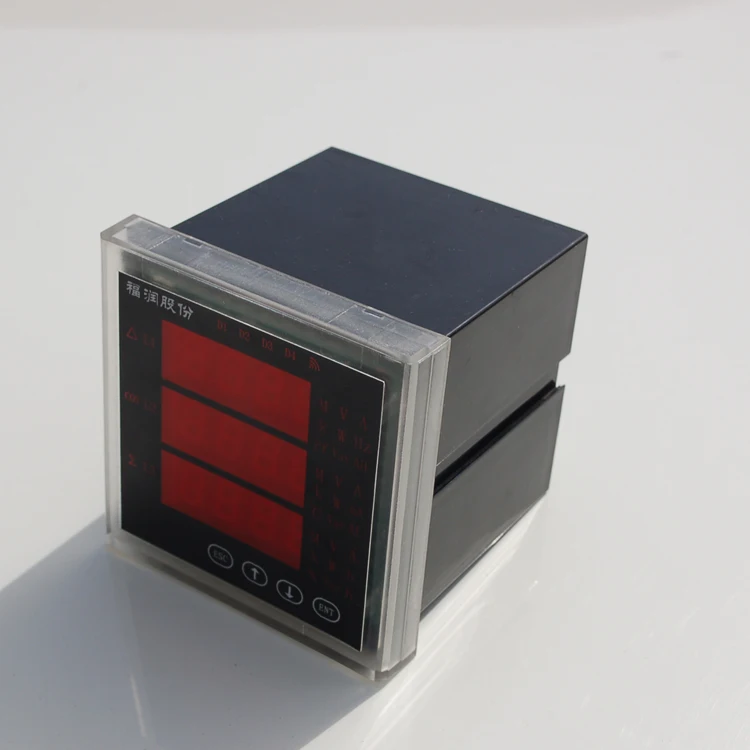

FORERUN FRDM 80 EF/C Accurate measurement of electric energy parameters by multifunctional digital power supply
- Категория: >>>
- Поставщик: Shijiazhuang Furun Zhongcheng Trading Co. Ltd.
Сохранить в закладки 1600072932614:
Описание и отзывы
Характеристики
Product Description
Frdm series network multi-functional power meter is an intelligent meter designed for the power monitoring needs of power system, industrial and mining enterprises, public facilities and intelligent buildings. It integrates the measurement of all power parameters (such as single-phase or three-phase current, voltage, active power, reactive power, apparent power, frequency, power factor) and comprehensive power monitoring and assessment management. At the same time, it has a variety of peripheral interface functions for users to choose: with RS485 communication interface, MODBUS-RTU protocol can meet the needs of communication network management; with high brightness LED display interface, through the panel buttons to achieve parameter setting and control, it is very suitable for real-time electric monitoring system. It can directly replace conventional power transmitter and measuring instrument. As an advanced intelligent and digital front-end acquisition component, the power meter is suitable for various control systems and energy management systems.
technical parameter | index | ||||||
network | Three phase three wire, three phase four wire | ||||||
frequency | 45～65Hz | ||||||
Voltage | Rated value：AC 100V、400V | ||||||
Overload: 1.2 times of rated value (continuous); 2 times of rated value for 1 second | |||||||
power waste： ≤ 0.2VA | |||||||
Electric current | Rating：AC 1A、5A | ||||||
Overload: 1.2 times of rated value (continuous); 10 times of rated value for 1 second | |||||||
power waste： ≤ 0.2VA | |||||||
electric energy | Output mode: optocoupler pulse with open collector， 2-way output (optional) | ||||||
Pulse constant: 10000、40000、160000 imp/kWh etc. | |||||||
communication | RS485 Interface、Modbus-RTU、 agreement | ||||||
display | LED、LCD | ||||||
Switching value | input | 2 or 4 dry contact inputs | |||||
output | Output mode: 2 or 4-way relay normally open contact output | ||||||
contact rating：AC 250V/3A、DC 30V/3A | |||||||
Analog output | Output mode: 1 or 2-way output, (the function of transformation output shall be specified by the user) | ||||||
Load capacity：≤500Ω | |||||||
temperature coefficient： -20～55℃ 300ppm/℃ -40～-20℃ 600ppm/℃ | |||||||
measurement accuracy | Current / voltage: class 0.2/0.5, frequency 0.01Hz Power, active energy: 0.5, reactive energy: 1 | ||||||
Power Supply | AC85～265V or DC100～350V；power waste≤10VA | ||||||
Safety | routine | Power frequency withstand voltage: power supply / / switching value output / / current input / / voltage input and transmission // communication / / pulse output//Ac2kv 1min between switching value inputs; Ac2kv 1min between power supply, switching value output, current input and voltage input; ac1kv 1min between transformation,communication, pulse output and switching value input; Insulation resistance: input and output end to shell > 100m Ω | ||||
Special industry | Power frequency withstand voltage: power supply / / switching value output / / current input / / voltage input and transmission // communication / / pulse output//AC 4KV 1min between switching value inputs; AC 4KV 1min between power supply, switch output, current input and voltage input; Ac2kv 1min between transmission, communication, pulse output and switching value input; Insulation resistance: input and output end to shell > 100m Ω | |||||
Environmental Science | routine | Operating temperature: - 10 ℃ ~ + 55 ℃; storage temperature: - 20 ℃ ~ + 70 ℃ Relative humidity ~ 95 no condensation; altitude: ≤ 2500m | ||||
Special industry | Operating temperature: - 40 ℃ ~ + 55 ℃; storage temperature: - 50 ℃ ~ + 70 ℃ Relative humidity: 5% ~ 95%, no condensation; altitude: ≤ 5000m | |||||
Altitude | Not more than 2000 meters |
ambient temperature | The temperature is not higher than + 65 ℃ and not lower than - 25 ℃. |
relative humidity | The air humidity shall not exceed 90% at 20 ℃, and higher relative humidity is allowed at lower temperature. |
atmospheric pressure | 79.5Kpa ～ 106KPa |
environment condition | The surrounding medium shall be free of explosion hazard, corrosive gas, conductive dust, rain and snow erosion, and the installation site shall not be subject to severe vibration. |
Control output | 3 way |

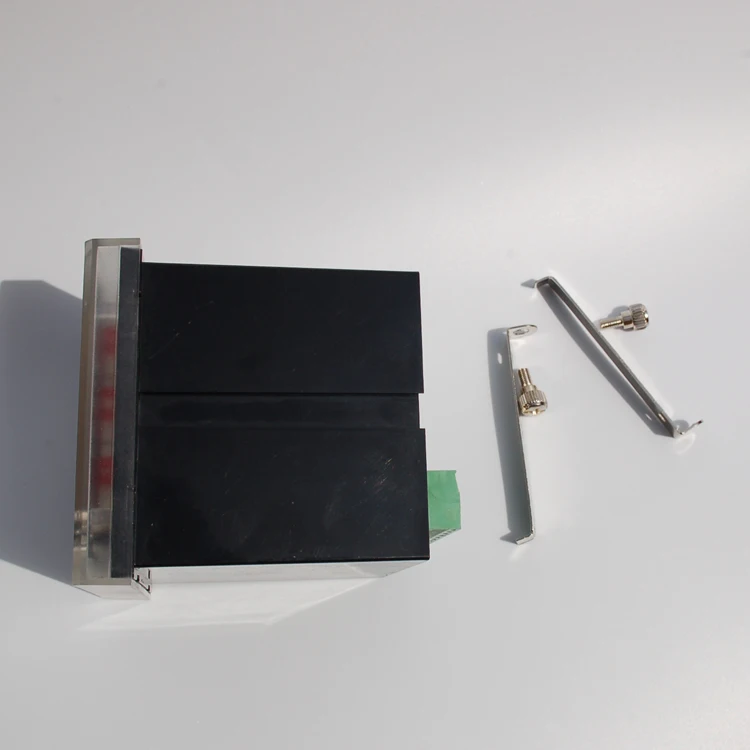

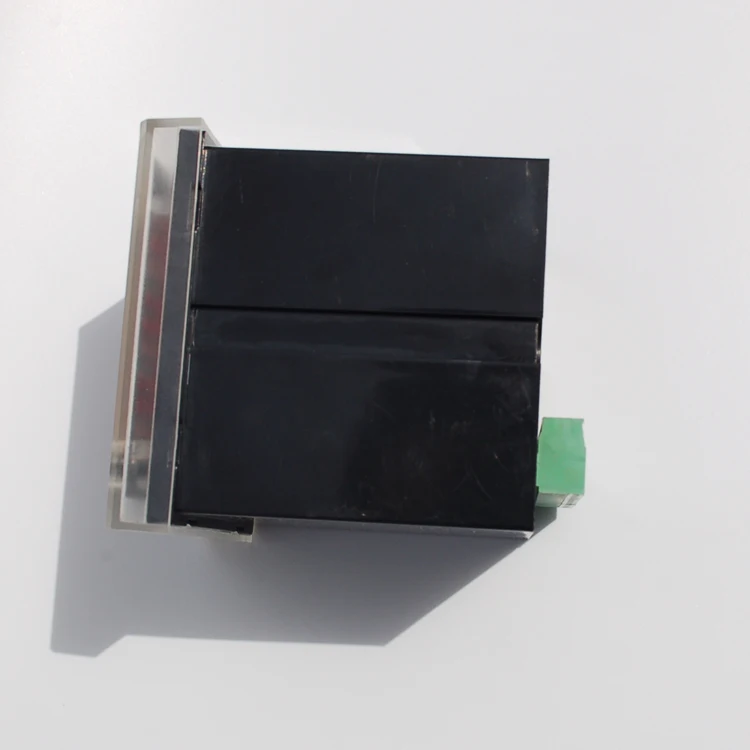

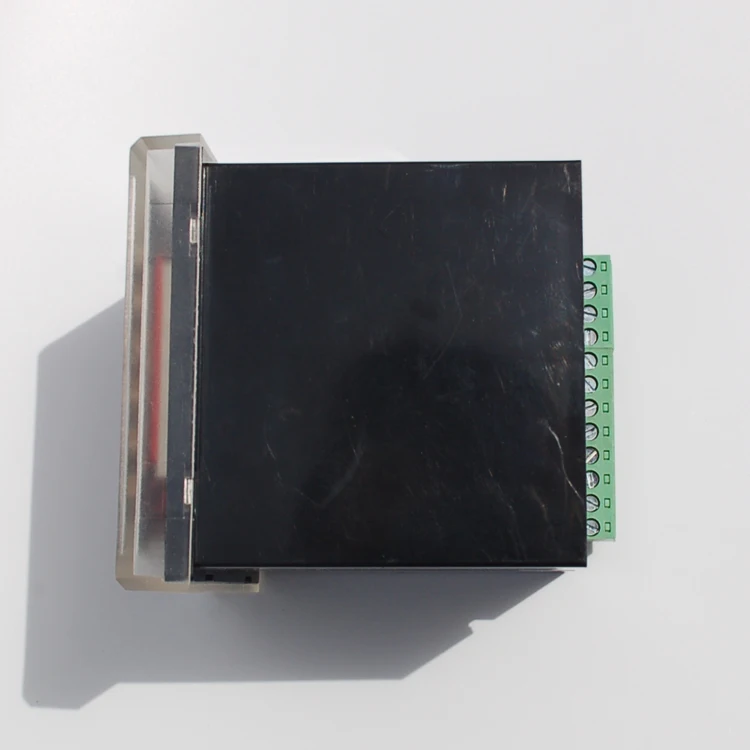

Appearance and installation opening size (unit: mm) | ||||||||||||||
Model | Face frame size（mm） | Shell size（mm） | Shell opening size（mm） | |||||||||||
W1 wide | H1 high | W2 | H2 | D thick | W3 | H3 | ||||||||
FRDM80 | 84 | 84 | 75 | 75 | 95 | 76 | 76 | |||||||
FRDM96 | 96 | 96 | 89 | 89 | 96 | 91 | 91 | |||||||
FRDM120 | 120 | 120 | 110 | 110 | 82 | 111 | 111 | |||||||
Related Products
Certifications
Packing&Shipping
Company Introduction
Shijiazhuang Furun Zhongcheng Trading Co., Ltd. is located in Chang'an District, Shijiazhuang City, Hebei Province. Is a diversified electronic product sales enterprise, with a professional management team, a wide range of industry background, professional financing institutions, in the national range has a perfect marketing and service network. The sales service area covers 20 provinces and cities in China and has established close cooperation with them. In the development of the company, we do not forget to optimize customer service. With strong economic and technological strength, high-quality professionals and high-quality and efficient services, we have established a good corporate image in the society, which has been widely trusted and praised by all walks of life and customers. We have won the highest evaluation of new and old customers with the same enthusiasm!
Похожие товары

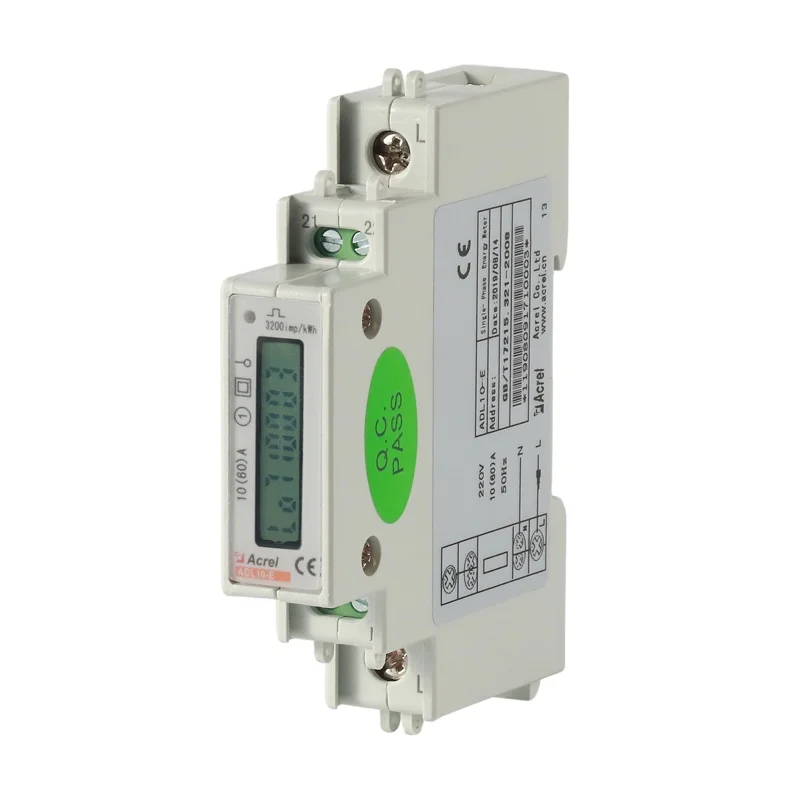

Однофазный измеритель электроэнергии ACREL ADL10-E, измеритель коэффициента мощности с входным напряжением 10(60)A 240 В

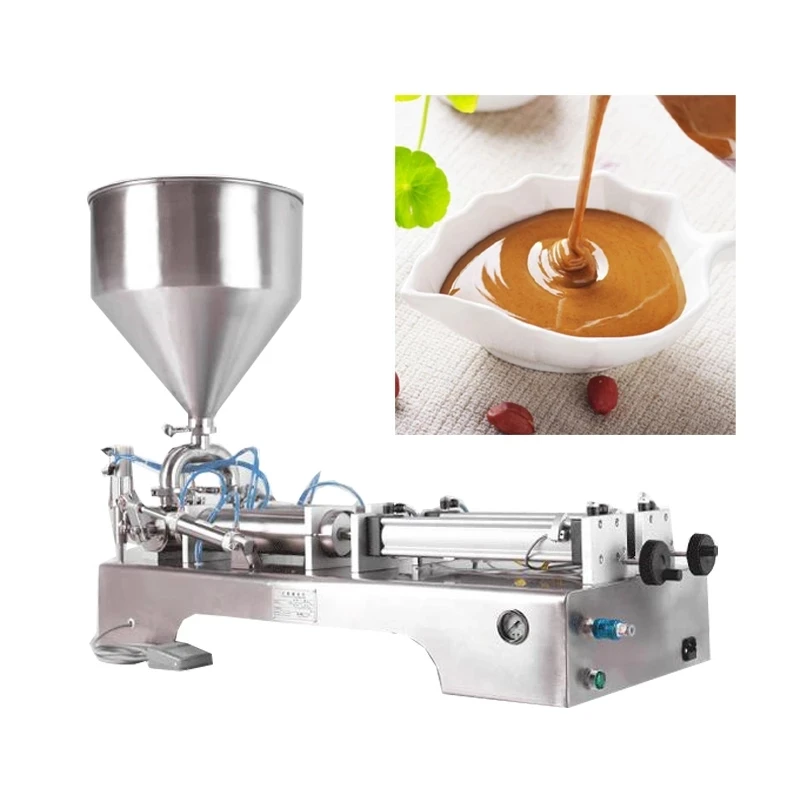

Заводская цена, аппарат для розлива мороженого с высокой вязкостью, лосьон, медовая ложка, полуавтоматический жидкий наполнитель
460,00 $ - 480,00 $
Модная подвеска в виде головы животного, подвеска в виде головы слона, детское настенное украшение, настенное украшение
9,18 $ - 10,55 $
Полимерные подвесные украшения в натуральную величину, голова слона в виде животного
38,60 $ - 150,00 $

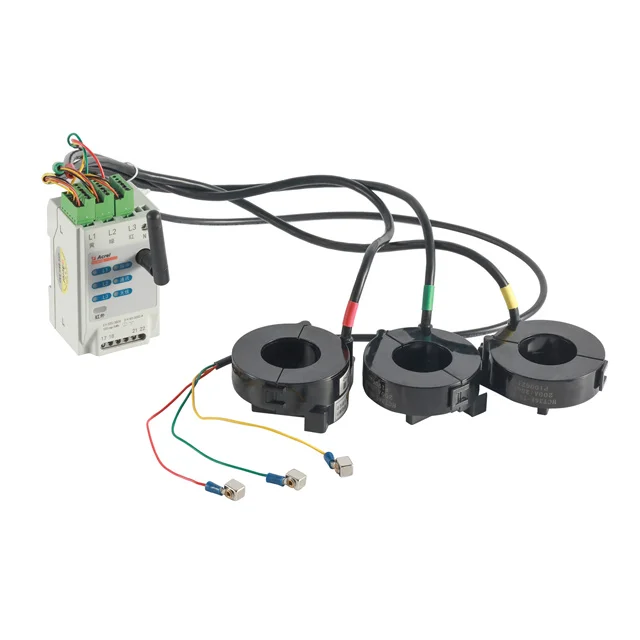

Acrel AEW100-D36X дистанционного электрического контроля инструмент DIN rail дистанционный контроль беспроводной измеритель мощности
Самоклеящиеся крючки для пальто, украшение в скандинавском стиле со слоном, оленем, жирафом, головой животного, без перфорации

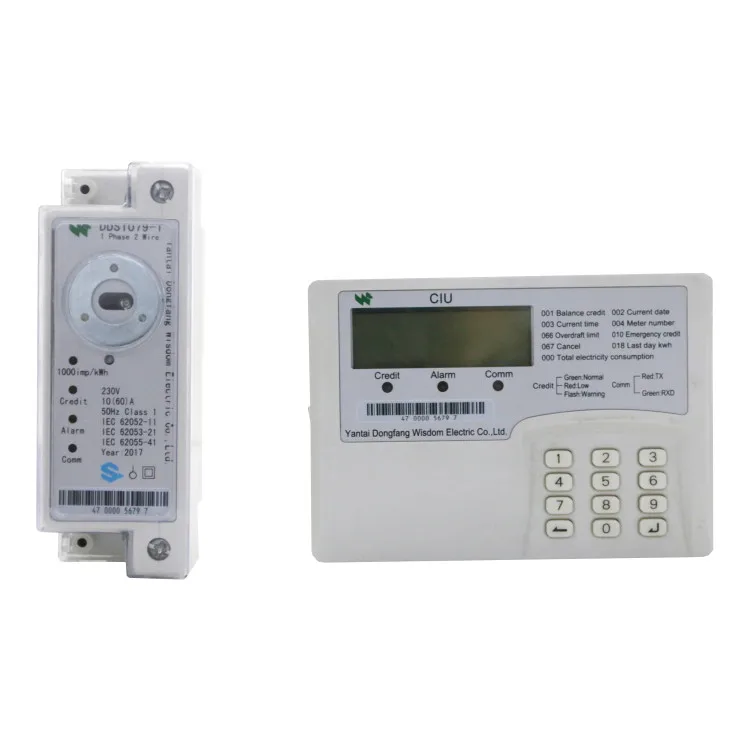

DDS1079-1 Электрический-кража разлитые din-рейку однофазный STS предоплаты метр
