200 ton manual deep drawing hydraulic cold oil press machine price
Product Description
| Parameters | Unit | YQ32-100A | YQ32-100B | YQ32-200A | YQ32-200B | YQ32-315A | YQ32-315B |
| Nominal Force | KN | 1000 | 1000 | 2000 | 2000 | 3150 | 3150 |
| System Pressure | Mpa | 25 | 25 | 25 | 25 | 25 | 25 |
| Slider Effective Stroke | mm | 500 | 600 | 700 | 600 | 800 | 800 |
| Effective Woketable Size | mm | 630×550 | 750×700 | 1000×1000 | 800×800 | 1260×1160 | 1000×1100 |
| Slider Descending Speed | mm/s | 100 | 100 | 100 | 100 | 120 | 120 |
| Slider Pressing Speed | mm/s | 5~10 | 5~15 | 5~10 | 5~10 | 8~15 | 8~15 |
| Slider Return Speed | mm/s | 90 | 90 | 90 | 90 | 90 | 90 |
Functions:
Four column hydraulic press machine 200 ton used in Processing Metal Products with a wide range of versatility, suitable for a variety of metal tensile, bending, flanging, cold extrusion, blanking process. Also applies to the correction, press-fit, powder products, abrasive products, grinding wheel, bakelite, resin thermosetting products forming and press-formed in the insulating material of the plastic products.
Technical Performance:
1. Low energy consumption, high speed, low noise, high efficiency;
2. Slider divide speed into two segments to contorl: empty loading fast, slowly close mold, stretch;
3. Activity crossbeam has safety limiter in both up and down directions;
4. Equipped with photoelectric protection device, could guarantee the safety of the operation;
5. With the function of automatic and manual, it's convertible;
6. Two operation model, viz. pressure regulation and stroke regulation which can beselected through operational panel, and has the character of pressure-keeping and time-delaying.

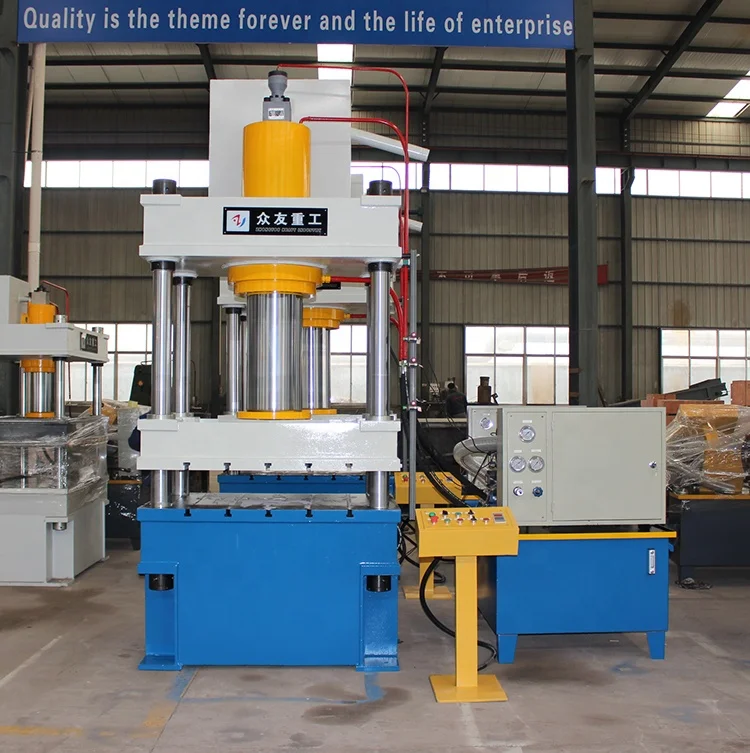

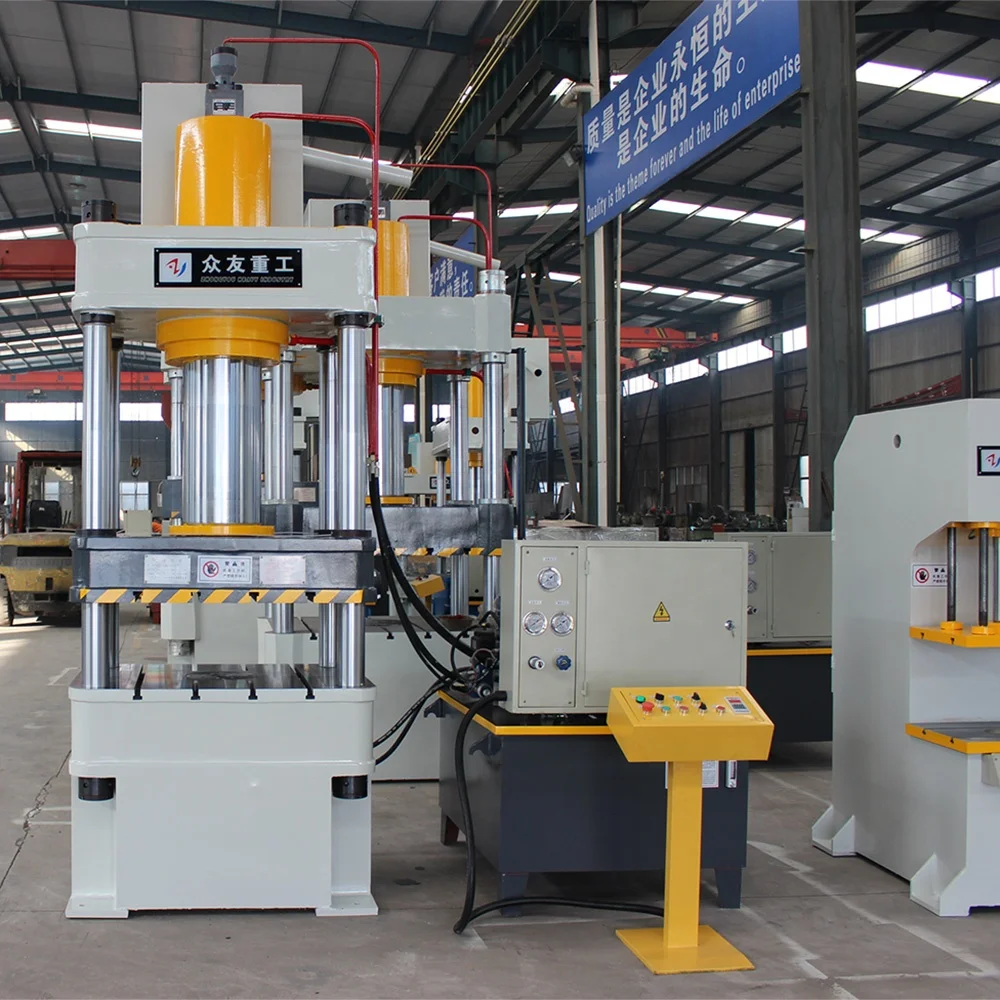

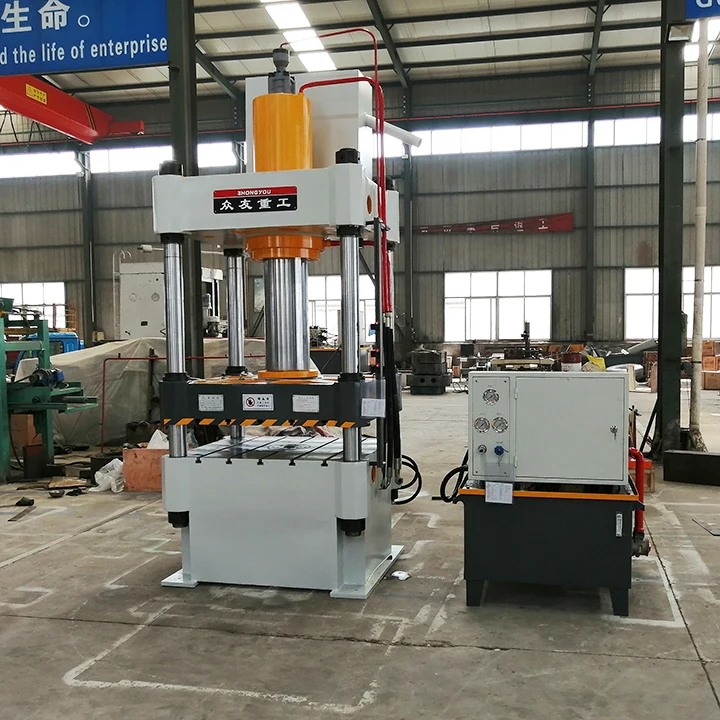

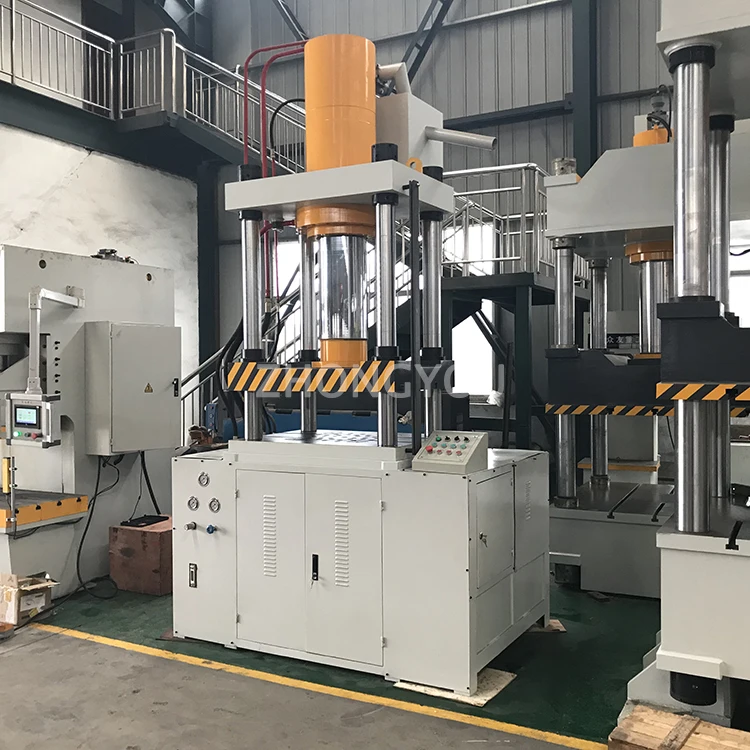

Detailed Images
.
application
For pressing process in all kinds of metal materials, such as stamping, bending, flanging etc.. Also can be engaged in the correction, compression, grinding wheel molding, plastic products, rubber products and powder products.
Usage:
1. Auto parts: automobile body covering parts, braking, fuel tanks, chassis, axle case, bumper;
2. Household appliance: washing machine, TV, refrigerator, air conditioning, rice cooker and other parts;
3. Kitchenware: sink, tea set and Other kinds of containers
Packaging & Shipping
1.Our wooden case is after fumigation treatment.Needn’t timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
Delivery Detail:
Shipped in 30 days after payment
|
|
, |
Certifications
Company Information
Our company is located in Tengzhou City, Shandong Province, China.A domestic leading hydraulic machine production of the Holy Land.Completely dependent on first-class production process,stand out from a large number of hydraulic machine manufacturers .Over the years, widely praised by customers at home and abroad. We have a number of innovative patents,because more than ten years to concentrate on only hydraulic press forklift tire press machine,in the small and medium enterprises has been the leader of the brand.Comprehensive cost is no doubt.
Our Services
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in hydraulic press Machine .we mainly produces various hydraulic presses forging press and auto maintenance equipment with advanced technology and equipment.
3: Where is your factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
