Product Description


Wooden Toothpicks Product Line/Bamboo Toothpicks Making Machine


Introduction:
1.Process of the bamboo toothpick making:Original bamboo - Bamboo sawing - dissection - Fixed thickness and width slicer -
drawing- Bleach - drying - fix length - Polishing - Finishing - sharpened - Packaging.
2.This ten machines is a production line, and producing two sharp type toothpicks, the capacity of 8 hours is 800000, about 100kg,
if you want to producing one sharping, one carved bamboo toothpicks, just replace the toothpick sharpening machine, and the
capacity will be 160 0000, about 200kg,
3. The producing line need 4-6 worker, and the industrial electricity is 380V.
4.Usually,100kg fresh(wet) bamboo can produce 100000-130000(Specification:diameter 2.0mm,length 65mm), About 13-16 kg dried
finished toothpick.


Name
Model
Power
Size
Weight
Bamboo sawing machine
ZJ-791
1.5kw
120×50×105cm
58kg
Bamboo dissection machine
ZJ-388
4kw
310×70×125cm
650kg
Fixed thickness and width slicer
ZJ-275
2.2kw
130×65×103cm
310kg
bamboo filament shaping machine
ZJ-144
1.1kw
100×65×108cm
400kg
Bamboo filament set-size machine
ZJ-741
0.75kw
140×66×88cm
80kg
Toothpicks set-size machine
ZJ-746
0.37kw
85×65×90cm
125kg
Toothpick polisher
ZJ-516
1.5kw
130×110×130cm
130kg
Toothpick sorting machine
TJ-948
0.55kw
100×100×75cm
80kg
Toothpick sharpening machine
ZJ-642
0.37kw
105×65×95cm
210kg
Multi-sharpen machine
TJ-803
0.37kw
75×50×95cm
65kg

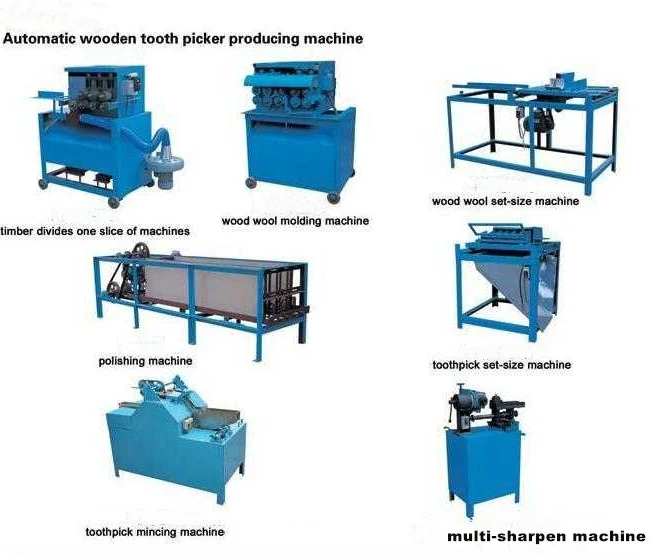

Machine function:
1.Wooden timber divided machine
put the standard dry square timber into this machine, then make it flakes. speed of feeding is 6m/min
2.wood filament shaping machine
put the wood flake into this machine, wood wool molding, the normal standard is 2.2mm
3. wooden filament set-size machine
set uniform length of the stick ,as usual 5 or 6times of toothpick length
4.toothpick set size machine
cut the long stick into 65mm ,standard length of toothpick
5.Polishing machine
polish the raw stick after set-size
6.orderting machine
Order the stick from polishing machine ,easy for worker to pick them into sharpen machine
7.toothpick sharpen machine
Sharpen two tips or one sharpen one carve head
8. Multi-sharpen machine
Sharpen the cutter and saw




Name
Model
Power(KW)
Weight
(KG)
Oversize
(mm)
Wood lamination machine
3.5-4.5M/minutes
DB-656
6.05
260
1050*680*1050
Wood wool machine
8m/minutes
DB-652
4.95
260
1050*680*1050
Wood scale machine
DB-105
0.75
75
800*700*900
toothpick scale machine
DB-114
2.75
140
900*700*950
Toothpick polishing machine
DB-80
1.5
110
1050*1050*1200
Toothpick sorting machine
DB-113
0.55
65
1050*900*850
Toothpick sharpening machine
DB-268
1.65
160
950*650*1050
Multi-purpose knife grinder
DB-112
0.55
60
700*500*850


The production process of toothpick making machine for sale:
Raw material(wood) - shard - into silk - (poor color appropriate to bleaching, drying) length cut - polishing - remove the defect to sign - cutting cutting flower, remove the defect sign, packing, warehousing (factory)


Detailed Images






Recommended Products




Packing&Shipping


1.Standard seaworthy packing suitable for long-distance transportation
2.Inner packing of carton and the transportation packing of wooden case
3.All of the productions are inspected carefully one by one by QC before delivery.


After Sales Service
