Product Description

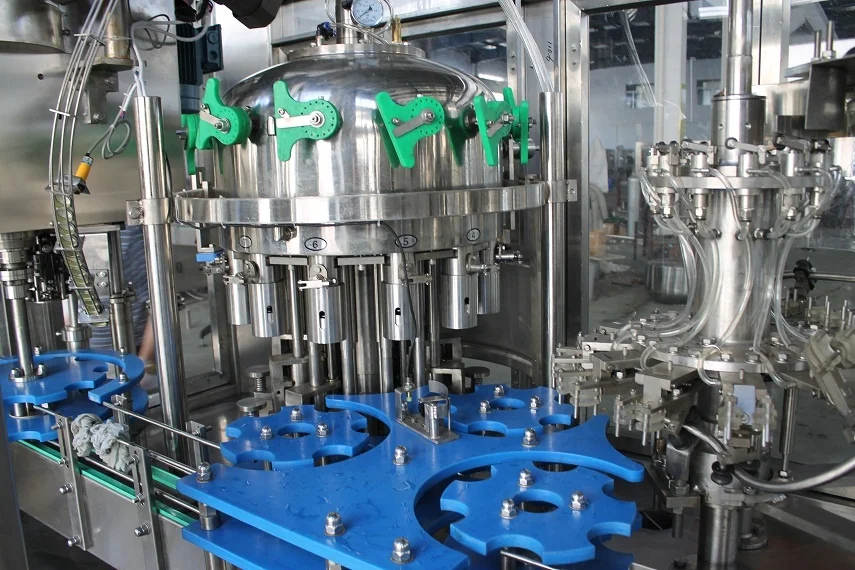

sparkling water filling machine
You can check machine'video from link: https://www.youtube.com/watch?v=AKz59s5YHug
Or you can click the followed picture:
Or you can click the followed picture:
If you want to know more videos of machine, you can check my Youtube: https://www.youtube.com/channel/UC0xTIHs82mYUAvwJ5LVKtzQ
We are manufacturer for glass bottle filling capping machine and can filling seaming machine, steady machine which can reach Germany standard, hope you can come to see us.
Description:

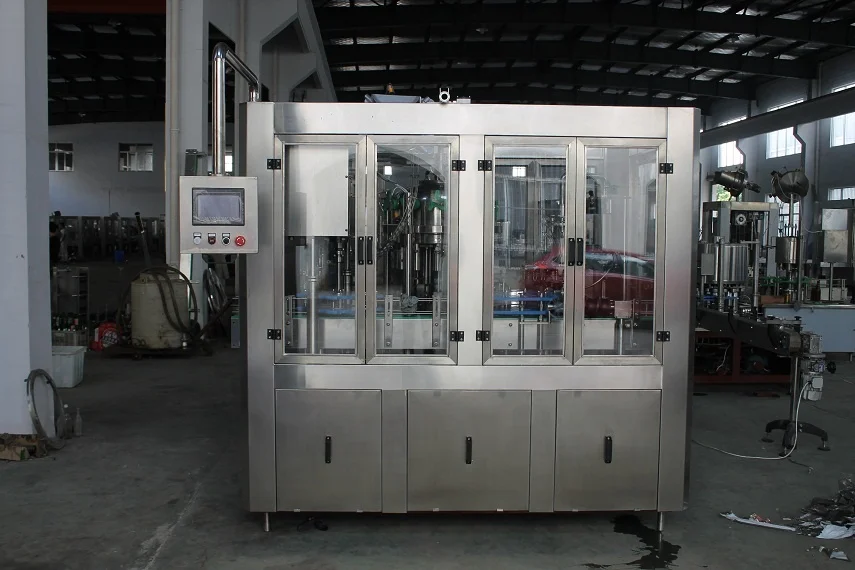

The machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine.
And the whole process is automatic. The filling operation is faster and more stable due to the micro-negative pressure filling operation of the new model is adopted.
The output and benefit of the machine is higher than the machines of the same specifications.
The advanced OMRON programmed controller (PLC) is adopted to control the machine running automatically, air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section, which can adjust speeds and coordinated with transducer of the main machine to make the operations of moving bottle forward steadily and reliable.
It is convenient to operate with higher automation due to every part for the machine is inspected to run with photo electrical detector. The machine is ideally preferred equipment for beverage makers.
The machine is mainly used in the beverage filling operations. The three functions of bottle washing, filling and capping are composed in one body of the machine.
And the whole process is automatic. The filling operation is faster and more stable due to the micro-negative pressure filling operation of the new model is adopted.
The output and benefit of the machine is higher than the machines of the same specifications.
The advanced OMRON programmed controller (PLC) is adopted to control the machine running automatically, air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section, which can adjust speeds and coordinated with transducer of the main machine to make the operations of moving bottle forward steadily and reliable.
It is convenient to operate with higher automation due to every part for the machine is inspected to run with photo electrical detector. The machine is ideally preferred equipment for beverage makers.
Technical features
*Filling valve adopts high-accuracy mechanical filling valve, with mechanism no bottle, no vacuum.
*Outside mounted mechanical filling valves. There is no spring or sealing parts inside the valve.
*Twice vacuum, with high pressure foam stimulation device.
*Adopt open type gear and gearbox combination transmission. Adopt variable frequency stepless timing with large adjustment scope.
*The transmission system equips automatic lubrication with grease, high-efficiency, little noise and long-life.
*While filling gas or beer, if bottle is broken due to quality problem, the filling valve will close automatically. It also equips automatic broken bottle washing device.
*Equip fully stainless steel magnetic cap hopper. Cap sorting, discharge and feeing are all conveyed by magnetic force, and the cap is not easy to become distorted. Mass and smooth cap discharge. Reliable capping with automatic unloading function to lower the bottle loss rate.
8Centering guide adopts double-leader type with pre-covering function. The bottle infeed and outfeed is table and reliable.
*The carousel and capping head elevation is electrical to adapt to various bottles with different height.
*The product level in the carousel is controlled by electric probe, with stable level and filling.
*Filling valve adopts high-accuracy mechanical filling valve, with mechanism no bottle, no vacuum.
*Outside mounted mechanical filling valves. There is no spring or sealing parts inside the valve.
*Twice vacuum, with high pressure foam stimulation device.
*Adopt open type gear and gearbox combination transmission. Adopt variable frequency stepless timing with large adjustment scope.
*The transmission system equips automatic lubrication with grease, high-efficiency, little noise and long-life.
*While filling gas or beer, if bottle is broken due to quality problem, the filling valve will close automatically. It also equips automatic broken bottle washing device.
*Equip fully stainless steel magnetic cap hopper. Cap sorting, discharge and feeing are all conveyed by magnetic force, and the cap is not easy to become distorted. Mass and smooth cap discharge. Reliable capping with automatic unloading function to lower the bottle loss rate.
8Centering guide adopts double-leader type with pre-covering function. The bottle infeed and outfeed is table and reliable.
*The carousel and capping head elevation is electrical to adapt to various bottles with different height.
*The product level in the carousel is controlled by electric probe, with stable level and filling.
Detailed Images
Machine Parts
Name: Washing part
Brand: MIC
Original: China
This is glass bottle washing part. The washing heads are rubber material. It will not drop bottle, will not damage bottle, and it will not scratch bottle also.
Brand: MIC
Original: China
This is glass bottle washing part. The washing heads are rubber material. It will not drop bottle, will not damage bottle, and it will not scratch bottle also.
Main Features
Name: Gas valve
Brand: MIC
Original: China
It is for gas open and closed valve. It has a plastic shell, which is a ceramic structure inside. To prevent the liquid corrosion, anti dust, to prevent leakage.
Brand: MIC
Original: China
It is for gas open and closed valve. It has a plastic shell, which is a ceramic structure inside. To prevent the liquid corrosion, anti dust, to prevent leakage.
Main Features

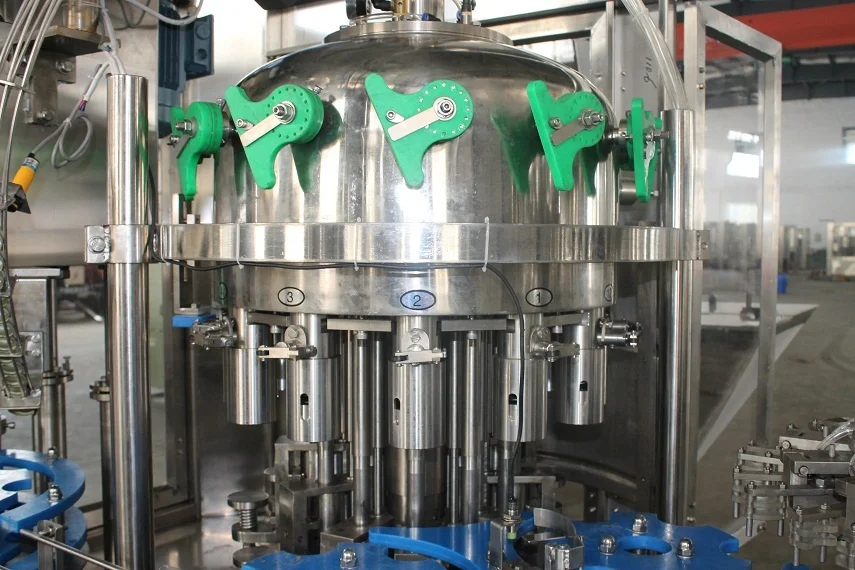

Name: Filling nozzle
Brand: MIC
Original: China
We designed this filling nozzle to sealing structure, reduce liquid to contact air, so it can control the Oxygen dissolved. At the same time, it can keep the dust into filling pipe.
Brand: MIC
Original: China
We designed this filling nozzle to sealing structure, reduce liquid to contact air, so it can control the Oxygen dissolved. At the same time, it can keep the dust into filling pipe.
Main Features
Name: Sealing head
Brand: MIC
Original: China
This is aluminum Cap sealing head. It has three sealing roller. It will sealing Cap from four sides, so the sealed Cap is very tighten and beautiful. It will not damage Cap or leakage Cap.
Brand: MIC
Original: China
This is aluminum Cap sealing head. It has three sealing roller. It will sealing Cap from four sides, so the sealed Cap is very tighten and beautiful. It will not damage Cap or leakage Cap.
Related Products
This machine need air compressor, 0.8 m3/min 10Kg is enough
This machine can be connected with:
- Water treatment system
- Glass bottle depalletizer
- Glass bottle washer, filler-seamer monoblock
- Glass bottle cooling tunnel
- Glass bottle blow dryer
- Liquid level inspector
- Glass bottle labeling machine
- Glass bottle code printer
- Glass bottle packaging system (shrink-wrapper or carton packaging machine)
- Palletizing system
This machine can be connected with:
- Water treatment system
- Glass bottle depalletizer
- Glass bottle washer, filler-seamer monoblock
- Glass bottle cooling tunnel
- Glass bottle blow dryer
- Liquid level inspector
- Glass bottle labeling machine
- Glass bottle code printer
- Glass bottle packaging system (shrink-wrapper or carton packaging machine)
- Palletizing system
Company Introduction
Feeding conveyor:
1. Easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device
5. Screw conveyor leader

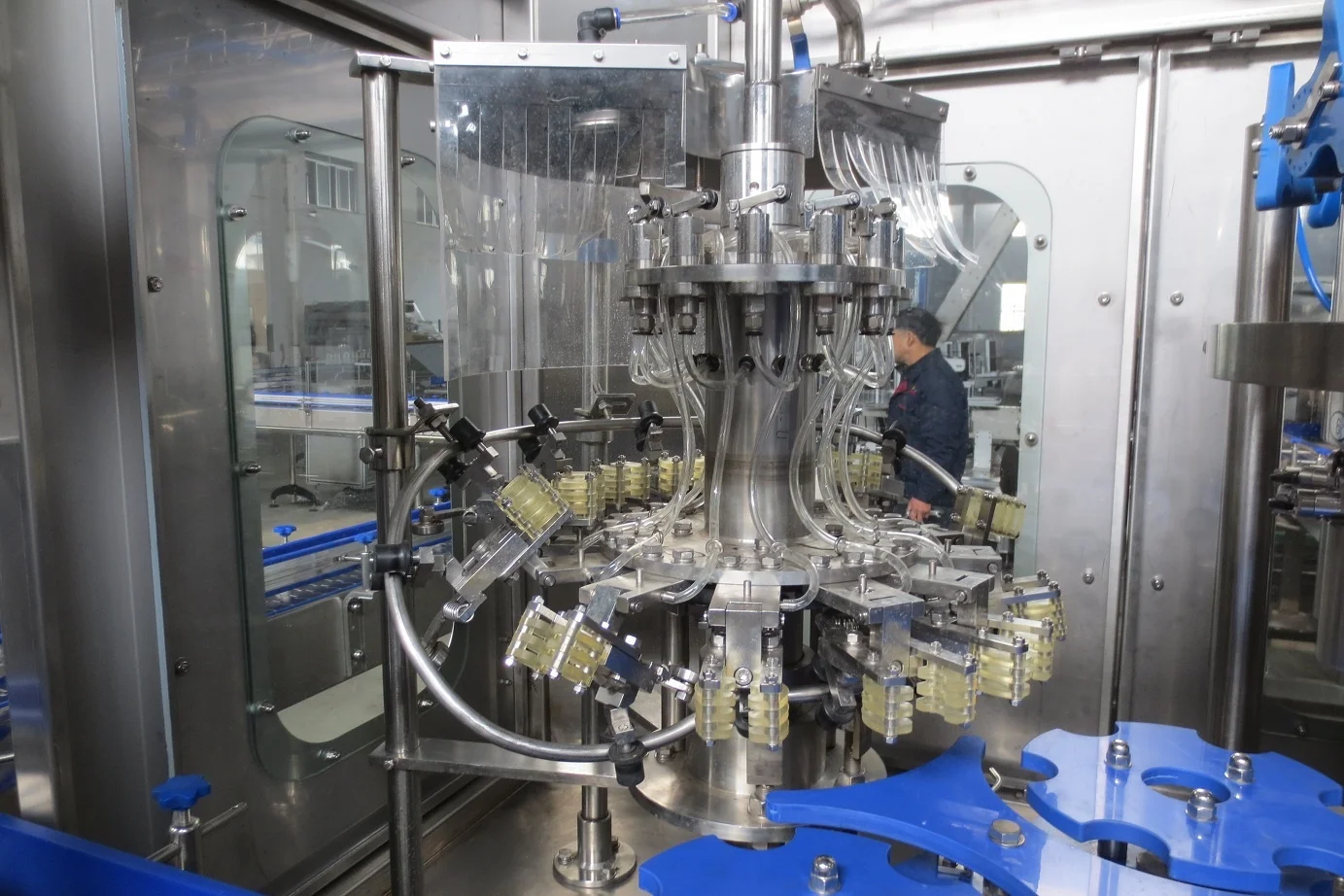

Washing part
1. Inverter clamp to pick up the bottles by catch the bottle neck
2. SUS304 stainless steel
3. Spraying nozzle could reach all the parts of the bottle, save the washing water
The bottle will be feed into the machine through the conveyor to the first part is rinsing part, there are many support seats and the bottle grippers, The grippers take the bottles from the inlet star wheel while they are still driven by the star wheel, thus guaranteeing a safe grip.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling part
1, No bottle no filling
2, Same filling level of all the bottles, adjustable filling level
3, Filling precision ≤±2mm
4, Isobaric pressure filling valve
5, 0-4 filling temperature
6, No filling, no capping, no Cap loading
7, Filling volume: 0.1-1L
8, Filling speed: 800-1500bottle/hr
9, Filling material: Beer or other carbonated drinks
10, Cap type: Aluminum Cap or crown Cap

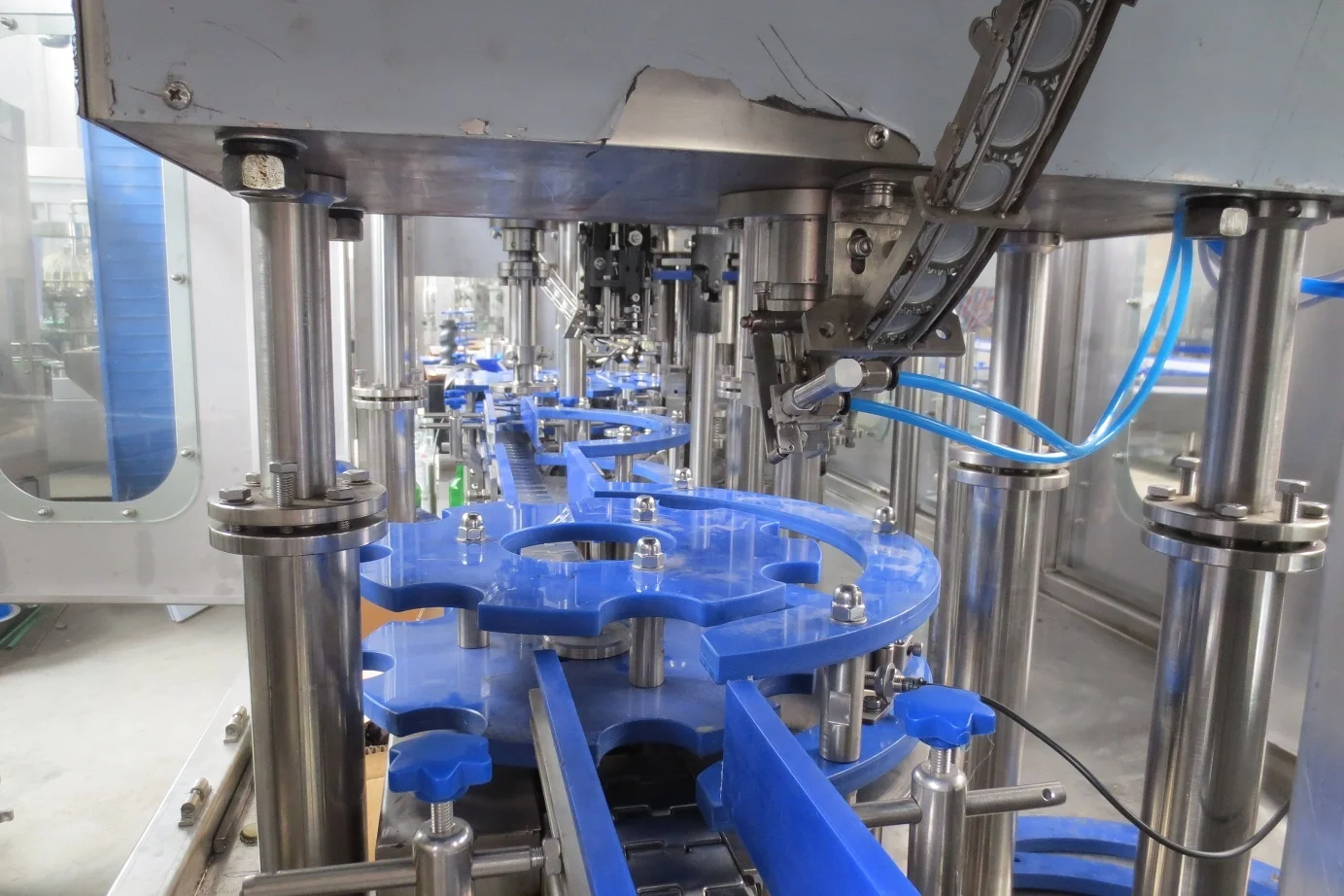

Capping part
1. Aluminum cap, Crown cap, plastic cap, metal cap
2. No bottle no capping
3. Two sensor to check, PLC control
4. No full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feeding
1. Easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device
5. Screw conveyor leader
Washing part
1. Inverter clamp to pick up the bottles by catch the bottle neck
2. SUS304 stainless steel
3. Spraying nozzle could reach all the parts of the bottle, save the washing water
The bottle will be feed into the machine through the conveyor to the first part is rinsing part, there are many support seats and the bottle grippers, The grippers take the bottles from the inlet star wheel while they are still driven by the star wheel, thus guaranteeing a safe grip.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.
Filling part
1, No bottle no filling
2, Same filling level of all the bottles, adjustable filling level
3, Filling precision ≤±2mm
4, Isobaric pressure filling valve
5, 0-4 filling temperature
6, No filling, no capping, no Cap loading
7, Filling volume: 0.1-1L
8, Filling speed: 800-1500bottle/hr
9, Filling material: Beer or other carbonated drinks
10, Cap type: Aluminum Cap or crown Cap
Capping part
1. Aluminum cap, Crown cap, plastic cap, metal cap
2. No bottle no capping
3. Two sensor to check, PLC control
4. No full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feeding
CE
Packing&Shipping
Size: 2000(L) * 1200(W) * 2400(H)
Weight: 1850KG
Packaging Details:
*Non-original wood
*Bambooboxs
*Waterproof, anti moth
*Machines will be fixed in the wooden box
*Meet the requirements of long distance transportation
*Can not be recycledThe normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tigher,we will use PE film for packing or pack it according to customers special request.
Weight: 1850KG
Packaging Details:
*Non-original wood
*Bambooboxs
*Waterproof, anti moth
*Machines will be fixed in the wooden box
*Meet the requirements of long distance transportation
*Can not be recycledThe normal package is wooden box(Size: L*W*H). If export to European countries,the wooden box will be fumigated.If container is too tigher,we will use PE film for packing or pack it according to customers special request.
After Sales Service
According to customer's requirement, we will offer our technician for oversea to install and adjust sparkling water filling machine service.
We can also provide our Sales as translator to your site help the installation and Training.
Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
If you want to know more information about us, please click here
Thank you for choosing MIC MACHINERY CO., LTD
We can also provide our Sales as translator to your site help the installation and Training.
Only to provide the local transportation, accommodation, air tickets (round trip) for Sales will be fine.
If you want to know more information about us, please click here
Thank you for choosing MIC MACHINERY CO., LTD
