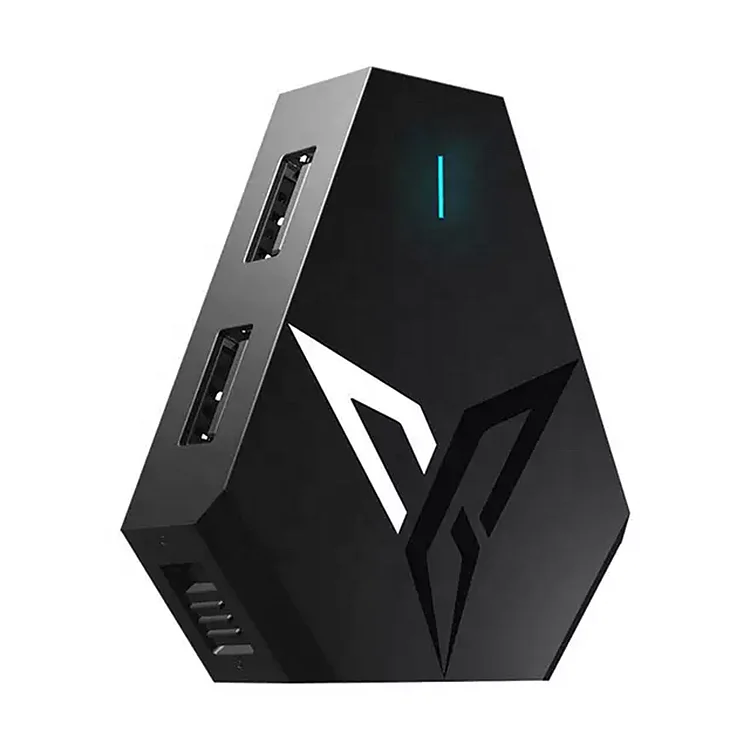

Q1 BattleDock конвертер для игр в секунду с использованием перезаряжаемого держателя для телефона pubg Peace Elite
15,00 $ - 20,00 $
Керамический панельный нагреватель для инфракрасных каталитических нагревателей
- Категория: >>>
- Поставщик: Shanghai Panfeng Machinery Co. Ltd.
Сохранить в закладки 1600075322403:
Описание и отзывы
Характеристики
Product Description
preheating time | 10 minutes |
Infrared wavelength | 2μm-10μm |
Characteristics 1 | High drying quality |
Characteristics 2 | sturdy and durable |
Characteristics 3 | No flames |
Characteristics 4 | lower emission |
Application field 1 | Paint drying |
Application field 2 | Powder coating melt curing |
Application field 3 | plastic molding and processing |
Application field 4 | Natural gas pipeline heating |
Infracat

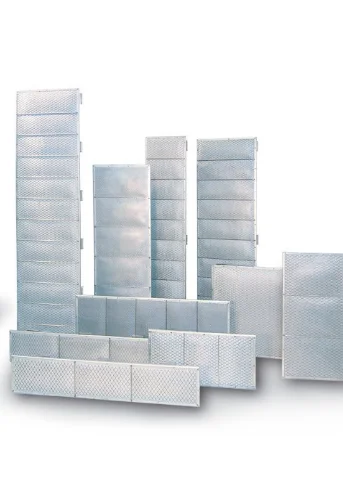

INFRACAT catalytic infrared radiation panel;
Suitable for clean gas fuels such as natural gas and liquefied gas;
Radiation panel surface temperature adjustment range: 180°C to 550°C;
Radiant panel can be designed according to requirements, heating power: 1.5kW to 17kW;
Products comply with CE certification, FM certification, ATEX explosion-proof certification, EAC certification, etc.
The achievable design power is: 20kW/m²
Radiation panel surface temperature adjustment range: 180°C to 550°C;
Radiant panel can be designed according to requirements, heating power: 1.5kW to 17kW;
Products comply with CE certification, FM certification, ATEX explosion-proof certification, EAC certification, etc.
The achievable design power is: 20kW/m²
Principle
Gas-catalyzed infrared heating technology is a kind of heating technology without open flame. It is based on combustible gas (natural gas, liquefied gas) working on the basis of catalytic oxidation reaction, and releases heat through infrared waves.
Gas (natural gas or liquefied petroleum gas) is in contact with oxygen, and through a properly preheated platinum catalyst, the gas is oxidized and heat energy is generated. The heat energy is released by infrared rays.
Gas（燃气） + Oxygen（氧气） + Platinum Catalyst（铂催化剂） = CO2（二氧化碳） + H2O（水蒸气） + IR heat（红外热能）
Gas (natural gas or liquefied petroleum gas) is in contact with oxygen, and through a properly preheated platinum catalyst, the gas is oxidized and heat energy is generated. The heat energy is released by infrared rays.
Gas（燃气） + Oxygen（氧气） + Platinum Catalyst（铂催化剂） = CO2（二氧化碳） + H2O（水蒸气） + IR heat（红外热能）
Water, epoxy, resin, ABS, acrylic mainly absorb light waves 3-4 µm
Gas catalyzed output light wave perfectly matches absorption light wave
Gas catalyzed output light wave perfectly matches absorption light wave
Advantage
Infrared radiation heating does not require any medium, and the heat loss is small；
The radiant energy of radiant heating is proportional to the fourth power of radiant temperature, and can provide a heat flux density dozens of times higher than that of convection heating
Radiation panel preheating-only 10 minutes!
The gas preheating power of the gas radiant panel is lower, which is 1/2 of the power of similar products in Europe and America
The radiation board complies with ATEX explosion-proof certification, safe and reliable
Back ventilation technology to ensure sufficient oxygen supply to the catalyst, not poisoning
Energy saving and environmental protection, relative hot air drying, the speed can be increased by 2-4 times. Compared with electric infrared, it can save 30-50% energy；
Gas catalyst infrared technology has low emissions, and CO and NOx emissions are almost 0
The radiant energy of radiant heating is proportional to the fourth power of radiant temperature, and can provide a heat flux density dozens of times higher than that of convection heating
Radiation panel preheating-only 10 minutes!
The gas preheating power of the gas radiant panel is lower, which is 1/2 of the power of similar products in Europe and America
The radiation board complies with ATEX explosion-proof certification, safe and reliable
Back ventilation technology to ensure sufficient oxygen supply to the catalyst, not poisoning
Energy saving and environmental protection, relative hot air drying, the speed can be increased by 2-4 times. Compared with electric infrared, it can save 30-50% energy；
Gas catalyst infrared technology has low emissions, and CO and NOx emissions are almost 0
Application field
Drying of solvent-based paint and water-based paint;
Powder coating melting;
Powder coating curing (full curing treatment);
Wood industry (MDF and HDF powder curing);
Food drying;
Glass paint drying (decoration, mirror processing);
The printing ink is dry;
Textile drying and heating;
Reheating of product treatment;
Drying after surface treatment;
Powder coating melting;
Powder coating curing (full curing treatment);
Wood industry (MDF and HDF powder curing);
Food drying;
Glass paint drying (decoration, mirror processing);
The printing ink is dry;
Textile drying and heating;
Reheating of product treatment;
Drying after surface treatment;

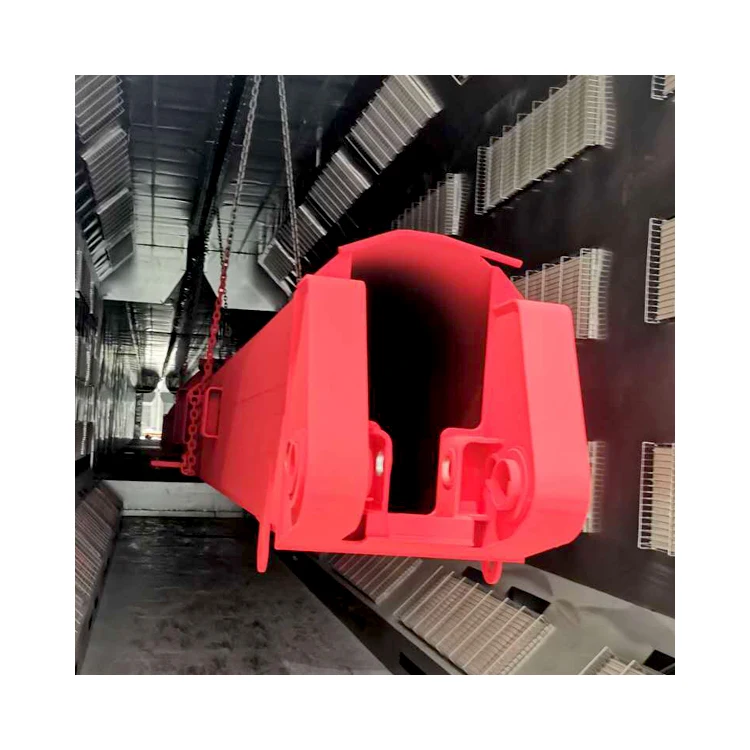

Applications
Certification
Why us
50 years of experience
Perfect customer technical support system
Quick response
Rapid heating technology
Adjustable temperature
Environmental protection
Energy saving
Safety
high efficiency
save space
Can be used for explosion protection
Perfect customer technical support system
Quick response
Rapid heating technology
Adjustable temperature
Environmental protection
Energy saving
Safety
high efficiency
save space
Can be used for explosion protection
Похожие товары
Распродажа! 11,11 оптовая продажа, строительные материалы Ханчжоу, украшение интерьера, современный дом, горячая Распродажа, ПВХ дизайн шкафа для ванной комнаты
500,00 $

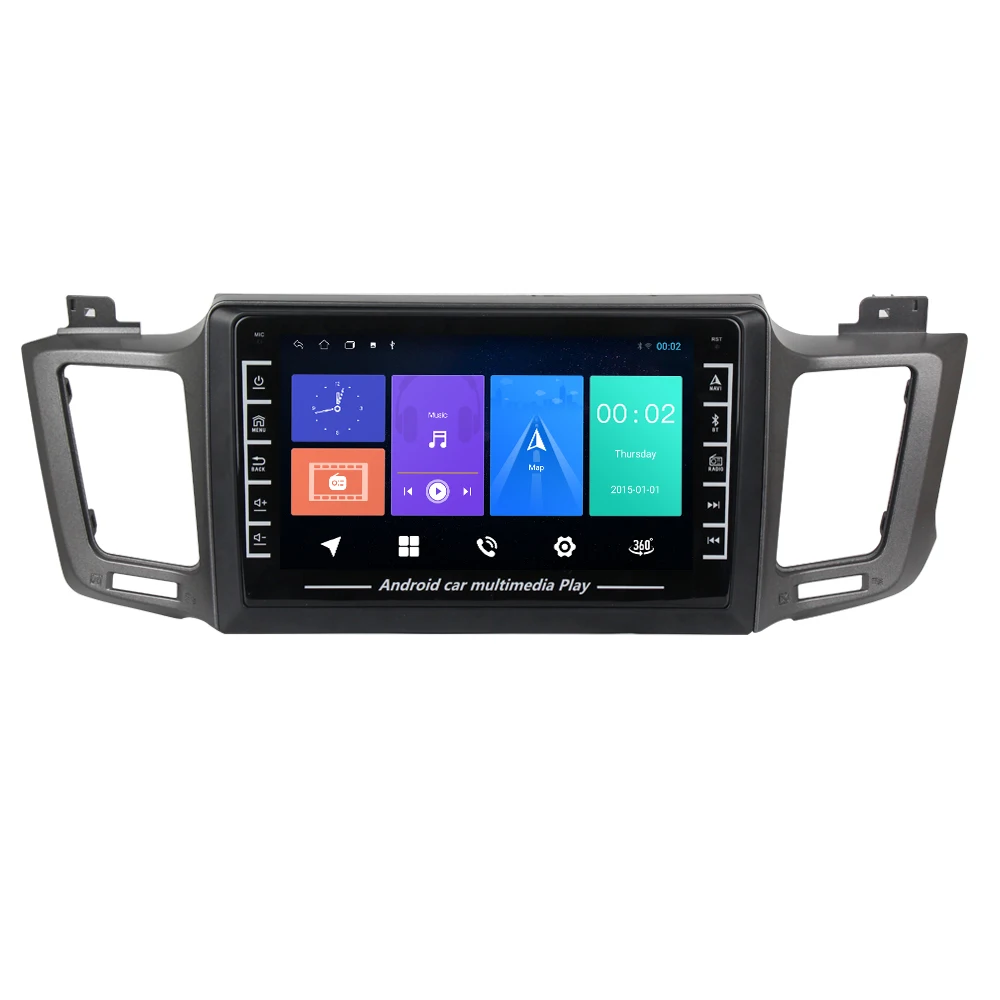

Navitree TS7 Android IPS радио для Toyota RAV4 2012 2013 2014-2018 Автомобильный мультимедийный плеер с gps автомобильное радио видео для автомобиля

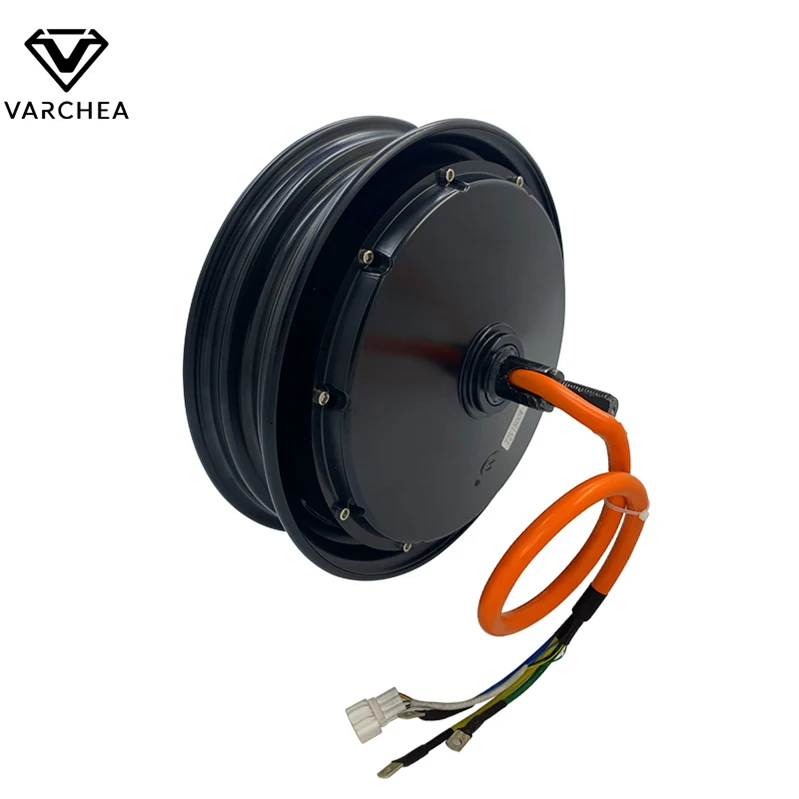

Высокое качество 5000w Бесщеточный Bldc электрическая втулка для задний мотор
54,00 $ - 65,00 $

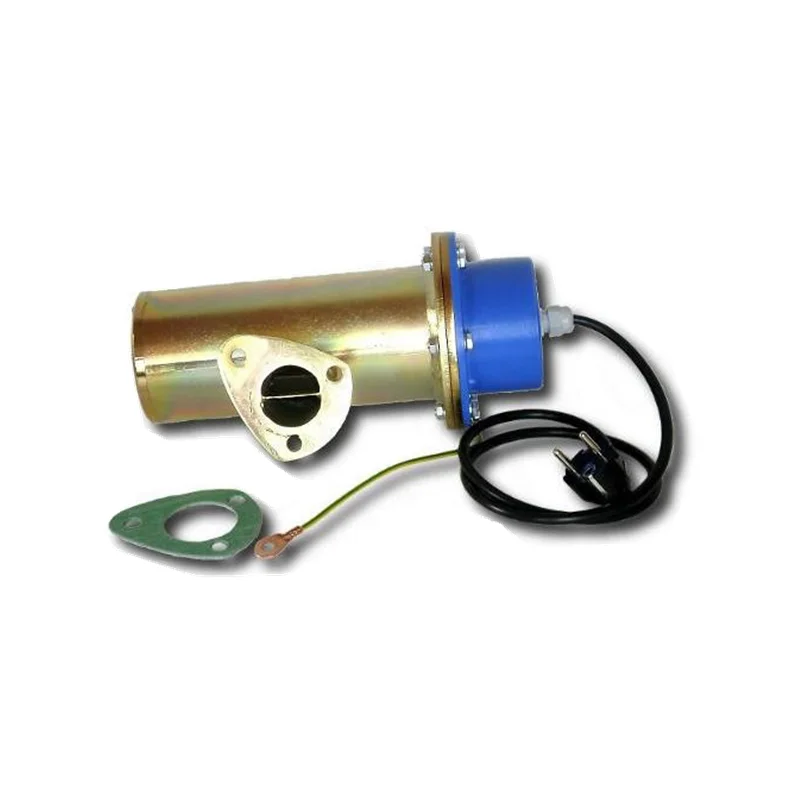

OEM SK-1800t MT3 1800W 220V/12V двигатель предпусковой подогреватель жидкости трактора МТЗ запасных частей
20,80 $ - 25,00 $
Лидер продаж, текстиль, простой полиэстер, эластичная ткань из спандекса и замши для одежды, домашний текстиль
4,10 $ - 4,40 $

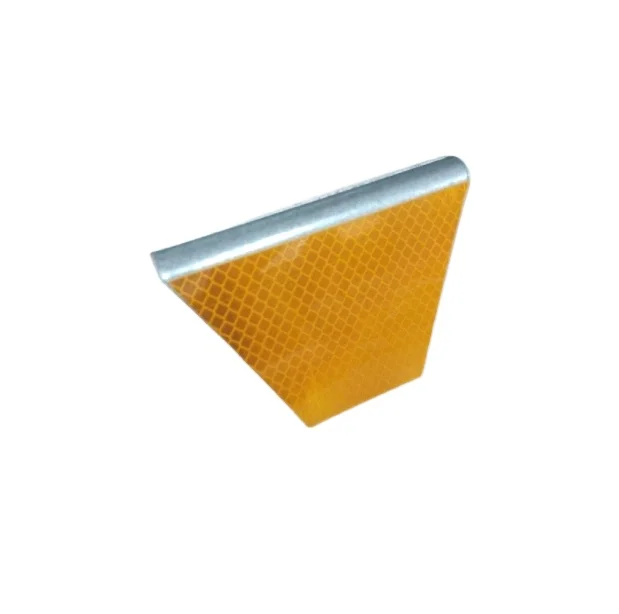

Высококачественные отражающие Светоотражающие отражатели для автомагистралей, производство Китай
