Нелинейный детектор соединения AT-802 NLJD Decetor
1 296 074,40 ₽ - 1 412 721,10 ₽
Нелинейный детектор соединения AT 802 Оборудование безопасности NLJD
- Категория: >>>
- Поставщик: Shenzhen Top Saful Electronic Tech Co. Ltd.
Сохранить в закладки 1600075984199:
Описание и отзывы
Характеристики
Product Paramenters

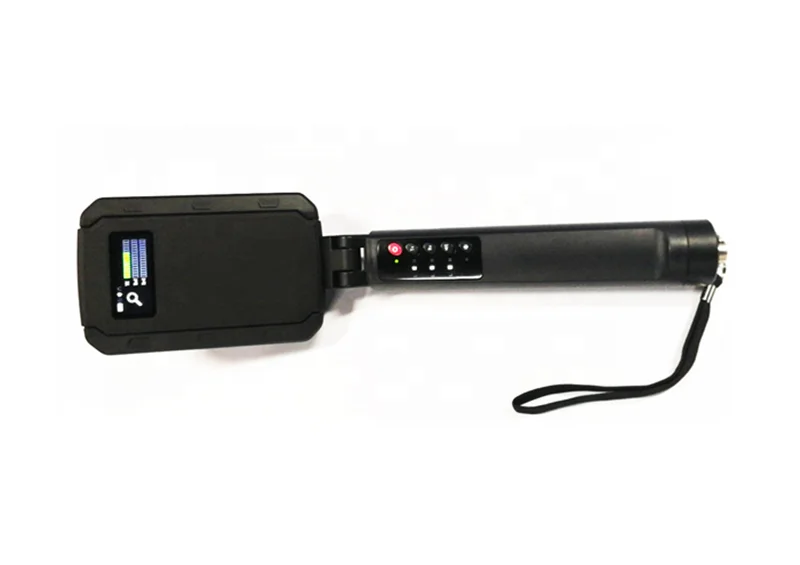

AT-802 Security Equipment NLJD Non Linear Junction Detector
Description
AT-801 non-linear junction detector is used for search and location of electronic devices both in active and switch-off state. The detector operation is based on the property of semiconductor components to generate a harmonics response when radiated by a microwave probing signal.
AT-801 non-linear junction detector can automatically find the best reception frequency channel without interference, it can be used in a complex electromagnetic environment. Power output can be automatically adjusted to facilitate the work of the operating personnel to themaximum extent.
AT-801 can simultaneously detect semiconductors and metals, such as remote control, mobile phones, cameras, listening devices, transmitters and so on.
AT-801 non-linear junction detector can automatically find the best reception frequency channel without interference, it can be used in a complex electromagnetic environment. Power output can be automatically adjusted to facilitate the work of the operating personnel to themaximum extent.
AT-801 can simultaneously detect semiconductors and metals, such as remote control, mobile phones, cameras, listening devices, transmitters and so on.
1. Transmitter range: 2400.5MHz -- 2485.5MHz
2. Signal form: Pulse duty cycle of 5%
3. Pulse width: 500us
4. Transmitter power:3.7W(peak), power error: ± 15%, Working voltage: 7.4V
5. Second harmonic receiver frenquency: 4808MHz -- 4944MHz
6. Second harmonic receiver sensitivity:-130dBm
7. Third harmonic receiver frenquency: 7212MHz -- 7416MHz
8. Third harmonic receiver sensitivity: -130dBm
9. Working time:more than 6hours
2. Signal form: Pulse duty cycle of 5%
3. Pulse width: 500us
4. Transmitter power:3.7W(peak), power error: ± 15%, Working voltage: 7.4V
5. Second harmonic receiver frenquency: 4808MHz -- 4944MHz
6. Second harmonic receiver sensitivity:-130dBm
7. Third harmonic receiver frenquency: 7212MHz -- 7416MHz
8. Third harmonic receiver sensitivity: -130dBm
9. Working time:more than 6hours
Products Description

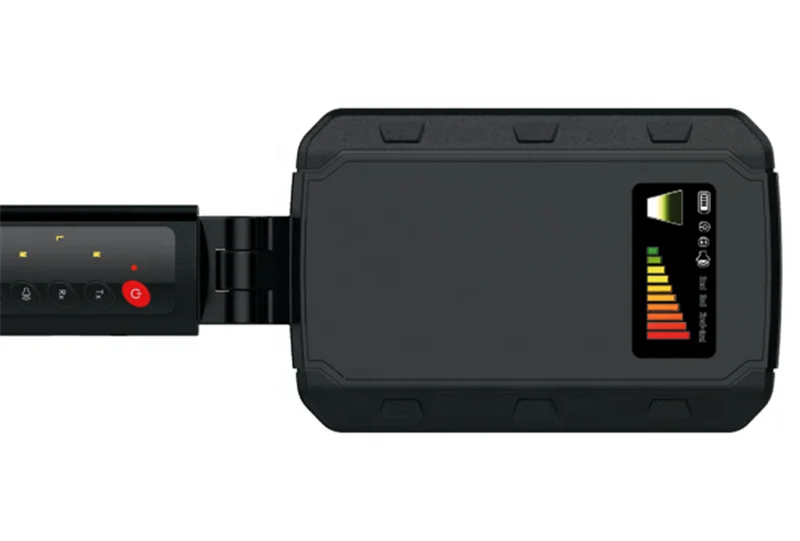

1. Antenna: Transmitting and receiving radio signals.
2. Searchlight: Helping operator to detect objects in dark area.
3. Head-end display: Displaying Tx power, 2nd harmonic signal, 3rd harmonic signal, detect result, IR
imaging in real time.
4. Extension rod: Maximum extension rod length is up to 1.45 meter.
5. Horn speaker: Supporting sound warning.;
6. Central control panel screen: Displaying control menu.
7. Switch: Control the device to switch on and off,press and hold the device for 3 seconds
8. Type-c interface: Charging by AC-DC adapter.
9. Headphone jack: Supporting 3.5mm headphone.
10. Charging indicator light: The light shows red color when it is charging; the light turns to green
after the battery is fully charged. The light will flick in red and green color if there is no battery in
compartment when charging.
11. Battery compartment: Use to install battery.
2. Searchlight: Helping operator to detect objects in dark area.
3. Head-end display: Displaying Tx power, 2nd harmonic signal, 3rd harmonic signal, detect result, IR
imaging in real time.
4. Extension rod: Maximum extension rod length is up to 1.45 meter.
5. Horn speaker: Supporting sound warning.;
6. Central control panel screen: Displaying control menu.
7. Switch: Control the device to switch on and off,press and hold the device for 3 seconds
8. Type-c interface: Charging by AC-DC adapter.
9. Headphone jack: Supporting 3.5mm headphone.
10. Charging indicator light: The light shows red color when it is charging; the light turns to green
after the battery is fully charged. The light will flick in red and green color if there is no battery in
compartment when charging.
11. Battery compartment: Use to install battery.
Recommend Products
Packing & Shipping
Packing List
1. Nonlinear junction detector host X1
2. Headphone X1
3. Backup battery X1
4.AC-DC adapter (with type-c cable) X1
5. Power charger X1
6. Electronic sample X1
2. Headphone X1
3. Backup battery X1
4.AC-DC adapter (with type-c cable) X1
5. Power charger X1
6. Electronic sample X1
Shipping Methods Available:
By air (5-7 days, most expensive)
By express (3-7 days, more expensive)
By sea (15-28d ays, cheapest)
Our Advantages
Sample | Contact us to palce a sample order to make the quality test. Mixed samples are available. | ||||||
Customization | Supported OEM and ODM service, included print your logo as your requested . | ||||||
Shipping | Multi optional shipping service (couriers, air, and sea) | ||||||
Payment terms | T/T, Western Union, Money Gram, Cash, Escrow, L/C | ||||||
Company Profile
Shenzhen Top Saful Electronic Tech Co., Ltd. (topsaful.com) is a Chinese leading supplier of security products. It focused on researching, design, manufacture and exporting safe products such as video door phone, GSM alarm system and other security equipment for your house, shop, school, and other public places.
The main activities include: GSM alarm system, video door phone system and other security products, design, manufacture and marketing.
"Honesty, tolerance, innovation, service" Shenzhen Top Saful Electronic Tech Co., Ltd. that honesty is the foundation of all cooperation, tolerance is the premise of problem-solving, innovation is a tool for career development and service is fundamental to create value.
The main activities include: GSM alarm system, video door phone system and other security products, design, manufacture and marketing.
"Honesty, tolerance, innovation, service" Shenzhen Top Saful Electronic Tech Co., Ltd. that honesty is the foundation of all cooperation, tolerance is the premise of problem-solving, innovation is a tool for career development and service is fundamental to create value.
Certifications
FAQ
1. Can I have a sample order?
Yes, we are willing to offer trial sample order for you to make the quality test. Mixed samples are available.
2. How long is the lead time?
Sample usual take about 1-3 business days, mass production time will take about 10-15 business days for the orders less than 5000pcs.
3. Do you have any MOQ limited?
Some of Inventory items MOQ is 1PC , and the EXW MOQ is 100pcs under blank box.
4. How do you ship the goods and how long does it delivery?
The sample will be sent to customers by optional shipping service (couriers, air, and sea). The delivery time is depended on the your choice of shipping method.
5. How to proceed the order with logo printed service?
Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would
make sampling firstly from silk print factory and take picture for your second confirmation before
mass production.
Please feel free to contact me to get more details !
Yes, we are willing to offer trial sample order for you to make the quality test. Mixed samples are available.
2. How long is the lead time?
Sample usual take about 1-3 business days, mass production time will take about 10-15 business days for the orders less than 5000pcs.
3. Do you have any MOQ limited?
Some of Inventory items MOQ is 1PC , and the EXW MOQ is 100pcs under blank box.
4. How do you ship the goods and how long does it delivery?
The sample will be sent to customers by optional shipping service (couriers, air, and sea). The delivery time is depended on the your choice of shipping method.
5. How to proceed the order with logo printed service?
Firstly, we will prepare artwork for visual confirmation. If the color and position are right, we would
make sampling firstly from silk print factory and take picture for your second confirmation before
mass production.
Please feel free to contact me to get more details !
