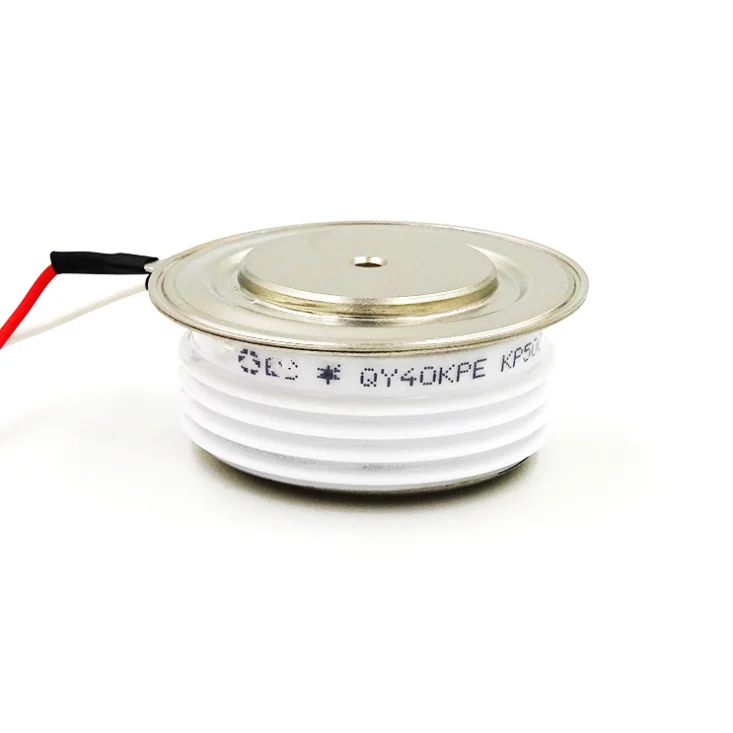

Электронный компонент, тиристор управления фазой N2500VC160
88,29 $ - 120,79 $
Flcnc F7600W IN win10 операционная система числового программного управления для 2 оси портальная плазма режущая машина
- Категория: >>>
- Поставщик: Shanghai Fangling Computer Software Co. Ltd.
Сохранить в закладки 1600076112918:
Описание и отзывы
Характеристики
Product Description
Technical Specification | ||
Control Axis | 2-axis linkage (maximum expandable to 6 axes) | |
Operating System | Windows 10 | |
Control accuracy | +/-0.001mm | |
Motor drive | pulse + direction | |
Max speed | 30,000 mm/m | |
Space | 120G SSD | |
Working Voltage | DC +24V | |
CPU | 1.5Ghz | |
F7600W-IN CNC system absorbs the advantages of many CNC systems at home and abroad, and with reference to the company's F2000 series, F3000 series and F5000 series systems, a CNC system with more complete functions, stronger performance and more convenient use is developed. The product uses a multi-axis digital position control method that supports up to 6 axes of linkage, of which 4 axes have position monitoring. It is suitable for all CNC machine tools that use position control. Such as oxygen gas, plasma, laser cutting machine tools.
F7600W-IN controller runs on the Linux real-time operating system. It is equipped with Cortex-A8 chip and very large programmable device FPGA. The combination of software and hardware is adopted for interpolation. The Company has been engaged in numerical control system research for many years. Based on the original trajectory planning, speed preview and corner control, the S-type acceleration and deceleration and B-spline interpolation technology of the machine tool have been introduced, which makes the machine control more stable and the protection mechanism more perfect.
F7600W-IN controller runs on the Linux real-time operating system. It is equipped with Cortex-A8 chip and very large programmable device FPGA. The combination of software and hardware is adopted for interpolation. The Company has been engaged in numerical control system research for many years. Based on the original trajectory planning, speed preview and corner control, the S-type acceleration and deceleration and B-spline interpolation technology of the machine tool have been introduced, which makes the machine control more stable and the protection mechanism more perfect.
Function
Standard Function
01\tGantry dual-drive + Encoder feedback\t
02\tPre-installed CAM Software\t
03\tIntegrated THC(optional)\t
04\tDrilling and cutting\t
05\tCutting parameter library\t
06\tDual small hole cutting\t
07\tHorizontal independence servo axis\t
08\tVisualize remnant process\t
09 Inkjet system\t
Standard Function
01\tGantry dual-drive + Encoder feedback\t
02\tPre-installed CAM Software\t
03\tIntegrated THC(optional)\t
04\tDrilling and cutting\t
05\tCutting parameter library\t
06\tDual small hole cutting\t
07\tHorizontal independence servo axis\t
08\tVisualize remnant process\t
09 Inkjet system\t
Optional Function
10 Auto edge-tracin
11 Remote system diagnosis
12 Plasma power source communication
13 S-type acceleration
14 Bezier curve
15 Work piece edge scanning and cutting
16 OPC UA Communication
17 Cloud MES
18 Laser/Plasma cutting
Details Images

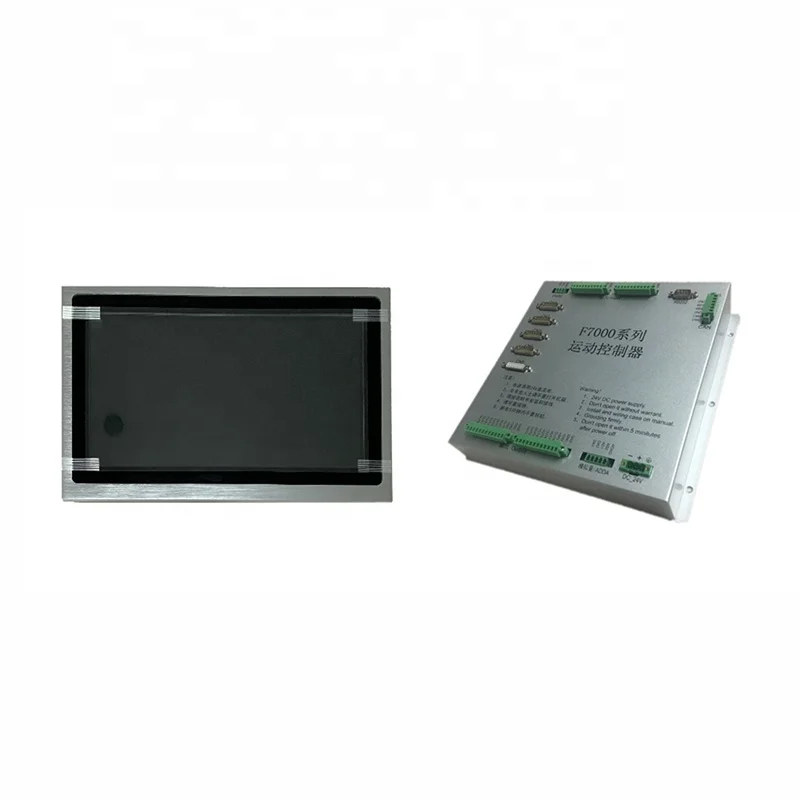

1.Monitor：19" LCD widescreen touch screen
2.Capacitive touch screen
3.Installation dimensions: 495*325*54mm
2.Capacitive touch screen
3.Installation dimensions: 495*325*54mm

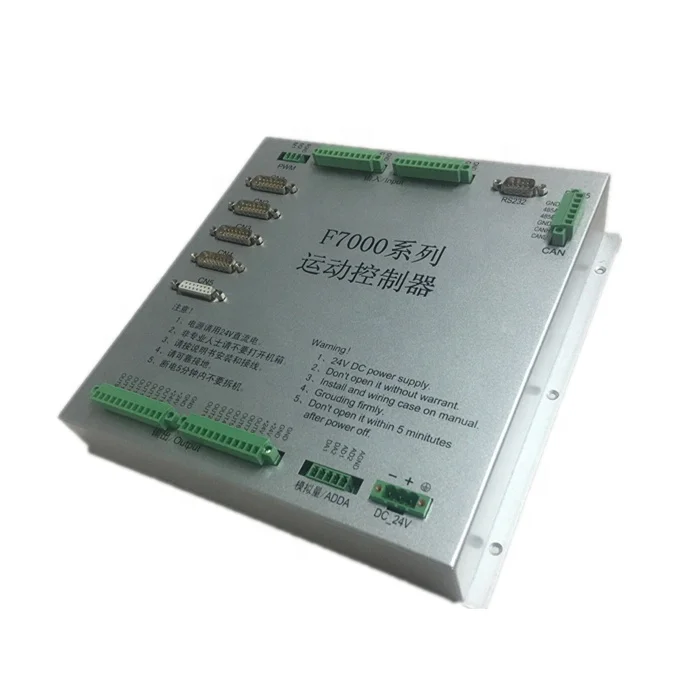

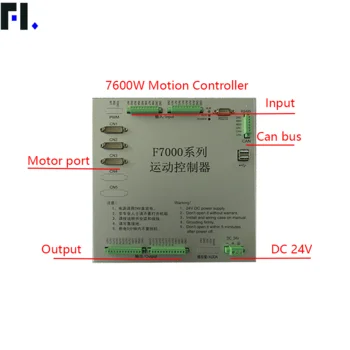

1.Axis: 2 axes（extendable to 6 axes）
2.Accuracy: ±0.001mm
3.Motor: Pulse+Direction
4.Pulse Freq：250K
5.Running Speed: 30m/min
6.Static test：±4KV
7.I/O: 16 in 16 out, all optocoupler
2.Accuracy: ±0.001mm
3.Motor: Pulse+Direction
4.Pulse Freq：250K
5.Running Speed: 30m/min
6.Static test：±4KV
7.I/O: 16 in 16 out, all optocoupler

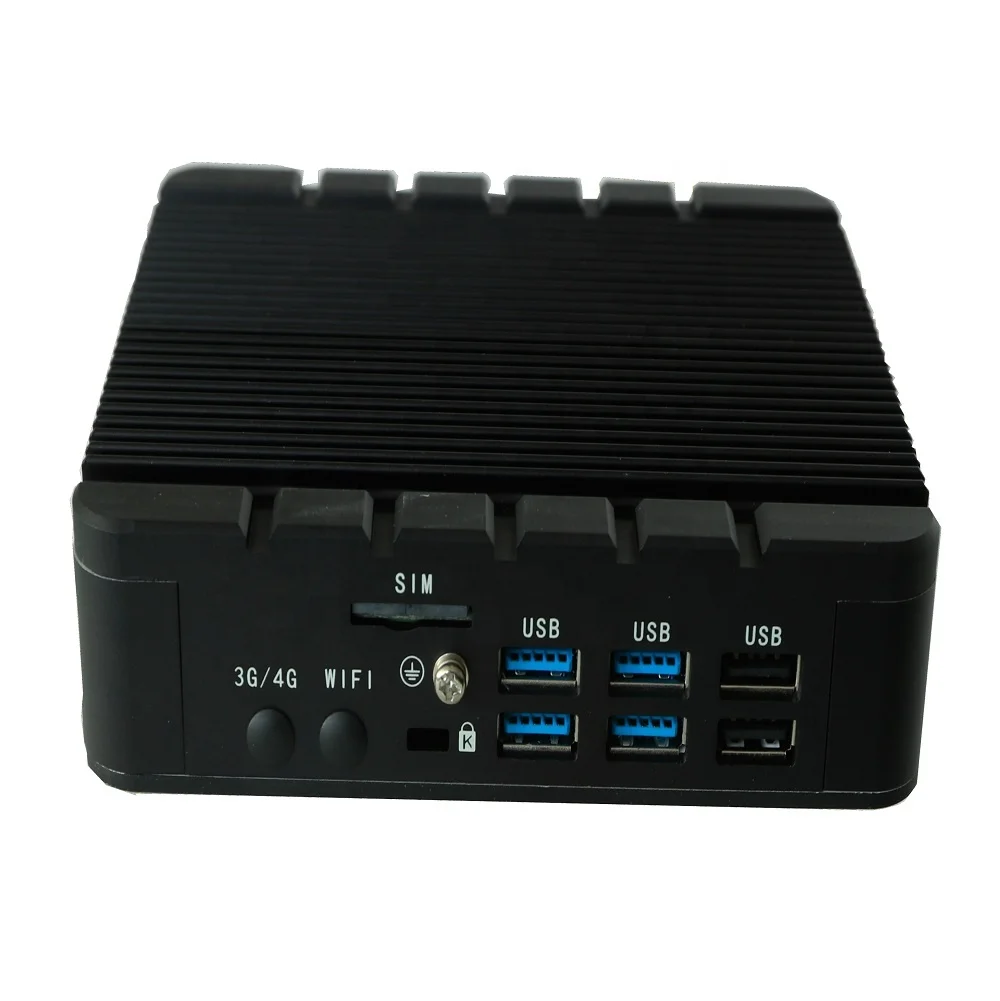

Industrial control computer
1.CPU: 1.5Ghz
2.RAM: 4G3.Space: 120G SSD
For F7600W-IN all-in-one machine, industrial computer back hung on the back of 19-inch touch screen metal case!
Company Profile
Shanghai Fangling Computer Software Co., Ltd is the high-tech enterprise which has more than 10 years’ experience in research, development, production and marketing of Computer Numerical Control(CNC) Field. Nowadays, the company has successfully launched several product lines that include Plasma/Flame plate cutting controller, Built-up Welding Control System, Drilling Control System, Tube Cutting CNC controller, C-beam/H-beam Cutting CNC controller and other related CNC field control systems.
These products are widely being used in multiple manufacturing businesses such as Marine Engineering, Mineral Engineering, Construction, and Automobile manufactory. The market is not only covering China, but also covering Southeast Asia, Russian, Africa, Europe, and South America, etc.. The products are being highly spoken because of their performance and cost-effectiveness.
Exhibition
Our Advantages
Pre-sales service:
1.Office visit
2.Pre-consult and technical guidance
3.Pipe cutting solution guidance
2.Pre-consult and technical guidance
3.Pipe cutting solution guidance
After-sales service:
1.Network technical support and guidance
2.Related documents access
3.Cutting Solution consulting
2.Related documents access
3.Cutting Solution consulting
Packing & Delivery
FAQ
Q: How do you guarantee the quality?
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
Contact Us
Похожие товары
1 шт. анимированные peluche; Мягкая; С электрическим музыкальная плюшевая танцы кактус игрушка
3,33 $ - 4,62 $
Auto углеродное волокно 3D Тип передний бампер губа ДЛЯ BMW X5M F85 MT 2016 +
210,00 $ - 230,00 $
COSCELIA, оптовая продажа, безопасные сверла для дизайна ногтей с УФ-лампой для ногтей и комплектами верхнего покрытия
13,84 $ - 16,35 $
Хорошее качество прямые поставки с завода цветные детские танцевальные туфли для девочек
14,00 $ - 18,00 $
Yongxiu автозапчасти экспорт D1089 тормозные колодки передние тормозные колодки
5,20 $ - 5,50 $
PC200-6 6D102 электромагнитный клапан 206-60-51130 206-60-51131 Для запчастей экскаватора Komatsu

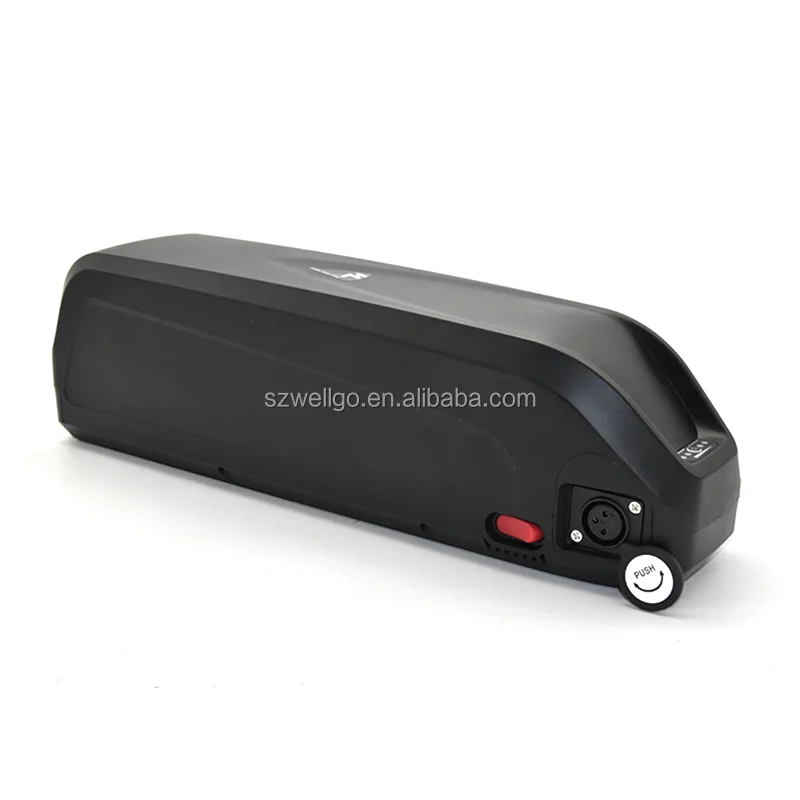

Литий-ионный аккумулятор Hailong 36 в 13 А · ч 48 в 48 в 10 А · ч
