Горячая распродажа! F7600WF IN 1 5 ГГц процессор числового программного управления для 2 оси портальная плазма режущая машина
- Категория: >>>
- Поставщик: Shanghai Fangling Computer Software Co. Ltd.
Сохранить в закладки 1600076172202:
Описание и отзывы
Характеристики
Product Description
Technical Specification | ||
Control Axis | 2-axis linkage (maximum expandable to 6 axes) | |
Operating System | Windows 10 | |
Control accuracy | +/-0.001mm | |
Motor drive | pulse + direction | |
Max speed | 30,000 mm/m | |
Space | 120G SSD | |
Working Voltage | DC +24V | |
CPU | 1.5Ghz | |
F7600WF-IN CNC system absorbs the advantages of many CNC systems at home and abroad, and with reference to the company's F2000 series, F3000 series and F5000 series systems, a CNC system with more complete functions, stronger performance and more convenient use is developed. The product uses a multi-axis digital position control method that supports up to 6 axes of linkage, of which 4 axes have position monitoring. It is suitable for all CNC machine tools that use position control. Such as oxygen gas, plasma, laser cutting machine tools.
F7600WF-IN controller runs on the Linux real-time operating system. It is equipped with Cortex-A8 chip and very large programmable device FPGA. The combination of software and hardware is adopted for interpolation. The Company has been engaged in numerical control system research for many years. Based on the original trajectory planning, speed preview and corner control, the S-type acceleration and deceleration and B-spline interpolation technology of the machine tool have been introduced, which makes the machine control more stable and the protection mechanism more perfect.
F7600WF-IN controller runs on the Linux real-time operating system. It is equipped with Cortex-A8 chip and very large programmable device FPGA. The combination of software and hardware is adopted for interpolation. The Company has been engaged in numerical control system research for many years. Based on the original trajectory planning, speed preview and corner control, the S-type acceleration and deceleration and B-spline interpolation technology of the machine tool have been introduced, which makes the machine control more stable and the protection mechanism more perfect.
Funciones
Standard Function Optional Function
01\tGantry dual-drive + Encoder feedback\t 10\tAuto edge-tracing
02\tPre-installed CAM Software\t 11\tRemote system diagnosis
03\tIntegrated THC(optional)\t 12\tPlasma power source communication
04\tDrilling and cutting\t 13\tS-type acceleration
05\tCutting parameter library\t 14\tBezier curve
06\tDual small hole cutting\t 15\tWork piece edge scanning and cutting
07\tHorizontal independence servo axis\t 16\tOPC UA Communication
08\tVisualize remnant process\t 17\tCloud MES
09\tInkjet system\t 18\tLaser/Plasma cutting
Standard Function Optional Function
01\tGantry dual-drive + Encoder feedback\t 10\tAuto edge-tracing
02\tPre-installed CAM Software\t 11\tRemote system diagnosis
03\tIntegrated THC(optional)\t 12\tPlasma power source communication
04\tDrilling and cutting\t 13\tS-type acceleration
05\tCutting parameter library\t 14\tBezier curve
06\tDual small hole cutting\t 15\tWork piece edge scanning and cutting
07\tHorizontal independence servo axis\t 16\tOPC UA Communication
08\tVisualize remnant process\t 17\tCloud MES
09\tInkjet system\t 18\tLaser/Plasma cutting
Details Images

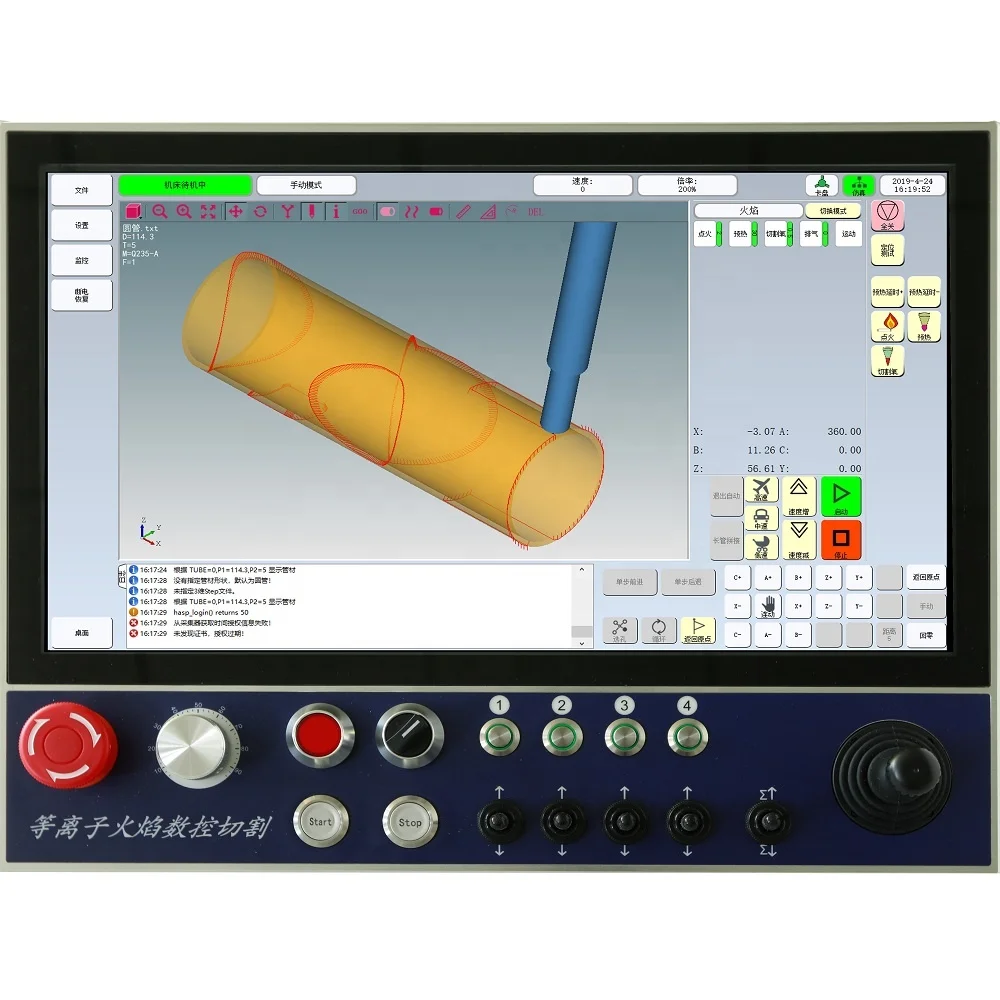

Integrated front electric cabinet
1.Monitor：19" LCD widescreen touch screen
2.Analog universal rocker
3.Manual pulse speed regulation
4.Panel enclosure：Full metal shell structure, anti-static, beautiful and free of the front electric cabinet
5.Installation dimensions: 450*355*62mm
2.Analog universal rocker
3.Manual pulse speed regulation
4.Panel enclosure：Full metal shell structure, anti-static, beautiful and free of the front electric cabinet
5.Installation dimensions: 450*355*62mm

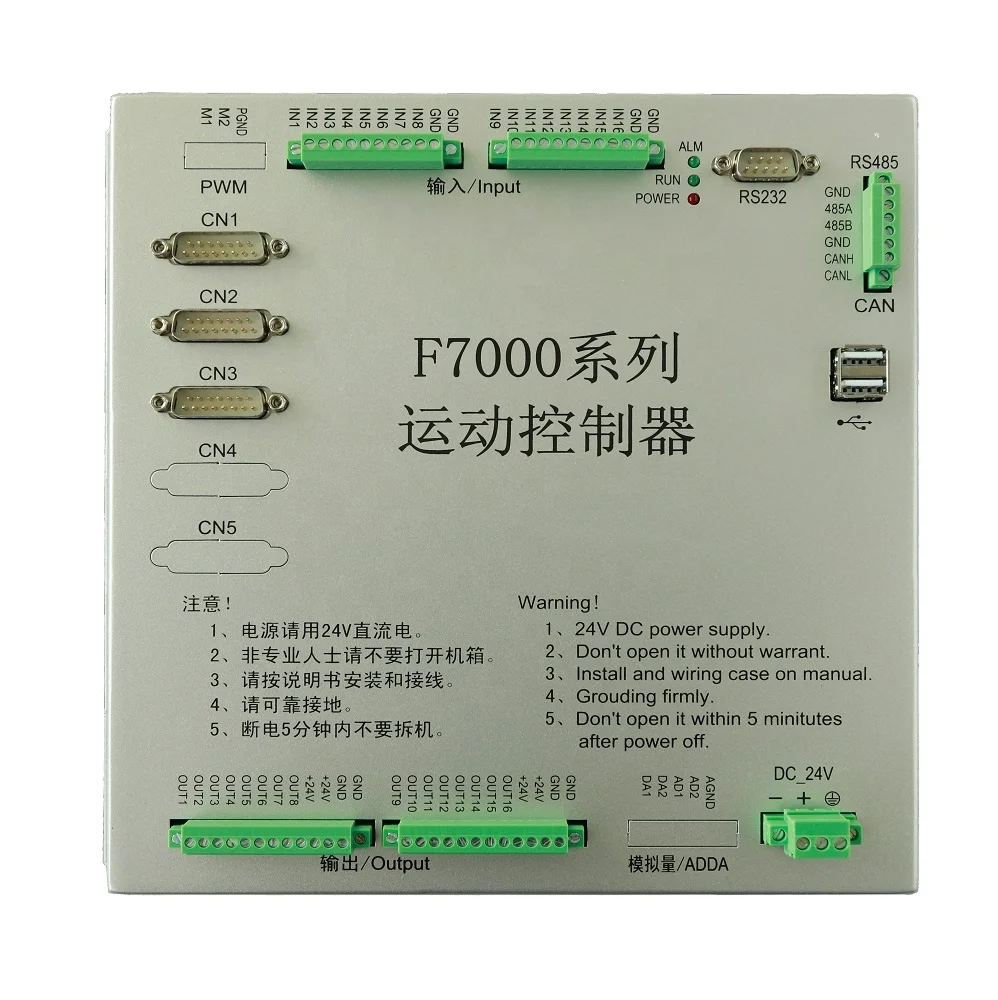

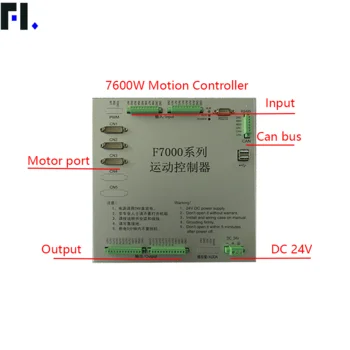

Industrial computer is built in integrated front electric cabinet
1.Axis: 2 axes（extendable to 6 axes）
2.Accuracy: ±0.001mm
3.Motor: Pulse+Direction
4.Pulse Freq：250K
5.Running Speed: 30m/min
6.Static test：±4KV
7.I/O: 16 in 16 out, all optocoupler
2.Accuracy: ±0.001mm
3.Motor: Pulse+Direction
4.Pulse Freq：250K
5.Running Speed: 30m/min
6.Static test：±4KV
7.I/O: 16 in 16 out, all optocoupler

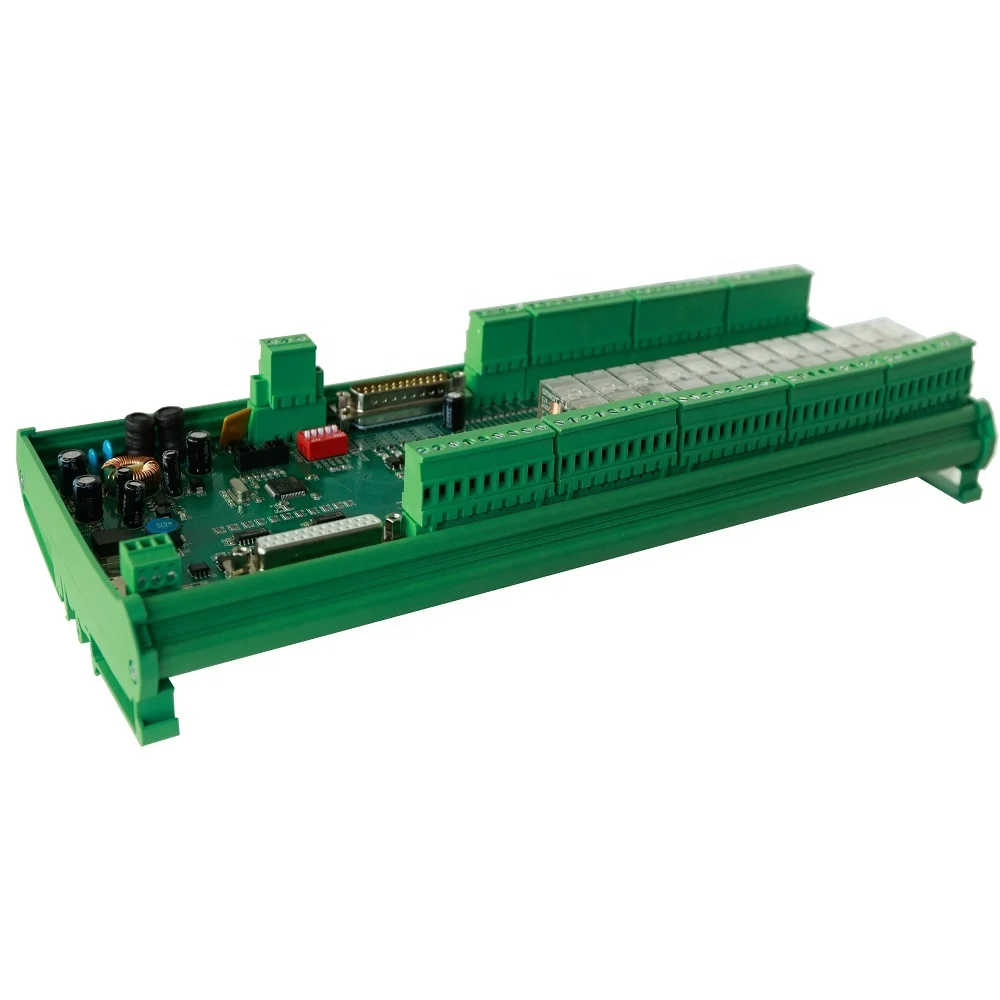

The F7600WF-IN all-in-one machine comes standard with 2 gun control boards.
If it is necessary to control 3-4 guns, expansion board shall be additionally equipped, and the independent control of up to 4 guns is supported
Company Profile
Shanghai Fangling Computer Software Co., Ltd is the high-tech enterprise which has more than 10 years’ experience in research, development, production and marketing of Computer Numerical Control(CNC) Field. Nowadays, the company has successfully launched several product lines that include Plasma/Flame plate cutting controller, Built-up Welding Control System, Drilling Control System, Tube Cutting CNC controller, C-beam/H-beam Cutting CNC controller and other related CNC field control systems.
These products are widely being used in multiple manufacturing businesses such as Marine Engineering, Mineral Engineering, Construction, and Automobile manufactory. The market is not only covering China, but also covering Southeast Asia, Russian, Africa, Europe, and South America, etc.. The products are being highly spoken because of their performance and cost-effectiveness.
Exhibition
Our Advantages
Pre-sales service:
1.Office visit
2.Pre-consult and technical guidance
3.Pipe cutting solution guidance
2.Pre-consult and technical guidance
3.Pipe cutting solution guidance
After-sales service:
1.Network technical support and guidance
2.Related documents access
3.Cutting Solution consulting
2.Related documents access
3.Cutting Solution consulting
Certifications
Packing & Delivery
FAQ
Q: How do you guarantee the quality?
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
A: We have the professional engineer to test the goods and make sure they are 100% working before they are dispatched.
Q: How do I make the payment?
A: We accept T/T, Western Union(only for a small amount).
Q: Do you provide training for your product?
A: We will provide a manual for our controller to help you study, and we have a professional after-sales agent to guide you through the whole process.
Q: What if I am not sure which controller I need? What if I need some technical consult?
A: Please make sure you consult our sales before you decide to purchase, our goal is to provide you a complete and efficient CNC cutting solution.
Q: How do you pack the goods?
A: Our controllers are light and compact size, It is very easy to pack it up, we usually pack our goods with carton box with extra foam to absorb the shock. We will make sure the package will protect the goods 100% OK.
Contact Us
Похожие товары
Элегантное настенное украшение, настенная панель из искусственной кожи, мозаичная настенная плитка
29,04 $ - 33,00 $

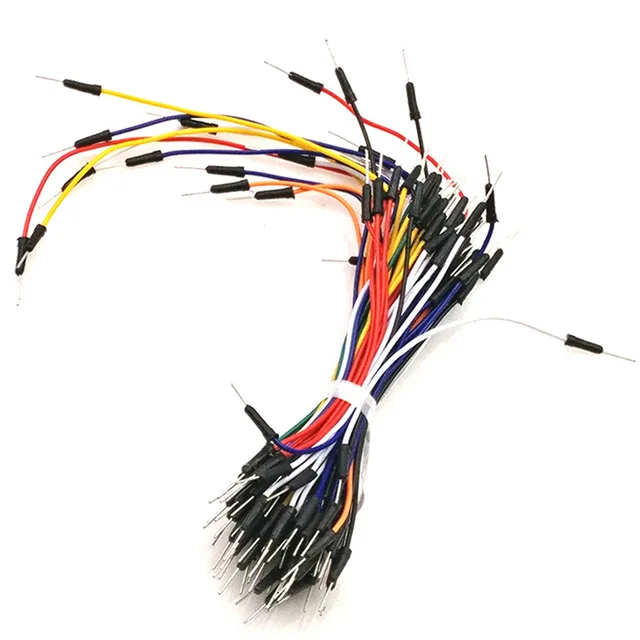

65 шт., гибкие кабели для макетной платы
