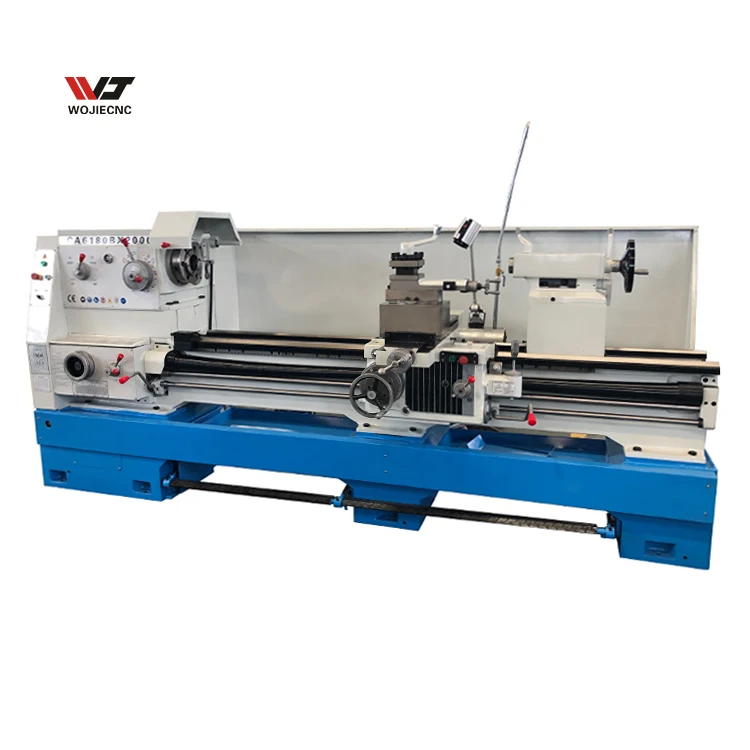

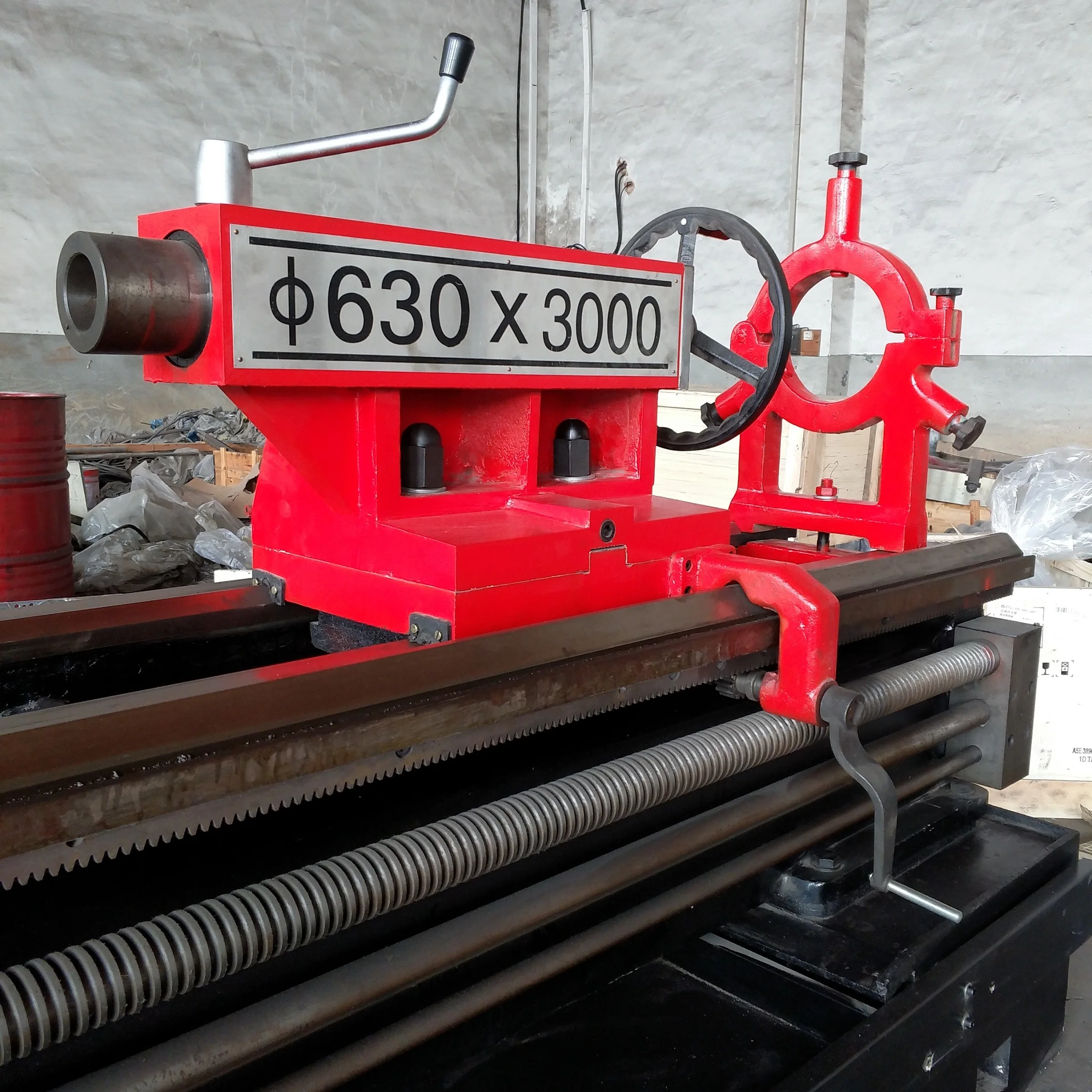

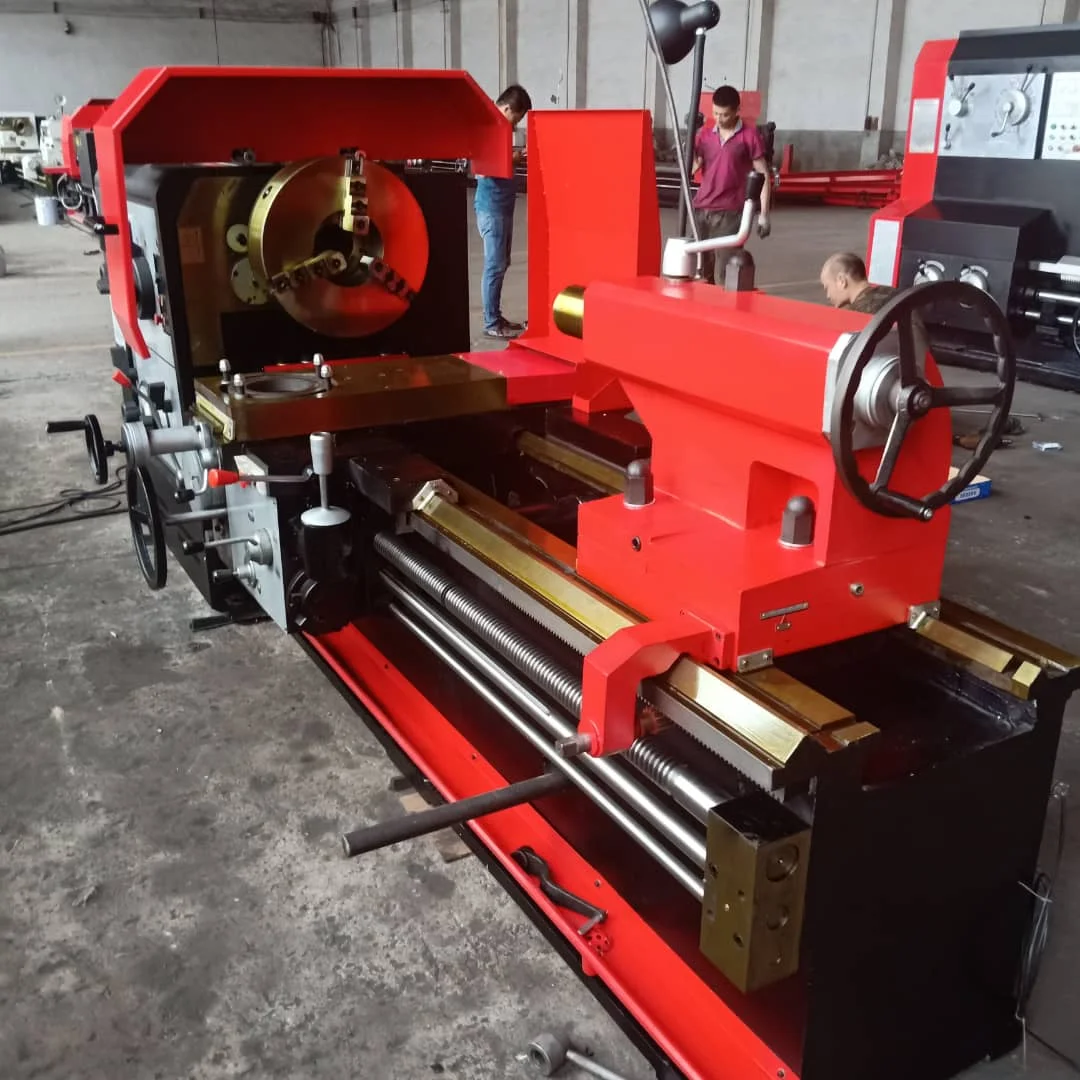

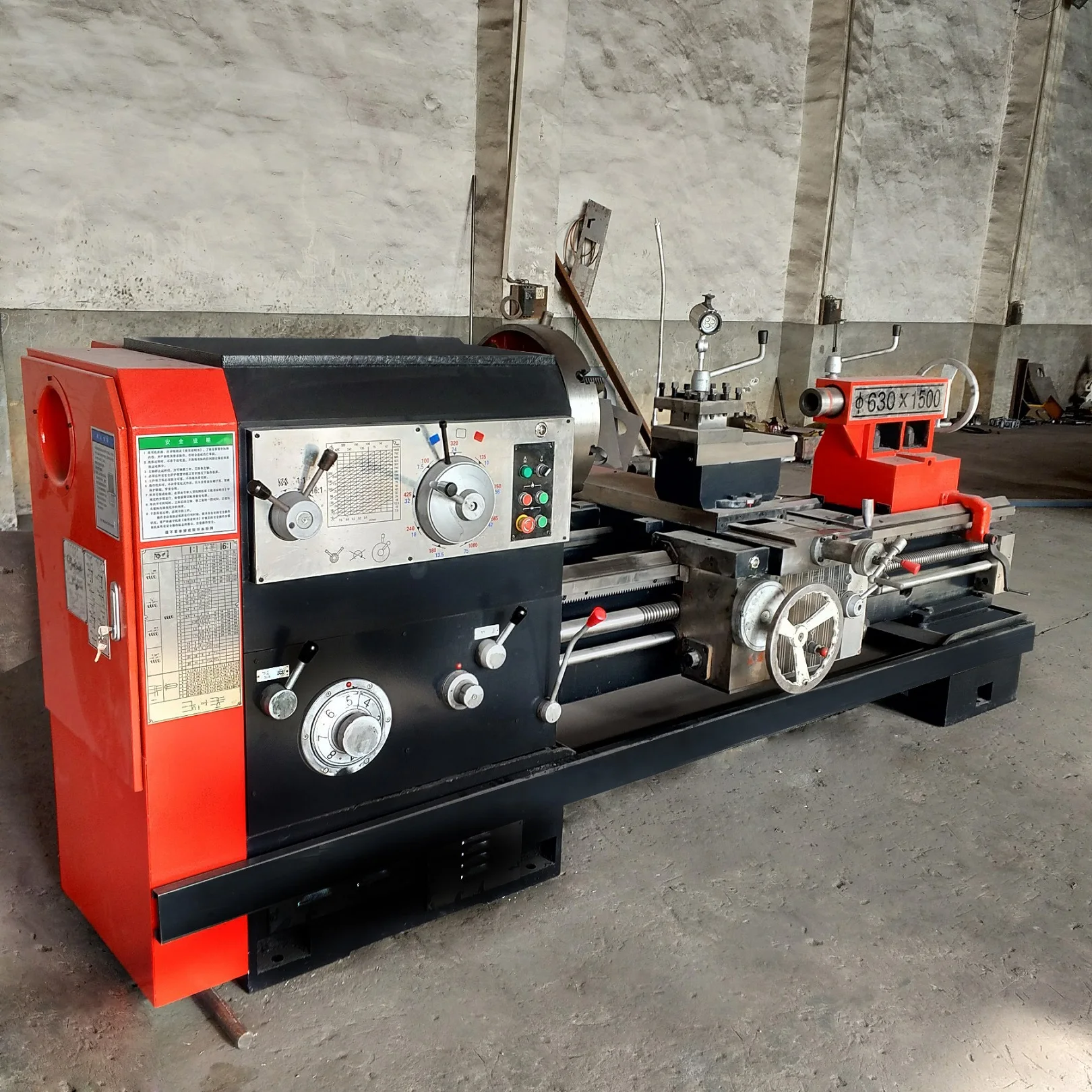

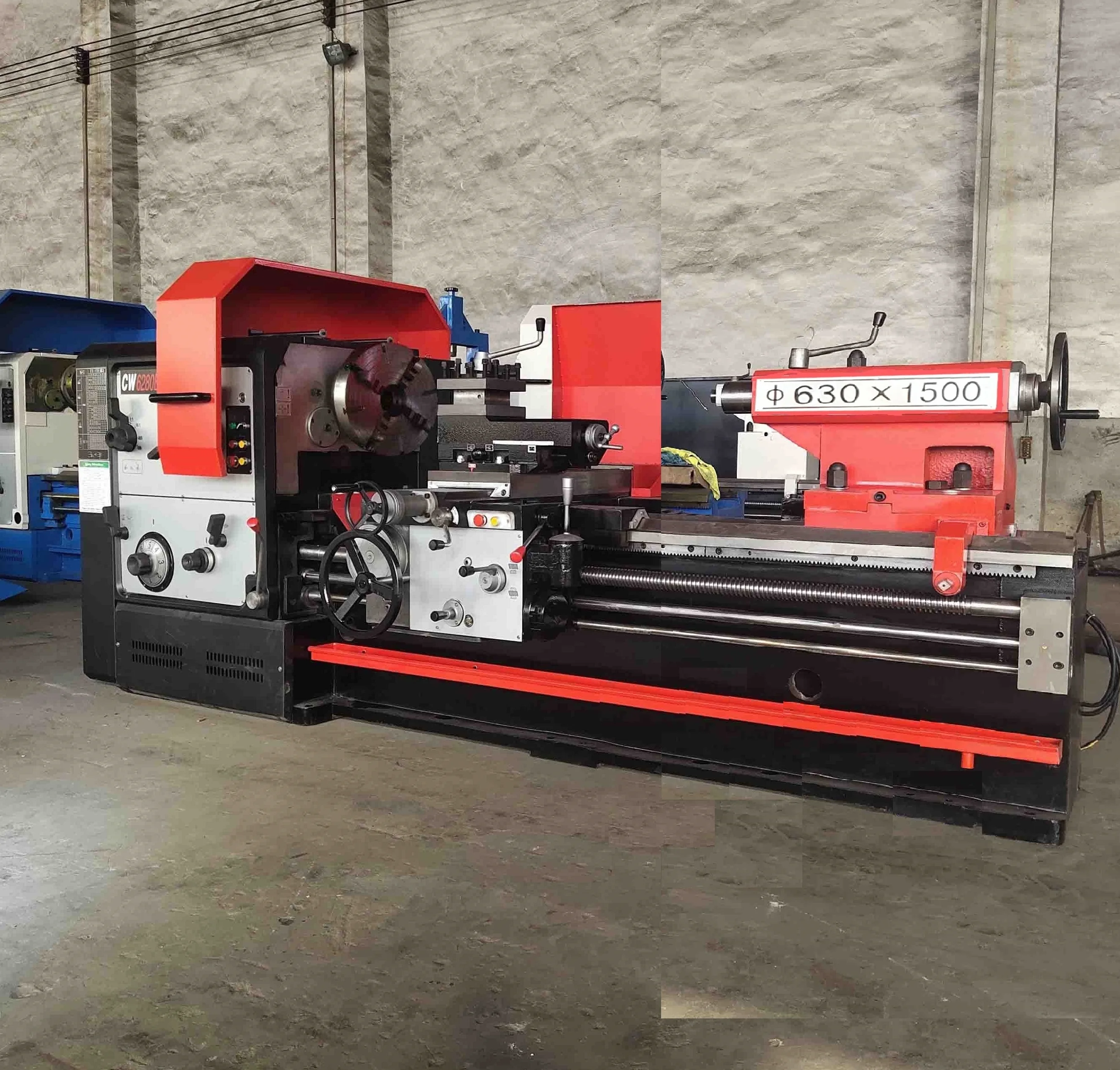

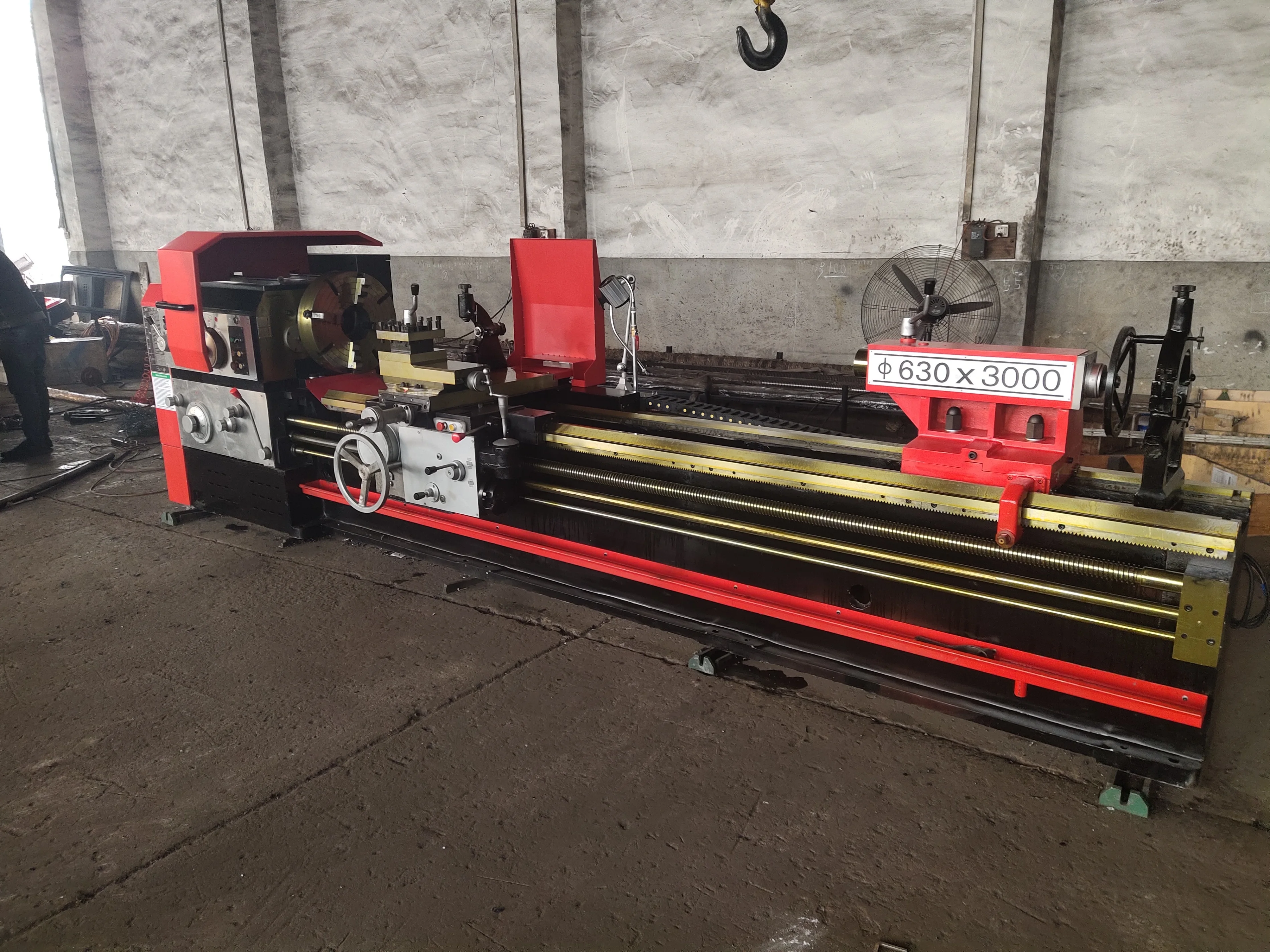

Высококачественный токарный станок C6232A увеличенный Рабочий диаметр 630
5 800,00 $
CW6163 горизонтального типа универсальный токарный станок
- Категория: >>>
- Поставщик: Hebei Yawo Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1600077422948:
Описание и отзывы
Характеристики
Product Description
The machine is mainly suitable for cutting the workpiece inside and outside round cylindrical, cone and other rotating parts, machinable various commonly used metric, inch, module and diametral pitch thread, and broaching oil groove and keyway.The machine has the following features:
No.1:
CW6163/CW6263 (Guide rail width=550mm; Load capacity=2 tons):
Swing over bed: 630mm;
Swing over carriage:350mm;
Swing diameter over gap: 800mm (CW6263);
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 2 tons;
Spindle hole diameter: 105mm;
Main motor power: 11kw
CW6163/CW6263 (Guide rail width=550mm; Load capacity=2 tons):
Swing over bed: 630mm;
Swing over carriage:350mm;
Swing diameter over gap: 800mm (CW6263);
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 2 tons;
Spindle hole diameter: 105mm;
Main motor power: 11kw
No.2:
CW6180/CW6280 (Guide rail width=600mm; Load capacity=2.5 tons):
Swing over bed:800mm;
CW6180/CW6280 (Guide rail width=600mm; Load capacity=2.5 tons):
Swing over bed:800mm;
Swing over carriage | 350mm; |
Swing diameter over gap: | 1000mm (CW6280); |
Max. weight of workpiece: | 2.5 tons; |
Spindle hole diameter | 105mm; |
Main motor power: | 11kw |
max process length | 20000mm |
No.3:
CW61110Q/CW62110Q (Guide rail width=600mm; Load capacity=3 tons):
Swing over bed: 1100mm;
Swing over carriage:800mm;
Swing diameter over gap: 1200mm (CW62110Q);
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 3 tons;
Spindle hole diameter: 105mm;
Main motor power: 11kw.
CW61110Q/CW62110Q (Guide rail width=600mm; Load capacity=3 tons):
Swing over bed: 1100mm;
Swing over carriage:800mm;
Swing diameter over gap: 1200mm (CW62110Q);
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 3 tons;
Spindle hole diameter: 105mm;
Main motor power: 11kw.
No.4:
CW61125Q/CW62125Q (Guide rail width=600mm; Load capacity=3 tons):
Swing over bed: 1250mm;
Swing over carriage:920mm;
Swing diameter over gap: 1400mm (CW62125Q);
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 3 tons;
Spindle hole diameter: 105mm;
Main motor power: 11kw.
CW61125Q/CW62125Q (Guide rail width=600mm; Load capacity=3 tons):
Swing over bed: 1250mm;
Swing over carriage:920mm;
Swing diameter over gap: 1400mm (CW62125Q);
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 3 tons;
Spindle hole diameter: 105mm;
Main motor power: 11kw.
No.5
CW61125B (Guide rail width=755mm; Load capacity=6 tons):
Swing over bed: 1250mm;
Swing over carriage:860mm;
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 6 tons;
Spindle hole diameter: 130mm;
Guide rail width: 755mm;
Main motor power: 22kw
Swing over bed: 1250mm;
Swing over carriage:860mm;
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 6 tons;
Spindle hole diameter: 130mm;
Guide rail width: 755mm;
Main motor power: 22kw
No.6:
CW61160B (Guide rail width=755mm; Load capacity=6 tons):
Swing over bed: 1600mm;
Swing over carriage:1200mm;
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 6 tons;
Spindle hole diameter: 130mm;
Guide rail width: 755mm;
Main motor power: 22kw.
CW61160B (Guide rail width=755mm; Load capacity=6 tons):
Swing over bed: 1600mm;
Swing over carriage:1200mm;
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 6 tons;
Spindle hole diameter: 130mm;
Guide rail width: 755mm;
Main motor power: 22kw.
No.8:
CW61160 (Guide rail width=1100mm; Load capacity=16 tons):
Swing over bed: 1600mm;
Swing over carriage:1200mm;
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 16 tons;
Spindle hole diameter: 130mm;
Guide rail width: 1100mm;
Main motor power: 22kw-6
CW61160 (Guide rail width=1100mm; Load capacity=16 tons):
Swing over bed: 1600mm;
Swing over carriage:1200mm;
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 16 tons;
Spindle hole diameter: 130mm;
Guide rail width: 1100mm;
Main motor power: 22kw-6
No.8:
CW61200 (Guide rail width=1100mm; Load capacity=16 tons):
Swing over bed: 2000mm;
Swing over carriage:1600mm;
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 16 tons;
Spindle hole diameter: 130mm;
Guide rail width: 1100mm;
Main motor power: 22kw-6.
Tailstock chuck is optional.
CW61200 (Guide rail width=1100mm; Load capacity=16 tons):
Swing over bed: 2000mm;
Swing over carriage:1600mm;
Max. length of workpiece: it's up to your request;
Max. weight of workpiece: 16 tons;
Spindle hole diameter: 130mm;
Guide rail width: 1100mm;
Main motor power: 22kw-6.
Tailstock chuck is optional.
Packing & Delivery
Company Profile
FAQ
Q1.What machines can be available in your factory?
A.We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. For example:CW61160,CW61200,CW6163,CW6263,CW6180Q,CW6280Q,CAK50 SERIE ,CAK80 SERIES,and so on.
Q2.What is your minimum order quantity and warranty?
A.MOQ is one set, and warranty is one year.
Q3.Can I trust you?
A.Sure, we're Alibaba Gold Suppliers , Alibaba Assessed Supplier , Alibaba Trade Assurance Supplier.
Q4.How' s your after-sale service?
A.Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.
Q5.What is the package? Is it suitable for shipment?
A.Machine is by waterproof cloth to covered.And be packed by standard exported wooden case with steel foot.. It is very much strong for oversea transportation.
Q6.Are you manufacturer?
A. Yes, we are a manufacturer of machine tools,we have our own technical team, and about 100,000 sq.m workshop, welcome to visit us
Похожие товары
разрыв кровать токарный станок высокое качество низкая цена машины № Gap-кровать седло типа
Морской экспедитор Amazon FBA, доставка Yiwu во Францию, CDFR, китайский логистический агент
Токарный станок 3 метра CA6166 CA6266 токарный
9 000,00 $ - 11 200,00 $

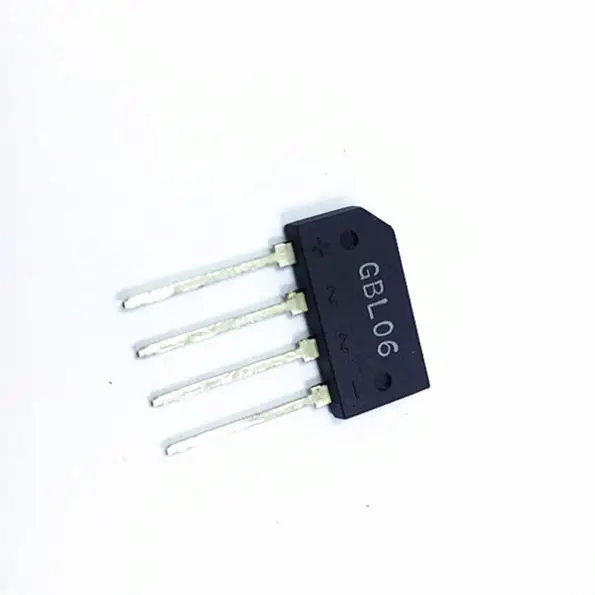

Мостовой выпрямитель SeekEC 4A 600 В, Диод GBL06, сделано в Китае
