Newest access control keychain beacon motion accelerometer sensor ibeacon
Product Description

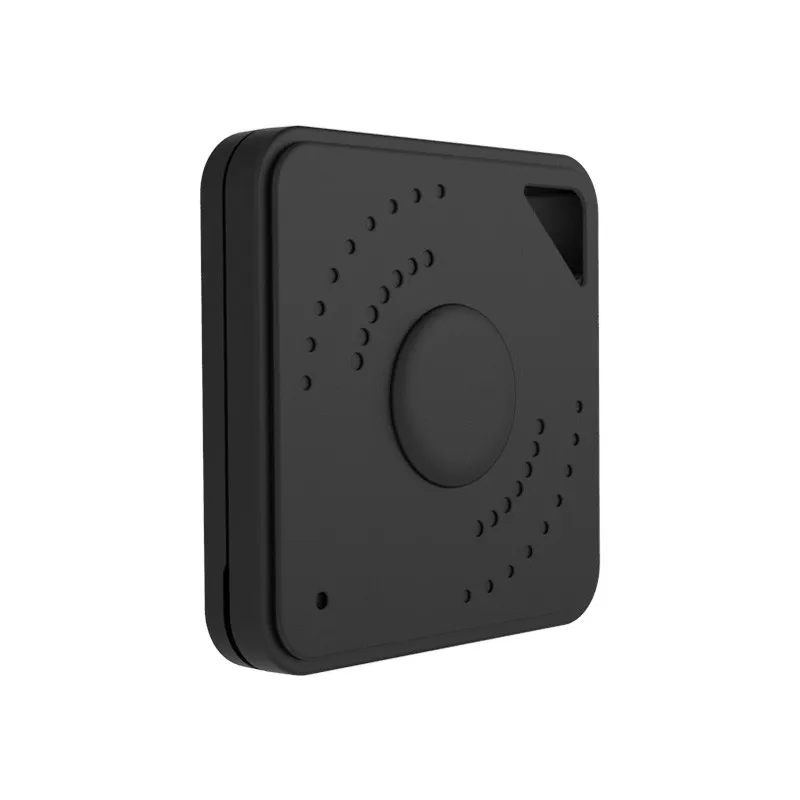

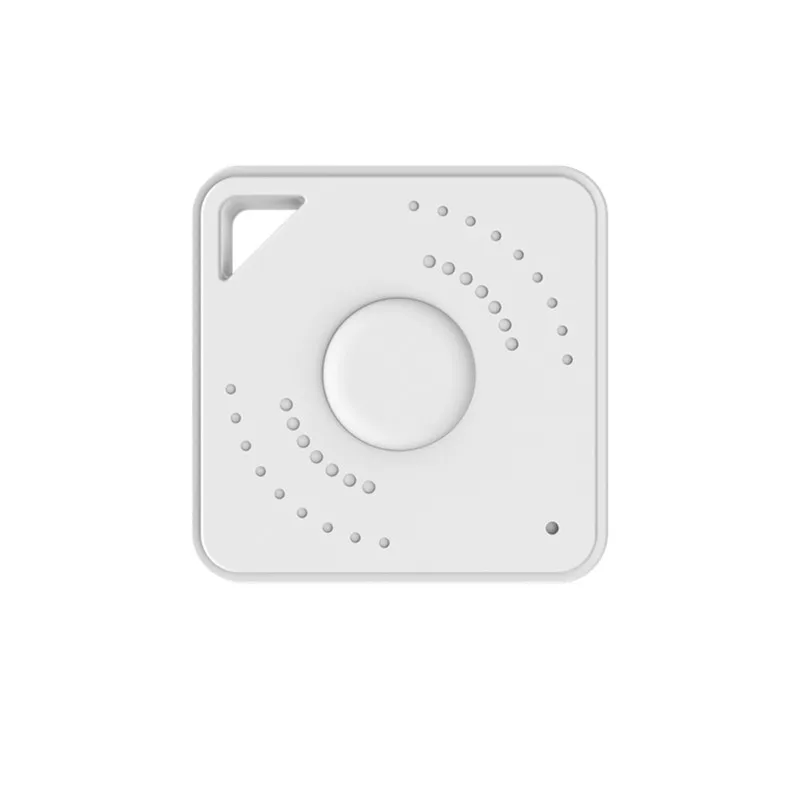

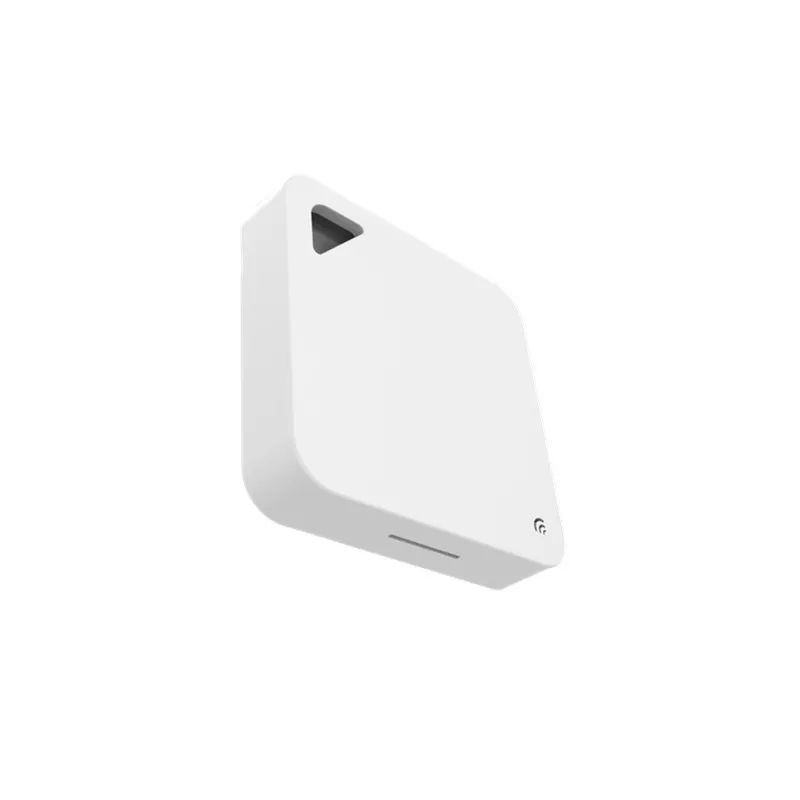

H1 Keychain Beacon
1. Easily Portable with keychain

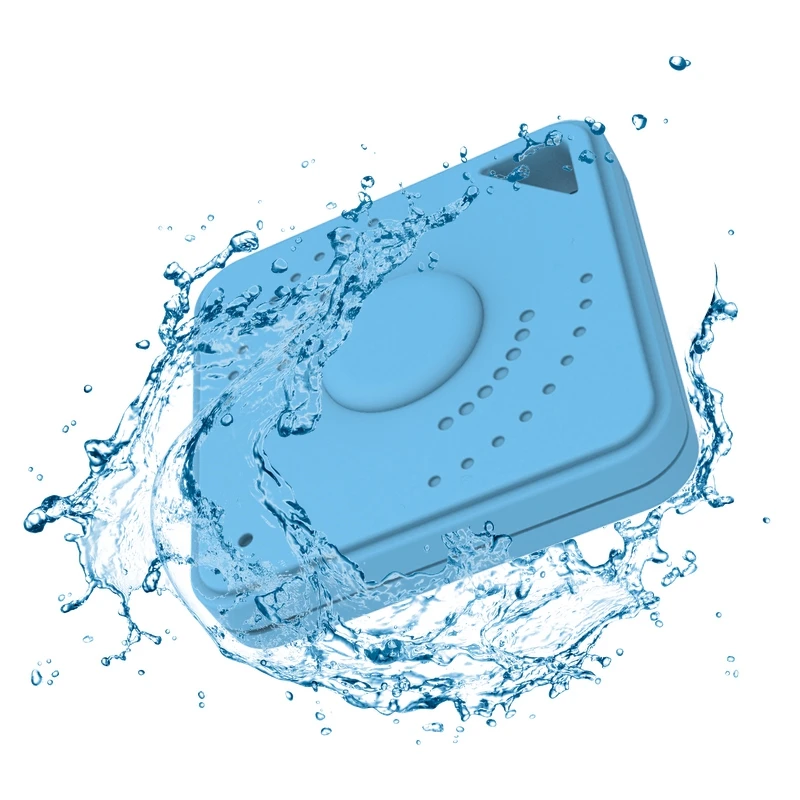

2. IP67 Waterproof
3. 3-axis accelerometer sensor with motion trigger
4. Compatible with Apple iBeacon and Google Eddystone (UID, URL, TLM) at the same time.
5. All the parameters of this product can be modified via configure APP
2. IP67 Waterproof
3. 3-axis accelerometer sensor with motion trigger
4. Compatible with Apple iBeacon and Google Eddystone (UID, URL, TLM) at the same time.
5. All the parameters of this product can be modified via configure APP
Features
1. BLE2. Ultra-low power consumption chipset NRF52 serial
3. Support 5url broadcasting
4. Firmware update Over The Air (OTA)
5. Logo and color customizable (MOQ)
6. Provided with your own configuration(MOQ 50 units)
7. 100% Configurable Parameters via app (Android & iOS)
4. Firmware update Over The Air (OTA)
5. Logo and color customizable (MOQ)
6. Provided with your own configuration(MOQ 50 units)
7. 100% Configurable Parameters via app (Android & iOS)
Electronic parameters
Item | Value | Remarks |

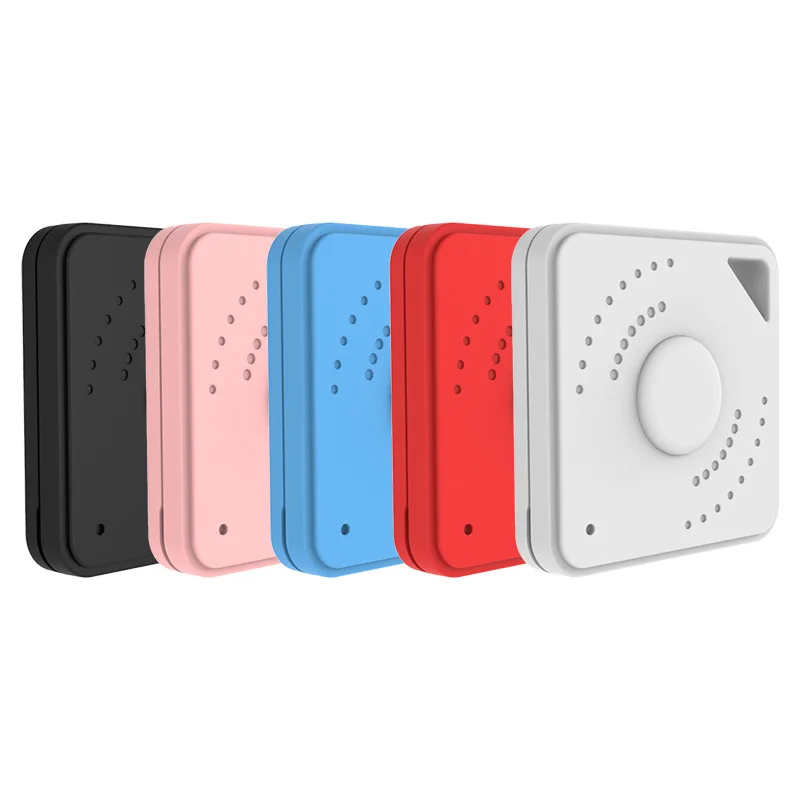

Case Color | White | Other colors can be customized |
Main Material | ABS | - |
Battery Model | CR2032 | Coin battery, 1pc, 225mAh |
Battery Lifetime | Up to 1 year | At default settings② and without selfdischarge factor |
Operation Voltage | 1.8~3.6V | DC |
Waterproof Level | IP67 | - |
Average Current | 24 uA | At default settings③ |
Transmission Range | 80m(+4dBm) | Maximum，in the open space |
Antenna | 50ohm | On board/PCB Antenna |
Size | 32.5 x 32.5 x 6.22mm | Refer to mechanical draws for details |
Net Weight | 7.8g | With battery |
Operating Temperature | -25 to +60ºC | - |
Storage Temperature | 20 to +30ºC |
Compatibility | * Compatible with Apple iBeacon and Google Eddystone standard; * Compatible with standard Eddystone Configuration GATT Service; * Compatible with all BLE 5.0 devices. |
Long Battery Lifetime | * 1 years at the default setting (225mAh CR2032 coin battery) * Easy to get the real-time battery level notification. * Led flashes every 10 seconds if the battery capcity is under 5%. |
Configurable Parameters | * Up to 6 configurable SLOTs; * Each SLOT can be set to iBeacon，UID，URL，TLM，Device Info and 3-axis Sensor data; * Device Name, Password, Connection Mode, Advertising Interval, Tx Power and 3-axis Sensor Parameters all are configurable; * Special Configuration APP ( BeaconX Pro), available for iOS and Android. |
Flexible sensor function | 3-axis accelerometer sensor |
Trigger function | * Support button trigger and motion trigger; * Control the device to start advertising all the time, stop advertising, or advertise for a while. |
Transmission Power Levels | * 9 adjustable grades; * Transmission power range: -40dBm to +4dBm. |
Long Range | * The max. Range 80 meters in the open space; * The range depends on the environment where the H1-BeaconX Pro is placed. |
Security | * Configurable password (1-16 characters); * With or without password (Lock/Unlock parameters); * AES-128-ECB. encrypt. |
Connection Mode | * Advertising mode, non-connectable; * Configuration mode, connectable. |
OTA and DFU | * Supported upgrade via Over-The-Air; * Nordic® official Device Firmware Upgrade(DFU); * Reserved J-Link port on the board for programming. |
Custom made mounting | * Keychain / neck chain; * 3M sticker; * Logo and color customizable; * Provided with your own configuration |
If you'd like to set up your own Physical Web beacon, you can follow these steps below
1. Download the “MokoBeaconX Pro” from App Store or Google Play
2. Turn ON/OFF BeaconX Pro. Then scan and connect to BeaconX Pro
3. Configure BeaconX Pro Parameters: Click the corresponding parameters to change the data, then Click top right corner's 'Save' to save the changes
1. Download the “MokoBeaconX Pro” from App Store or Google Play
2. Turn ON/OFF BeaconX Pro. Then scan and connect to BeaconX Pro
3. Configure BeaconX Pro Parameters: Click the corresponding parameters to change the data, then Click top right corner's 'Save' to save the changes
Certifications
Shipping
Company Introduction
Our Services
1. OEM / ODM Manufacturing welcome: Product, Package, etc.
2. Sample order acceptable, small MOQ.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
2. Sample order acceptable, small MOQ.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
FAQ
Q1: Do the Beacons work with IOS and Android phones?
A1: Yes, We will send the user manual to you to set up the beacon ,you can test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: SURE. The following technical data and documents will be provided.
1.Android&IOS SDK 2. Configuration APP 3. SDK description
Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely ?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.
Q5: If there have monthly charge after we purchased the beacon from you ?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
Q7: What's the warranty of the product?
A7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q8: Could we have an customized beacon ?
A8: Yes, We offer the OEM/ODM service.
For more questions, Welcome to contact us.
A1: Yes, We will send the user manual to you to set up the beacon ,you can test the Beacon with IOS and Android phones.
Q2: Do you provide the technical support to the developers?
A2: SURE. The following technical data and documents will be provided.
1.Android&IOS SDK 2. Configuration APP 3. SDK description
Q3: Is the Beacons Certified ?
A3: Yes, all of our Beacons are with FCC/CE/RoHS Certificates, we can provide to customers anytime if needed.
Q4: If the beacon can be managed remotely ?
A4: Yes, you can use our app to connect the beacon within the beacon range area to change the paramters.
Q5: If there have monthly charge after we purchased the beacon from you ?
A5: NO, we won't have monthly charge for our clients.
Q6: Could brand the product with our company LOGO?
A6: Yes, pls send an AI file with your logo to us, then our engineer will access for you.
Q7: What's the warranty of the product?
A7: we supply 1 year warranty from the shipping date, any damage caused during the production would be replace by a new one.
Q8: Could we have an customized beacon ?
A8: Yes, We offer the OEM/ODM service.
For more questions, Welcome to contact us.
Похожие товары
Formac 46 '* 10 шт. лезвий, Гидростатический рулевой катушка, плавающий мастерок, вертолет

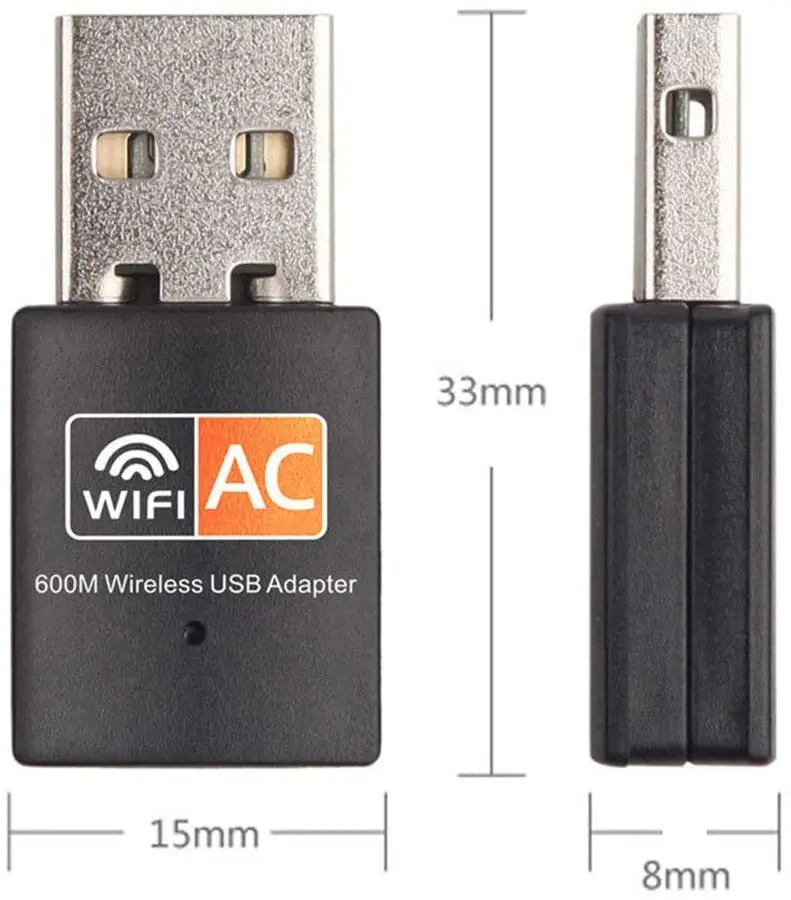

OEM 11AC Высокое качество 600 Мбит/с RTL8811 двухдиапазонный мини wlan-адаптер wifi беспроводная сетевая карта для ноутбука настольного ПК
3,56 $ - 3,98 $

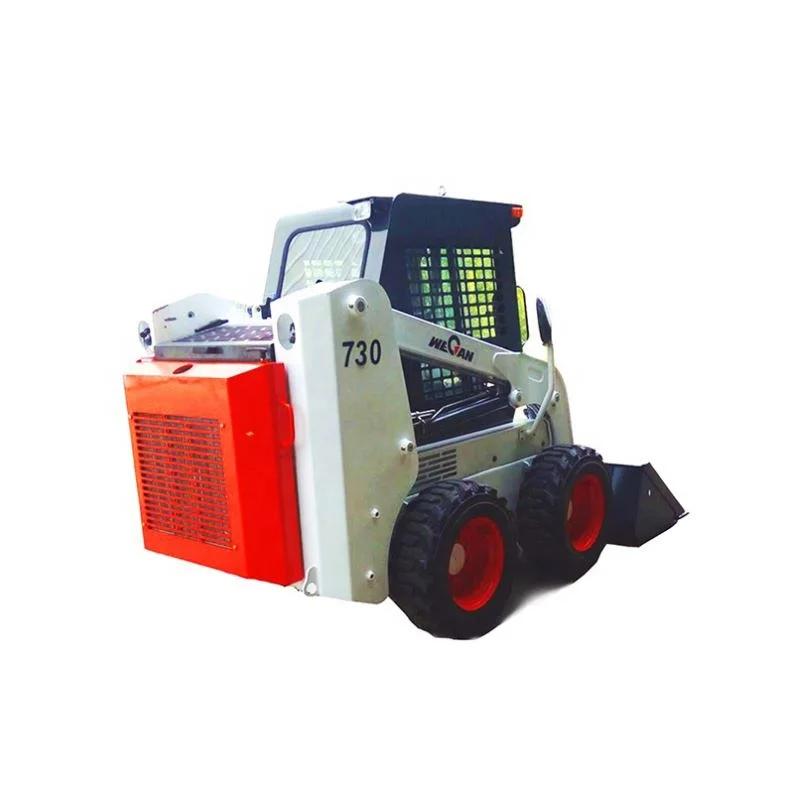

Садовая машина WT730 мини трактор с бортовым поворотом погрузчик
9 600,00 $ - 11 000,00 $

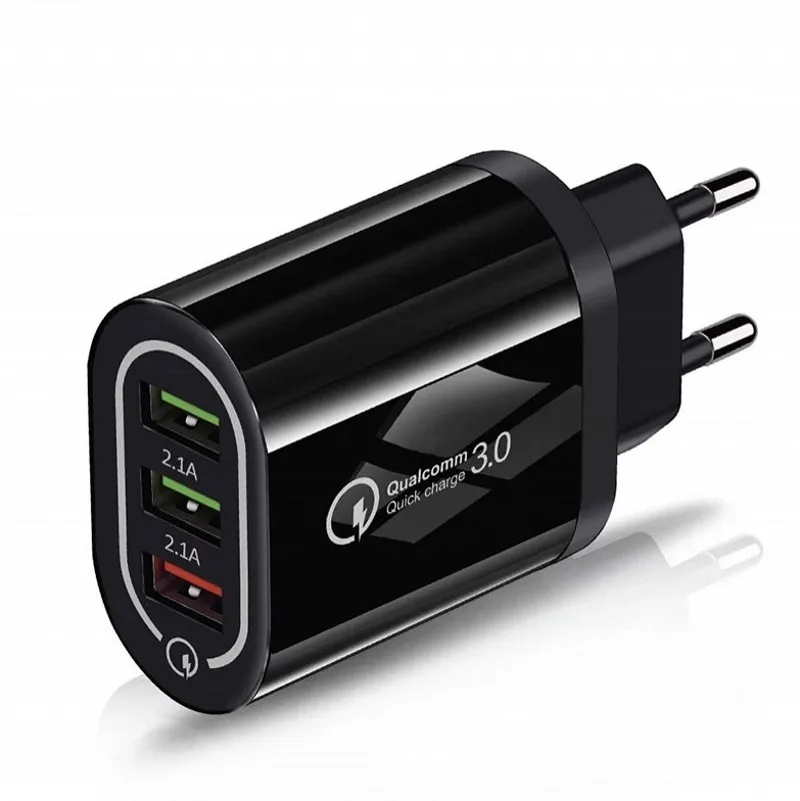

3 порта Quick Charge 3,0 USB зарядное устройство Быстрая зарядка для телефона для Samsung A40 A10 S10 Redmi Note 7 портативный адаптер для iphone Huawei
3,16 $ - 3,96 $

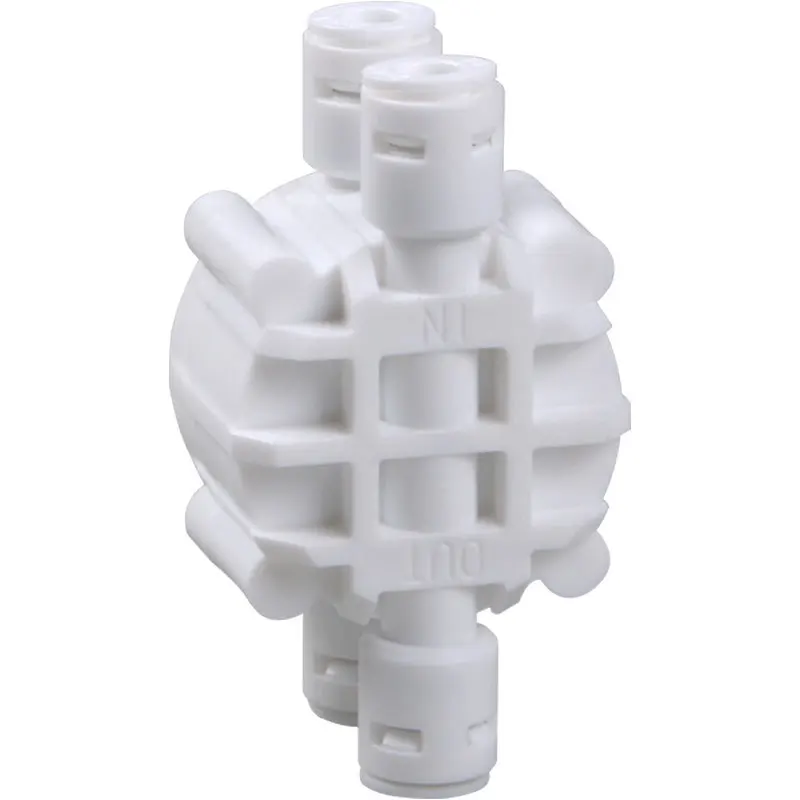

4 ходовой запорный клапан пластиковые трубные фитинги для фильтра для воды
4,00 $

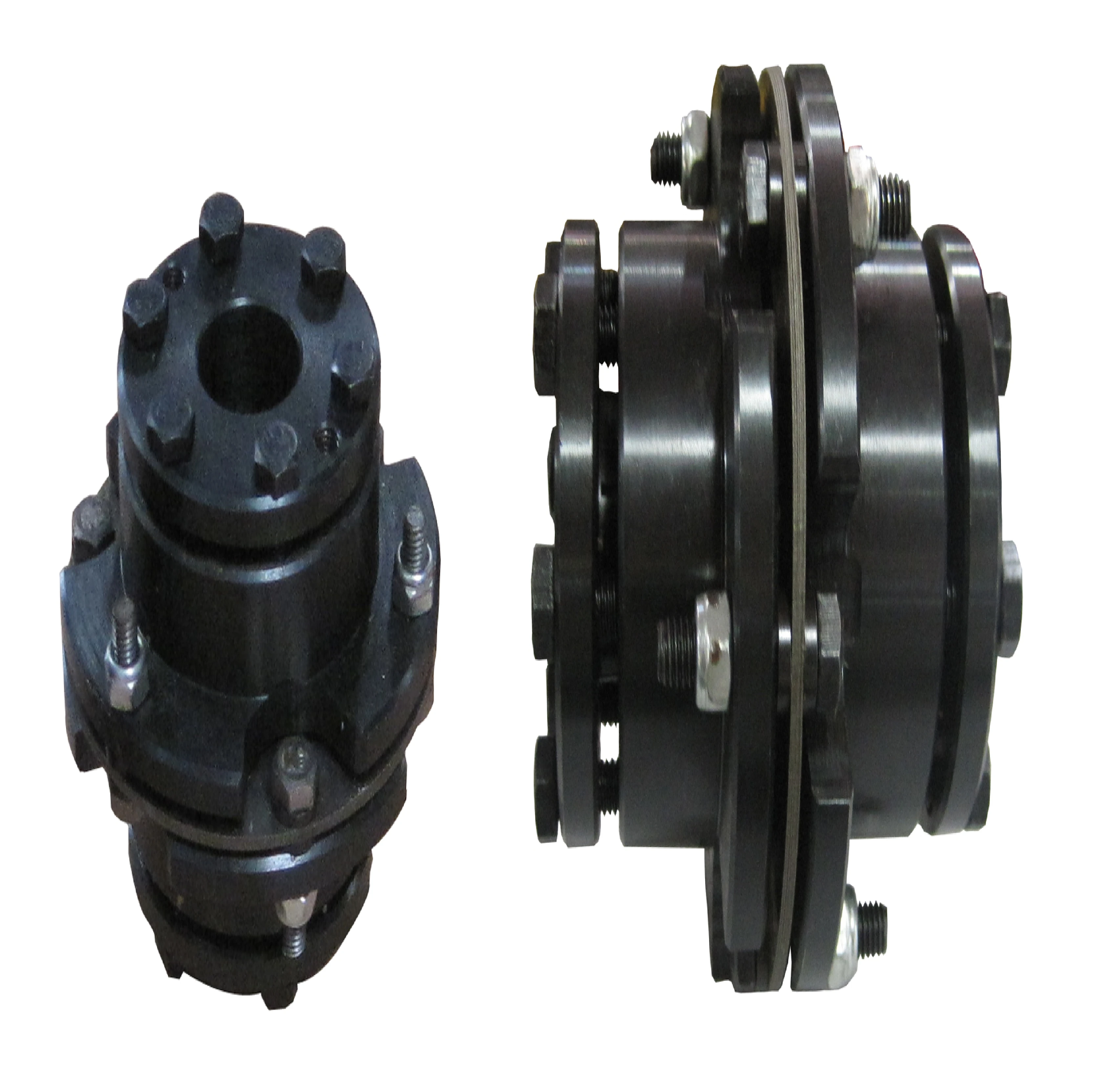

Лидер продаж, композитная Двухступенчатая диафрагменная муфта
