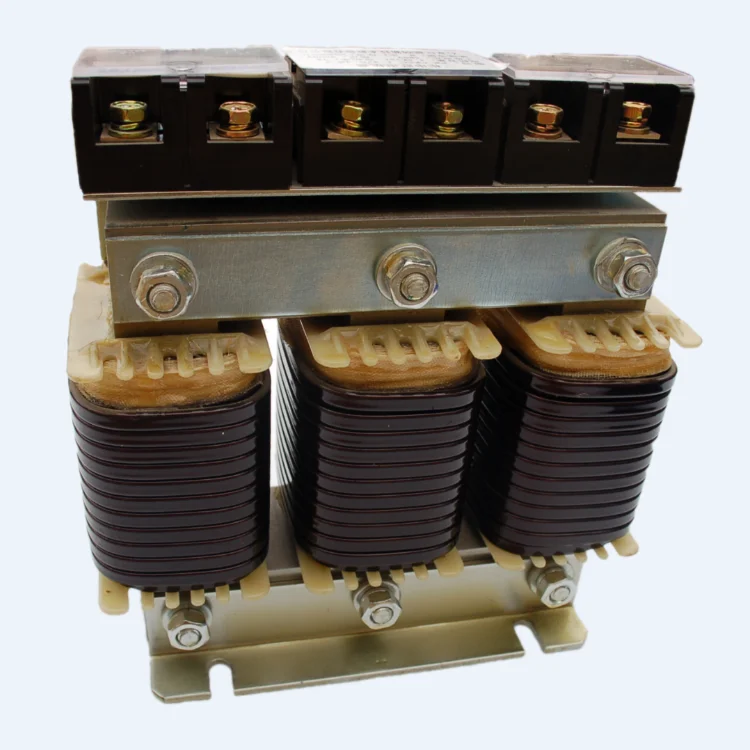

FORERUN FR CKDG 0.7/0 28 7 улучшение электросети компенсации реактивной мощности устройства весенне осенние туфли с низким напряжением серии реактор покрытый кожухом
- Категория: >>>
- Поставщик: Shijiazhuang Furun Zhongcheng Trading Co. Ltd.
Сохранить в закладки 1600078365328:
Описание и отзывы
Характеристики
Product Description

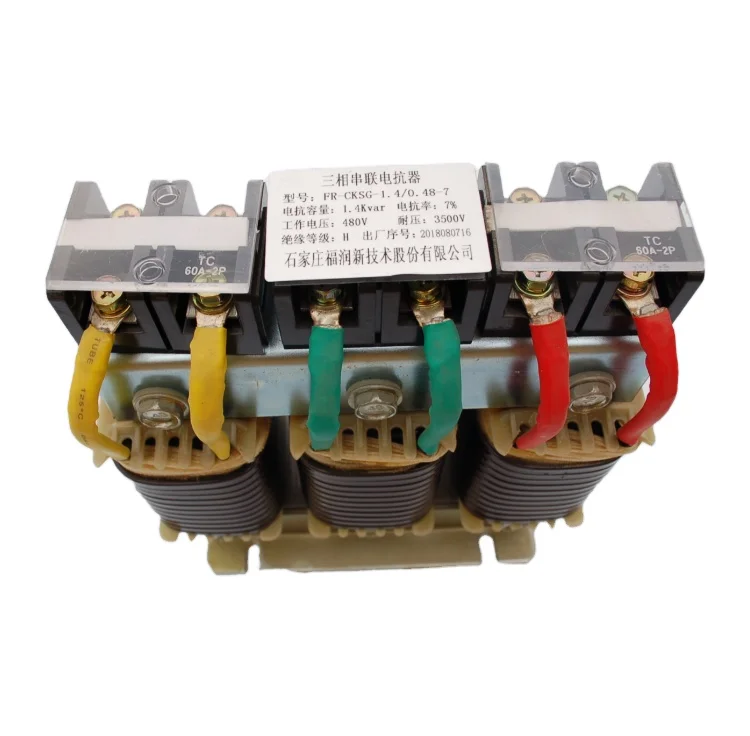

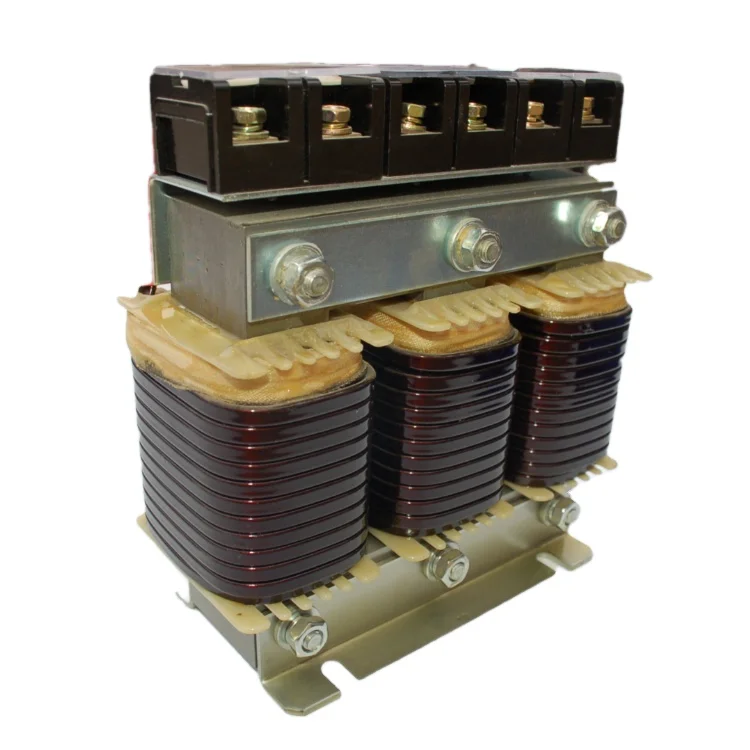

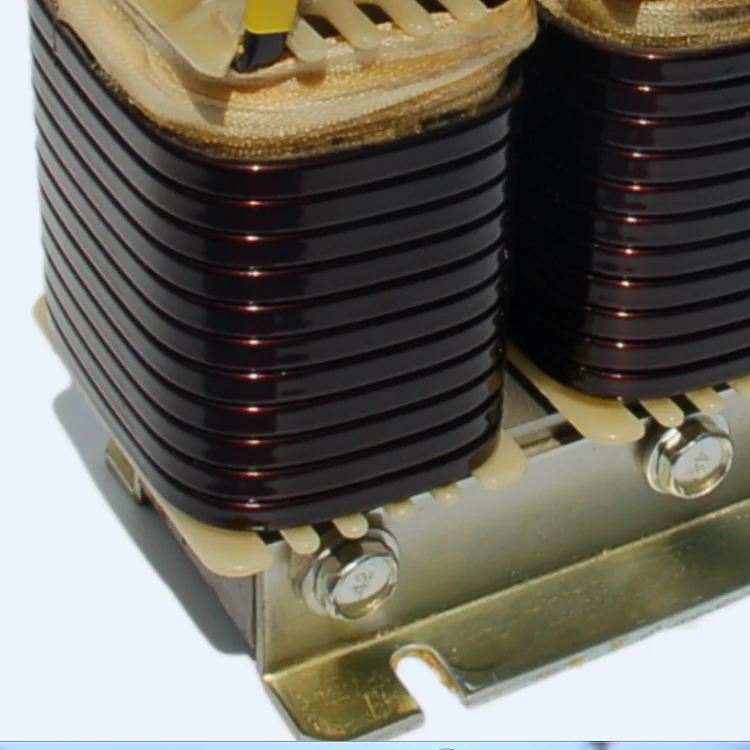

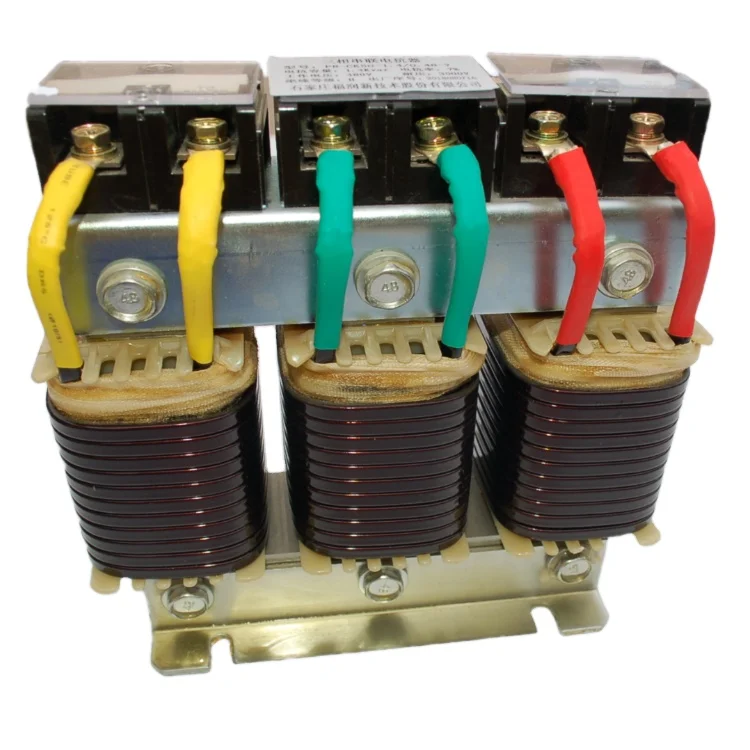

Product name process | Single type low voltage series filter reactor |
Product model | FR-CKDG-0.7/0.28-7 |
Product Brief | FR-CKSG low voltage series filter reactor is suitable for high and low voltage filter cabinet. It is an input and output reactorfor frequency conversion and speed regulation. It is connected with filter capacitor in series and tuned to a certain resonantfrequency, which is used to absorb harmonic current of corresponding frequency in power grid, so as to eliminate the harm ofhigh-order harmonic to main transformer and other electrical equipment in the system. |
function | After the filter reactor and capacitor are connected in series, it can not only effectively absorb the harmonic of the power grid,but also improve the power factor of the system, which plays a greater role in the safe operation of the system. |
Application site | In the process of use, frequency converter and governor often receive the impact from surge current and surge voltage, which willseriously damage the performance and service life of frequency converter and governor. Therefore, input reactor should beinstalled in front of it to suppress surge voltage and surge current, protect frequency converter and governor, prolong theirservice life and prevent harmonic interference The speed governor is controlled by frequency conversion, so it is necessary toinstall an output reactor at the output end to filter out the harmonic voltage and current and improve the quality of the powergrid. |
Product model | Matching capacitance | Rated reactance rate | Dimensions | Installation dimensions |
FR-CKDG-0.7/0.28-7 | 10 | 7% | 210*100*210 (L * w * h) | 120*70 (length * width) |
FR-CKDG-1.4/0.28-7 | 20 | 7% | 210*120*210 (L * w * h) | 120*90 (length * width) |
FR-CKDG-1.75/0.28-7 | 25 | 7% | 210*120*210 (L * w * h) | 120*106 (length * width) |
FR-CKDG-2.1/0.28-7 | 30 | 7% | 210*120*210 (L * w * h) | 120*106 (length * width) |
FR-CKDG-2.8/0.28-7 | 40 | 7% | 240*120*260 (L * w * h) | 120*106 (length * width) |
Related Products
Certifications
Packing&Shipping
Company Introduction
Shijiazhuang Furun Zhongcheng Trading Co., Ltd. was founded in October 2005, located in Hebei Province, China. Is a diversified electronic product sales enterprise, with a professional management team, a wide range of industry background, professional financing institutions, in the national range has a perfect marketing and service network. The sales service area covers 20 provinces and cities in China and has established close cooperation with them. In the development of the company, we do not forget to optimize customer service. With strong economic and technological strength, high-quality professionals and high-quality and efficient services, we have established a good corporate image in the society, which has been widely trusted and praised by all walks of life and customers. We have won the highest evaluation of new and old customers with the same enthusiasm!
Похожие товары

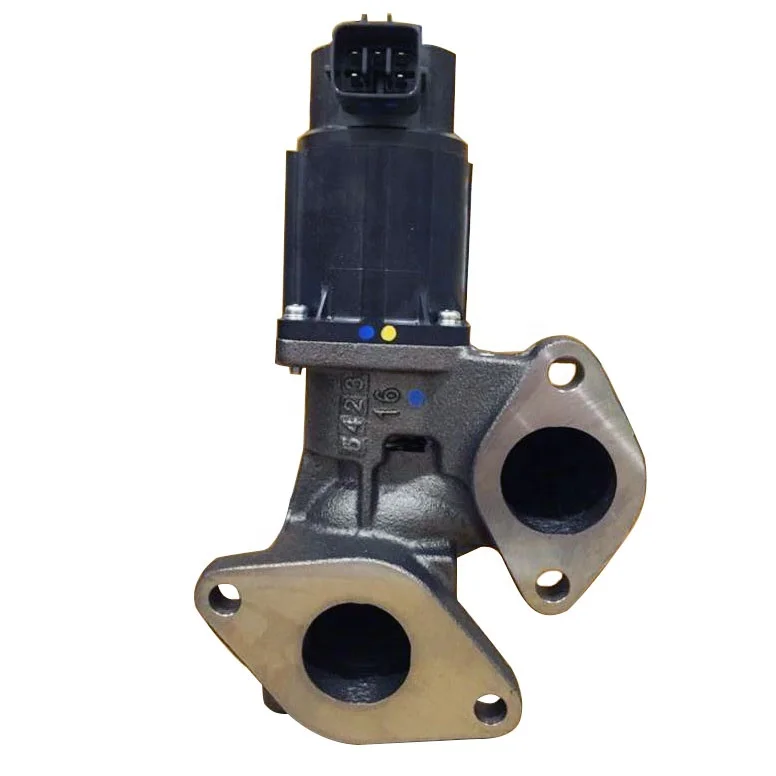

8980139111 egr клапан для isuzu dmax 3 0 4jj1 дизельный
Брендовая новая правая Торцевая крышка AB B литой корпус размыкатели цепи T5N 400 PR221DS-LS/I = 400 4p F 1SDA054325R1 автомат защити цепи
SCH литой корпус автоматический выключатель LV430830 3P3T MA150 NSX160F.

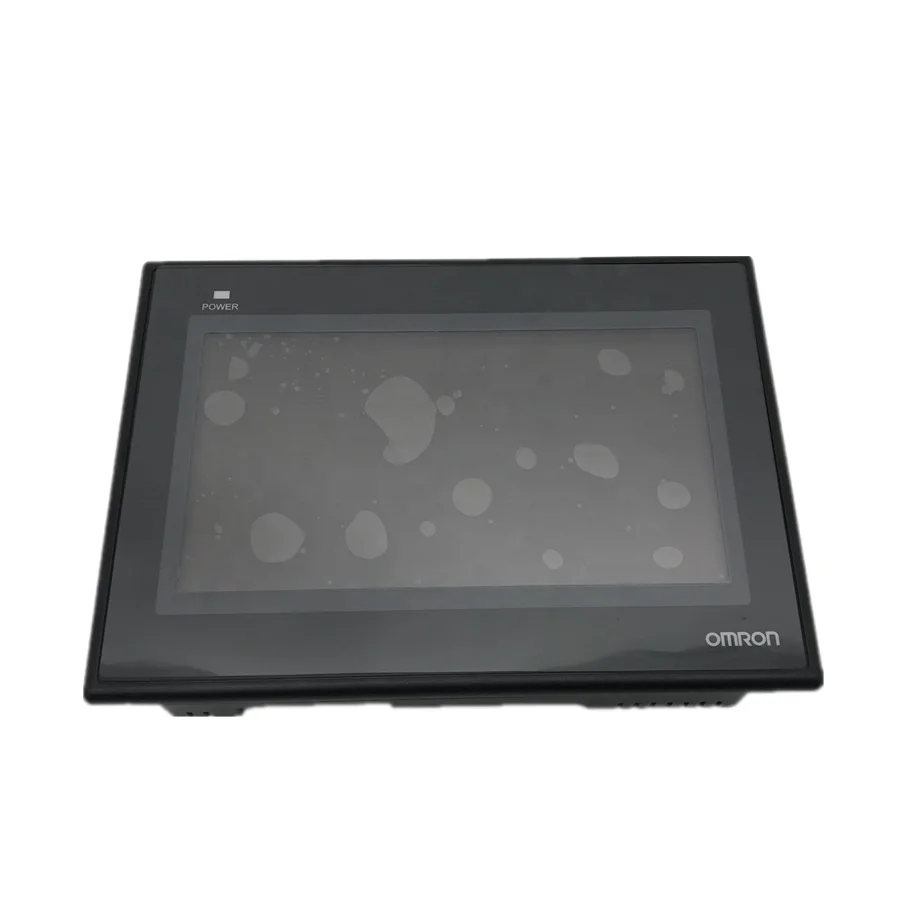

Промышленное оборудование DOP-110WS MT8071IE NB7W-TW01B HMI 1766-L32BWA 1747-L532 инвертора ПЛК в наличии Omron оригинальной упаковке JP

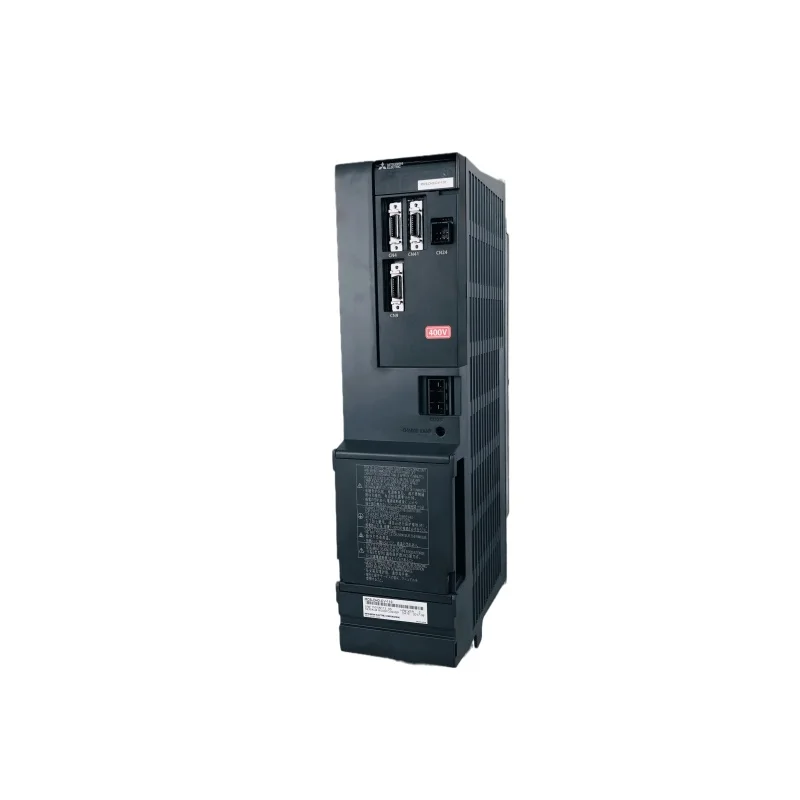

Высокое качество Mazak MDS-DH2-CV-110/CN23-OP б/у новый ЧПУ Mitsubishi блок питания

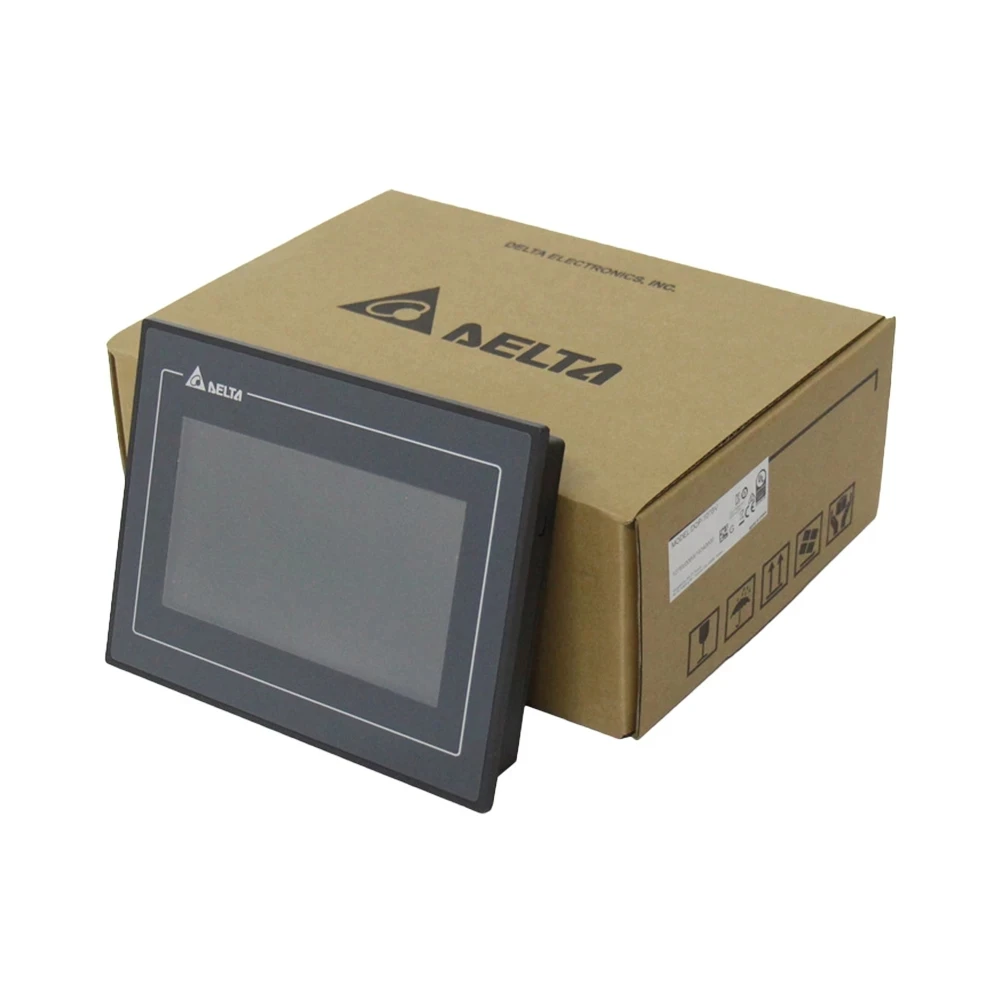

DOP B03S210/ B03S211 4,3 'дюйма Delta DOP-103BQ 107BV HMI Сенсорный экран интерфейс человек-машина дисплей Delta HMI сенсорный экран
