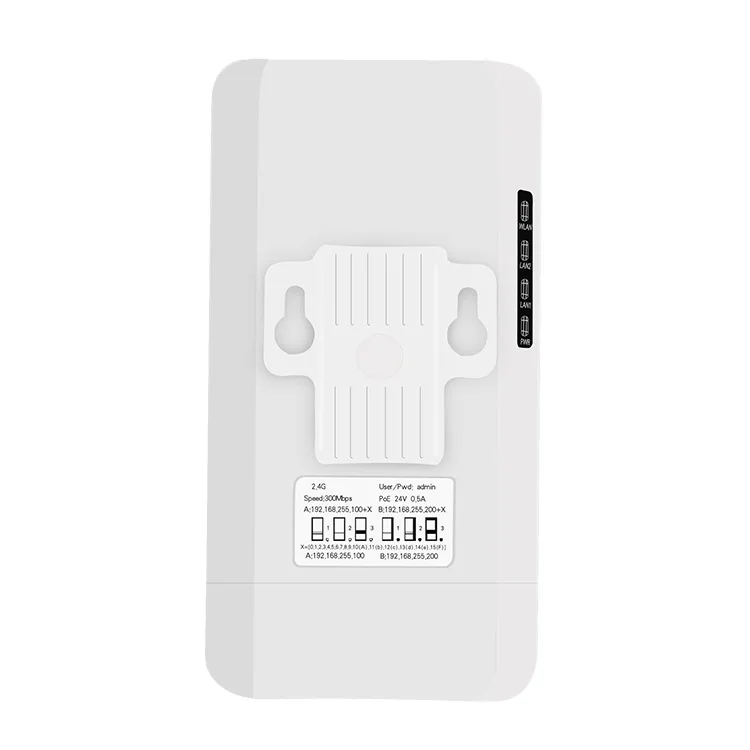

CPE200 is an high power industrial 2.4G outdoor CPE with the next generation 802.11b/g/n Wi-Fi standard, combined 300Mbps high speed in 2.4G, equipped 2 10/100M LAN ports, 2 times Ethernet data rate faster than normal CPE, it make more than 50 end users can access into it to enjoy seamless HD movies, streaming, online gaming, wireless security and other bandwidth-intensive tasks. It is using air as a medium for network data transmission to remote point-to-point or point to multi-point connectivity. It supports 1KM transmission distance with two-way traffic flow up to 140M.


CPE200 has smart web management, it can be pairing automatically.


Features:


* Comply with IEEE 802.11b/g/n, 2.4G,300Mbps Data Rate


* 2x 10/100M LAN Port


* 200mW high power, build in 10dBi MIMO panel antenna, stronger signal strenght, more wireless coverage


* Support passive PoE


* With function of build in firewall, IP filter, URL filter and MAC filter


* Comply with IEEE 802.3az standard, beamforming technology, RF power adjustment and frequency analyzer for better application in different environment


* Support DDNS, VPN pass through, Port forwarding and DMZ host


* Support 64/128-bit WEP security, 128bit WPA (TKIP/AES) security


Specification:

































































Chipset



AR9531



FLASH * DDR2



FLASH 8MB * DDR2 64MB



Interface



10/100Mbps  WAN*1 LAN*1



Power Supply



POE 24V 1A



Antenna Spec



frequency range



2300~2800MHz



Polarization direction



Horizontal / vertical



Gain



10DBi



Management &


Security



Telnet



Support



MAC address control



Support



Management based on WEP



Support



Encryption



WEP encryption 64/128bits,WPA,WPA2,802.1x






Work / Storage environment



working temperature



-30~70



Storage temperature



-30~65



Humidity (not concentrated)



95%













































frequency range



2.4GHz frequency range:2.4~2.4835GHz



transmission speed



2.4GHz transmission speed



11b:1/2/5.5/11Mbps


11g:6/9/12/18/24/36/48/54Mbps


11n:Max.  300Mbps



Working channel



2.4GHz transmission speed :13(1~13)



Spread frequency technique



DSSS(Direct sequence spread spectrum)



Data Modulation



11b:CCK,QPSK,BPSK


11g:OFDM


11n:QPSK,BPSK,16-QAM,64-QAM



Medium access protocol



CSMA/CA with ACK



Data Encryption



WPA-PSK/WPA2-PSK,WPA/WPA2,WEP
