Residential High-pressure Ceiling type ERV Series Energy Recovery Ventilator 150m3/h-500m3/h
Household High-Pressure Ceiling Type Energy Recovery Ventilator ERV Series

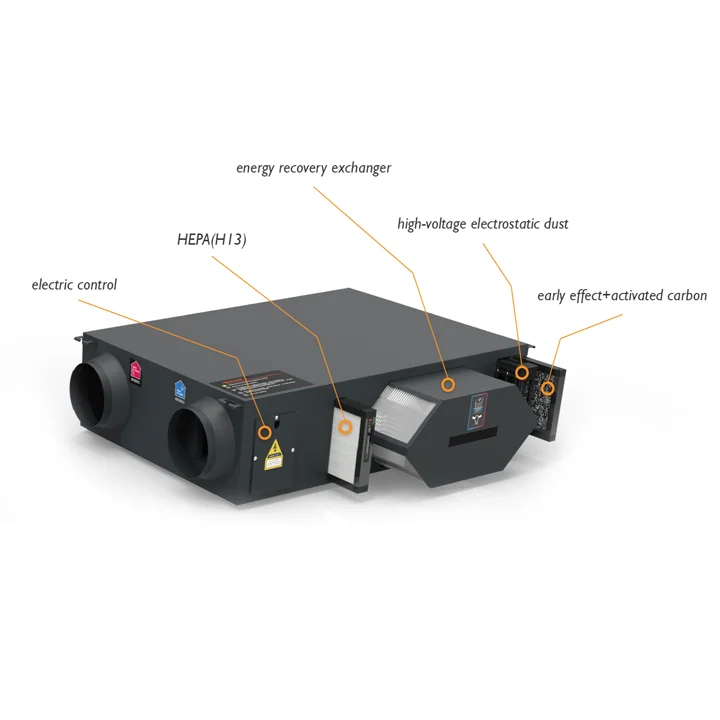

PSY Washable Energy Recovery Exchanger
The PSY high thermal conductivity of molecular material, developed by Japanese DR team, has high heat recovery efficiency. It can infiltrate water molecules in the process of heat exchange; with the washable material, also can avoid the problem of bacteria and molds production.
Early Effect+Activated Carbon
The sealing property is far more than the paper border with using the plastic margin. The filter with composite fiber, sprayed with activated carbon powder, can filter dust particle efficiently and the wind resistance is very small. The even-distributed activated carbon power can maximize the role of activated carbon. This washable filter can be used repeatedly, and two in one way, early effect+activated carbon, greatly reduces the total cost of consumables.
H13 High Efficiency Particulate Filter
The sealing property is far more than the paper border with using the plastic margin. To ensure the health and non-pollution, we take the enviromental friendly imported sealant, no color and no odor. The filter element that we use is 3M HEPA, meeting the European standard-H13, and the PM2.5 removal rate can be up to 99.97%, this large dust holding capacity helps to save the total cost.
High-voltage Electrostatic Dust
With pin type electric discharge way,the high-voltage electrostatic dust can replace the traditional tungsten filament high-voltage electrostatic dust collection. It’s thickness is only 4cm, can be suitable for all kinds of models. The removal rate of PM2.5 is highly to 98%, so that can effectively kill the bacteria and prevent the infection. It’s washable, also can be cleaned with brush, and will not increase the using cost.
Model and cooresponding configuration instructions
MIA-AHE· N:Ceiling Energy recovery ventilator equipped with activated carbon and AC inner rotor fan
MIA-AHE· NB:Ceiling Energy recovery ventilator equipped with activated carbon and AC outer rotor fan
MIA-AHE· NB/C:Ceiling Energy recovery ventilator equipped with activated carbon and DC brushless fan
MIA-AHE· GL:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC inner rotor fan
MIA-AHE· GLB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC outer rotor fan
MIA-AHE· GLB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and DC brushless fan
MIA-AHE· JDN:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC inner rotor fan
MIA-AHE· JDNB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC outer rotor fan
MIA-AHE· JDNB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and DC brushless fan
MIA-AHE· NB/C:Ceiling Energy recovery ventilator equipped with activated carbon and DC brushless fan
MIA-AHE· GL:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC inner rotor fan
MIA-AHE· GLB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and AC outer rotor fan
MIA-AHE· GLB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter and DC brushless fan
MIA-AHE· JDN:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC inner rotor fan
MIA-AHE· JDNB:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and AC outer rotor fan
MIA-AHE· JDNB/C:Ceiling Energy recovery ventilator equipped with activated carbon, HEPA filter, high voltage electrostatic dust filter and DC brushless fan
Contact With Supplier
Contacts: Tina Yu
Mail: tina.miaventilation@miachina.net
TEL/WA: 0086-18852950357
Mail: tina.miaventilation@miachina.net
TEL/WA: 0086-18852950357
Wechat: ytt88728582
Website: //www.miachina.net/
Website: //www.miachina.net/
Technical Parameters
Filter Section: 1 Piece Early Effect Activated Carbon | ||||||||||||||
Model | Voltage | Power | Volume | Pressure | Efficiency | Noise | Motor | |||||||
MIA-AHE15NB | 220V | 122W | 150m³/h | 290Pa | 86%~92% | 30dB(A) | AC | |||||||
MIA-AHE15NB/C | 220V | 92W | 150m³/h | 290Pa | 86%~92% | 30dB(A) | EC | |||||||
MIA-AHE25NB | 220V | 178W | 250m³/h | 370Pa | 86%~89% | 32dB(A) | AC | |||||||
MIA-AHE25NB/C | 220V | 166W | 250m³/h | 370Pa | 86%~89% | 32dB(A) | EC | |||||||
MIA-AHE35NB | 220V | 246W | 350m³/h | 392Pa | 85%~88% | 35dB(A) | AC | |||||||
MIA-AHE35NB/C | 220V | 233W | 350m³/h | 392Pa | 85%~88% | 35dB(A) | EC | |||||||
MIA-AHE50NB | 220V | 453W | 500m³/h | 425Pa | 84%~87% | 37dB(A) | AC | |||||||
MIA-AHE50NB/C | 220V | 288W | 500m³/h | 425Pa | 84%~87% | 37dB(A) | EC | |||||||
Filter Section: 1 Piece Early Effect Activated Carbon + 1 Piece HEPA 13 | ||||||||||||||
Model | Voltage | Power | Volume | Pressure | Efficiency | Noise | Motor | |||||||
MIA-AHE15GLB | 220V | 130W | 150m³/h | 285Pa | 86%~92% | 31dB(A) | AC | |||||||
MIA-AHE15GLB/C | 220V | 98W | 150m³/h | 285Pa | 86%~92% | 31dB(A) | EC | |||||||
MIA-AHE25GLB | 220V | 182W | 250m³/h | 360Pa | 86%~89% | 33dB(A) | AC | |||||||
MIA-AHE25GLB/C | 220V | 176W | 250m³/h | 360Pa | 86%~89% | 33dB(A) | EC | |||||||
MIA-AHE35GLB | 220V | 265W | 350m³/h | 385Pa | 85%~88% | 36dB(A) | AC | |||||||
MIA-AHE35GLB/C | 220V | 241W | 350m³/h | 385Pa | 85%~88% | 36dB(A) | EC | |||||||
MIA-AHE50GLB | 220V | 462W | 500m³/h | 420Pa | 84%~87% | 38dB(A) | AC | |||||||
MIA-AHE50GLB/C | 220V | 306W | 500m³/h | 420Pa | 84%~87% | 38dB(A) | EC | |||||||
Filter Section: 1 Piece Early Effect Activated Carbon + 1 Piece High-voltage Electrostatic Dust + 1 Piece HEPA 13 | ||||||||||||||
Model | Voltage | Power | Volume | Pressure | Efficiency | Noise | Motor | |||||||
MIA-AHE15JDB | 220V | 130W | 150m³/h | 285Pa | 86%~92% | 31dB(A) | AC | |||||||
MIA-AHE15JDB/C | 220V | 98W | 150m³/h | 285Pa | 86%~92% | 31dB(A) | EC | |||||||
MIA-AHE25JDB | 220V | 182W | 250m³/h | 360Pa | 86%~89% | 33dB(A) | AC | |||||||
MIA-AHE25JDB/C | 220V | 176W | 250m³/h | 360Pa | 86%~89% | 33dB(A) | EC | |||||||
MIA-AHE35JDB | 220V | 265W | 350m³/h | 385Pa | 85%~88% | 36dB(A) | AC | |||||||
MIA-AHE35JDB/C | 220V | 241W | 350m³/h | 385Pa | 85%~88% | 36dB(A) | EC | |||||||
MIA-AHE50JDB | 220V | 462W | 500m³/h | 420Pa | 84%~87% | 38dB(A) | AC | |||||||
MIA-AHE50JDB/C | 220V | 306W | 500m³/h | 420Pa | 84%~87% | 38dB(A) | EC | |||||||
Air Ventilation System Controller
Energy Recovery Exchange Principle
Applicable Scenarios
