Оптовая продажа цена ЧПУ Многофункциональный токарно карусельный станок cki 800b механический 800 мм
- Категория: >>>
- Поставщик: Yancheng Dafeng Ruihua Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1600079544233:
Описание и отзывы
Характеристики
The Vertical CNC Lathe
This machine is a vertical CNC lathe controlled by two coordinate (vertical Z horizontal X).
This machine tool has the functions of automatic tip arc radius compensation, constant linear speed cutting, chamfer, fixed cycle,thread cutting, graphic display and other CNC machine tools.Can turn processing end face, drilling, turning outside diameter,boring, cone face, arc face, thread, end face thread, etc.

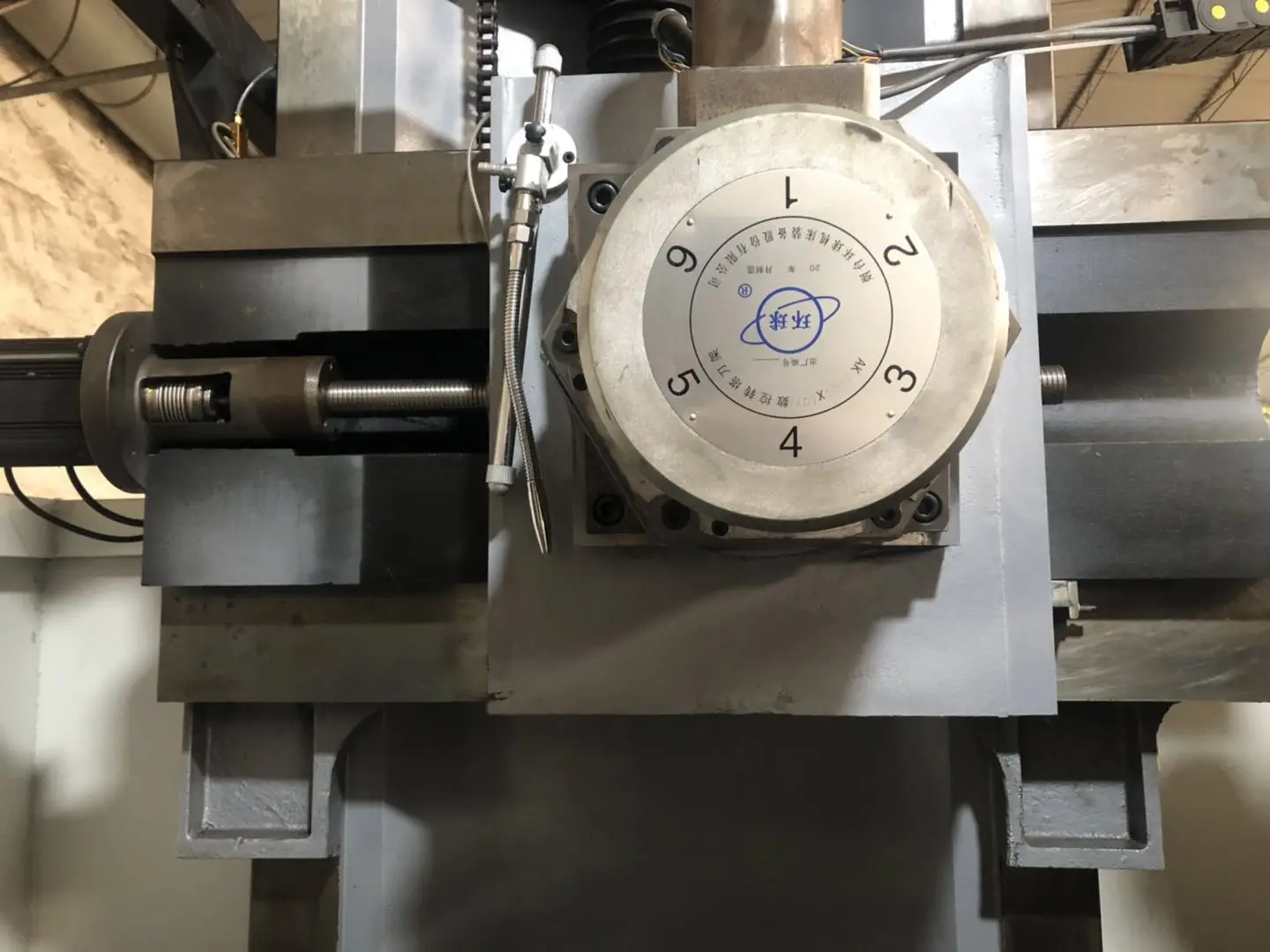

Conventional with six stations electric tool rest.Realize automatic cycle of process.One clamping can realize all or most
processes of complex parts.(it can also be equipped with four-station mechanical tool rest and special tool rest)
Configure wide 980TDb system.Can meet the requirements of CNC lathe.CNC vertical lathe has universality and versatility.Suitable for machinery manufacturing machinery processing.The machine tool can form the production line according to the user's demand and realize the automatic control.
Especially suitable for processing motor end cover, electric housing, wheel hub, brake hub and other types of short shaft, pump body, disc parts.Suitable for multi-variety, small and medium-sized batch parts processing characteristics, is the automobile, agricultural machinery, engineering machinery, electrical machinery and other industries parts processing preferred equipment.
The name says | unit | And the number | |
Table diameter | mm | 800 | |
Spindle servo motor | kw | Broad servo motor zjy-15kw | |
Maximum spindle speed | r/min | 50-600 | |
The X axis stroke | mm | 460 | |
XX axis fast moving speed (factory set value) | mm/min | 1800 | |
The Z axis stroke | mm | 800 | |
Rapid movement speed of z-axis (factory set value) | mm/min | 1800 | |
Spindle end connection | A1 type 11 | ||
Main shaft hole end connection | Metric 100 | ||

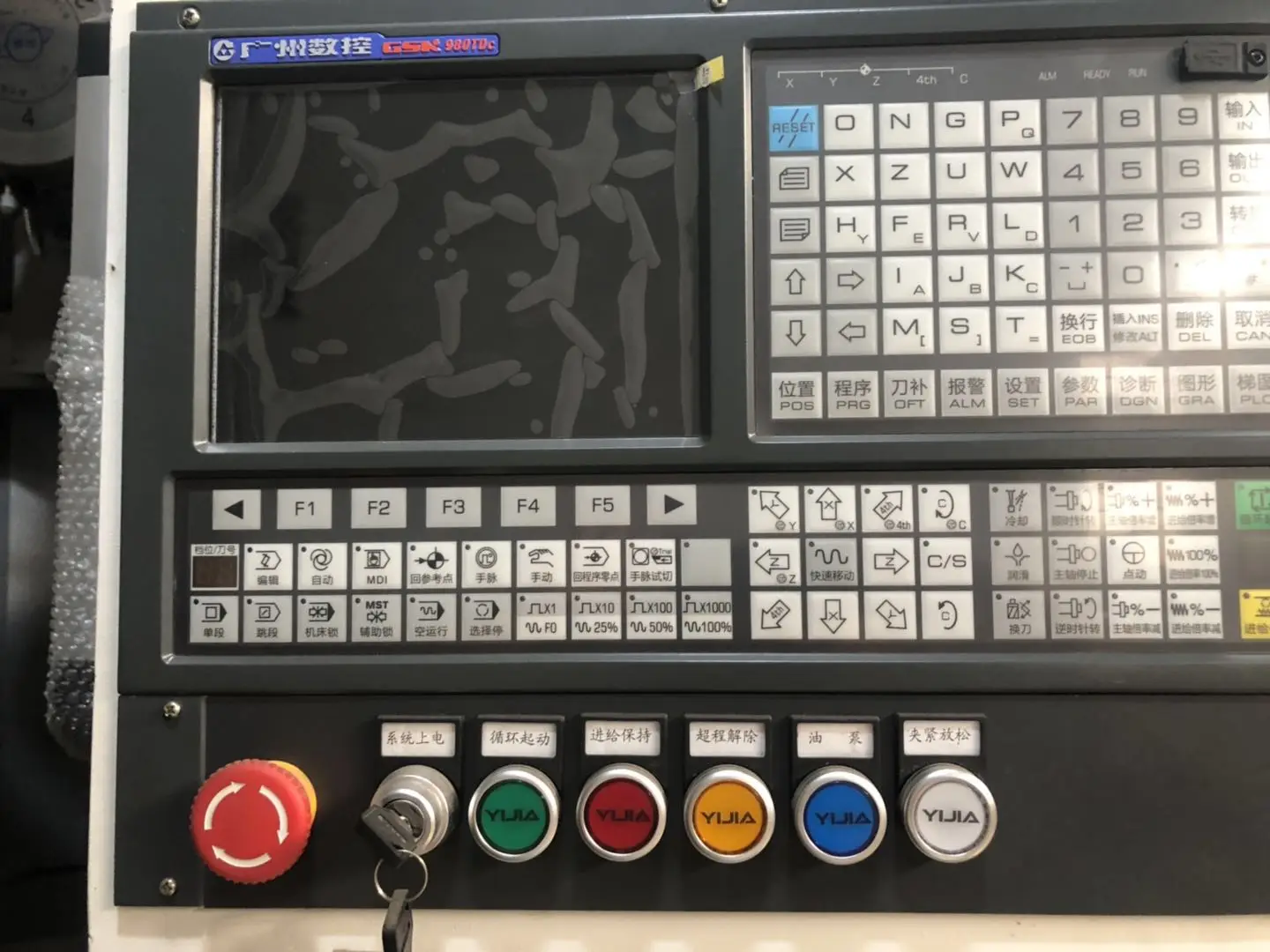

Numerical control system | Wide number GSK980TDC | ||
The tool rest adopts yantai universal tool rest | Six-station AK2730X6 - QY1 | ||
Chip removal device | CYPG300A | ||
Machine weight | 7T | ||
Medium solid rotary cylinder | P22200(Hohhot public ring) | ||
Medium hydraulic chuck | Diameter: 500mm (Hohhot ring) | ||
Hydraulic station | 60l (single set valve) | ||
Main Products
Ruihua provide several kinds of grinding manchine.We have Surface grinder accessories,CNC vertical lathe,Automatic surface grinding machine,Turret milling machine,Precision surface grinding machine,Hydraulic surface grinding machine,Manual surface grinder, Digital display surface grinding machine and so on.
Why Choose Us
ABOUT US
Sharing the concept of "the creation, the innovation, and sharing co-prosperity", RuiHua pursuits the target of
"first- class enterprise, first-class products, first-class service, first- class efficiency" , making efforts to create greater
value for the customers. Yancheng Dafeng RuiHua Machinery Manufacturing Co.,ltd is a high-tech enterprises, engaged in surface grinding manchine
researching and development, production, sales and service. Covering an area of 10000 square meters.RuiHua has been focused on surface grinding manchine for 17 years. Our customers are very satisfied with the products.Most of the products are exported to Middle East,Middle Asia,and the European.We are one of the best suppliers on ALIBABA.COM.We have the bestproducts,and we take custom orders.
"first- class enterprise, first-class products, first-class service, first- class efficiency" , making efforts to create greater
value for the customers. Yancheng Dafeng RuiHua Machinery Manufacturing Co.,ltd is a high-tech enterprises, engaged in surface grinding manchine
researching and development, production, sales and service. Covering an area of 10000 square meters.RuiHua has been focused on surface grinding manchine for 17 years. Our customers are very satisfied with the products.Most of the products are exported to Middle East,Middle Asia,and the European.We are one of the best suppliers on ALIBABA.COM.We have the bestproducts,and we take custom orders.
Q: Are you trading company or manufacturer ?
A: We are factory.
A: We are factory.
Q: This is the first time I use this kind of machine, is it easyto operate?
A: There is English manual that show you how to use machine. If you still have any question,please contact us by
e-mail/trademanager online service.
A: There is English manual that show you how to use machine. If you still have any question,please contact us by
e-mail/trademanager online service.
Q: How to install?
A: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
A: We adjusted machines well before we deliver. When customers receive them, you can work with them directly.
Q: How to ensure the safety?
A:Here have the overload and over heat protection, it ensure working people safety.
A:Here have the overload and over heat protection, it ensure working people safety.
Q:How to contact your company?
A:If you have any other questions,please feel free to contact me.
Похожие товары

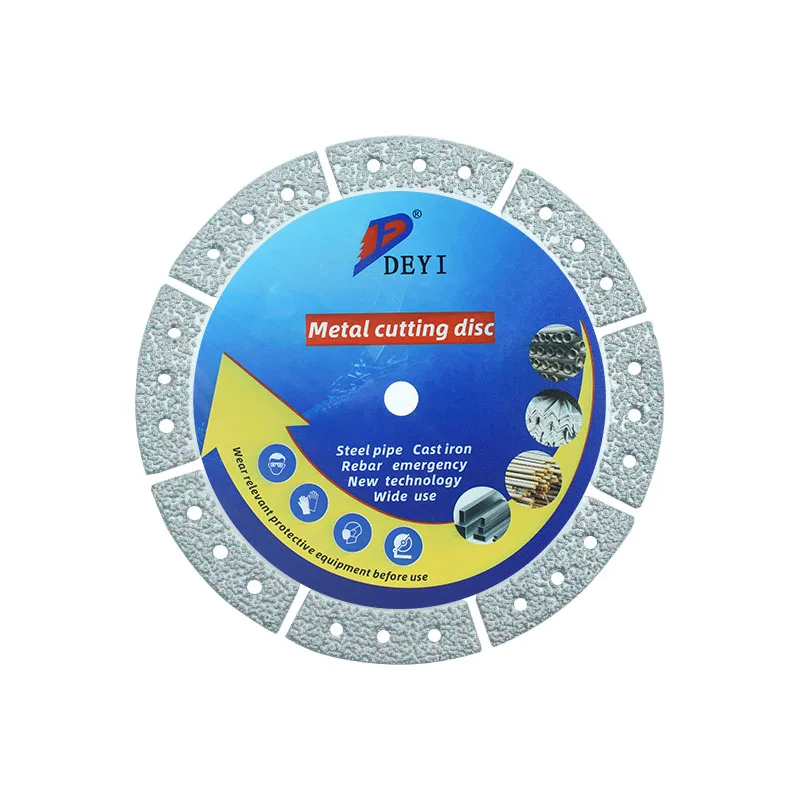

115 мм дисковый Алмазный металлический пильный диск, паяный пильный диск для резки чугуна, мрамора, нержавеющая сталь, пожарная аварийная пила
