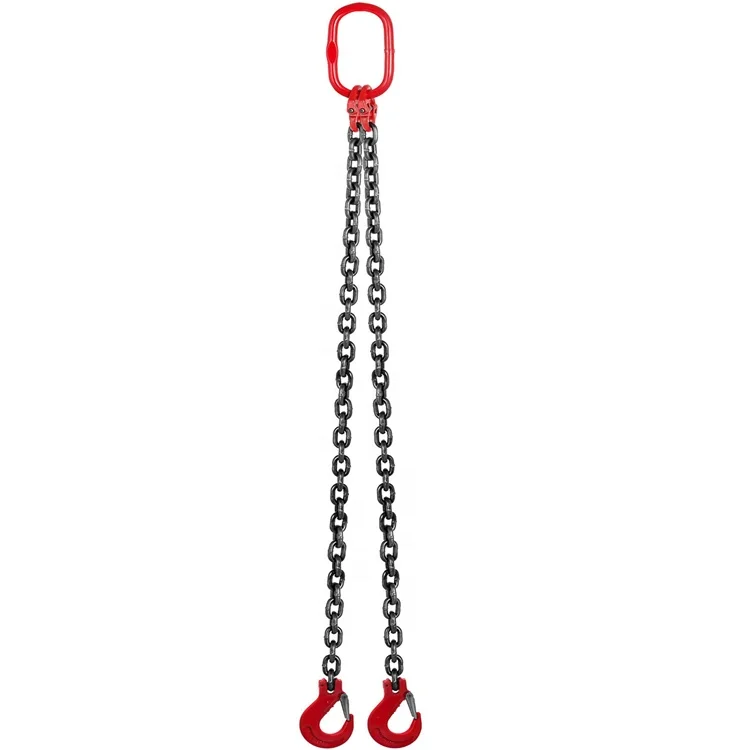

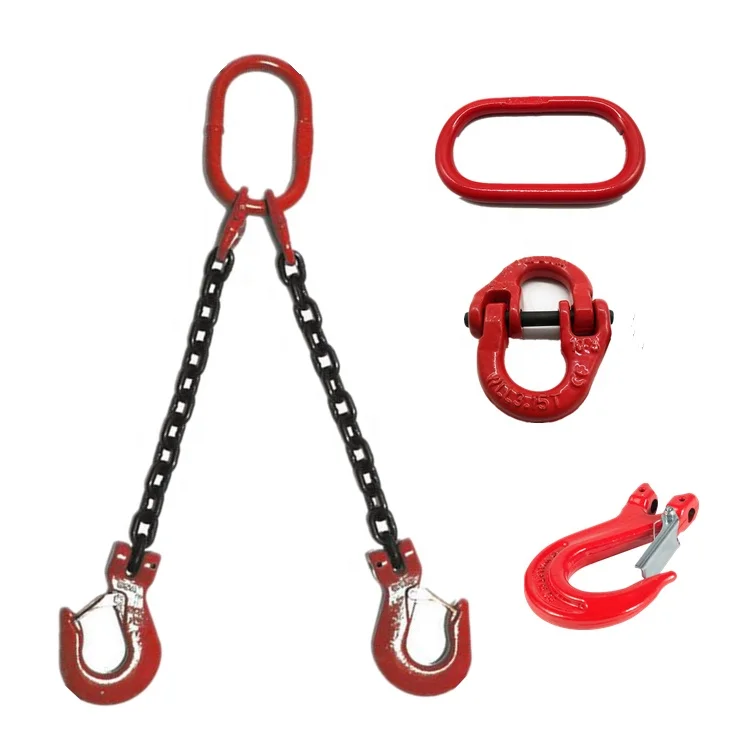

Двухножной Регулируемый подъемный строп g80 цепной из сплава
- Категория: >>>
- Поставщик: Jiangsu Gostern Rigging Co. Ltd.Jiangsu Ltd.
Сохранить в закладки 1600080257500:
Описание и отзывы
Характеристики
Product Description
PRODUCT NAME | Two legs adjustable lifting sling g80 alloy chain sling | ||||||
STANDARD | EN818-2 | ||||||
PACKING | Plywood reel/plastic reel/plastic drum/gunny bag/iron drum+plywood pallet/iron pallet | ||||||
APPLICATION | steel alloy chain sling with hook is used for overhead lifting ,dragging ,chain slings and so on | ||||||
FINISH | Self-colored,Paint,Black,Galvanized,Yellow. | ||||||
OEM | Accepct. | ||||||
Technological process | cutting- heating- bending –flash welding - trimming -stud setting - heat treatment -proof testing -breaking testing - shot blasting- surface finished -packing. | ||||||
1.High and homogen tensile strength | |||||||
2.Exellent core ducitility | |||||||
3.Long service life | |||||||
4.Safety factor: Min.4:1 | |||||||
5.Do 2.4 times of WLL manufacturing validation strength tensile test. | |||||||
Chain diameter | WLL (Ton) | Chain Weight | ||
(mm) | α≤45° | 45°＜α≤60° | (kg/m) | |
6 | 1.568 | 1.12 | 0.79 | |
8 | 2.8 | 2 | 1.38 | |
10 | 4.41 | 3.15 | 2.2 | |
13 | 7.42 | 5.3 | 3.8 | |
16 | 10.92 | 7.8 | 5.63 | |
20 | 15.68 | 11.2 | 8.6 | |
22 | 21 | 15 | 10.2 | |
26 | 29.6 | 21.2 | 15.2 | |
32 | 44.1 | 31.5 | 22.29 | |
Detailed Images

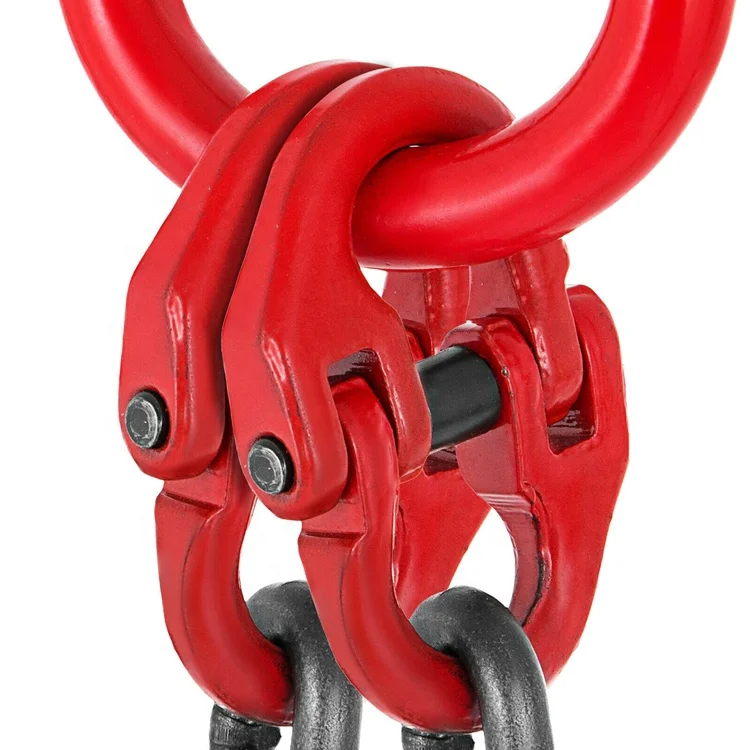

Name: master link and chain connector for the steel alloy chain sling with hook
Material: alloy steel
safety factor: 4 times
Part name: lifting hook for steel alloy chain sling with hook
material: alloy steel
safety factor: 4 times
Recommend Products
Product flow
Raw material inspection
Adopt high quality alloy steel,with certain proportion Cr,Ni,Mo elements.
Automatic knitting machine
Can knit automaticaly
Automatic welding machine
Can weld automaticaly
Automatic calibrating machine
Can calibrate automaticaly
Heat treatment machine
Heat treatment for chains
Test Machine
Do 2.4 times test for chains
Polish machine
Polish for chain
Surface treatment of steel alloy chain sling with hook
chain sling with hooks
Company Profile
Jiangsu Gostern Rigging Co., Ltd. was established in the year of 2001 in China. The company covers an area of 33000 square meters, more than 600 employees. It is a specialized slings company that can design, manufacture and market. The company has a strong technical ability, scientific technology procedures, testing equipment, and a perfect quality system. The company has achieved the ISO9001-2000 quality system certification. The quality of the products has been insured by the Chinese people and property insurance companies.
Our main products are wire rope slings, webbing slings, braided ropes, ratchet straps, tow straps, chain slings, steel plate lifting clamps, hanging beams, rigging accessories. The products are widely used in machinery, metallurgy, petroleum, chemical industrial, ports, shipbuilding and other fields.
The mission of Gostern: Our goal is to keep our customers satisfied with the quality products and services. We will continue to uphold the "quality first, the credibility of the first, the price is reasonable" service concept.
FAQ
Jiangsu Gostern Rigging Co., Ltd.
Q: Are you trading company or manufacturer ?
A: We are a manufacturer with nearly 20 years of experience.
Q: Why choose us?
A: Jiangsu Gostern Rigging Co., Ltd. is a factory specializing in producing the lifting sling, lifting clamp and lifting beams. We have over 20 years of experience in producing the products, and the operator of us are all with operation certification. Besides, we purchase the material from the best suppliers in China.
Q: Do you accept the drawing we supply and OEM?
A: Yes, we can design the lifting beams and lifting clamps according to your requirements, and we can produce the product according to your drawing. We also supply OEM service.
Q: What are your advantages in all these manufacturers?
A: We have a target that we will supply you products and service of high quality and reasonable price.
Q: How long is your delivery time?
A: According to the quantity and products you order, normally 5~30days, Generally it is 5~10 days if the goods are in stock.
Q: What is your terms of payment ?
A: Payment≤1000USD, 100% T/T in advance. Payment＞1000USD, 30% T/T in advance ,balance before shipment. Irrepealably L/C at sight.
Q: Do you offer free samples?
A: We can provide you with free samples if the value is not too high, but you need to pay the freight charge.
Q: How can you guarantee the quality of the products we order?
A: We have matching test machines and can do the test for all of the products you order, and we can provide you with the quality certificate.
Q: Can we have a visit to your factory?
A: Welcome to our factory, and we will arrange the pick-up.
A: We are a manufacturer with nearly 20 years of experience.
Q: Why choose us?
A: Jiangsu Gostern Rigging Co., Ltd. is a factory specializing in producing the lifting sling, lifting clamp and lifting beams. We have over 20 years of experience in producing the products, and the operator of us are all with operation certification. Besides, we purchase the material from the best suppliers in China.
Q: Do you accept the drawing we supply and OEM?
A: Yes, we can design the lifting beams and lifting clamps according to your requirements, and we can produce the product according to your drawing. We also supply OEM service.
Q: What are your advantages in all these manufacturers?
A: We have a target that we will supply you products and service of high quality and reasonable price.
Q: How long is your delivery time?
A: According to the quantity and products you order, normally 5~30days, Generally it is 5~10 days if the goods are in stock.
Q: What is your terms of payment ?
A: Payment≤1000USD, 100% T/T in advance. Payment＞1000USD, 30% T/T in advance ,balance before shipment. Irrepealably L/C at sight.
Q: Do you offer free samples?
A: We can provide you with free samples if the value is not too high, but you need to pay the freight charge.
Q: How can you guarantee the quality of the products we order?
A: We have matching test machines and can do the test for all of the products you order, and we can provide you with the quality certificate.
Q: Can we have a visit to your factory?
A: Welcome to our factory, and we will arrange the pick-up.
Contact
Thanks for visiting our website, further questions please feel free to contact us. We will do our best to support you all the time.
Jiangsu Gostern Rigging Co., Ltd.
Winnie Jiang
Marketing DepartmentTel: 86-523-86055553
Fax: 86-523-86889855
WhatsApp&Wechat: +86-15062999269
E-mail: winnie@zssling.com
E-mail: winnie@zssling.com
Web: www.zssling.com
Add.: No.188, Longgang Road, Taizhou City, Jiangsu, China.
Add.: No.188, Longgang Road, Taizhou City, Jiangsu, China.
