Сан части инвертора FR D720 2.2K состояние 100%

Сан части инвертора FR D720 2.2K состояние 100%

Категория: >>>
Поставщик: Golden Horn International Trading(Shanghai) Co. Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Description

Band	Mitsubishi
Place Of Origin	Japan
Warranty	1 Year
Application	Industrial Application
Technical consulting support	Yes

Specifications :

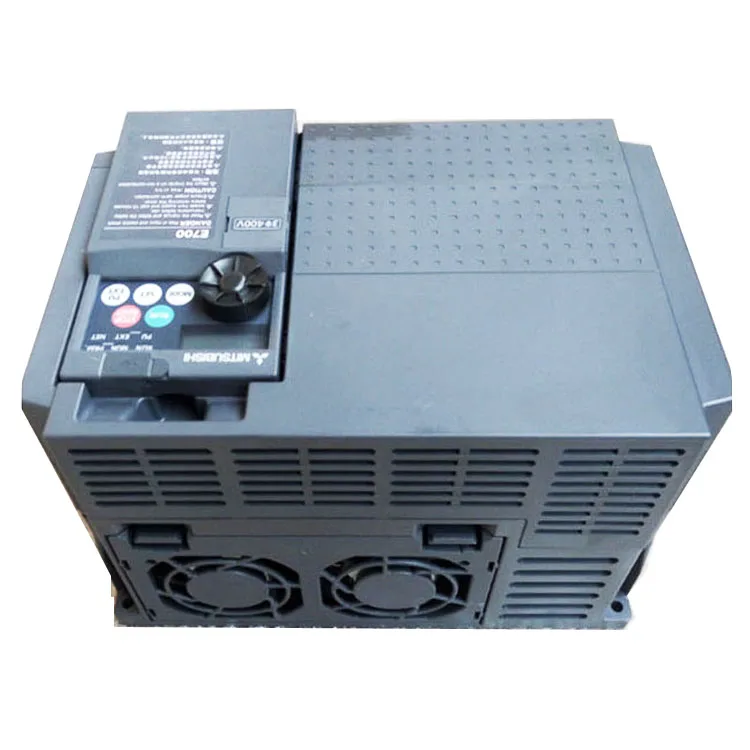

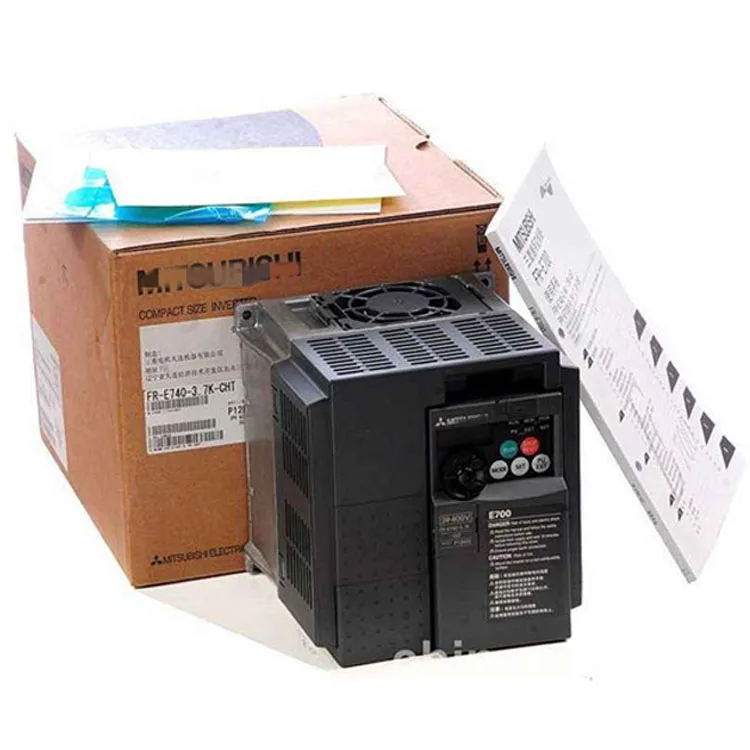

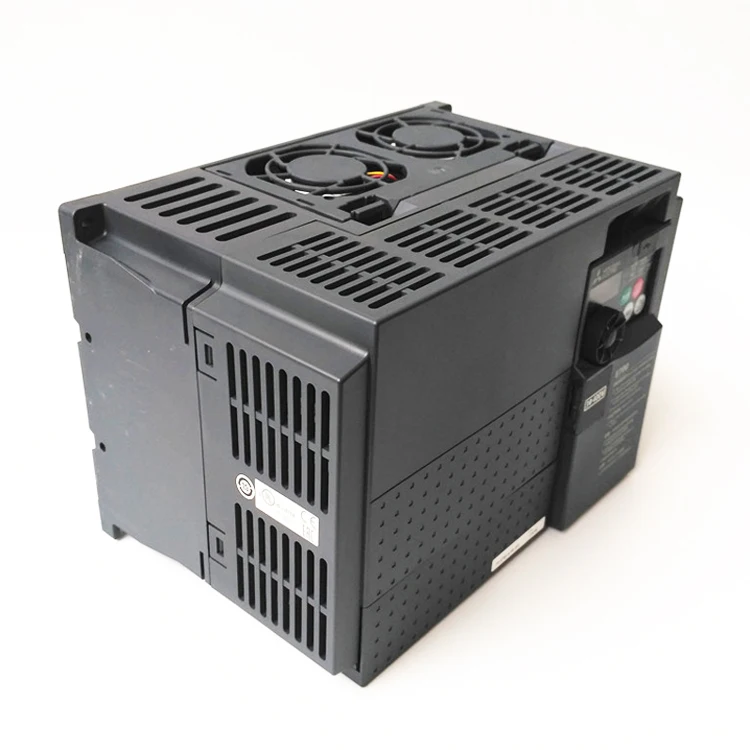

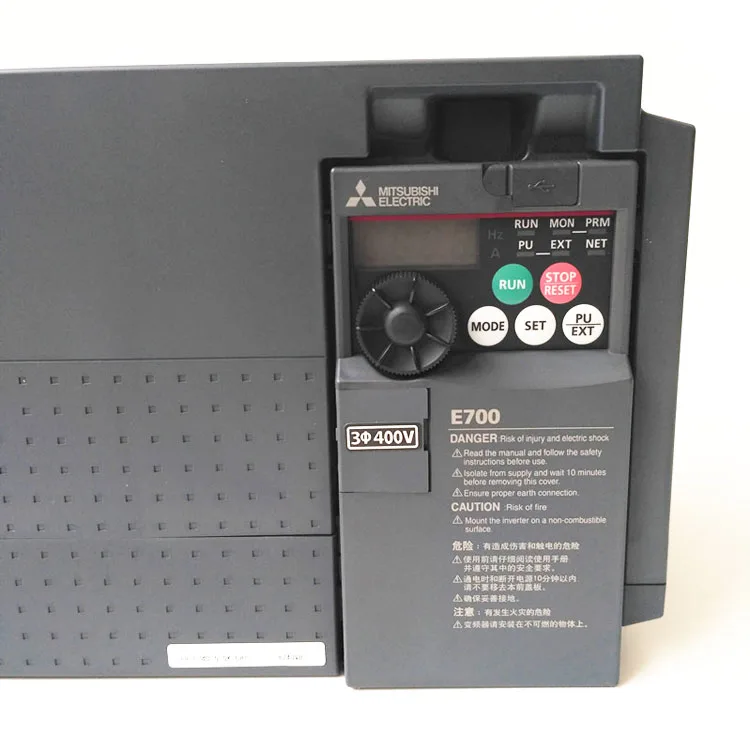

Product Type			E700 Series 3-phase Inverter
Power supply			3-phase 380 - 480V 50Hz
Output Power			5.5 KW
Rated Current			12 A
Control Method			Soft-PWM control/high carrier frequency PWM control ( V / F control , Advanced magnetic flux vector control, General-purpose magnetic flux vector control, Optimum excitation control are available)
Output Frequency Range			0.2 to 400Hz
Frequency Setting Resolution	Analog Input		0.06Hz / 60Hz (terminal 2, 4 : 0 to 10V / 10 bit ) 0.12 Hz / 60Hz ( terminal 2, 4 : 0 to 5 V / 9 bit ) 0.06 Hz / 60Hz (terminal 4 : 0 to 20 mA / 10 bit )
	Digital Input		0.01Hz
Frequency Accuracy	Analog Input		Within ±0.5% of the max. output frequency ( 25°C ±10°C )
	Digital Input		Within 0.01% of the set output frequency
Starting Torque			200% or more (at 0.5Hz) when Advanced magnetic flux vector control is set (3.7K or less)
Torque Boost			Manual torque boost
Accel / Decel Time Setting			0.01 to 360s, 0.1 to 3600s (acceleration and deceleration can be set individually), linear or S-pattern accel / decel modes are available.
DC Injection Brake			Operation frequency (0 to 120Hz), operation time (0 to 10s), operation voltage (0 to 30%) can be changed.
Stall Prevention Operation Level			Operation current level can be set (0 to 200% adjustable), whether to use the function or not can be selected
Frequency Setting Signal		Analog Input	Two terminals Terminal 2: 0 to 10V, 0 to 5V can be selected Terminal 4: 0 to 10V, 0 to 5V, 4 to 20mA can be selected
		Digital Input	The signal is entered from the operation panel or parameter unit. Frequency setting increment can be set. 4 digit BCD or 16bit binary data (when the option FR-A7AX E kit is used)

Why Choose US?

Integrity, reliability and honesty are the most valued principles in our company. We’ll endeavor to provide you the best service and the most preferable products,which are very diverse,from PLC to Servo motor,from Sensor to Relay, from Switch to Pumps and Valves.You choosing us means a whole lot to us,we’ll cherish every opportunity that we are given and will always be a reliable supplier to you,will be there to champion every step of your success.

We keep more than 10 thousands in warehouse, it could cut lead time of most items.
Customer service in full time. If there's any question, please contact our sales.
180 days warranty for all the goods from us.
2000+ suppliers with us, we could help you to get any components which is difficult to get.
Risk-free guarantee, 60 days refund. If the items you purchase from our store are not of perfected quality, simply return them to us for replacement or refund.

FAQ

Q: What payment method Golden Horn accept?

A: We accept the various of payment ,T/T bank, Ali Assurance ,Credit card ,Western Union ,Paypal ,Escrow...

Q: Does Golden Horn ship to our address?

A: We could send goods to all the address where express could arrive.

Q: Do you provide warranty for the goods?

A: Yes, we provide warranty for all the goods from us.

Q: Could Golden Horn provide technology support?

A:We're in this field for many year. There're many engineers here. If there's any problem, please contact with our sales, she'll provide suggestion from our engineer to help you solve the problem.
