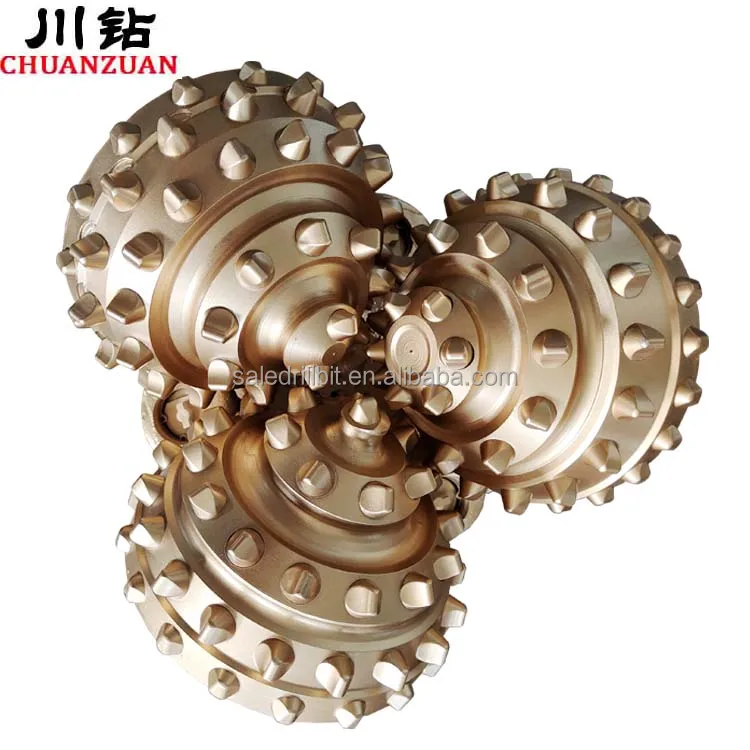

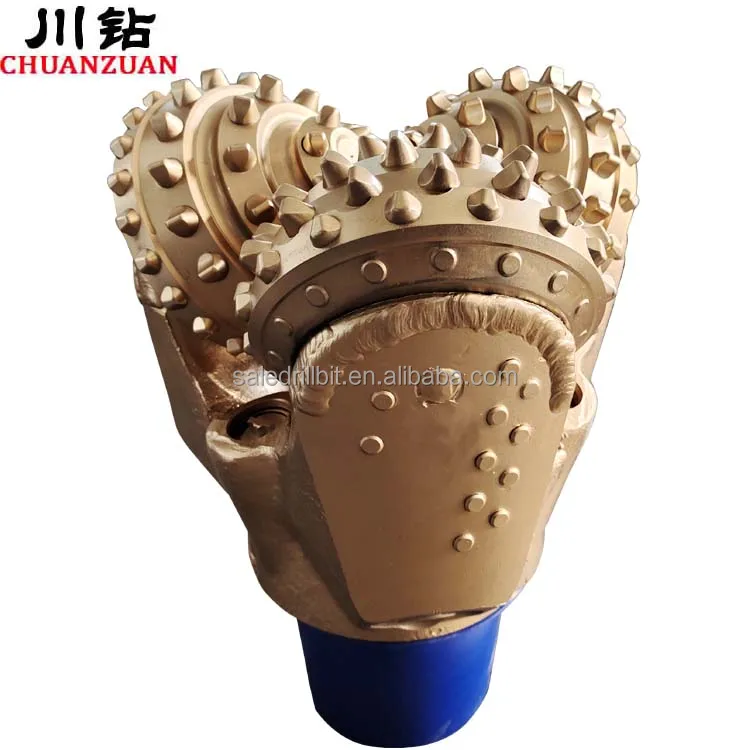

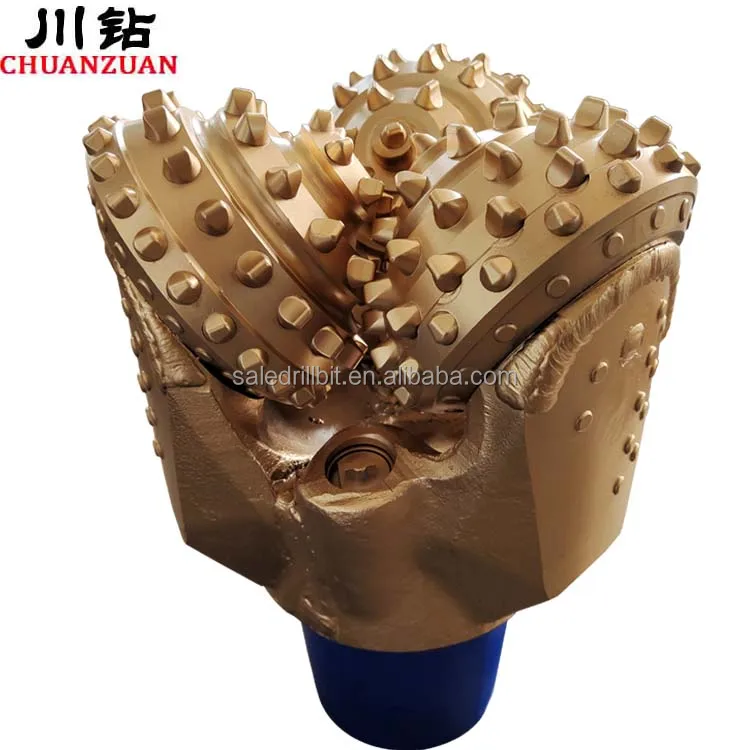

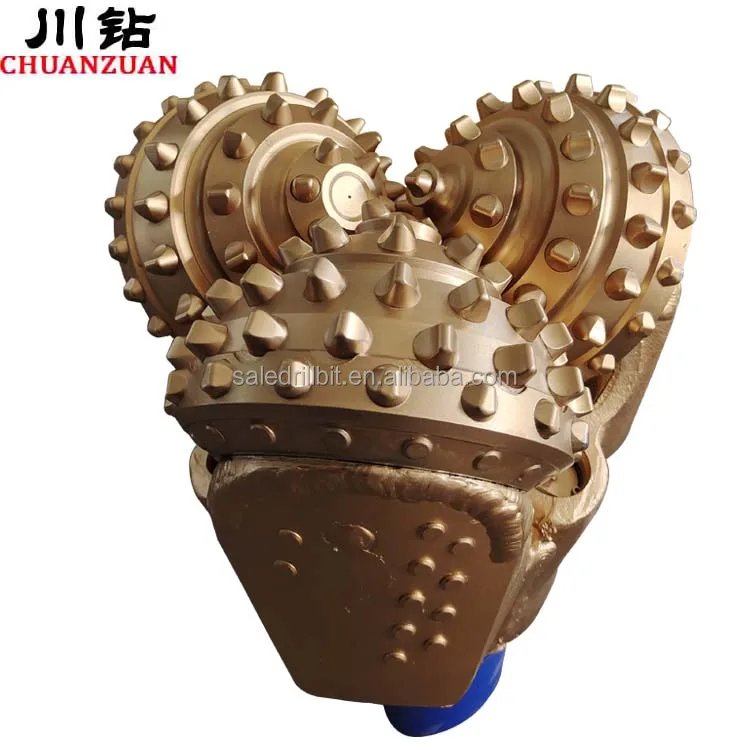

Фабричные акции трехшарошечное сверло с зубьями Tci 12 1/4 дюйма Ротационные трехшарошечные сверла
- Категория: >>>
- Поставщик: Hebei Yichuan Drilling Equipment Manufacturing Co. Ltd.
Сохранить в закладки 1600080586547:
Описание и отзывы
Характеристики
Product Description
Size | 12 1/4 inch 311.1mm |
Gross Weight | 104 kg |
IADC | 537 |
Thread connection | 6 5/8 API REG PIN |
WOB (Weight On Bit) | 0.50~1.05KN/mm |
RPM | 110-40 |
Formation | Low compressive strength, medium hard formation with hard abrasive interlayer, like Hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc. |
IADC | Rok Formation | WOB (KN/mm) | RPM(r/min) |
417/427/437 | Low compressive strength, high drill-ability and extremely soft formation, like shale, clay, sandstone, conglomerate etc | 0.35~0.90 | 140~70 |
447 | Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, plaster etc. | 0.37~1.00 | 140~60 |
517 | Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, etc | 0.37~1.00 | 120~50 |
527 | Soft formation with low compressive, like Low compressive strength, high drill-ability and soft formation, like shale, clay, sandstone, soft limestone, salt rock, anhydrite etc. | 0.35~0.90 | 120~50 |
537/547 | Low compressive strength, medium hard formation with hard abrasive interlayer, like Hard shale, anhydrite, soft limestone, sandstone, dolomite with mezzanine, etc. | 0.50~1.05 | 110~40 |
617/627 | High compressive strength, medium hard and thick hard interlayer, like hard shale, limestone, sandstone, dolomite, etc. | 0.50~1.05 | 80~40 |
637/737 | High compressive strength, medium hard and high abrasive formation, like limestone, dolomite, sandstone, chert, etc. | 0.70~1.20 | 70~40 |
Cutting Structure
The wear-resistance of teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for steel tooth bit.The durability of premium tungsten carbide inserts is improved with newformulas and new techniques for insert bit.
Gauge Structure
Multiple gauge protection with gauge trimmers on the hell andgauge inserts on the gauge surface of the cone,tungsten carbide inserts and hardfacing on the shirttail increases gague holding capability and bearing life.
Bearing Structure
High precision roller bearing with two thrust faces,Ballk lock the cone,.The leg bearing can get larer by arraning the roller in groove of the cone hole,so it can receive more Wob,and suitable for high RPM.Thrust faces hardfaced with wear resistant alloy,Abrasion resistance and seizure resisitance of the bearing are inproved.
Sealand Lubrication
Premium HNBR O-ring,optimal seal compression and curved seal structure can enhance seal performance. The pressure compensator system and adwanced grease can greatly increase the lubricating reliability.
Product Application
It can receive higher WOB and faster rotary speed than conventional roller bearing bits.It is suitable for high POM applications.
Detailed Images
Related Products
Our Company
About Us
Established in the 1990's, Hebei Yichuan Drilling Equipment Manufacturing Co., Ltd has been engaged in the production of roller-cone bit and bit cutters for more than 20 years. we have kept our clients ahead of schedule and under budget by providing the highest quality products at the best possible prices . We ship to more than 60 countries and serve industries such as Oil & Gas, water well , Construction, Mining, Horizontal Directional Drilling (HDD), Geothermal and Environmental. Our experienced staff is here to assist you with everything from choosing the right bit to shipping around the globe.
Yichuan uses advanced equipments including the latest CNC lathes, milling machines, etc. All products manufactured in accordance with API standards and clients' requirements.
Today's Quality is Tomorrow's reputation. Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine workshop. Reduce the cost ,Speed the drilling ,Guarantee the safety is always our aim.
Today's Quality is Tomorrow's reputation. Our goal is to provide our customers with the best quality tools, accessories and service in the industry. We are supported by many years of experience, trained professionals and a full machine workshop. Reduce the cost ,Speed the drilling ,Guarantee the safety is always our aim.
Our Service
1 We are a manufacturer ,we supply good quality goods at competitive price
2 We not only have own design, but also can accept customization
3 We supply fast and on time delivery time
4 Every bits have it's quality assurance
5 Contact us anytime if you have any question with our products.
6 24 hours on time reply
Packing & Delivery
FAQ
First of all, wewould likeyou know that we are an manufacturer for over 20 years. And we loacted in Hejian City,Hebei province , China.
We have so many clients from all over the world. Our clients choose us for high quality not the lowest price, we depend on the quality to do business for every client. We know it is not easy to do business,and it is difficult to get a customer,so we must serve with integrity.
"what you pay what you gain" is our promise,We will provide high quality products .
1 Q: Are you a manufacturer?
A: Yes, we are and over 20 years.
2 Q: Where are you located in?
A: We are located in Hejian City,Cangzhou City,Hebei province,China
3 Q:What's your mainly product?
A: Our mainly products are TCI tricone bit, Steel tooth tricone bit, sigle cone bit, HDD hole oppener and soon. We can also customize products according to your needs, such as PDC drag.
4 Q: What's your MOQ?
A: Our MOQ is 5 pieces, but if you just want sample test quality we also can supply to you.
5 Q: What is the lead time?
A:If we have stock, we can make delivery in seven days,If you need to produce with your requirements, we will negotiate with you.
6 Q: Do you have used drill bit ?
A: Yes,we have and price is very competitive, welcome inquiry usanytime.
If you have any questions, please feel free to contact us .No matter how far away we are, communication is no boundaries.
Похожие товары
Оборудование для закусок, 2/4 головок, машина для производства вафель/вафель для мороженого, машина для производства вафель для малого бизнеса
HOXC прочный защитный чехол из ТПУ для Nintendo Switch OLED, полностью защитный чехол TUP для новой выпущенной консоли Nintendo Switch Pro
1,50 $ - 2,50 $
Режущая головка для водоструйной Резки, запчасти, клапан на сиденье 301478
Печатная плата bluetooth для динамика, печатная плата для воздушного охладителя, печатная плата, монтажный кабель PCBA, производитель комплексного обслуживания под ключ
0,80 $ - 1,50 $

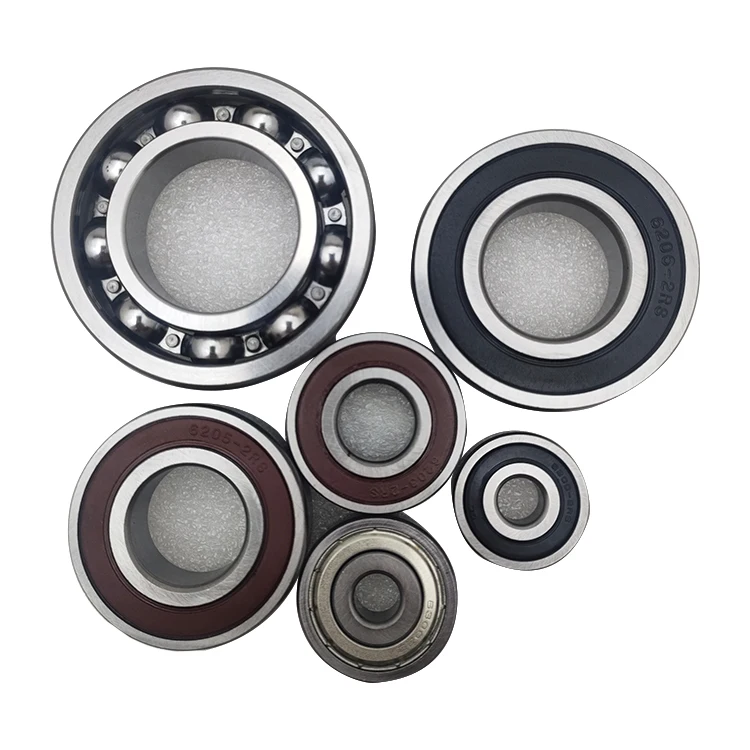

Лидер продаж, дешевый индивидуальный шариковый подшипник с глубоким желобом 61922 для машиностроений, ремонтных мастерских

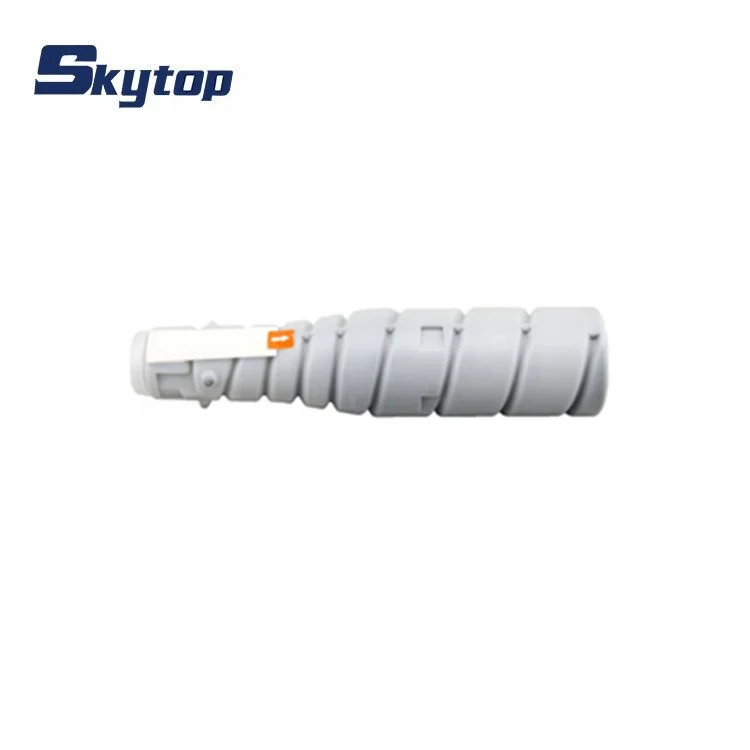

Тоник Skytop TN217 TN414 для Konica Minolta Bizhub 223 283 363 7828 423 363

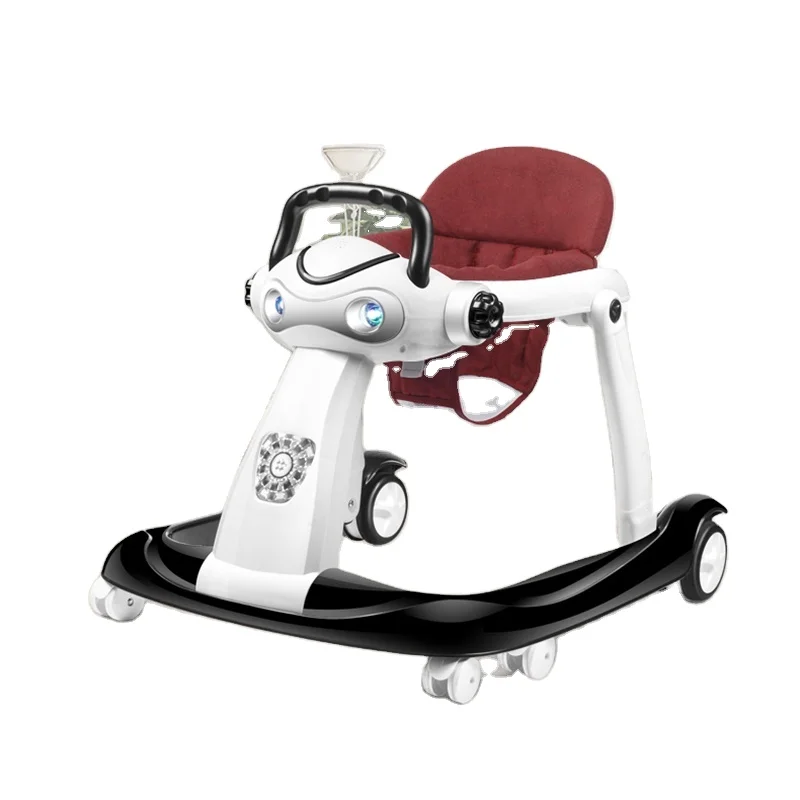

Популярный Amazon толкатель 3 в 1 детский ходунок ездить на машине музыкальная игрушка для малышей круглый ассистент активности уникальный ходунок для малышей
