Индивидуальное автоматическое оборудование для сушки пищевых продуктов XSG со вспышкой

Flash dryer equipment overview:
The flash dryer is a new type of continuous drying equipment that integrates drying, crushing and sieving. It is especially suitable for drying cake-like, paste-like, and thin mud-like materials. The drying time of the wet material in the drying tower is only a few tens of seconds, and the moisture evaporates instantly. The quality of the dried product has a great relationship with the drying temperature, wind speed, air volume, and the speed of crushing. Our company has an innovative design scheme to control the size and final moisture content of the finished particles by adjusting the wind speed, air volume and breaking speed of the flash drying tangent.
The flash dryer is tangent to the hot air to enter the bottom of the dryer, driven by the agitator to form a powerful rotating wind field. The material enters the dryer through the screw feeder. Under the strong action of the high-speed rotating paddle, the material is dispersed by the impact, friction and shear force. The bulk material is quickly crushed, fully contacted with the hot air, heated and dried . The materials with low moisture content and small particle size rise together with the rotating air flow, and are sent to the separator for gas-solid separation. The finished products are collected and packaged, and the tail gas is emptied after being processed by the dust removal device.

Flash drying working principle:
In flash drying, wind is used as the heat and heat carrier, and the fan is used as the power to realize the mass and heat exchange in the drying process, so that the moisture content of the material changes, and the material and moisture are separated, that is, drying.
Natural air is generally used for drying. After passing through the air filter, the natural air is heated by the fan into the steam heat exchanger, coal or oil or gas hot air furnace, and the heated hot air is then distributed by the hot air distributor of the flash host. Cyclone with uniform, certain velocity and flow direction. The cyclone contacts and collides with the wet material added by the screw feeder, and begins a series of physical changes such as mass-heat exchange and separation, which separates the material from the contained moisture and finally reaches dryness.
The rotary flash drying unit is one of the main equipment produced by our company. The rotary flash drying unit produced by our company since its establishment has been distributed all over the country, covering pigments, dyes, petroleum, building materials, food, feed, pesticides and other Intermediate and other industries. Over the years, our company has encountered many materials that are difficult to join, dry, and separate. After scientific analysis and experiments, all of them have ended successfully. So far, we have unique drying solutions for materials of different natures, so we have the confidence and ability to achieve your company's material drying requirements.

Flash dryer equipment characteristics:
1. A variety of feeding devices are available for selection. The feeding is continuous and stable without bridging.
2. A special cooling device is installed at the bottom of the dryer to avoid the deterioration of the material in the high temperature area at the bottom.
3. Special air pressure sealing device and bearing cooling device can effectively extend the service life of the transmission part.
4. The special air separation device reduces the resistance of the equipment and at the same time makes the wind speed in the tower tend to balance.
5. The drying room is equipped with grading ring and cyclone, the fineness of the material and the final moisture can be adjusted and controlled.
6. The circumferential gas velocity in the drying chamber is high, and the material residence time is short, which effectively prevents the material from sticking to the wall and the heat-sensitive material from deteriorating.

Flash dryer is suitable for materials:
Organic matter atrazine (pesticide insecticide), lauric acid, benzoic acid, benzoic acid, bactericidal dan, sodium oxalate, cellulose acetate, organic pigments, etc.
Dye anthraquinone, black iron oxide, indigo pigment, butyric acid, titanium hydroxide, zinc sulfide, various azo dye intermediates.
Inorganic borax, calcium carbonate, hydroxide, copper sulfate, iron oxide, barium carbonate, antimony trioxide, various metal hydroxides, various heavy metal salts, synthetic cryolite, etc.
Food soy protein, gelatinized starch, wine trough, wheat sugar, wheat starch, etc.

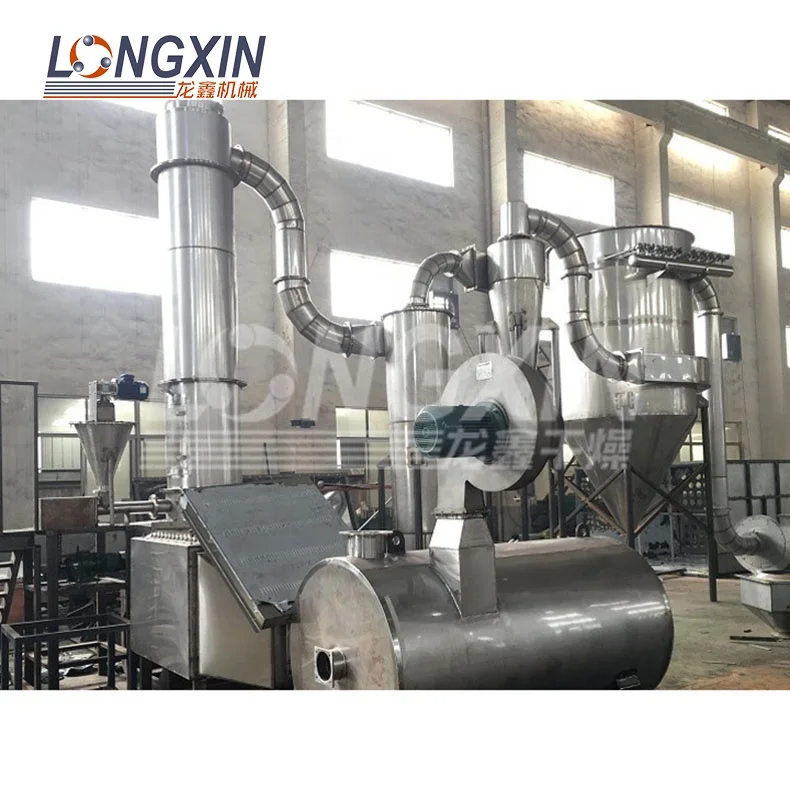

Product Picture:
