Product Description

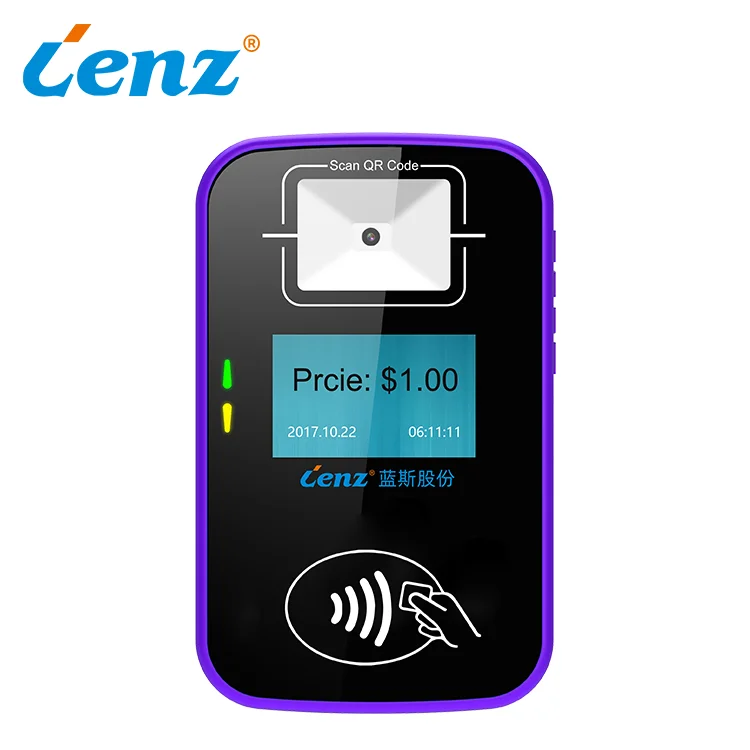

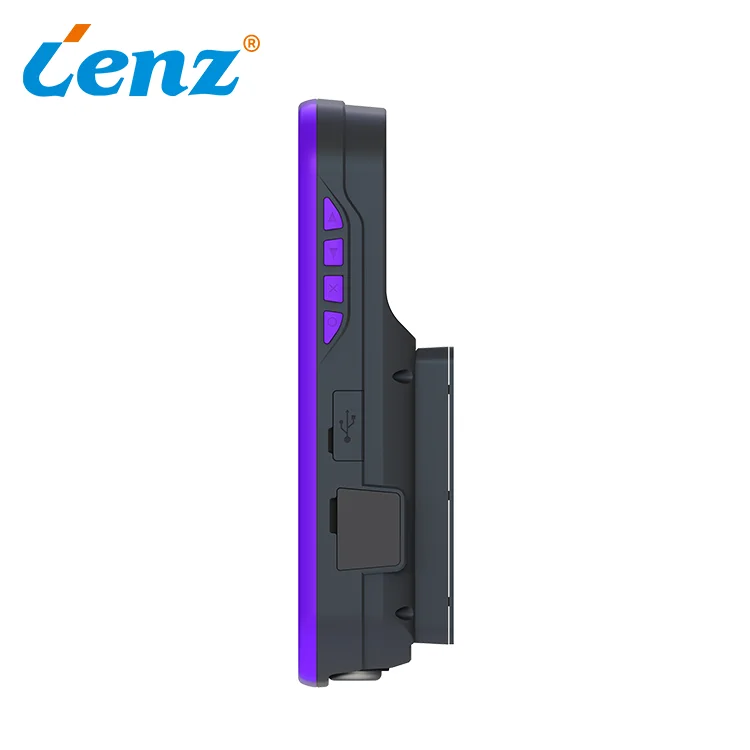

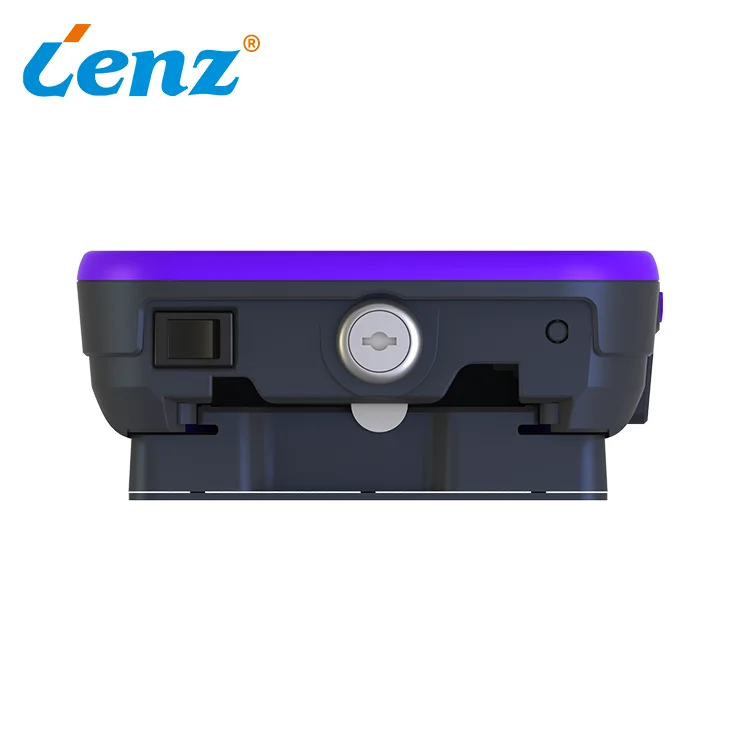

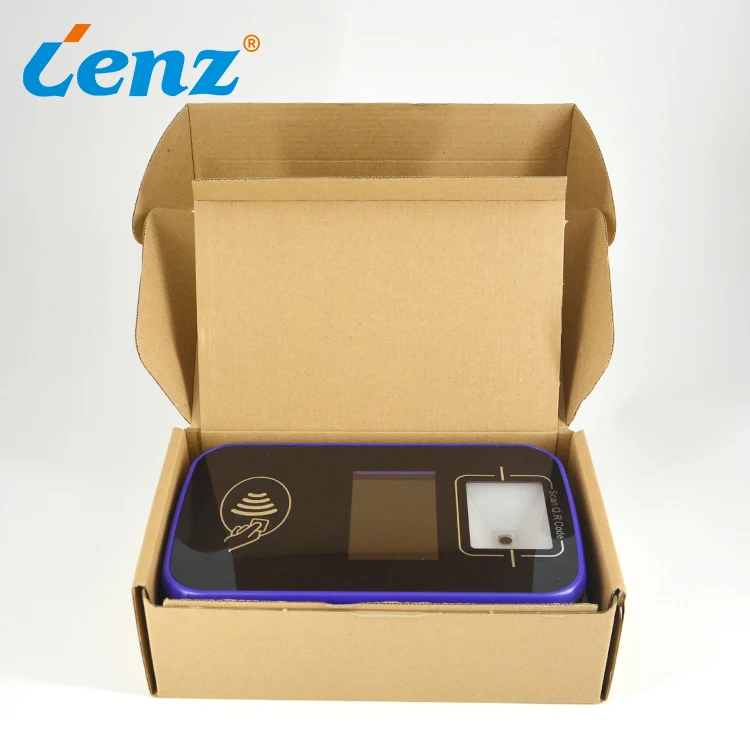

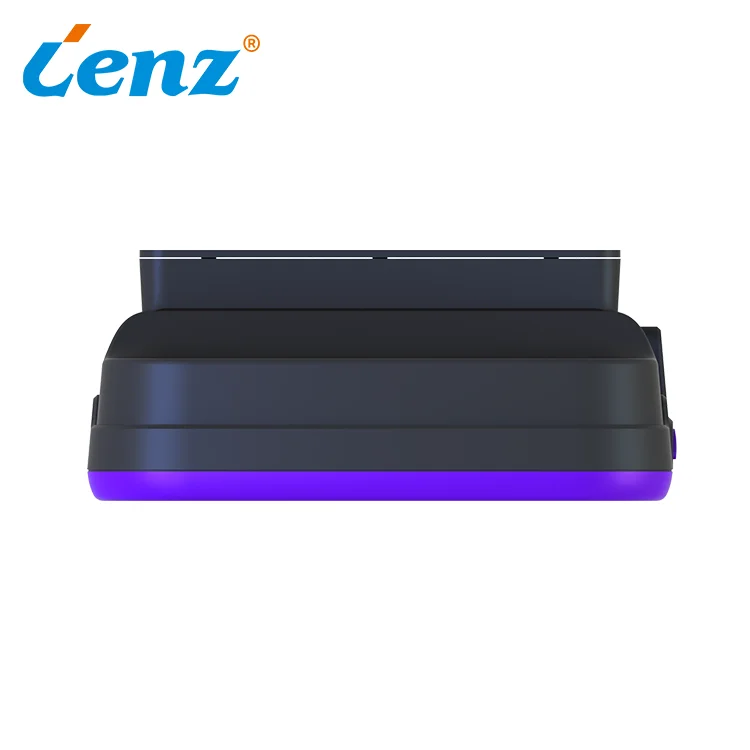

E60 EMV Bus Validator for Public Bus Automated Fare Collection System
E60 is a contactless card validator designed for micro-payment, mainly used in public transportation to pay for taking the bus.
The card validator is industrial quality, which could endure the terrible working environment in vehicle.
The card validator is industrial quality, which could endure the terrible working environment in vehicle.
Technical Specification
Item | Technical Specification | ||
System | CPU Processor | Quadcore ARM Cortex A7 CPU, 1.1GHz | |
Operation System | Linux | ||
Encryption Algorithm | HASH, MD5, DES, AES, RSA, ECC, SM2, etc | ||
Communication | WAN | 3G, 4G LTE | |
Wi-Fi | 802.11b/g/n | ||
GPS | Built-in GPS | ||
Bluetooth | 2.1-4.0 bluetooth, support BLE | ||
Display Interface | Screen Size | 4 inch | |
Resolution | 800*480 | ||
LCD | TFT Color LCD, with backlight | ||
Language | English, Spanish, etc | ||
Storage | RAM | 1G | |
Flash | 8G | ||
Micro SD(TF) | Max 32G (for option) | ||
Black List | 500000 lists (64 byte/pcs) | ||
Card Payment | Card Standard | ISO/IEC 14443 Type A&B, Mifare Classic, Mifare DesFire and CPU card based on Mifare PRO contactless card | |
Working Frequency | 13.56MHz | ||
Transaction Speed | <0.3S | ||
Reading Distance | ≤10cm | ||
SAM Card Standard | ISO7816 card, 1.8V/ 3V/ 5V | ||
SAM Slot | 4 | ||
QR Code Payment | Scanning System | Image sensor and CMOS sensor | |
QR Code Standard | International Standard 1D, 2D QR code | ||
NFC Payment | RCC Standard | 2.4G RCC smartphone payment supported | |
Audio Announcement | Volume | Adjustable audio announcement | |
Audio File Format | MP3, configurable | ||
TTS | Support | ||
Ports | RS232 | 1 channel | |
RS485 | 1 channel | ||
USB | 1 USB Host, type A | ||
Working Environment | Power Input | DC +8V ~ +40V | |
Environment | Working Temperature | -20°C ~ +50°C | |
Storage Temperature | -40°C ~ +80°C | ||
Humidity | 95% RH | ||
Others | Dimension | H 250*L 155*W 50 mm | |
Net Weight | ≦0.8Kg (not include the bracket) | ||
Service Life | >6 years | ||
Certificate | CCC, CE, RoHS, EMV L1 | ||
Automatic Fare Collection System
Initializing smart cards, developing pricing models, analysing income, acquiring customers –the Automatic Fare Collection System brings different payment channels to the customers: passengers could pay for the trip through smart card, NFC processing and QR code. The integrated customer management function makes the multi-client-capable system an end-to-end e-ticketing solution.
Case Study
Smart Bus Solution
The Advanced Public Transport Management System (APTMS) by Lenz supports transport authorities in the local public transport sector with technological, environmentally-friendly and economic expertise. It offers the dispatchers a constant overview of all operational processes. Any errors or disturbances are quickly detected and eliminated and personnel and vehicle resources are deployed effectively.
Smart School Bus Solution
The MDVR equipped in the School Bus will update the working status and video surveillance of the School Bus to control centre, deliver the card validation information to Parents’ mobile app in real time.
The Smart School Bus System helps school оwnеrs kеерing track of the School Bus Fleet activities for tackling safety of School
Children to and from their School.
The Smart School Bus System helps school оwnеrs kеерing track of the School Bus Fleet activities for tackling safety of School
Children to and from their School.
Logistic Transportation Solution
In order to improve the goods delivery efficiency, the logistic transportation operators install the Mobile DVR in trucks, to
track the travelling status of vehicles. If the vehicle is over speed driving, or deviate from the route, the system will alert to the dispatcher.
The Driver Monitoring System will monitor the poor driving behavior, to decrease the accident rate during the goods
transportation.
track the travelling status of vehicles. If the vehicle is over speed driving, or deviate from the route, the system will alert to the dispatcher.
The Driver Monitoring System will monitor the poor driving behavior, to decrease the accident rate during the goods
transportation.
Smart Sanitation Truck Solution
The Smart Sanitation Truck Monitoring System receives the travelling data from MDVR, to record the status of garbage trucks: when
it starts to work, whether it deviated from the region and whether it is over speed driving. It delivers a high efficient dispatching of garbage trucks through the two way communication system supplied by the solution.
it starts to work, whether it deviated from the region and whether it is over speed driving. It delivers a high efficient dispatching of garbage trucks through the two way communication system supplied by the solution.
Company Introduction
Established in 2006
Listed in public stock in 2014
AI powered company, closely cooperation with high schools for technology innovation
4,000㎡state of the art manufacturing centre
4,000㎡ office building in national high technology software park
Listed in public stock in 2014
AI powered company, closely cooperation with high schools for technology innovation
4,000㎡state of the art manufacturing centre
4,000㎡ office building in national high technology software park
270 staffs from China and overseas talents
40 pre-sale and after sale service engineers, provide off-site and on-site English technical supporting
40 pre-sale and after sale service engineers, provide off-site and on-site English technical supporting
R&D Centre
R&D Talents
90+ professionals R&D engineers
90+Intellectual properties, including industrial design patents and software copyrights.
CMMI Level 3 Software Programming Maturity
90+Intellectual properties, including industrial design patents and software copyrights.
CMMI Level 3 Software Programming Maturity
R&D Investment
More than 15% of sales revenues invested in research and development every year;
Millions of USD investment to R&D devices for in-vehicle environment simulation and testSupport EMC testing, ISO 7637 testing, temperature testing, vibration and life testing, etc.
Production Centre
Quality Controlled Production
4,000㎡ production centre
100% fully tested before delivery the goods
Anti-static production environment
IATF16949:2016 Quality Management System
ISO9001:2015 Quality Management System
CE, RoHS, CCC Complied
100% fully tested before delivery the goods
Anti-static production environment
IATF16949:2016 Quality Management System
ISO9001:2015 Quality Management System
CE, RoHS, CCC Complied
Our Customer
Lenz has successfully implemented the projects in more than 100 cities in both domestic and overseas countries;
More than 600,000 vehicles have been installed our devices and management system;
More than 300 customers approve our quality and service.
Похожие товары
Прямая продажа от производителя, Лучшая цена, кожа с вышивкой для автомобильных сидений, под заказ
2,39 $ - 3,50 $

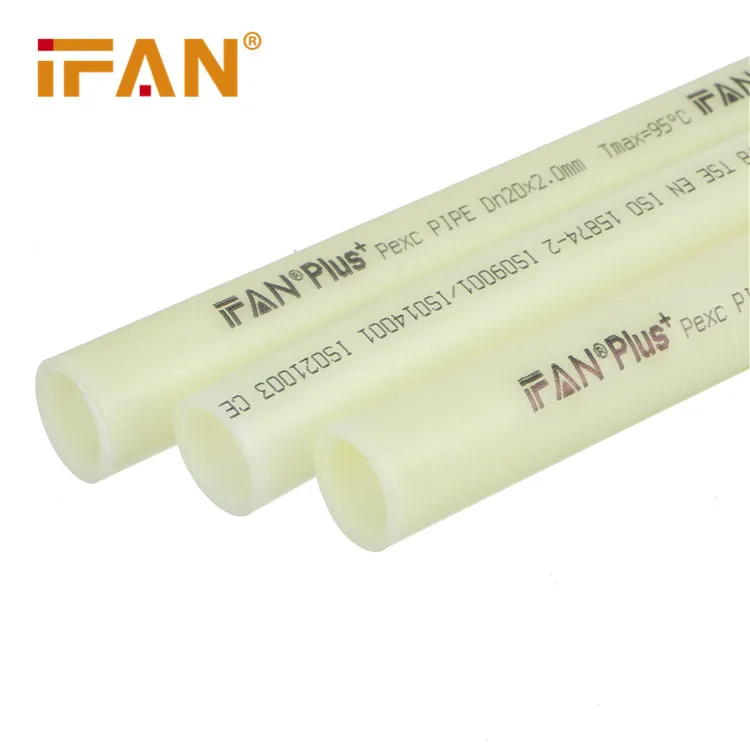

Нагревательная труба для пола IFAN Pn16 16-32 мм, оптовая продажа труб Pex/al/Pex
Мужская бейсбольная куртка из смешанной ткани и хлопка с надписью и вышивкой, 102143
9,38 $ - 12,50 $

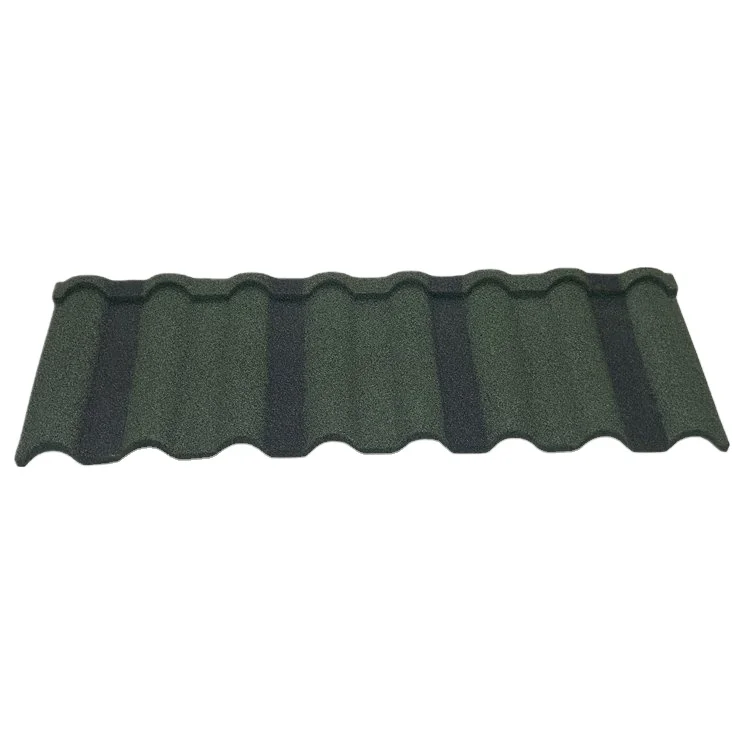

Различные широко используемые многоцветные Легковесные кровельные дома, цена на кровельные плитки
