Рекламный Топ для такси, тонкий настенный экран для кинотеатра, большие рекламные щиты, крыша, светодиодный дисплей
462,00 $ - 468,00 $
Полномагнитные автомобильные знаки на крышу такси полноцветный рекламный щит
- Категория: >>>
- Поставщик: Shenzhen Huaxintong Photoelectric Technology Co. Ltd.
Сохранить в закладки 1600082769763:
Описание и отзывы
Характеристики
Related Products
Product Description
1. Car battery protection
With the special car power supply, once the car battery was closed, the screen will be closed too. If the car battery is going to run out, the power supply will shut down automatically until the power is enough to play again.
2. Overvoltage and over current protection
As the car battery offers the power to the screen when the car engine started, the voltage may rise to the highest, and also when there has some traffic, the voltage will be unstable, the special power supply could protect the screen.
3. Low power consumption
High power consumption will bring more problems to the car, so it is important to use low power consumption as a protection for the car.
4. High brightness Above 5000nits, it is visible under sunlight.
5. Cooling system design
6. 100% vibration Testing
With the special car power supply, once the car battery was closed, the screen will be closed too. If the car battery is going to run out, the power supply will shut down automatically until the power is enough to play again.
2. Overvoltage and over current protection
As the car battery offers the power to the screen when the car engine started, the voltage may rise to the highest, and also when there has some traffic, the voltage will be unstable, the special power supply could protect the screen.
3. Low power consumption
High power consumption will bring more problems to the car, so it is important to use low power consumption as a protection for the car.
4. High brightness Above 5000nits, it is visible under sunlight.
5. Cooling system design
6. 100% vibration Testing
Specification
Pixel Pitch | 2.5 mm | 3mm | 3.33mm | 5mm |
LED Type | SMD 1415 outdoor LEDs | SMD 1921 outdoor LEDs | SMD 1921LEDs | SMD2727LEDs |
Pixel Density | 160,000 dot/m2 | 111,111 dot/m2 | 90,000 dot/m2 | 40,000 dot/m2 |
Module Size | 160*160mm | 192x96mm | 320*160mm | 320*160mm |
Frame Size | 1060( L) x 395(H) x 145mm(W) | 810(L)x350(H) | 1060( L) x 395(H) x145mm(W) | 1060( L) x 395(H) x 145mm(W) |
x165mmW | ||||
Frame Materials | Aluminum | Aluminum | Aluminum | Aluminum |
Screen Size | 960mm*320mm | 768x288mm | 960mm*320mm | 960mm*320mm |
Screen Resolution | 384*128dots | 256*96dots | 288*96dots | 192*64dots |
Brightness | >=5000 nits/m2 | >=5200 nits/m2 | >=5200 nits/m2 | >=5500 nits/m2 |
Contrast | >8000:1 | >8000:1 | >8000:1 | >8000:1 |
Scan Mode | 1/32 scan | 1/16 scan | 1/24 scan | 1/8 scan |
Power Supply Input | DC9--24V | DC9--24V | DC9--24V | DC9--24V |
Max. /Ave. Consumption | 540w/180w | 390W / 115w | 400w / 120w | 480w / 190w |
Best Viewing Distance | 1-5M | 2-5M | 3-8M | 3-20M |
Fresh Frequency | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
IC Driver | ICN2153 | ICN2153 | ICN2153 | ICN2153 |
View Angle | 140°(H)/140°(V) | 140°(H)/140°(V) | 140°(H)/140°(V) | 140°(H)/140°(V) |
Control Method | Asynchronous | Asynchronous | Asynchronous | Asynchronous |
Control Mode | 3G/4G/WIFI/ Internet/ USB | 3G/4G/WIFI/ Internet/ USB | 3G/4G/WIFI/ Internet/ USB | 3G/4G/WIFI/ Internet/ USB |
Temperature Operating | zero 40°C~+70°C | zero 40°C~+70°C | zero 40°C~+70°C | zero 40°C~+70°C |
Working Humidity | 10%–90%RH | 10%–90%RH | 10%–90%RH | 10%–90%RH |
Screen Weight | 20 kg | 20 kg | 20 kg | 20 kg |
Product advantages
Packing&Shipping
Title goes here.
Honeycomb box covered with eco-friendly paper and pearl cotton is placed inside, which protects every display.
During the transportation process, the display will not be damaged by collision.
During the transportation process, the display will not be damaged by collision.
Application
Our Factory
FAQ
Q1: WIFI or 4G controller card, which one is best?
A: For less quantity, you could choose the wifi controller card, the cost will more economic.
The disadvantage of the wifi controller is that you have to be close to the screen when you need to update the advertisements.
Q2: How to install the screen on the top of car?
A: Yes, we can provide you API, then your engineer can design your own platform.
Q3: May I use my own platform to control the screen?
A: We will provide a video guide for you, with a bracket to fix the screen on the car roof.
Q4: May I know what's advertising display on the screen?
A: You can see the log on the platform. There will show you a list.
Q5: The screen can adjust the brightness automatical?
A: With a brightness sensor, the screen can adjust brightness automatical.
Q6: Before delivery, what test will do for the screen?
A: We will do 72 hours aging test and waterproof test.
A: For less quantity, you could choose the wifi controller card, the cost will more economic.
The disadvantage of the wifi controller is that you have to be close to the screen when you need to update the advertisements.
Q2: How to install the screen on the top of car?
A: Yes, we can provide you API, then your engineer can design your own platform.
Q3: May I use my own platform to control the screen?
A: We will provide a video guide for you, with a bracket to fix the screen on the car roof.
Q4: May I know what's advertising display on the screen?
A: You can see the log on the platform. There will show you a list.
Q5: The screen can adjust the brightness automatical?
A: With a brightness sensor, the screen can adjust brightness automatical.
Q6: Before delivery, what test will do for the screen?
A: We will do 72 hours aging test and waterproof test.
How to Order?
You are just 6 simple steps
1. Know your application, indoor or outdoor use, fixed install in one place or move often.
2. Know you desired size or available space for the LED Display.
3. Know the types of message you want to display on your LED Display: Picture messages, or video messages.
4. Know your budget – need to balance between what you want to do and your budget to choose an optimal LED Display.
5. Choose your resolution (pixel pitch) depending on your need and your budget.
6. If you are not sure, you can contact us with above information. Our knowledgeable customer service will help you choose a right led display for you.
You are just 6 simple steps
1. Know your application, indoor or outdoor use, fixed install in one place or move often.
2. Know you desired size or available space for the LED Display.
3. Know the types of message you want to display on your LED Display: Picture messages, or video messages.
4. Know your budget – need to balance between what you want to do and your budget to choose an optimal LED Display.
5. Choose your resolution (pixel pitch) depending on your need and your budget.
6. If you are not sure, you can contact us with above information. Our knowledgeable customer service will help you choose a right led display for you.
What is after sale service?
RE: Our engineer will give you the drawing CAD, after you are ordered the display, our engineer can remote control, before you got the display, our engineer will design customized drawings for you, Because different size, installation ways, different drawings.
RE: Our engineer will give you the drawing CAD, after you are ordered the display, our engineer can remote control, before you got the display, our engineer will design customized drawings for you, Because different size, installation ways, different drawings.
RE: We have 2 optional solutions.
a: Our professional engineers can go to your country to provide installation guidance on site, but you need to pay some fees, personnel $120 per day, and accommodation, airfare and so on.
b:Our company provides free training for new customers. When we confirm the order, you can send your engineers to our factory for personnel $120 per day, and accommodation, airfare and so on. free training. and our engineer will make the led cabinets which is very convenient for you to install it.
How are these LED lights controlled?
RE: We use colorlight control system. we can can provide C4 or C6 player box specification and manual. Before delivery, our engineer will shoot the video for installation and debugging. Including all connect cable video.main pow power cable ,main data cable connect diagram.
What the software your company uses for your product?
RE: Colorlight, Linsn or Nova is the main software we provide at the moment.
Contact us
Похожие товары
P4 наружная полноцветная двухсторонняя светодиодная реклама на крышу такси, светодиодный дисплей, Рекламные Знаки
Полноцветный мобильный рекламный щит для такси 3G 4G Wi-Fi, цифровой рекламный щит для автомобиля на крыше, двухсторонний светодиодный дисплей для такси
1 000,00 $ - 1 200,00 $
Двухсторонний рекламный светодиодный дисплей P2.5 P3 P4 P5, знак на крышу автомобиля P5, светодиодный дисплей на крышу такси
1 500,00 $ - 2 300,00 $
Светодиодный дисплей для такси, знак на крышу кабины, светодиодный Топпер для такси, автомобильный магнитный знак, водонепроницаемая лампа 12 В
2,13 $ - 2,77 $
Индивидуальные вакуумные формирования полной магниты на крыше световой короб для такси

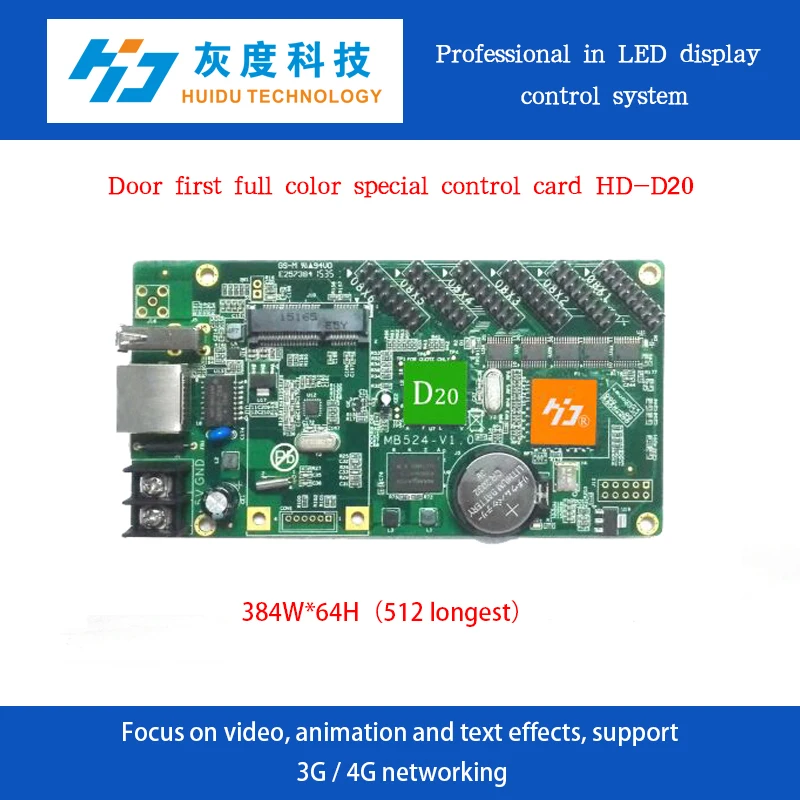

HD-D20 автобус/внутренний и внешний створчатый распашный дверь/окно/внутренний и внешний створчатый распашный на крыше такси полноцветный видео прокладки открытая вывеска контроллер светодиодный Видеокуб
