Product Description

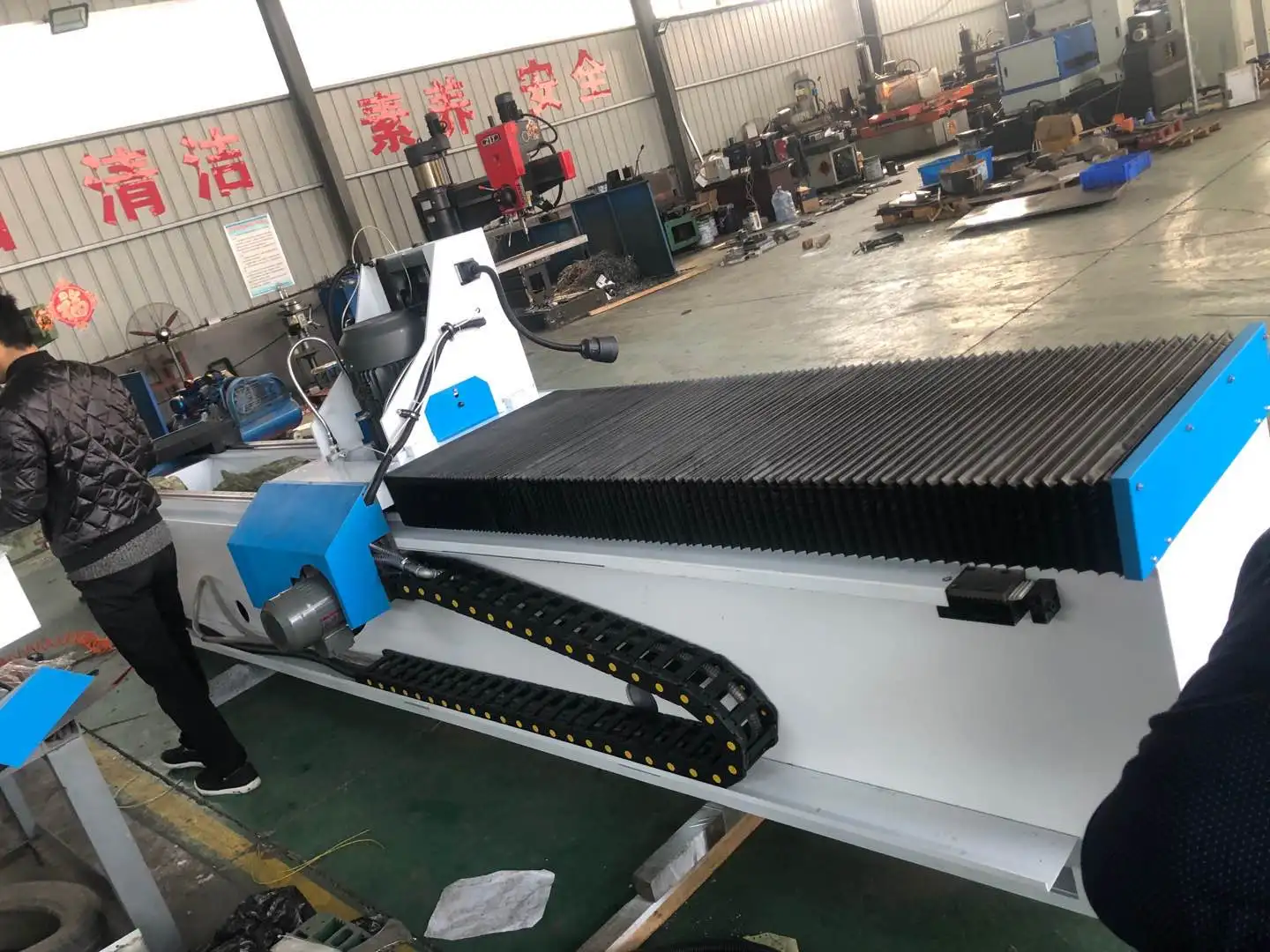

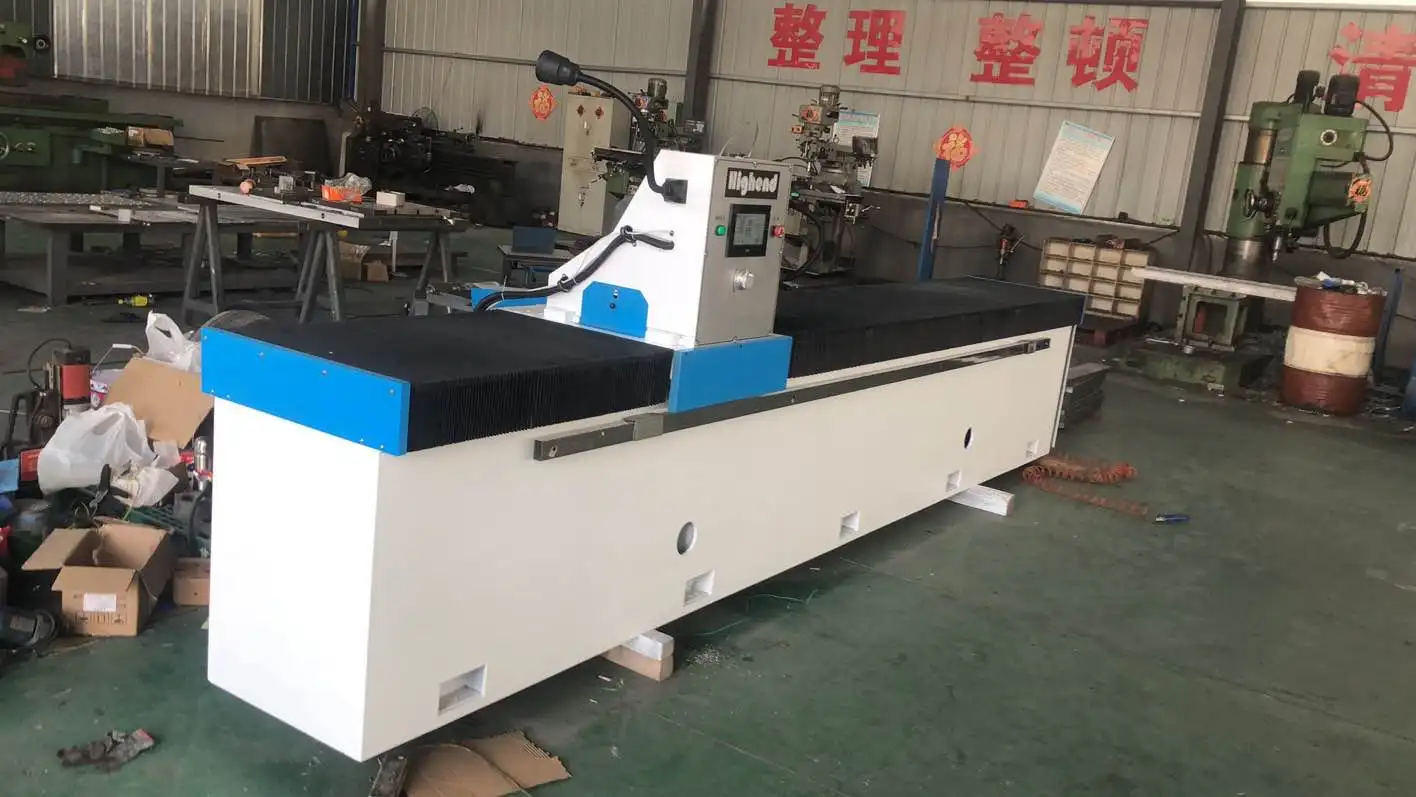

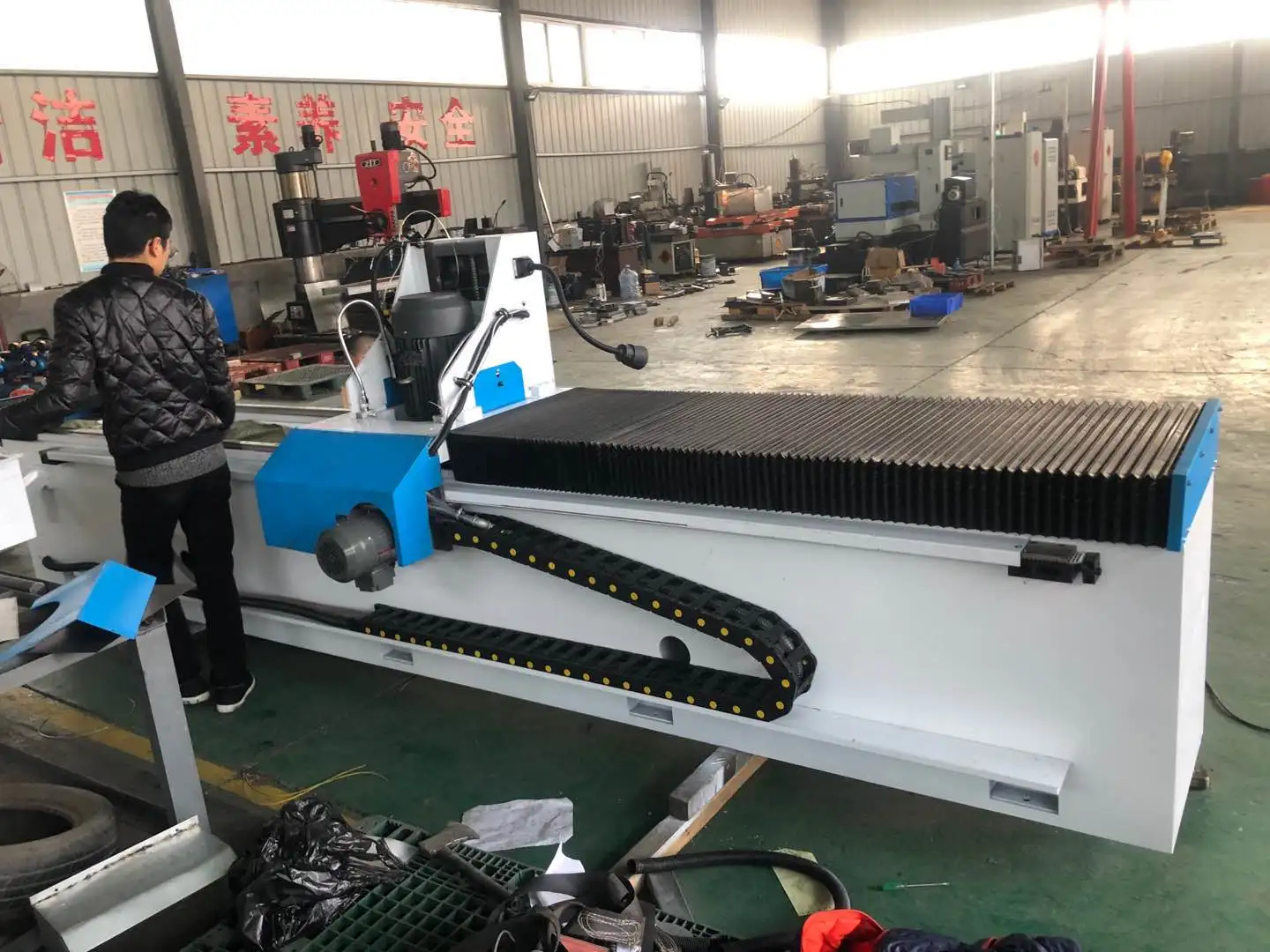

introduce for the knife grinding machine
1 welded by high quality steel. The machine body do the heating treatment. The surface do the sands blast to anti rust

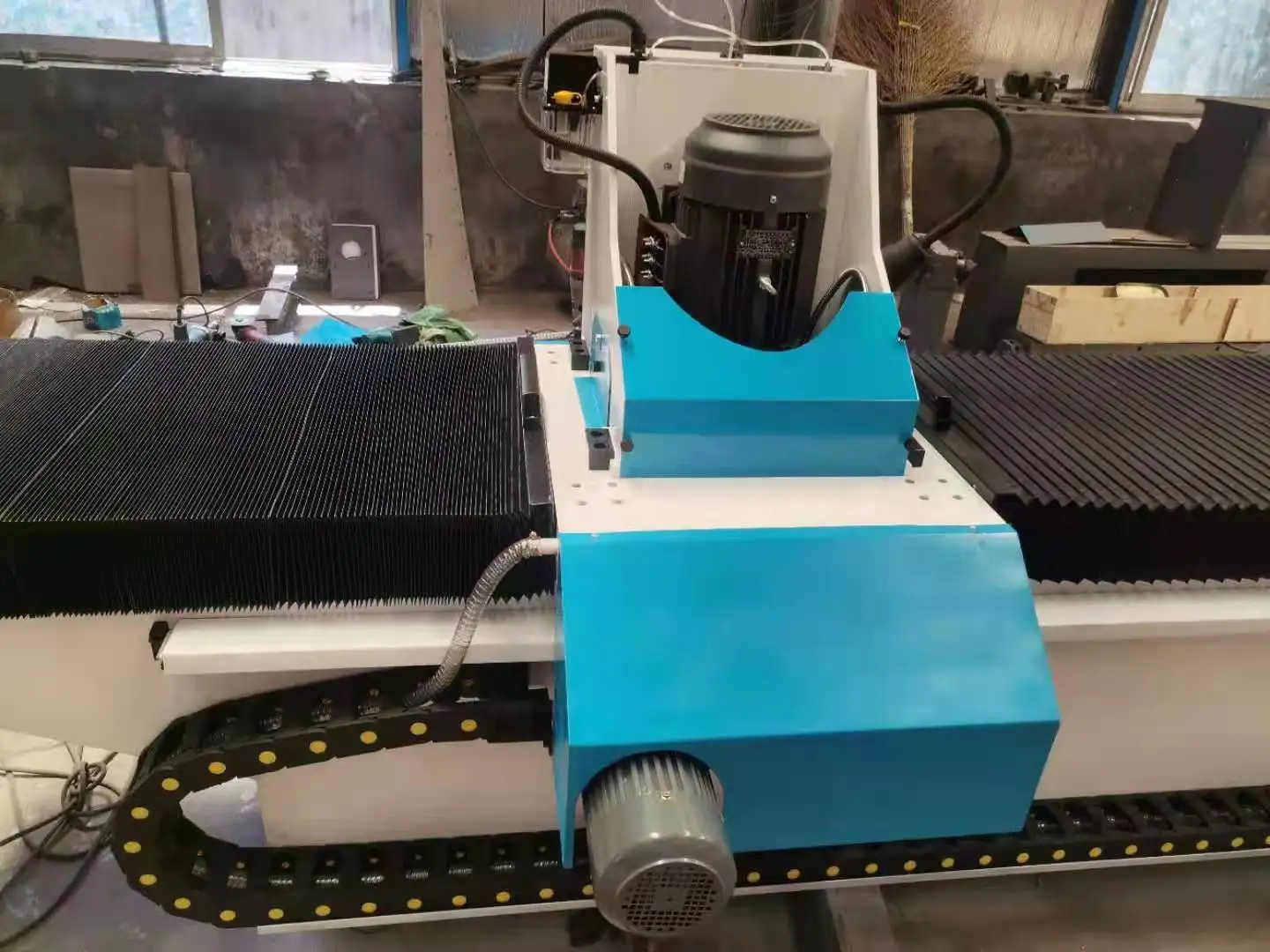

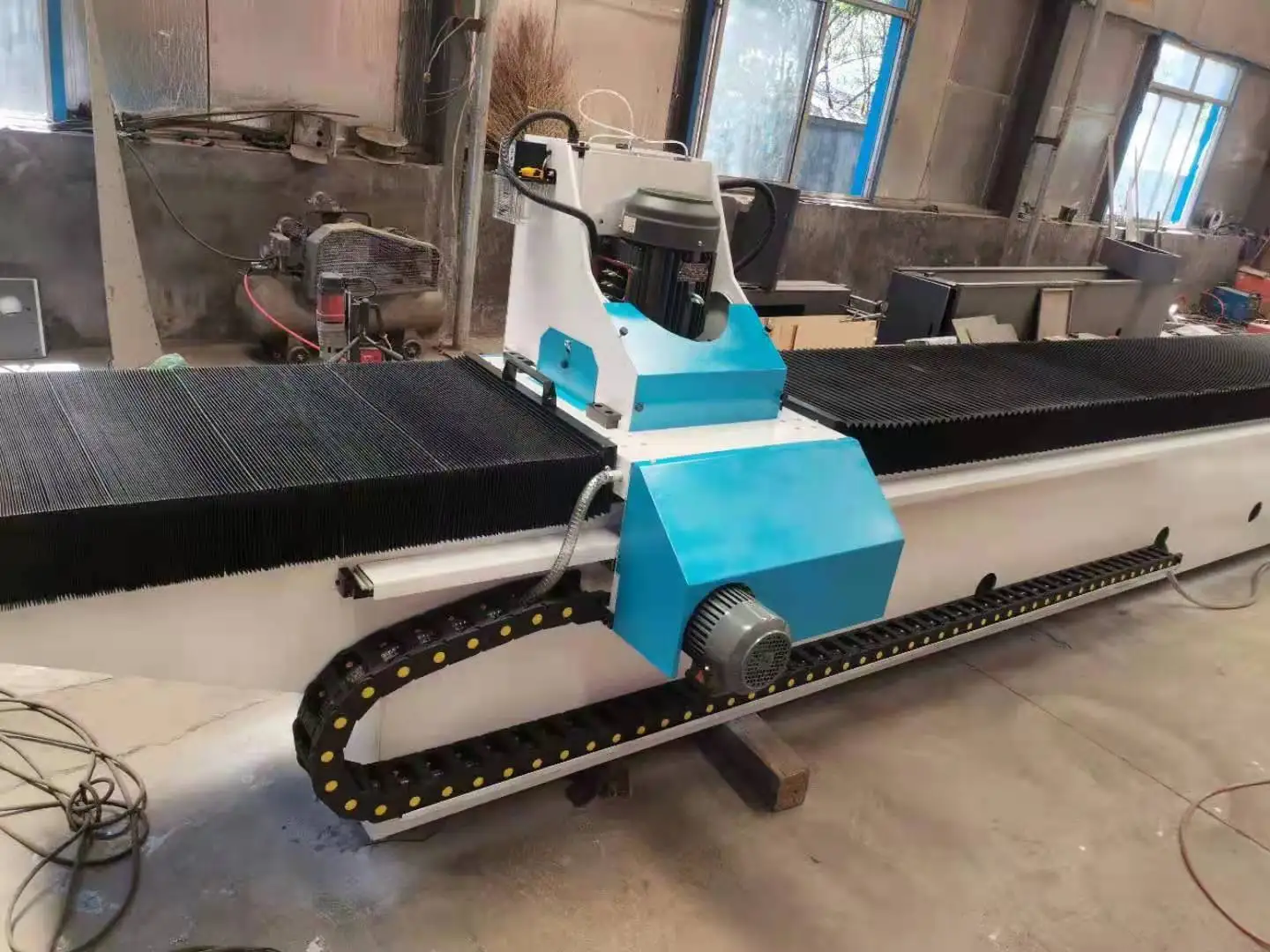

2 the grinding head lift use the structure as the surface grinder rhombus tapered iron. To make the movement smooth and accuracy
3 the protective cover hole all machine to protect people , and there is a watch window for you to check the grinning job easy
4 there is a watch window on the moving platen, for you to easy checking the grinding
5 the traveling job control by the belt to make the movement more smooth
6plc control and touch panel, English version
7 down feed use the ball screw, to make the working accuracy as 0.01.mm/300 mm
8 automatic lubrication system
9 servi motor control, make the job accuracy as 0.002 mm
10 the feed job can do by automatic and manual model.
11 the grinding stone with automatic adjust function.



Specification


Magnet length
1500mm
Magnet width
1800mm
Magnet angle adjust
±90º
Grinding head power
4KW
Travel motor power
0.75kw
Pump power
250W
Total power
5.5KW
Stone speed
37m/s
Grinding motor speed
1420r/min
Max travel speed
30m/min
Stone size
Φ200×120
voltage
380V 50Hz
weight
2.2T
size
3300×1100×1400


Packing & Delivery




pltwood box


Company Profile






we produce many model for the machine


FAQ


ang information you need, please feel free to contact me
