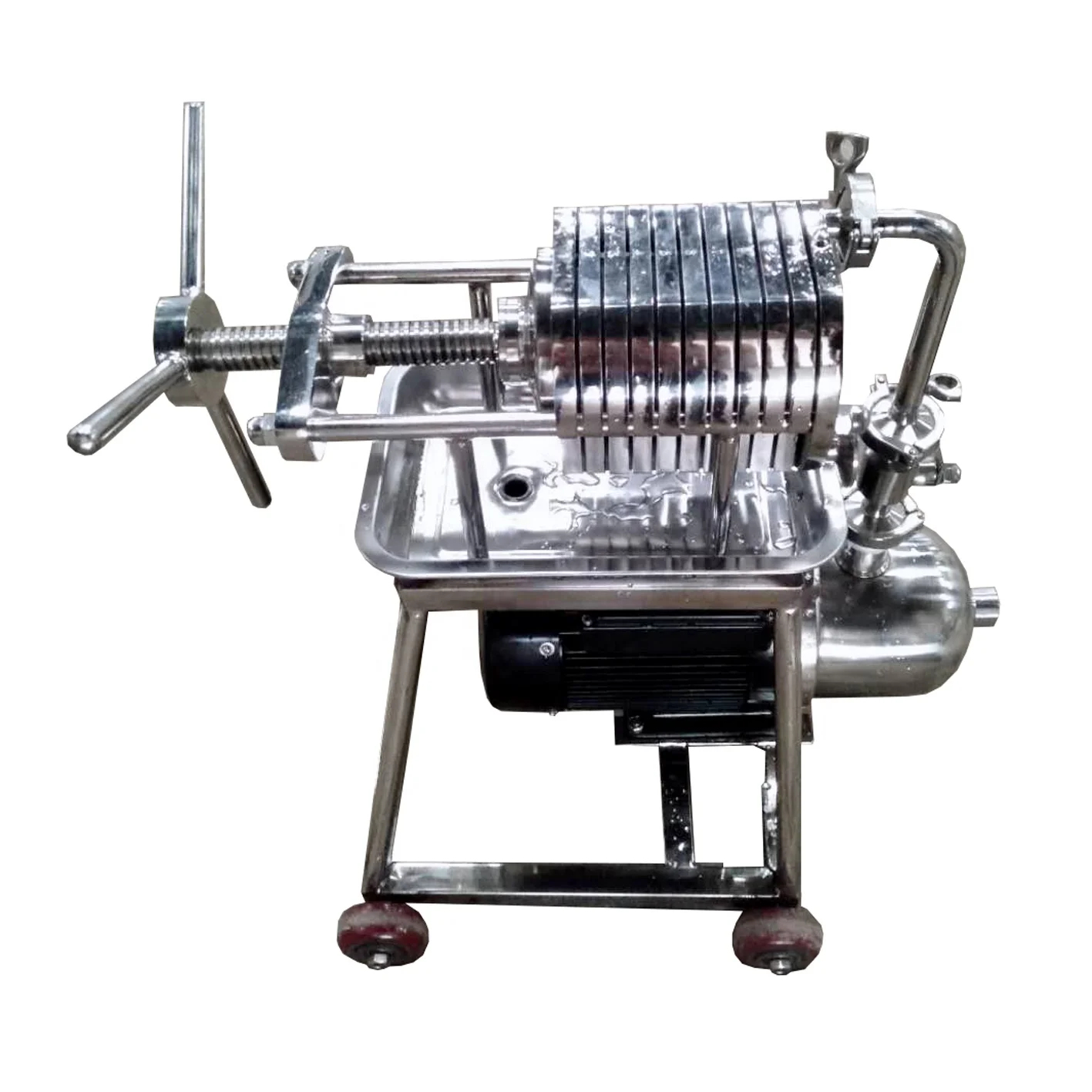

Высокоэффективное небольшое оборудование для центробежного масляного фильтра/пресс фильтра
900,00-3 000,00 $
Оборудование для очистки и фильтрации сточных вод автоматический фильтрующий пресс обезвоживания осадка
- Категория: Filter Press Equipment >>>
- Поставщик: Shenzhenshi Santai Environmental Protection Technology Co. Ltd.Shenzhenshi Ltd.
Сохранить в закладки 1600083956724:
Описание и отзывы
Характеристики
Products Description
Used for sewage filtration and solid-liquid separation of mud water

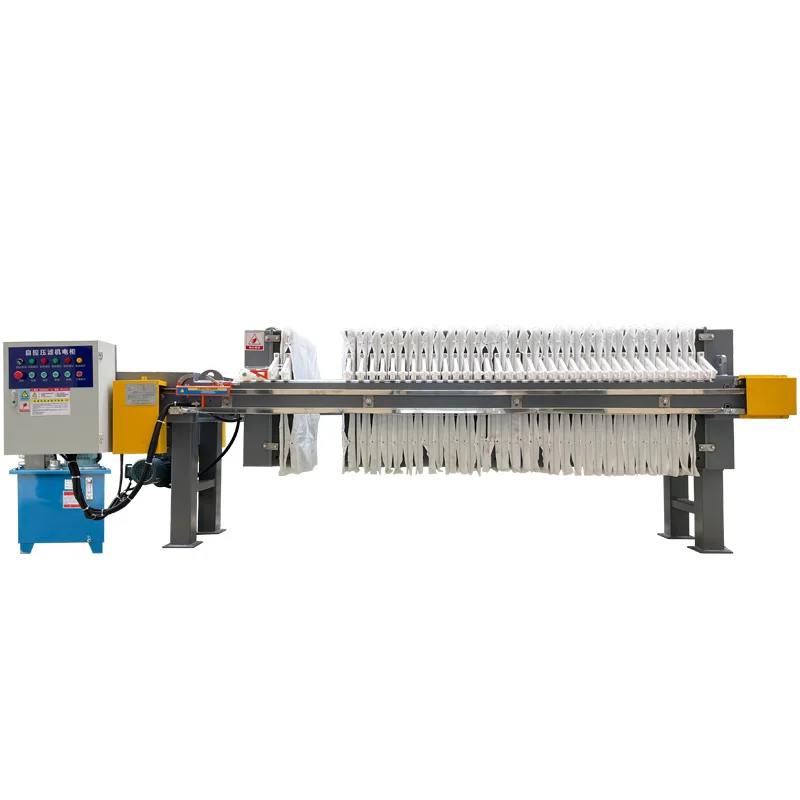

The plate and frame filter press produced by our company is a new type of high efficiency and fast filter, which is a leading dehydration equipment in the industry. The electric model adopts hydraulic execution and automatic control mode, which improves the reliability, stability and safety of equipment control, and is widely used in the field of suspension filtration and separation.The plate and frame filter press is simple in structure, compact in equipment, large in filtration area and small in floor space, high in operating pressure, high in solids content of filter cake, and strong in application to various materials.
High strength steel structure, safe and reliable, stable power, durable.The filter plate and the filter frame are made of reinforced polypropylene primary film, which are stable in size and chemical property, high in strength, light in weight, acid and alkali resistant, non-toxic and tasteless.
Scope of application
1. Chemical industry: dyes, pigments, phosphors, insurance powders, water purifiers, etc.
2, metallurgy: gold ore, silver ore, copper ore, iron ore, zinc ore, rare earth powder processing, etc.
3. Clay: kaolin, bentonite, activated clay, porcelain clay, electronic ceramic soil, etc.
4. Sewage treatment: chemical sewage, smelting sewage, electroplating sewage, leather sewage, printing and dyeing sewage, brewing sewage, pharmaceutical sewage, environmental sewage, etc.
2, metallurgy: gold ore, silver ore, copper ore, iron ore, zinc ore, rare earth powder processing, etc.
3. Clay: kaolin, bentonite, activated clay, porcelain clay, electronic ceramic soil, etc.
4. Sewage treatment: chemical sewage, smelting sewage, electroplating sewage, leather sewage, printing and dyeing sewage, brewing sewage, pharmaceutical sewage, environmental sewage, etc.

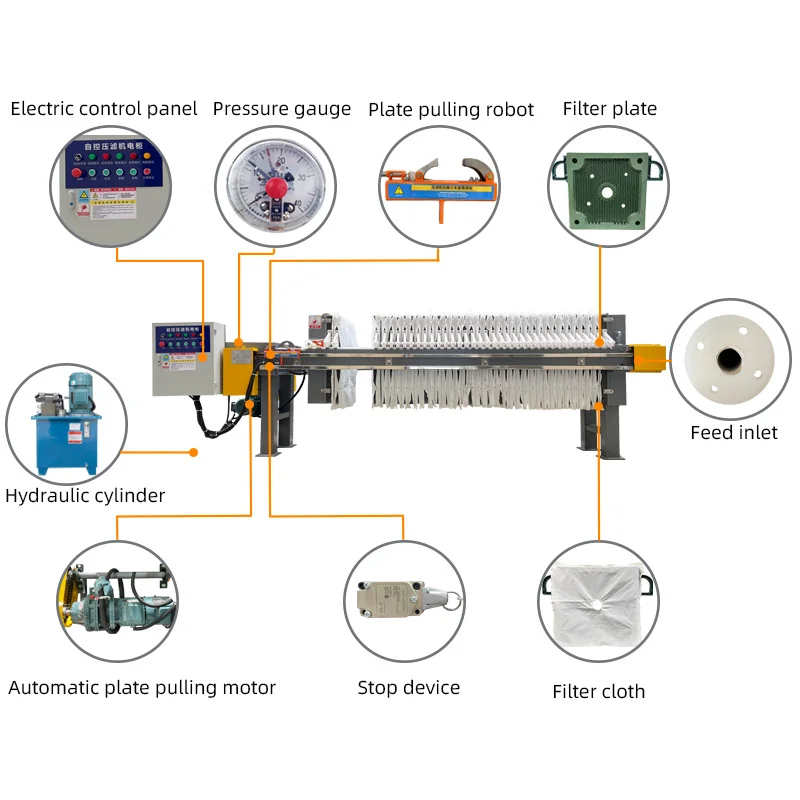

Details Images
If you need to customize other parameters, please contact us and we will serve you.
Product Paramenters
630 automatic hydraulic filter press | ||||||||||||||||
Model | Filter area (m2) | Filter plate thickness (mm) | Number of filter plates | Size(mm) | Filter plate size （mm） | Filter cake thickness (mm) | Volume (kg) | Bottom Size (mm) | ||||||||
XAMY10/630-UB | 10 | 50 | 16 | 2180*840*1250 | 630*630 | 25 | 125 | 1554 | ||||||||
XAMY12/630-UB | 12 | 50 | 19 | 2320*840*1250 | 630*630 | 25 | 150 | 1704 | ||||||||
XAMY14/630-UB | 14 | 50 | 22 | 2480*840*1250 | 630*630 | 25 | 175 | 1854 | ||||||||
XAMY16/630-UB | 16 | 50 | 26 | 2680*840*1250 | 630*630 | 25 | 200 | 2054 | ||||||||
XAMY18/630-UB | 18 | 50 | 29 | 2830*840*1250 | 630*630 | 25 | 225 | 2204 | ||||||||
XAMY20/630-UB | 20 | 50 | 32 | 2970*840*1250 | 630*630 | 25 | 250 | 2354 | ||||||||
XAMY22/630-UB | 22 | 50 | 35 | 3130*840*1250 | 630*630 | 25 | 275 | 2504 | ||||||||
XAMY24/630-UB | 24 | 50 | 38 | 3280*840*1250 | 630*630 | 25 | 300 | 2654 | ||||||||
XAMY26/630-UB | 26 | 50 | 42 | 3480*840*1250 | 630*630 | 25 | 325 | 2854 | ||||||||
XAMY28/630-UB | 28 | 50 | 45 | 3630*840*1250 | 630*630 | 25 | 350 | 3004 | ||||||||
XAMY30/630-UB | 30 | 50 | 48 | 3780*840*1250 | 630*630 | 25 | 375 | 3154 | ||||||||
800 automatic hydraulic filter press | ||||||||||||||||
Model | Filter area (m2) | Filter plate thickness (mm) | Number of filter plates | Size(mm) | Filter plate size （mm） | Filter cake thickness (mm) | Volume (kg) | Bottom Size (mm) | ||||||||
XAMY30/800-UB | 30 | 60 | 31 | 3680*1170*1350 | 800*800 | 30 | 450 | 2826 | ||||||||
XAMY35/800-UB | 35 | 50 | 36 | 3980*1170*1350 | 630*630 | 25 | 525 | 3126 | ||||||||
XAMY40/800-UB | 40 | 50 | 41 | 4280*1170*1350 | 630*630 | 25 | 600 | 3426 | ||||||||
XAMY45/800-UB | 45 | 50 | 46 | 4580*1170*1350 | 630*630 | 25 | 675 | 3726 | ||||||||
XAMY50/800-UB | 50 | 50 | 51 | 4880*1170*1350 | 630*630 | 25 | 750 | 4026 | ||||||||
XAMY55/800-UB | 55 | 50 | 56 | 5180*1170*1350 | 630*630 | 25 | 825 | 4326 | ||||||||
XAMY60/800-UB | 60 | 50 | 61 | 5480*1170*1350 | 630*630 | 25 | 900 | 4626 | ||||||||
Certifications
Cooperation Partner
Company Profile
Santai environmental protection technology limited company is a leading manufacturer of filtration equipment, filtration technology solutions and water treatment equipment in China. We focus on filtration equipment research and development manufacturing experience more than eight years, successively in global export integration integration of sewage treatment equipment, dosing equipment, air flotation machine, reverse osmosis systems, plate and frame filter press, belt filter press, reverse osmosis membrane, pneumatic diaphragm pump, ultrafiltration membrane, centrifugal pump, screw pump, metering pump, mixing, sand filter tank, dosing pump , dosing barrel, etc.
Factory
We have been adhering to the "High Quality, High Technology" production policy, obtained the patent certification, CE certification, high-tech industry certification and a series of certifi-cation. We have strong production capacity and export sales exceed $2 million per quarter. We are honored to provide global customers with OEM services and end-to-end product supply chain solutions!
Exhibition
Successful Case
FAQ
Q1: Do you provide on-site installation service?
Yes, we will provide on-site installation, debugging, training and other services.
Q2: Why did I choose your product?
We have advanced technology, can provide cheaper prices, better product quality, higher performance, lower maintenance costs and perfect after-sales service.
Q3: How long does it usually take for your products to ship?
Generally, the delivery time is two to three weeks.
Q4: Do you support OEM service?
Yes, we fully support OEM services and welcome you to customize our products.
Q5: What if the product received has been damaged?
Please rest assured that within 15 days after receipt of the goods, we will provide no reason to return or exchange services.
Q6: Can I get a cheaper price?
Of course, please contact us, we can give you a cheaper price.
Q7: What if the product breaks down in the future?
Don't worry, we offer a very long warranty, and we will send our engineers to repair it, or even we can replace it.
Похожие товары
800*800 керамический круглый фильтр-пресс для глины
508 567,60-579 767,07 ₽

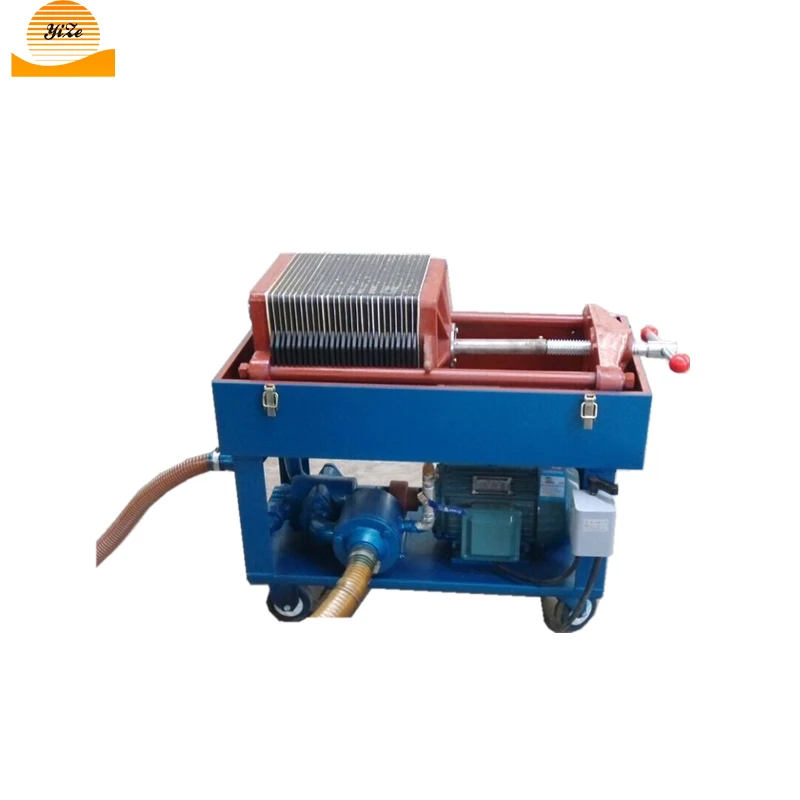

Малый тип 6LB-250/350 фильтровальная машина для приготовления пищи масляный фильтр сои кокосового арахисового
100 442,11 ₽

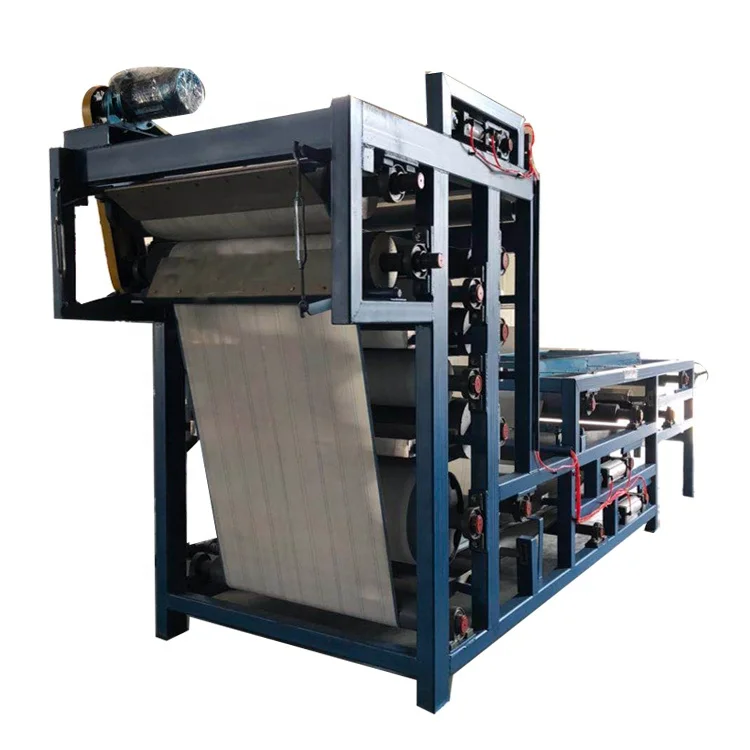

Лучшая цена конвейерная лента фильтр пресс оборудование для обезвоживания осадка
Stainless Steel Multilayers Filter Press Filterpresse For Herbal extraction Food Cosmetics Factory Price well filter
23 721,70-154 191,05 ₽

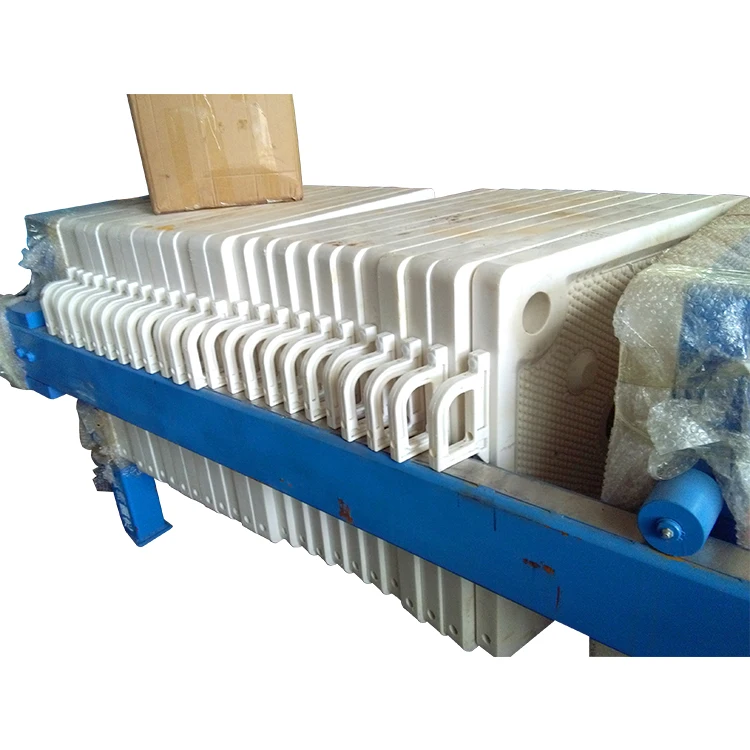

Машина для обезвоживания пластин и рамы фильтрационного
767 677,30 ₽

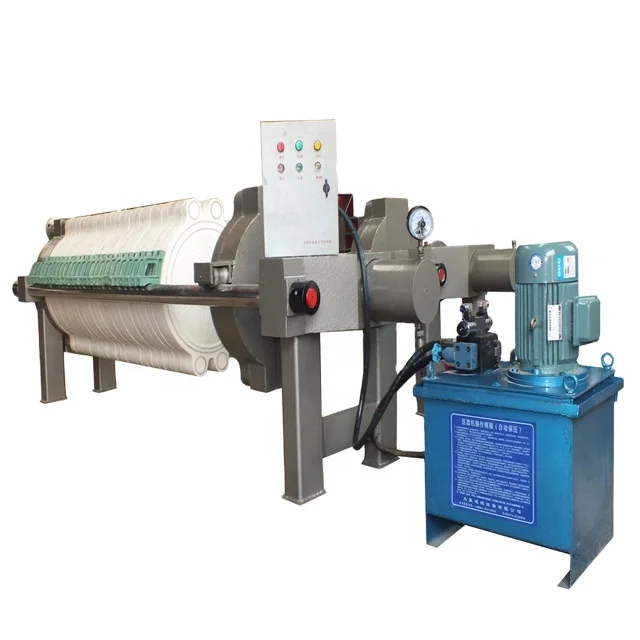

Гидравлический мембранный пресс-фильтр для разделения твердых жидкостей Машина Для Обезвоживания Осадка Сточных
