PE PP PS ABS PET BOPP пластиковая гранулирующая линия для пластика чтобы сделать гранулы с пластиковой рециркуляции конвейерной ленты
- Категория: >>>
- Поставщик: Zhangjiagang Kooen Machinery Co. Ltd.
Сохранить в закладки 1600084708482:
Описание и отзывы
Характеристики
Product Description
Parameters(ZL Series Double Stage Compactor-Granulator):
Model(double stage) | ZL85-100 | ZL100-120 | ZL130-150 | ZL160-180 | ZL180-200 |
Screw Diameter(mm) | 85 | 100 | 130 | 160 | 180 |
L/D | 25-42 | 25-42 | 25-33 | 25-33 | 25-33 |
Capacity(kg/h) | 150-200 | 300-350 | 500 | 600-700 | 800-1000 |
Application:
PE, PP film, Silk, Flakes (≤0.5mm), Bags, etc.
Note, our ZL series compactor granulator can be pull strip cutting method, or water ring cutting method for option
PE, PP film, Silk, Flakes (≤0.5mm), Bags, etc.
Note, our ZL series compactor granulator can be pull strip cutting method, or water ring cutting method for option
Consist of:
Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder →
Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet
Belt conveyor(metal detector) → Compactor → Main extruder(vacuum degassing system) → Hydraulic screen changer → Sub- extruder →
Hydraulic screen changer → Water ring cutting system →Dewatering machine → Air blow system → Storage hopper → control cabinet

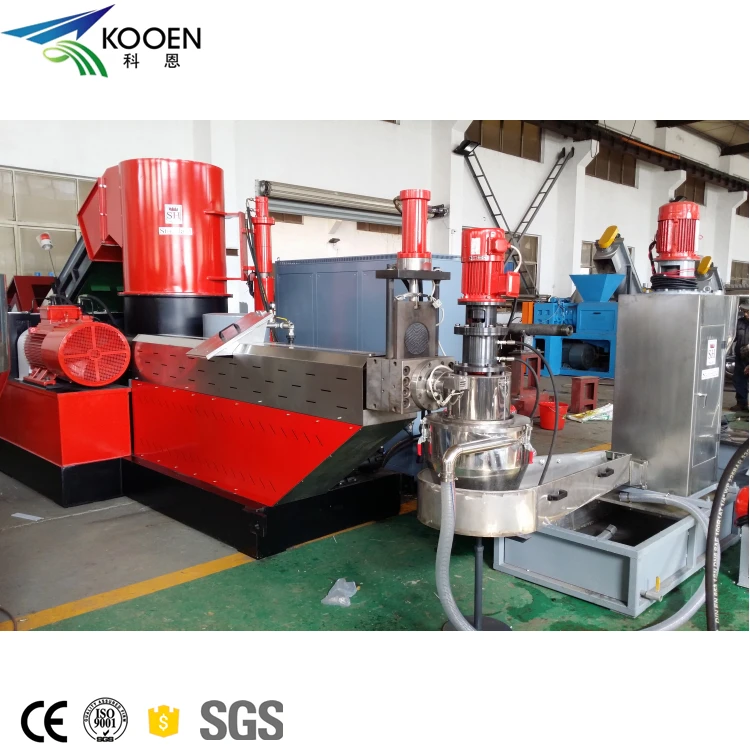

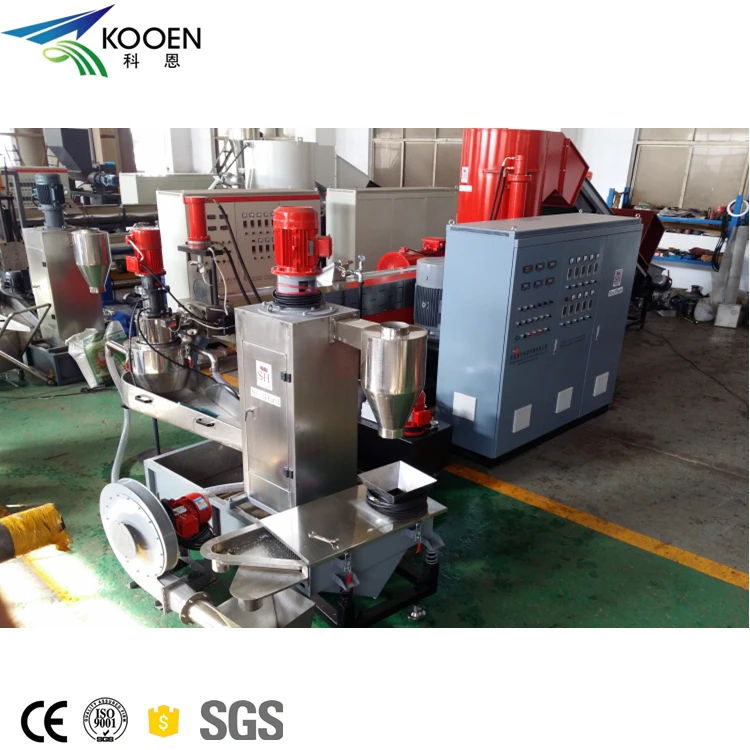

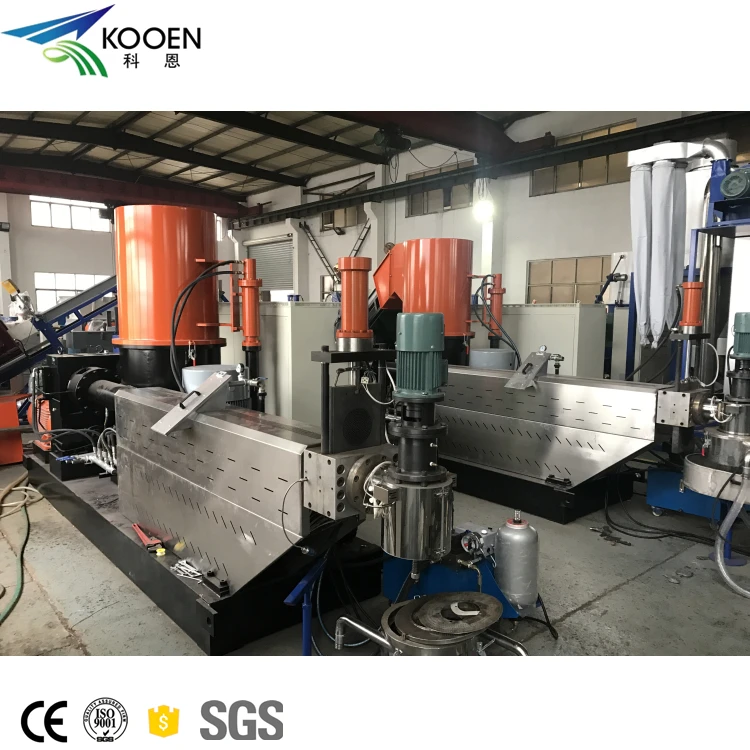

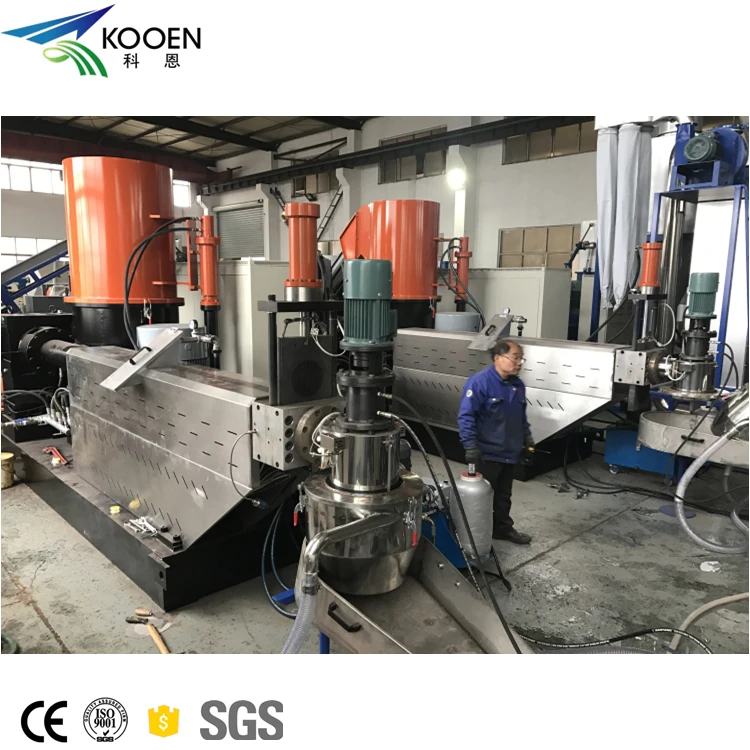

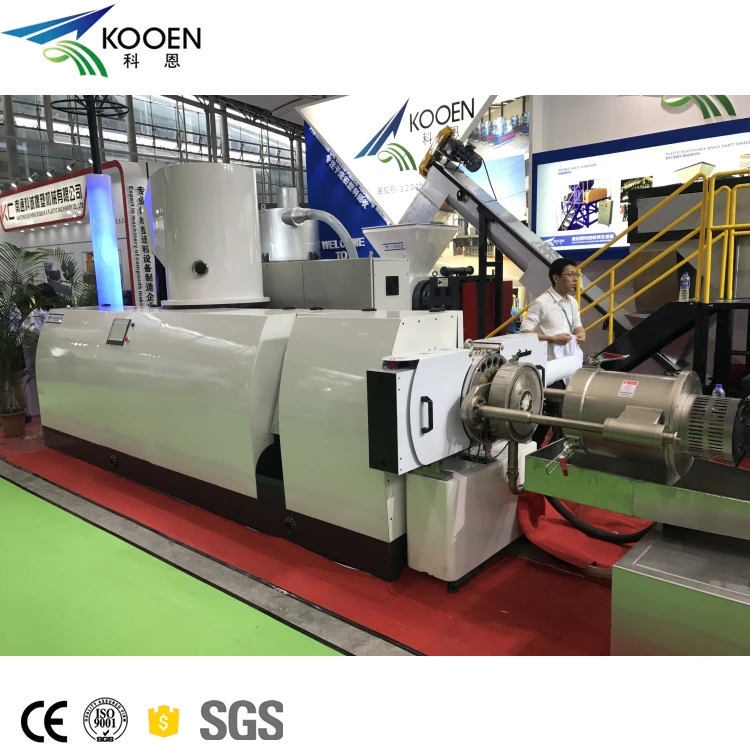

Main Components ZL series Compactor Recycling Granulating/Pelletizing Machine:
Belt conveyor
Control method: frequency control
Metal detector for selection
Compactor
Rotation knives/fix knives inside
Motor power: 45/55/75/90 KW
Cutter material: Cr12Mov
Main extruder
Screw diameter: 85/100/130/160/180mm for option
Aluminum heater
Screw/barrel material: 38CrMoAl,Nitrify processing
Equipped with vacuum pump
Venting system
Quantity: 2 pieces, Vacuum pump: 1 pc
Hydraulic screen changer
Motor power:2.2/3KW
Special design board (no-stopping screen change, no leak)
Sub extruder
Screw diameter: 100/130/160/180mm for option
Aluminum heater
Screw/barrel material: 38CrMoAl,Nitrify processing
Hydraulic screen changer
Motor power:2.2/3KW
Special design board (no-stopping screen change, no leak)
Water-ring cutting system
Motor power: 2.2/3kw
Frequency control
Centrifugal dryer
Motor power:4/5.5/7.5KW for option
Rotation speed: 1200rpm
Made of SUS304 stainless steel
Fan blower
Motor power: 2.2/3/5.5Kw
Silo
Made of SUS304 stainless steel
Control cabinet
Word famous brand electric components
Advantages:
1. Our ZL series compactor pelletizing line has pull strip cutting, and water ring cutting method(include vertical water ring
cutting and horizontal water ring cutting) for option.
2. The machine with high efficiency, working stable, large capacity etc.
3. World famous brand components applied on the production line
4. The whole production line with CE certification, ISO9001 certification .
1. Our ZL series compactor pelletizing line has pull strip cutting, and water ring cutting method(include vertical water ring
cutting and horizontal water ring cutting) for option.
2. The machine with high efficiency, working stable, large capacity etc.
3. World famous brand components applied on the production line
4. The whole production line with CE certification, ISO9001 certification .
Related products
//www.kooenmachine.com/pe-pp-film-washing-line-2/ (Website link)
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ (Video link)
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ (Video link)
//www.kooenmachine.com/pe-pp-film-washing-line-2/ (Website link)
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ (Video link)
//www.kooenmachine.com/plastic-washing-line-video/pe-pp-film-bags-washing-line-video/ (Video link)
//www.kooenmachine.com/hdpe-pp-rigid-plastic-washing-line/ (Website link)
//www.kooenmachine.com/plastic-washing-line-video/hdpe-pp-bottle-washing-line-video/ (Video link)
//www.kooenmachine.com/plastic-washing-line-video/hdpe-pp-bottle-washing-line-video/ (Video link)
//www.kooenmachine.com/pet-bottle-washing-line/ (Website link)
//www.kooenmachine.com/plastic-washing-line-video/pet-bottle-washing-line-video/ (Video link)
//www.kooenmachine.com/plastic-washing-line-video/pet-bottle-washing-line-video/ (Video link)
//www.kooenmachine.com/zl-single-stage-pepp-film-compactor-pelletizing-machine/ (Website link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ (Video link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ (Video link)
//www.kooenmachine.com/zl-double-stage-pepp-film-compactor-pelletizing-machine/ (Website link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ (Video link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/zl-sereis-compactor-pelletizing-machine-video/ (Video link)
//www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ (Website link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ (Video link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ (Video link)
//www.kooenmachine.com/sj-single-stage-pepp-film-pelletizing-machine/ (Website link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ (Video link)
//www.kooenmachine.com/plastic-pelletizing-machine-video/sj-series-pelletizing-machine-video/ (Video link)
//www.kooenmachine.com/squeezer-machine/ (Website link)
//www.kooenmachine.com/recyling-machine-auxiliary-machine-video/plastic-squeezer-machine-video/(Video link)
//www.kooenmachine.com/recyling-machine-auxiliary-machine-video/plastic-squeezer-machine-video/(Video link)
//www.kooenmachine.com/shredder-machine-crusher-machine/ (Website link)
//www.kooenmachine.com/shredder-machine-crusher-video/ (Video link)
//www.kooenmachine.com/shredder-machine-crusher-video/ (Video link)
Our Company
Packing&Shipping
Exhibition
Service
For choosing proper machine and saving your time, please read these bellow guides carefully:
1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastic?
2. What capacity (kg/h) do you want?
3. When (Times for delivery) do you want the machine?
4. Other requirements about the plastic film washing and recycling machine you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
KOOEN is a leading waste plastic recycling machinery manufacturer in China, dedicated to series waste plastic recycling machine with more than 20 years export experience. If you have related requirement about waste pe pp plastic film /PET bottle crushing washing and recycling machine/line, please do not hesitate to let me know...
1. What material do you want to process/recycling? PE/PP film? PE/PP rigid plastic flake? PET flake? or other plastic?
2. What capacity (kg/h) do you want?
3. When (Times for delivery) do you want the machine?
4. Other requirements about the plastic film washing and recycling machine you want.
Turnkey project service:
1. we will provide all the machines for the complete production according to customer's requirements.
2. we will provide complete service for factory layout and other information to help customer to build the factory.
3. we will provide good service for machine installation and training, until the customers can run the machines and make stably production.
4. Except one year quality guarantee, we will provide after-sell service for all the life.
5. for long-term cooperation, we always provide good quality, good price and good service to customer.
KOOEN is a leading waste plastic recycling machinery manufacturer in China, dedicated to series waste plastic recycling machine with more than 20 years export experience. If you have related requirement about waste pe pp plastic film /PET bottle crushing washing and recycling machine/line, please do not hesitate to let me know...
Price of pp pe film granulating machine plastic film pelletizing line pellet making machine manufacturer in China
Note, If you want to see more information (video) of this plastic recycling production line, please log on our website(
www.kooenmachine.com) !
Note, If you want to see more information (video) of this plastic recycling production line, please log on our website(
www.kooenmachine.com) !
Похожие товары
Dragonstage мощный кинотеатр установленное звуковое оборудование динамик профессиональный аудио видео 15 дюймов 400 Вт пассивный динамик
258,00 $ - 287,00 $
Заводской щенок Хэллоуин косплей пират Микки Забавный костюм Одежда для собак
Заводской запас, стильные аниме наклейки Itachi, водонепроницаемые рождественские наклейки
Высокотехнологичный пресс для угля, Лидер продаж, линия брикетирования угля
1 800,00 $
Невидимый сетчатый экран для двери без следов сетка King Kong вентиляции Противомоскитный дверь из алюминиевого
68,50 $
110 В 60 Вт Гибкая нагревательная подушка, силиконовый нагревательный коврик, боковая гитара с термостатом, водонепроницаемый, под заказ, OEM-ключ, питание, для строительства пищи

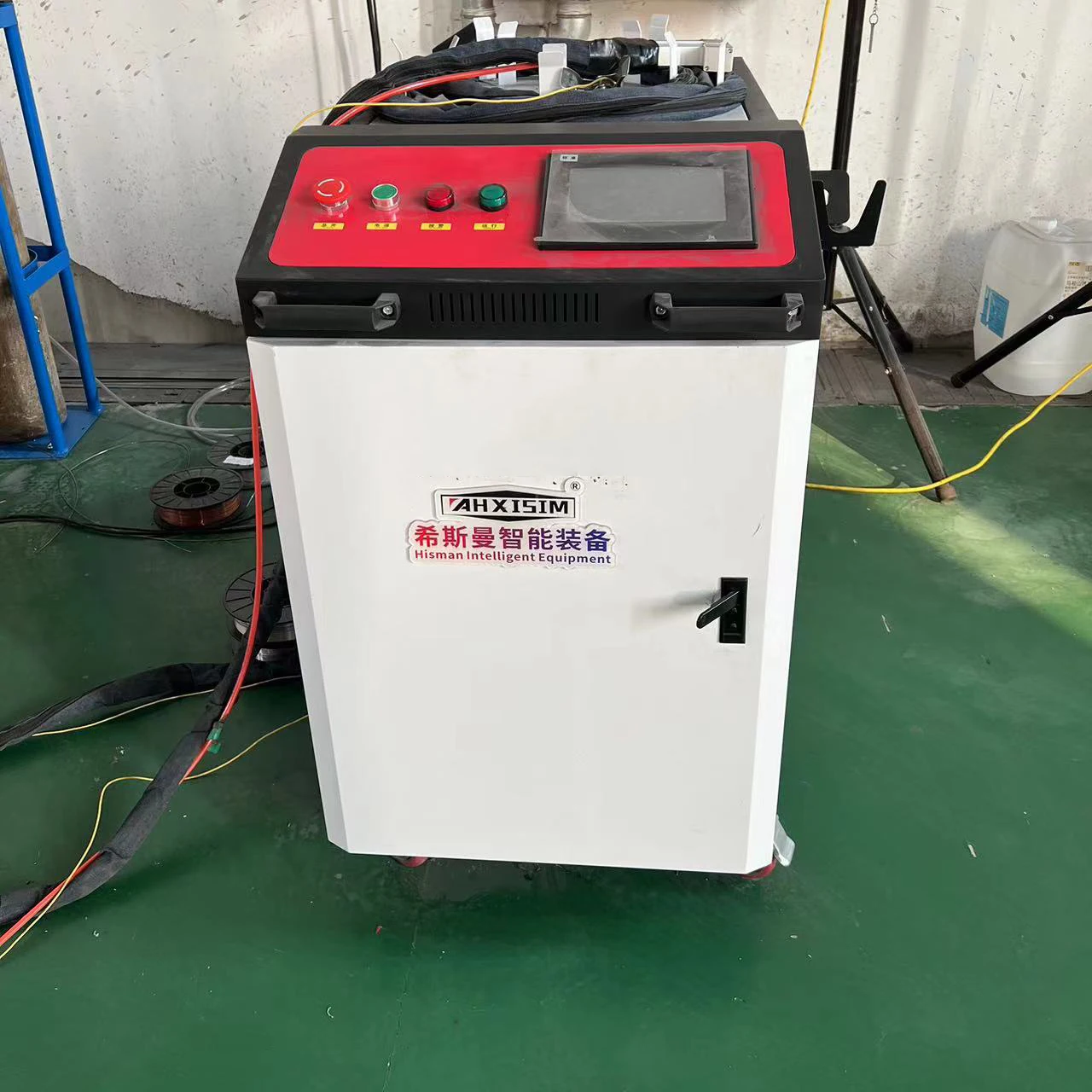

Портативный лазерный сварочный аппарат Anhui Hisman
