Итайский завод по изготовлению а 1.2Ton мини фронтальный погрузчик с Ce сертификатом

Сохранить в закладки 1600084722543:


Цена:49 280,00 $ - 50 058,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики


Chinese Factory Caise 1.2Ton Mini Wheel Loader With Ce Certificate






Product Description


LOVOL FL936 (3).jpg





Product Features



  • Optimize the shape of the bucket to make it easier to pick up material, resulting in higher fill factors and fewer spills.

  • Cooling-capable air conditioners add air from the back and bottom of the machine to achieve a full range of results.

  • Optimized pre-heating system and efficient hyperboloid fan, suitable for ambient temperature of -30 °C ~ 45 °C.

  • A variety of optional accessories, including: multiple buckets, pallet forks, transfer arms, grapples, and snow shovel, greatly expands the application range of wheel loaders.








Specifications
















































































































































Parameter ItemsParameter Value
1.Main parameter
Rated load (KG)5000
Operating Weight (standard) (KG)17100
Rated Bucket Capacity (m3)3
Maximum breakout force (KN)185
Maximum traction force (KN)160
Total hydraulic cycle time (S)10.6
Maximum dump height (mm)3180
Maximum dump distance (mm)1160
Forward speed range (KM / H)0~38.4
Back speed range (KM / H)0~24.2
Transport dimensions (L × W × H) (mm)7960×2970×3450
Maximum steering angle (°)37
Max grade ability(°)30
Minimum turning radius (mm)6770
Tire Size23.5-25-16PR
2.Engine parameter
ModelWeichai WD10G220E23
Type6-cylinder, in-line, direct injection and turbocharged
Power (KW)162
Maximum torque (N.M)930
Cylinder diameter (mm)126
Stroke (mm)130
Displacement(L)9.756
Fuel consumption (G / Kw.h)220
3.Hydraulic system
Work system pressure (Mpa)20
4.Braking System
Running braking system typeSingle pipe air-oil 4-wheel clipper disc braking
Parking / emergency brake system typeDrum braking
5.Fuel Tank Capacity
Fuel tank (L)280
Hydraulic Tank capacity (L)210




Detailed Images





Performance characteristics



  • Double-door rear hood design, convenient maintenance

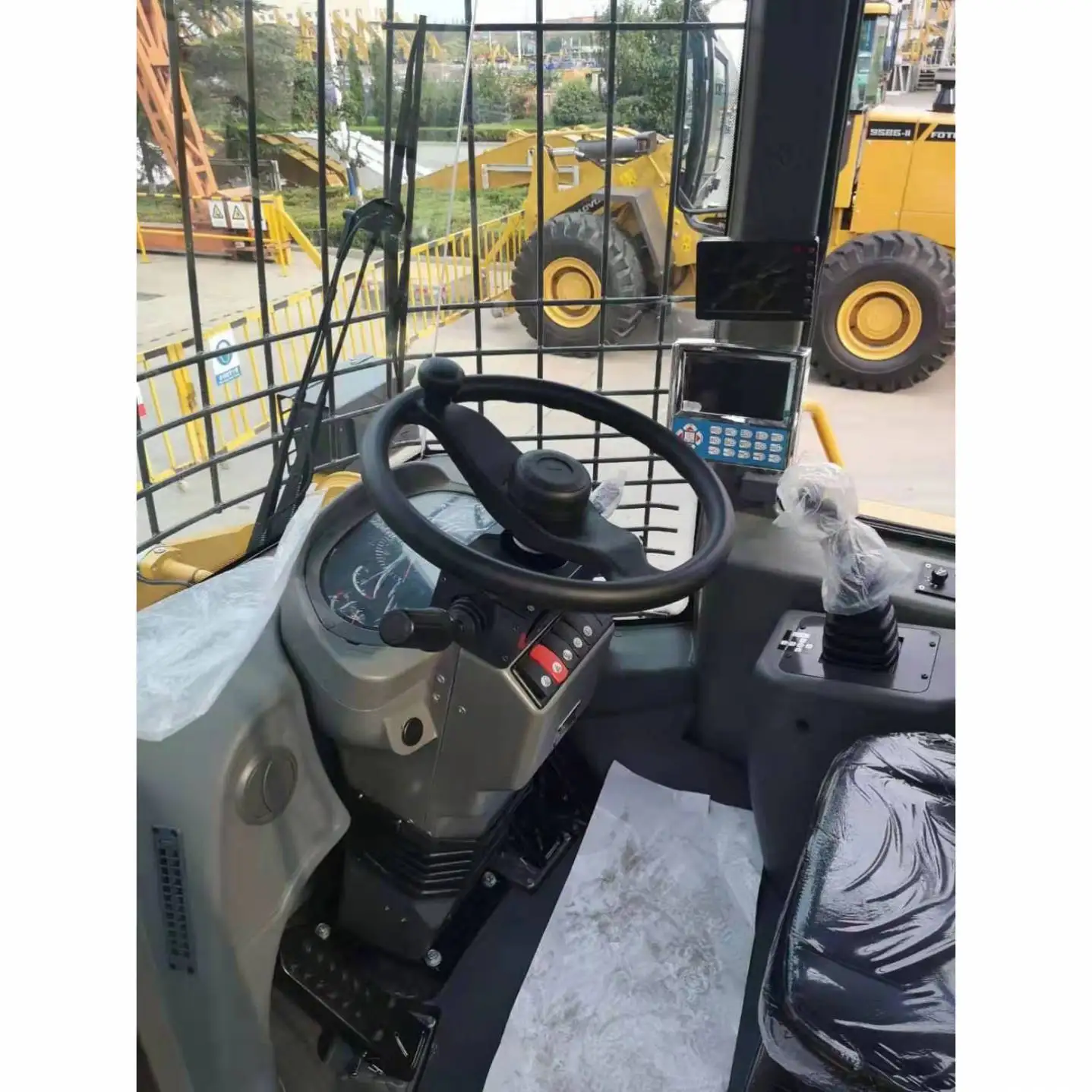

  • Large and bright cab, panoramic operation view, high comfort

  • Economical, standard, fast working mode selection, more economical and efficient


       .png                  .jpg


           3m3 buckets more efficient and saves time                                   Use the teeth of the excavator






  • The average car is a 2.7 square bucket including Liugong 855N, and even some two-arm vehicles are 2.5 square buckets.

  • Not easy to break, this design is easier to insert when shovel hard soil, easy to replace teeth, and less damage to the blade. Low replacement costs.


    .jpg    .jpg


                             Using flow valve                                                                Big bucket hydraulic






  • Light steering wheel with full and no shove. More powerful and stability

  • Proven Liugong gearbox, stable and reliable, smoother operation and improved work efficiency

  • The Cummins QSL9.3 engine that meets the national three emissions uses high pressure common rail technology, precise combustion control, and efficient fuel economy





Other Model


LOVOL FL956 (1).jpgLOVOL FL956 (4).jpgLOVOL FL966 (1).JPG
