Product Description


Full automatic roll tissue making toilet paper machinery for making toilet paper roll

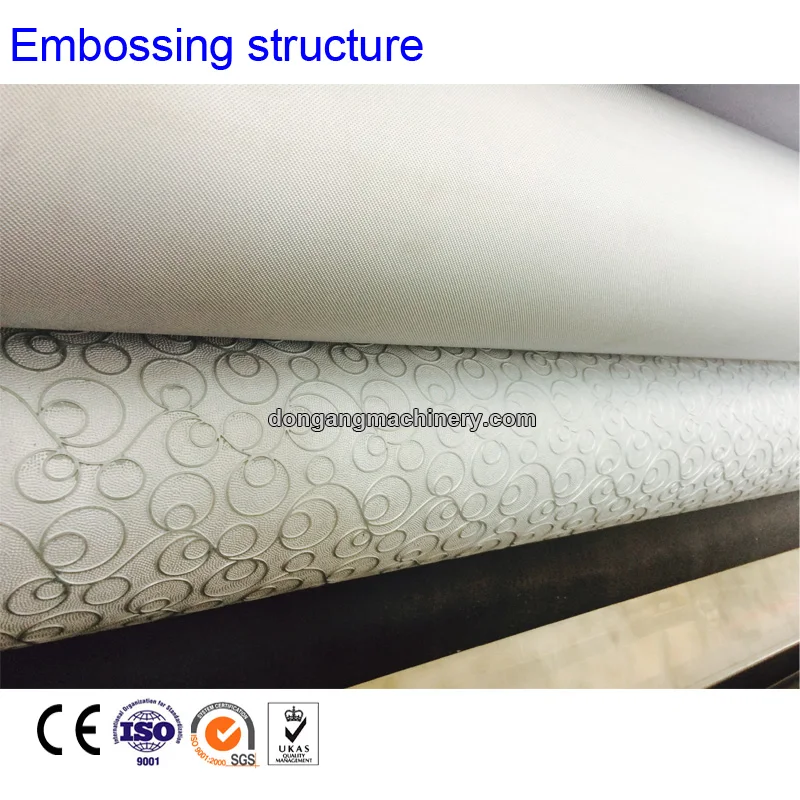

Automatic wallboard toilet paper rewinding machine is for making toilet paper roll.the machine automatic feed core.Raw material jumbo roll after full embossing or edge embossing,then perforation,end cutting and spray the tail glue become a log.then it can work connect with automatic cutting machine and packing machine to become finished home use paper roller product.the rewinding machine is controlled by PLC,people operate it through touch screen,the whole process is automaticly,easy to operate,lower the labor costs.we can do customized according to client different requirements.






































































Technical Parameter



Model


DA-QH-2100 Wallboard Automatic Toilet Paper Rewinding Machine


Jumbo Roll Max Width


2100mm (Other size can be specified)


Jumbo Roll Diameter


Φ1200mm(Other size can be specified)


Perforation Distance


4 anvil Blades(115mm)(Other size can be specified)


Finished Product Diameter


Φ90~φ280mm


Finished Product Core Diameter


φ38~φ76mm


Production Speed


0~230m/min


Program Controller


PLC


Unwind Stands


1 or 3 Stands(Need to be specified)


Pneumatic System


3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)


Main Power


24KW


Dimension


8000*3600*1900(L*W*H)


Weight


About 7T


Jumbo Roll Layers


1 or 3 Stands(Need to can be specified)







Functions and Features --- Toilet paper Rewinding Machine:




 1.This machine is for making toilet paper rolls, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.

2.Perforation distance is adjustable to meet different distance needs.

3.Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.

Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

4.Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

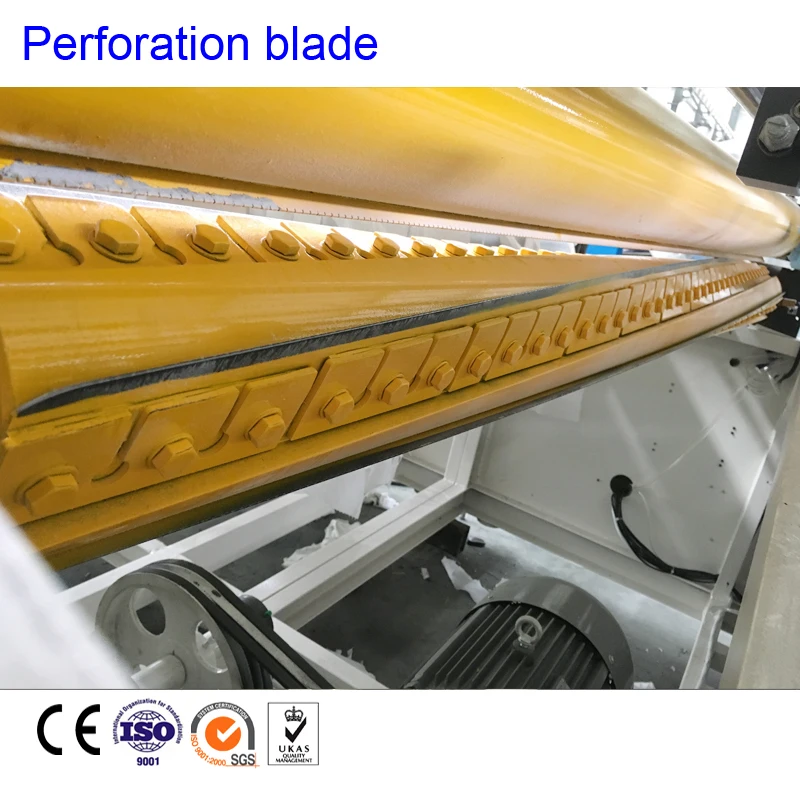

5.Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

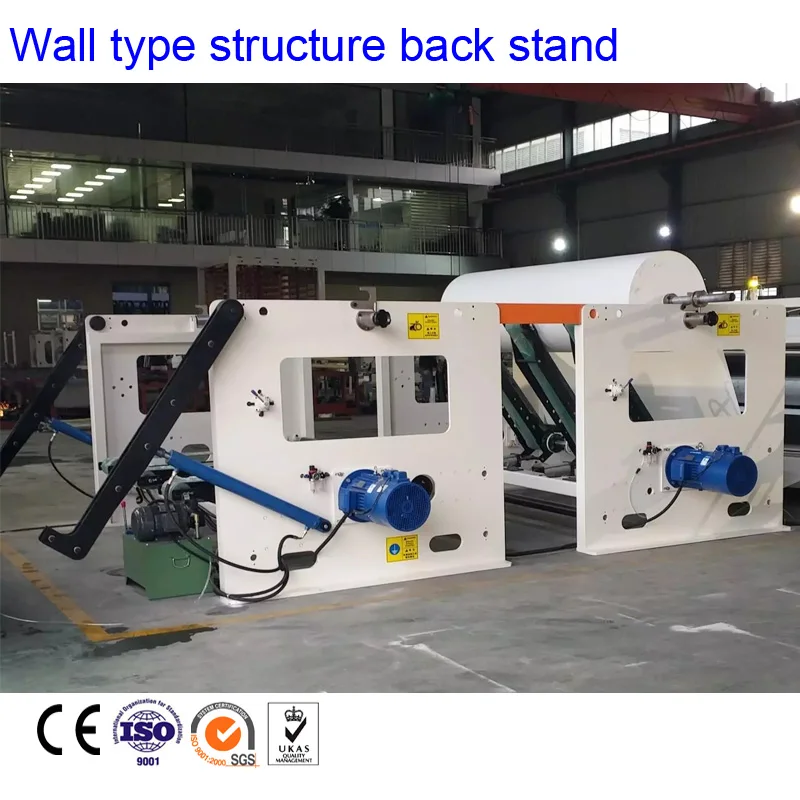

6.Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.

7.Adopt jogging switches for wearing the paper, easy and safe to operate.








Packaging & Shipping


 We use wood box and wood pallet according to container full or not.


.jpg





Company Information


 .jpg





Our quality


  we have Own brand,our machine high quality and exported to many countries.c





Our Services


A.Installation:


We offer manual together with machine delivery.After customer confirm received the machine,we will guide customer’s install engineer install first.If customer’s engineer can not install,and need our engineer come to install,customer need to pay our engineer $120 per day per person for salary,customer should afford the engineer round-trip ticket,visa,and Meals and accommodation.


B.After-sales Service:


a).Warranty:One year quality warranty,if the main accessaries broken(not human error control damage),we will send the broken accessaries free to customer’s address.The warranty time start from when the customer receive the machine.


b).Provide Lifelong Maintenance:we offer lifelong maintenance,after one year quality warranty time,if the machine have problems,we will offer free technology advice to help customer solve the problems,if need change accessaries,we will guide customer purchase right accessaries to install,and if customer need our accessaries,we will send our accessaries all according to actual prices.






FAQ


 1.Q:Whio we are?


A:we are Qingdao Dongang Machinery CO.,LTD.we are the factory professional in developing,designing,producing and selling toilet and kitchen towel paper making machine,facial tissue paper folding machine,napkin paper folding machine,Maxi roll rewinding machine,hand towel paper N folding machine,paper cutting macchine,paper packing machine and so on.our company also acting sales of China's famous brand forklift and forklift clamp for carry jumbo roll .the company has 39 top engineers,and is has an advanced scientific research team,the company produce machines all with high quality,and we offer best after-sale service.The company believe Integrity first,Customer first.and Quality most important.welcome come to China visit our factory


2.Q:What is the delivery time


A:Normally, our delivery time is 60 days from 30% deposit byT/T transfer.ready machine 5-10 days.we produce almost all accessaries all by ourselves to make sure machine high quality and work good,if the machine you buy is standard size,we can ready the machine within 45 days.


3.Q:What is our warranty?


A:our warranty is one year start from machine arrive the client’s place, the parts can be replaced for free within one year(not including the easy-wear parts like blade), but the after-sales service is all machine lifetime, any problems happen can contact us, we will try our best to help you out of trouble.


4.Q:What is our payment terms?


A:Our general payment terms is T/T. After confirmed machine details, client need to pay 30% of the total amount by T/T to start the order.  After machine finished and tested, and client feel satisfied (client can come and test the machine or we send machine testing videos to them) then pay 70% by T/T before shipping.(For other payment terms, need to be agreed by buyer and seller both parts.)
