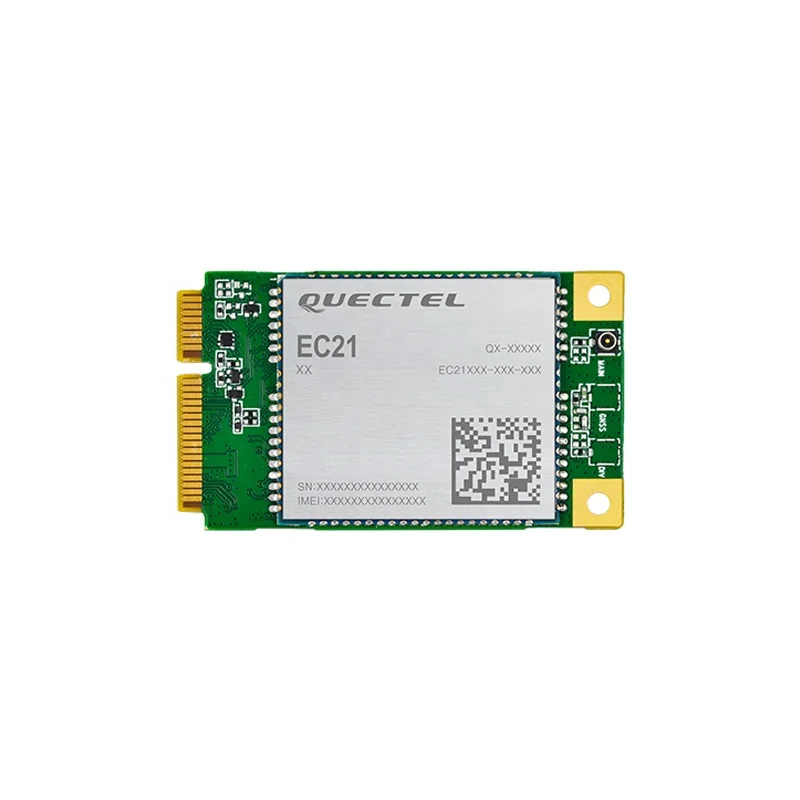

Беспроводной Quectel EC21 KL мини PCIe LTE Cat 1 модуль 4G для Южная Корея

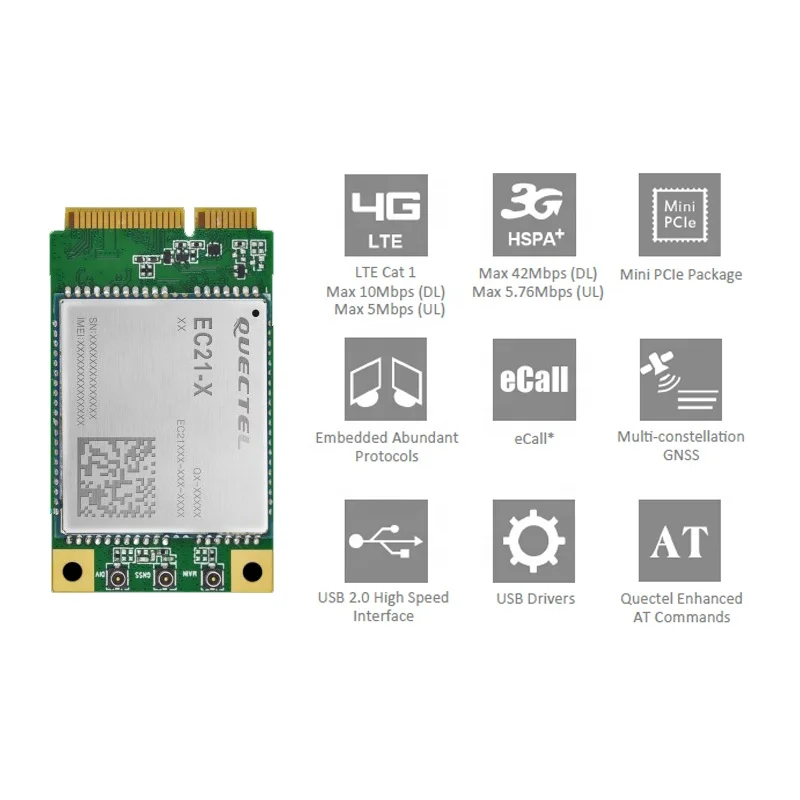

Quectel EC21 Mini PCIe is a series of LTE category 1 module adopting standard PCI Express^®

Mini Card form factor (Mini PCIe). Specially optimized for M2M and IoT applications, it

features cost-effective, low-power LTE connectivity, and delivers M2M-optimized speeds of

10Mbps downlink and 5Mbps uplink. These make it ideal for numerous IoT applications that

are not reliant on high speed connectivity but still require the longevity and reliability of LTE

networks.

EC21 Mini PCIe contains 10 variants: EC21-E Mini PCIe, EC21-EU Mini PCIe, EC21-EUX Mini

PCIe, EC21-A Mini PCIe, EC21-V Mini PCIe, EC21-AUT Mini PCIe, EC21-AU Mini PCIe, EC21-A

UX Mini PCIe, EC21-KL Mini PCIe and EC21-J Mini PCIe. This makes it backward-compatible

with existing EDGE and GSM/GPRS networks, ensuring that it can easily migrate from LTE to

2G or 3G network.

EC21 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS,

BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design,

and provides quicker, more accurate and more dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities

(USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability

of the module to a wide range of M2M applications such as smart metering, tracking and

tracing, fleet management, wearable devices, smart home gateways, digital signs, and

even drones.

Key Benefits

1. Cost-effective, lower-power LTE connectivity optimized for broadband IoT applications
2. Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage

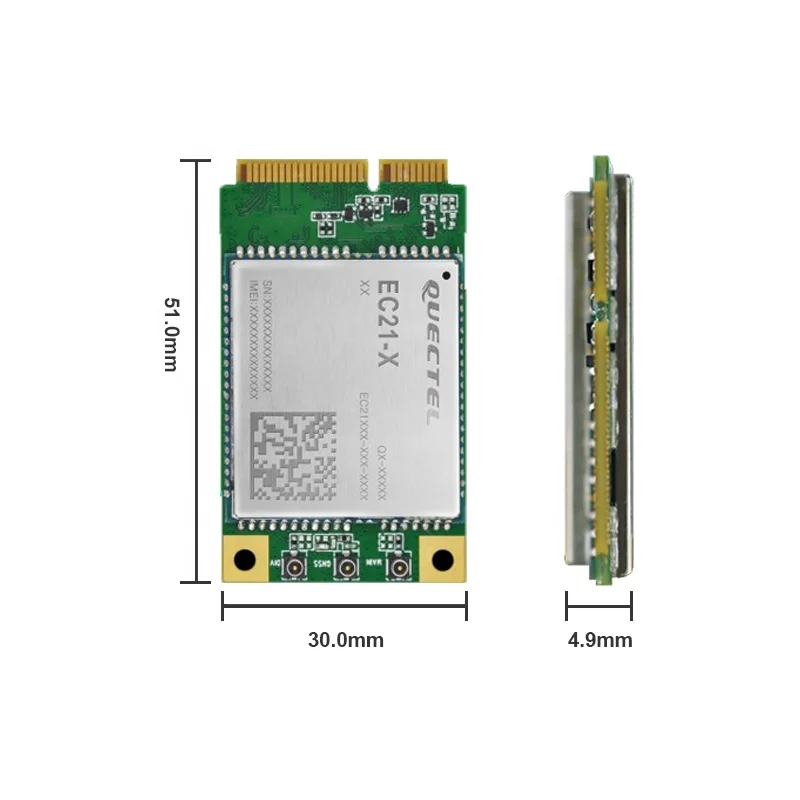

3. Standard PCI Express® MiniCard form factor (Mini PCIe) ideal for manufacturers to easily

integrate wireless connectivity into their devices

4. MIMO technology meets demands for data rate and link reliability in modem wireless

communication systems
5. Multi-constellation GNSS receiver available for applications requiring fast and accurate

fixes in any environment
