Суперлегкая рама для горного велосипеда 29er T800 карбоновая BB92 12x142 мм 12x148
169,00-259,00 $
Новый продукт оптом ebike 5000 Вт электрическая беговая дорожка с горными велосипедами 26 дюймов куб велосипед
- Категория: Велосипедная рама >>>
- Поставщик: Changzhou The Chun Electronics Co. LTDChangzhou LTD
Сохранить в закладки 1600087121479:
Описание и отзывы
Характеристики
Product Description

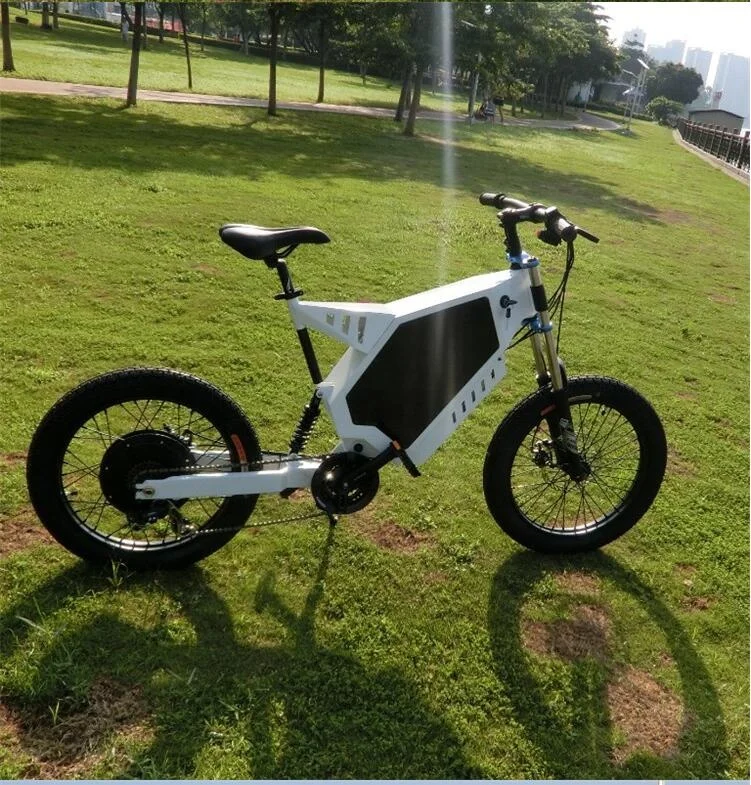

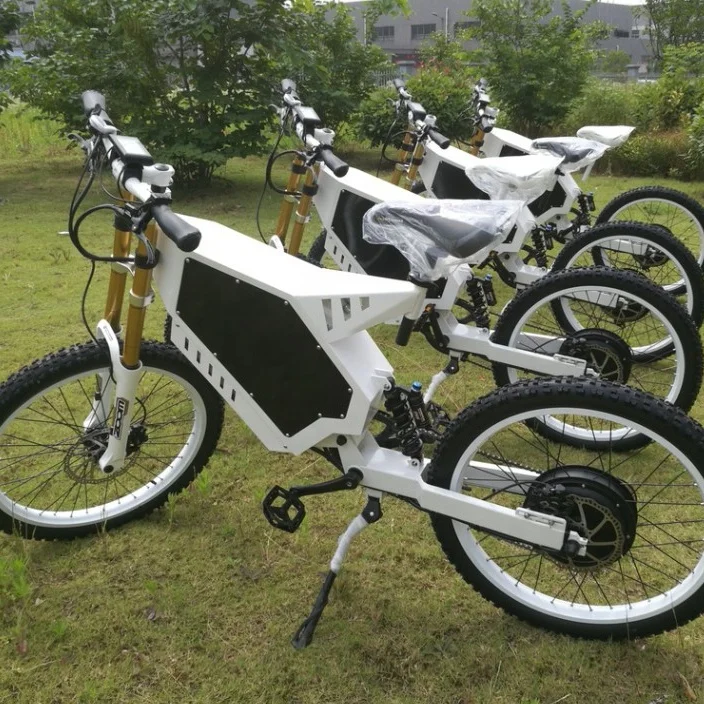

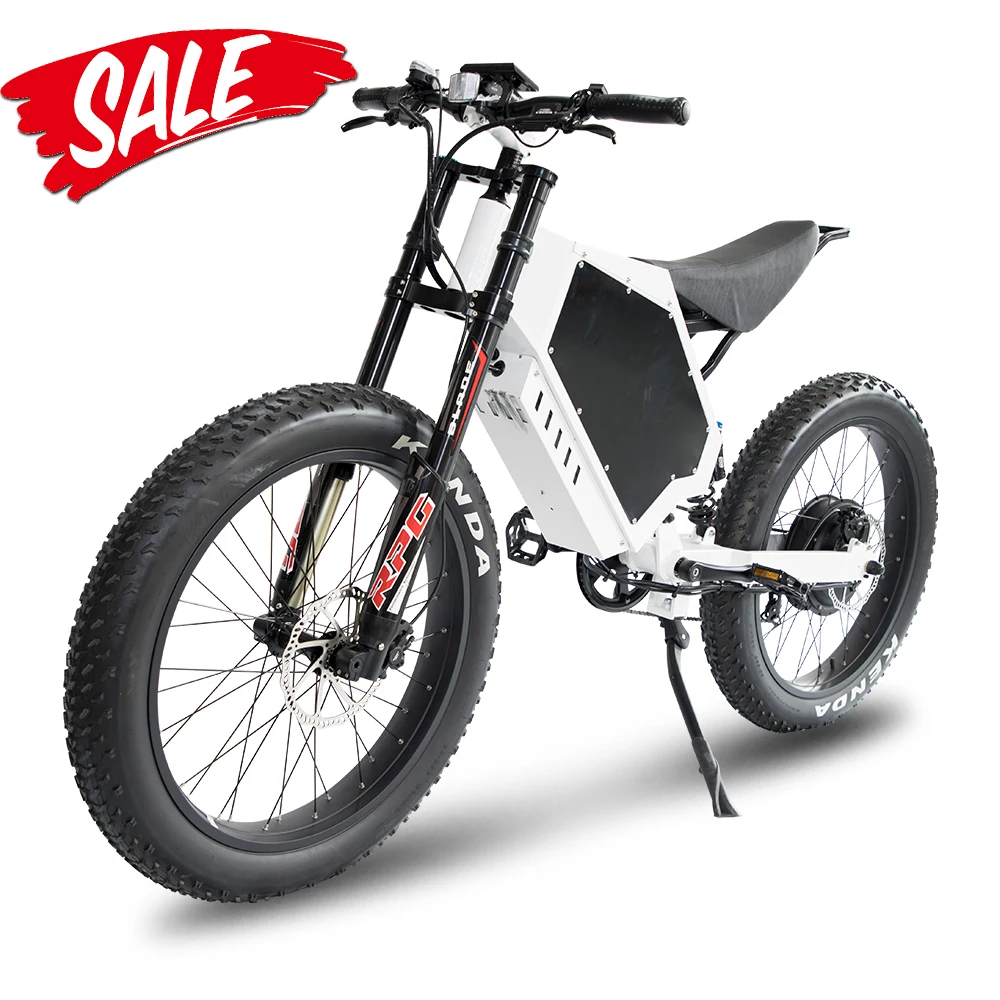

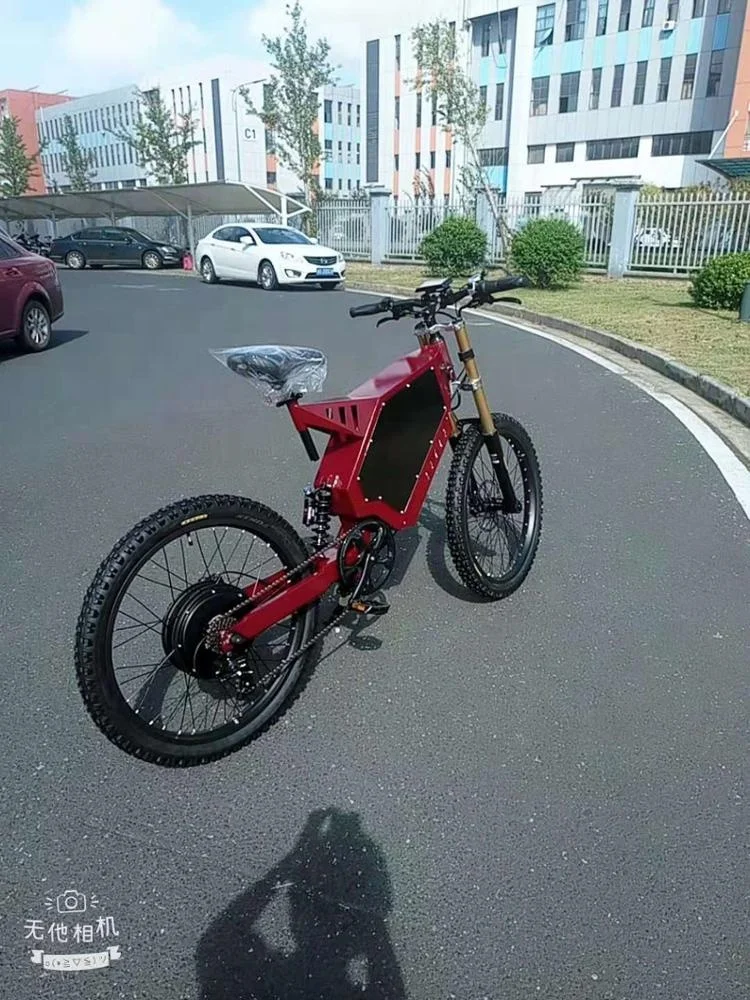

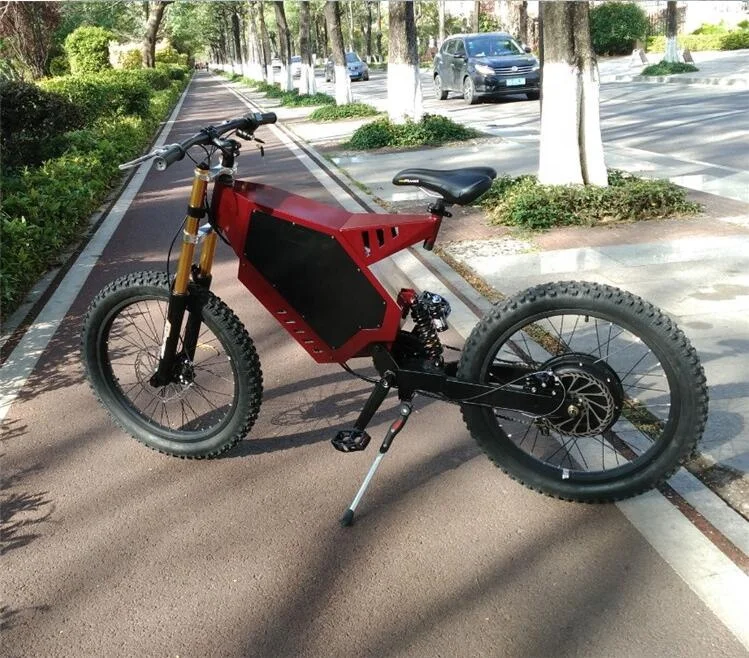

48v 72v 30ah frame hidden battery 3000w 5000w 8000w hub motor fat tire dirt mountain stealth bomber electric bike
product name | 3000w -8000w electric bike frame | MOQ | 1 SET |
| color | Color can be customade | style | Modern |
| delivery time | 7 days for sample,15days for bulk order | experience | many years |
| Rear shock | TAIWAN DNM | Seat post | Zoom 27.2mm Aluminium Alloy |
| Front fork | TAIWAN Zoom 680DH | ||
| Spindle | square taper | Gross weight | 78kgs |
| Dropout width | 155*10 mm and 135*10mm | Package size | 78*53*21cm |
| material | High strength steel | ||
| Form of sale | Manufactural direct sale, Retail, wholesale, agent | ||
| Payment | Paypal or T/T | ||
MAIN PARAMTERS DATA | ||||||
Motor Power | 3000w | 5000w | 8000w QS | |||
Batter | 48v29ah /72v26.1ah Samsung/Panasonic cells battery | 72v26.1ah/72v40.6ah Samsung/Panasonic cells battery | 72v40.6ah Panasonic cells battery | |||
Controller | 48V/72V 60A Controller | 72V 80A Controller | 72V 150A Sabvoton Controller | |||
Max Speed | 60km/h | 70km/h | 100km/h | |||
Max Range | 55-65km | 65-75km | 80-90km | |||
Display | SW900 LCD Display (OPTIONAL UKC1 Colorful Display) | |||||
Handlebar, Stem and Seatpost | Aluminum Alloy Riser Handlebar bold type 31.8(Width: 640mm) Aluminium Alloy strengthening bold vertical double stem(Length:50mm) 27.2mm Aluminium Alloy Seatpost | |||||
Frame | Material: Steel t/2 mm,Super Stealth Bomber Frame | |||||
Front Fork | TAIWAN Zoom 680DH Triple Crown Suspension Fork (Adjustable and Lockable),Range:180mm (Optinal:Zoom 1100DH,DNM-USD-8S,KKE upside -down ) | |||||
Rear Suspension | TAIWAN DNM BURNER-RC2S/Air Suspension | |||||
Seat | VELO BTANDED Ergonomic Big Seat; high quality PU(Optional Motorcycle seat ) | |||||
Pedal | Aluminum Alloy high density bearing pedal | |||||
Chainwheel and cranksets | High Quality Aluminium Alloy Chainwheel + Cranksets, 52teeth 140crank | |||||
Stand | Aluminum Alloy Stand,chains Z51 | |||||
Rim | Double-wall Aluminium Alloy Rim,24*3.0/26*2.6/26*3.0/26*4.0/19*1.6/21* | |||||
Braking System | TAIWAN TEKTRO Modified Hydraulic Disc Brake(Cut Off Power) Aluminum Alloy 203mm roto disc brake caliper adapter TAIWAN TEKTRO 203mm Front & Rear Disc Brake Rotos | |||||
Package size | 1530*335 *730cm,660*270*680,880*250*150,440✘285✘225 | |||||
Weight | with package :80-95kg | |||||
Detailed Images
Controller
Smart Sabvoton controller 72V 150A
1. The advanced FOC vector algorithm is used to drive the DC brushless motor.
2. Automatic matching of motor Hall angle in 2 minutes
3. Various built-in protections of the controller to ensure the safe and stable operation of the vehicle: anti runaway protection, over-voltage and under voltage protection, over-current protection, controller overheat protection
2. Automatic matching of motor Hall angle in 2 minutes
3. Various built-in protections of the controller to ensure the safe and stable operation of the vehicle: anti runaway protection, over-voltage and under voltage protection, over-current protection, controller overheat protection
Handlebar +Brake system
TEKTRO E725 Hydraulic BrakeStandard FinishBarrel Lever / Black Bracket
Available In Painted ColorsMaterialCast Aluminum Lever & BracketLever Blade3 Finger Lever BladeAlso AvailableTS325AP - Nylon
Composite BracketWeight182 Grams / PairStandard FinishBarrel Lever / Black Bracket
Available In Painted ColorsMaterialCast Aluminum Lever & BracketLever Blade3 Finger Lever BladeAlso AvailableTS325AP - Nylon
Composite BracketWeight182 Grams / PairStandard FinishBarrel Lever / Black Bracket
DISPLAY
SW900
3.5 inch IPS screen
24V/36V/48V/52V/60V/72V battery supply
Rated operating power : 1W
Max operating power : 5W
USB charging port : 5V 500mA
Off leakage current < 1uA
Support current to controller : 100mA
Operating
24V/36V/48V/52V/60V/72V battery supply
Rated operating power : 1W
Max operating power : 5W
USB charging port : 5V 500mA
Off leakage current < 1uA
Support current to controller : 100mA
Operating
Packaging & Delivery
Company Profile
Changzhou Zhongchun Electrical Appliances Co., Ltd.is specialized in manufacturing electric bike parts, such us BLDC motors, lithium batteries, and DIY conversion kits. With an experienced and professional team, we have exported our products to many countries and regions around the world, especially America and Europe. Our products enjoy a good reputation among our customers. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
Our service
1. Focus on the production of electric bicycle and electric bicycle kit, professional and reliable.
2. Welcome to inquire.
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
FAQ
Q1: Will the conversion kit fit my bicycle?
A: The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the Drawings or samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How about your Warranty?
A: Motor: 2 year Charger: 1 year Controller: 1 year Battery: 18 months
A: The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork(the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 7 to 20 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q4. Can you produce according to the Drawings or samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How about your Warranty?
A: Motor: 2 year Charger: 1 year Controller: 1 year Battery: 18 months
