Низкая цена и богатая передача sunway ATS120R gps коллиматор данных Робототехника набор общей станции для 5000 м одиночной призмы

ATS-120 series total station is used in engineering, produce by Suzhou Sunway photoelectric Techonology Co., Ltd., a subsidiary of a Hi-Target Surveying Instrument Co., Ltd. It have no prism measurement function, absolute encoder angle measurement technology, angle measurement accuracy 2 seconds, no prism measurement accuracy 3mm+2ppm, and a breakthrough in the use of the STM32 architecture. ATS-120 series total station configures a variety of communication interfaces and smart online calibration software, implements the diversity of data transmission selection and real-time detection function.

KEY FEATURES

Powerful and Fast EDM capability ATS-120 series total station's no prism measurement range can up to 800 meters. No prism measurement accuracy 3mm+2ppm. Accurate measurement 0.8s, track measurement 0.3s. STM32 Architecture The STM32 MCU based on ARM Cortex TM-M processor enables the total station has extra high processing speed and low-power consumption. Intelligent Callibration Software Accessible for real-time diagnosis to ensure trouble-free operation. The software can determine 90 percent of the problem.

Absolute Encoder Angle Measurement 1023 pairs of absolutely coded disc. All series' angle measurement accuracy is two seconds. Starting without initialization. The data will save automatically when the power failure. Stable Dual-axis Compensation Stable dual-axis compensation range 3". operation can be visualized and high accuracy of angle measurement. Rich Communication and Transmission With RS232C, SD, USB and Mini USB communication interface. Using Bluetooth for data transmission, make data transmission more convenient.

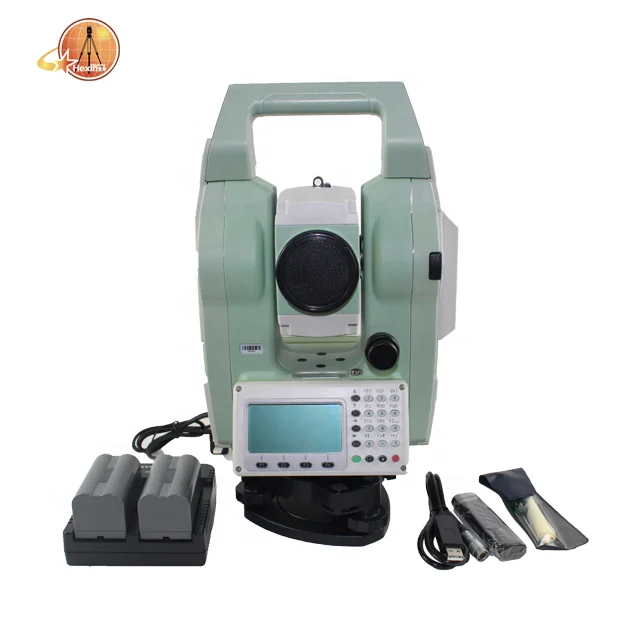

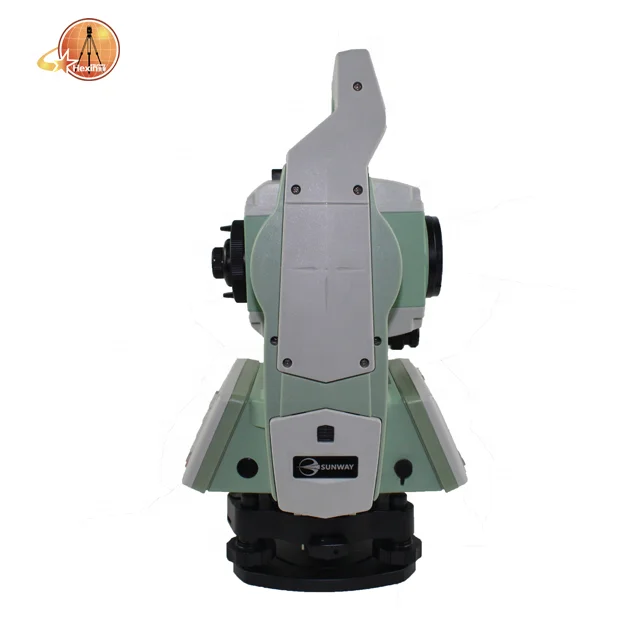

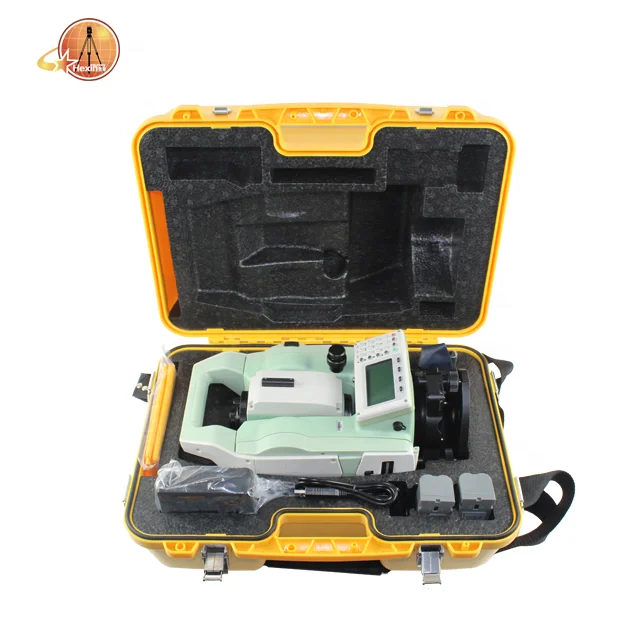

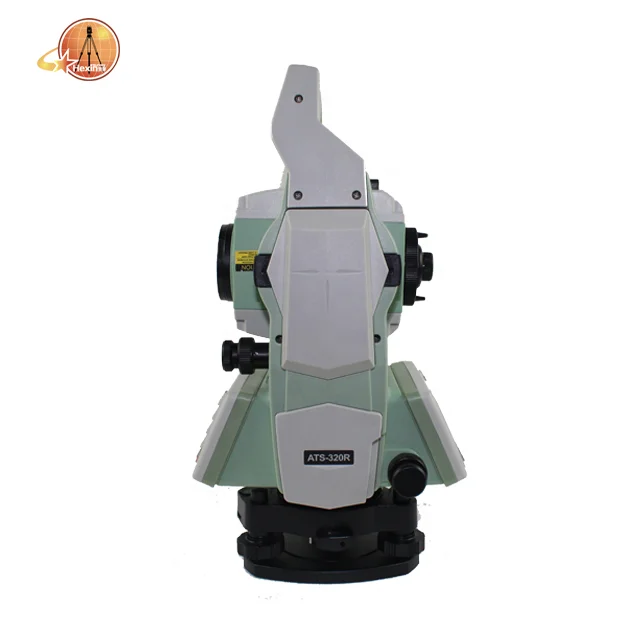

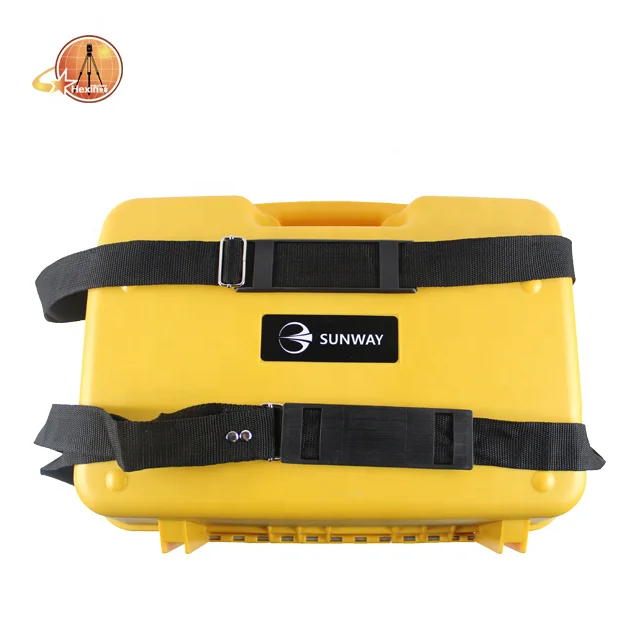

PRODUCT SHOW

SHIPPING

PAYMENT

COMPANY INFORMETION

                             Company Profile

Shanghai Hexin Survey Instrument Co., LTD has 8 years' experience in geodetic    surveying and cadastration surveying, we are a professional and leading enterprise in the surveying industry in MainlandChina. We specialize in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying  accessory, GPS receiver, mapping software, etc.The marketing model advocated by us is not a simple sense of "selling products", instead, pre-sales service, services  during operation and after-sales service are integrated in entire operating activities. It makes the customers feel that they purchased not only a commodity, but also a professional service.We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!

RELATED PRODUCTS

FAQ

Q:How to turn off voice broadcast of receiver?
A:a. Enter the WEBUI, find the voice switch in the settings page and turn it off.

b. Controller Software→Device→Device Setting, turn off the “enable voice”, and click"ok"

Q:Can the base station and rover station be interchangeable?
A:The difference between the rover station and the base station is that the accessories are different, the function and hardware configuration are the same.You can use the controller to choose the working mode of the device and set it as the base station or rover station.

Q:What is CORS?
A:CORS is called a continuous operating reference station system. It can be understood as a bas e station that is erected at a fixed known point and works continuously for 24 hours and sends its own data to a specific

serverthrough the network. The use of CORS operation eliminates the need for a base station, and CORS is equivalent to a base station in a normal network operation.
