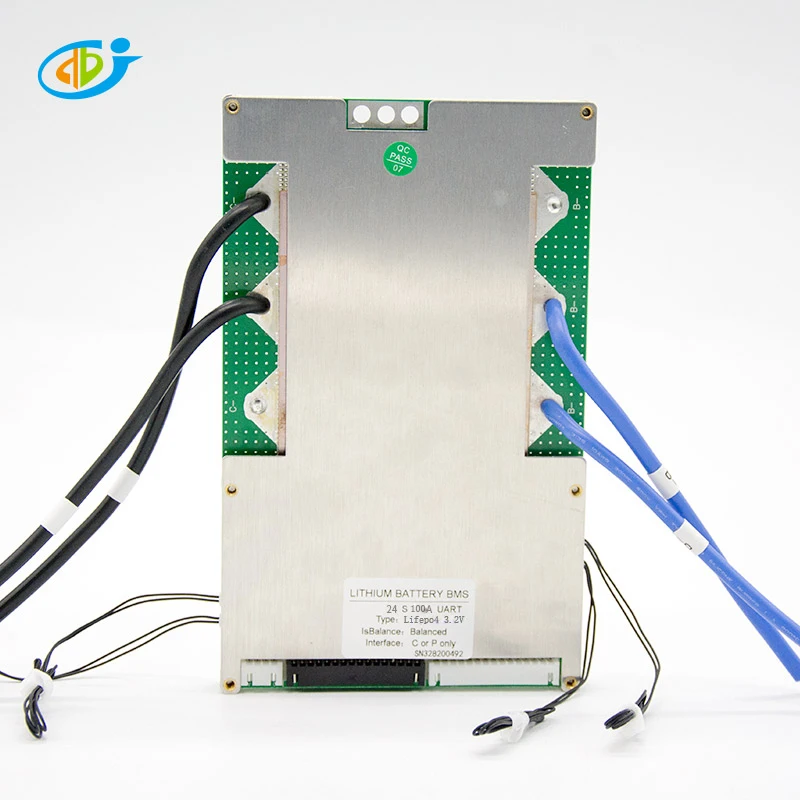

Jiabaida bms Высокое качество 24S 100A 72V умных беспроводной UART коммуникационный порт Lifepo4
- Категория: PCB & PCBA >>>
- Поставщик: Dongguan Jiabaida Electronic Technology Co. Ltd.
Сохранить в закладки 1600087533333:
Описание и отзывы
Характеристики
Product Description

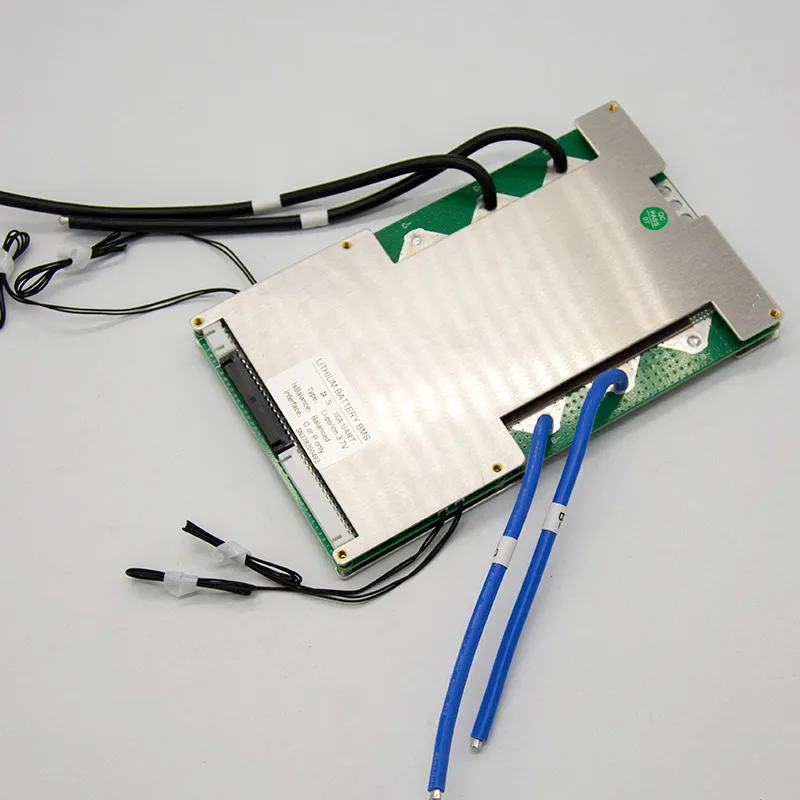

JBD-SP30S005

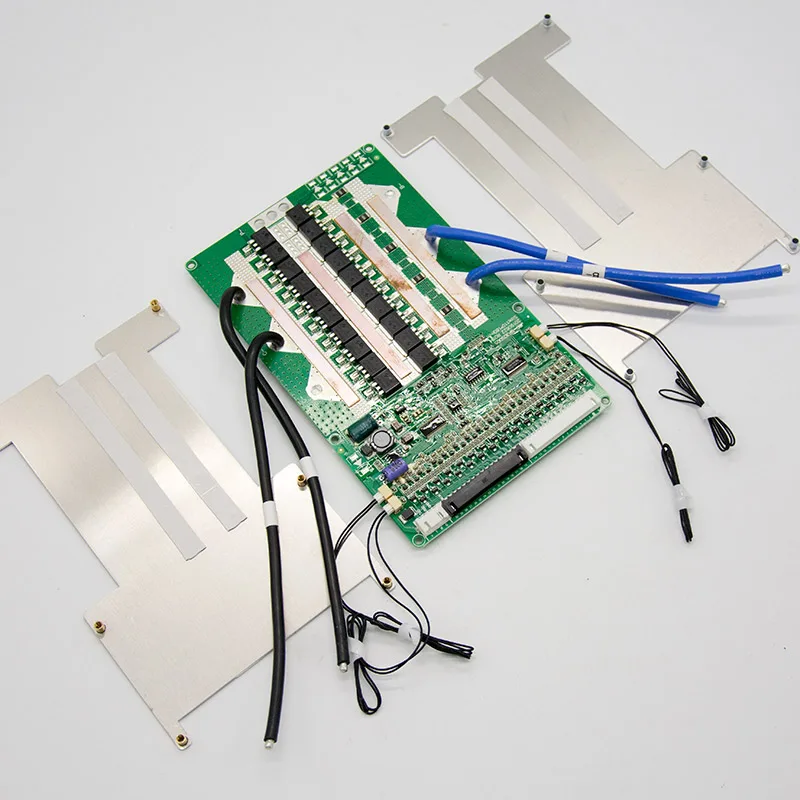

JBD-SP30S005 is designed by Dongguan jiabaida Electronic Technology Co., Ltd. It is an intelligent protection board scheme specially designed for 30 series battery packs of start-up battery and electric energy storage products. It is suitable for lithium batteries with different chemical properties, such as lithium ion, lithium polymer, lithium iron phosphate, etc. The protection board has strong load carrying capacity and the maximum continuous discharge current can reach 100A.
● 30 cell series protection
●Various protection functions for charging and discharging
● Hardware discharge over - current, short - circuit protection function processing
● Accurate SOC calculation with automatic SOC learning function
● Software over - voltage, under - voltage, temperature, overload protection
● UART Bluetooth communication function, which can read all battery data in real time, and update online.
Operating voltage range | 60-90V |
Operating current (MAX) | 100A |
Over-charge protection voltage | 3.75±0.05V |
Over-discharge protection voltage | 2.5±0.1V |
Balanced turn-on voltage | 3.4±0.05V |
Charging over current protection value | 110±5A |
High temperature protection value of charging | 65±2℃ |
High temperature protection value of discharge | 70±2℃ |
Internal resistance | <10mΩ |
matters need attention.
Please note:When assembling the wiring, weld the cable and the cell correctly, connect the B- of the PCM with the total negative pole of the cell, and then insert the cable into the needle base on the PCM. (Note: different connection modes for different strings, and different connection modes for the same port)
Please note:When assembling the wiring, weld the cable and the cell correctly, connect the B- of the PCM with the total negative pole of the cell, and then insert the cable into the needle base on the PCM. (Note: different connection modes for different strings, and different connection modes for the same port)
FAQ
1. What type of charger should I choose?
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
2.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on batterycapacity.
3.Whether my BMS damaged?
If you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
Lithium battery must choose specific charger, do not use Charger for Leadacid battery, for leadacid charger may have MOS with high pressure breakdown protection, which will not protect of BMS over charge. Life Po4 battery charger voltage=battery string No.X3.6V, while Li-ion battery charger voltage=Battery string No.X4.2V.
2.The relationship between Battery capacity and BMS current?
There is no direct relationship between Battery capacity and BMS current, big capacity doesn`t mean a big battery, but rely on continue current, that is to say if your engine is powerful, your should choose high current of BMS, it is not relied on batterycapacity.
3.Whether my BMS damaged?
If you want to judge if the BMS is damaged, please take the folowing steps, to test if each cell voltage is the same with
voltmeter? if the cell voltage difference is over 1.0V, the fault is displayed that it cannot run far, no power supply at the
start range, short charge time, all these issues are almost caused by battery cells, if BMS damaged is displyed as no charge, no discharge, no discharge while the battery has voltage.
Похожие товары

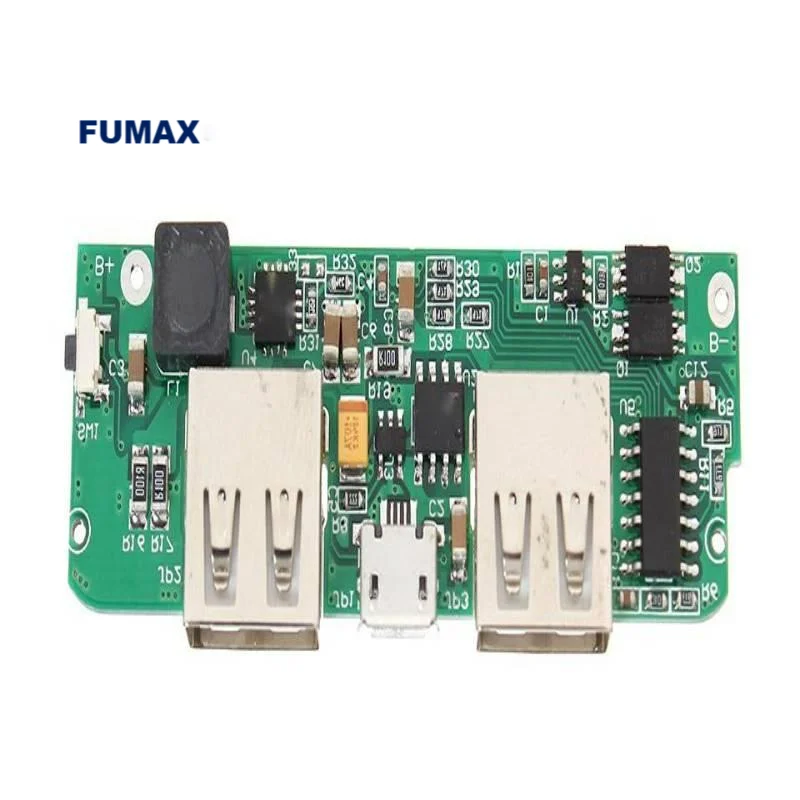

94v0 pd мощность 12v-power-supply powerbank модуль печатной платы прочие печатные pcb сборки печатных плат
1,00 $ - 1,40 $
Сварочный аппарат печатная плата быстрый
0,68 $ - 1,57 $
Шэньчжэнь rc автомобильные печатные платы OEM SMT PCBA производитель пользовательских печатных

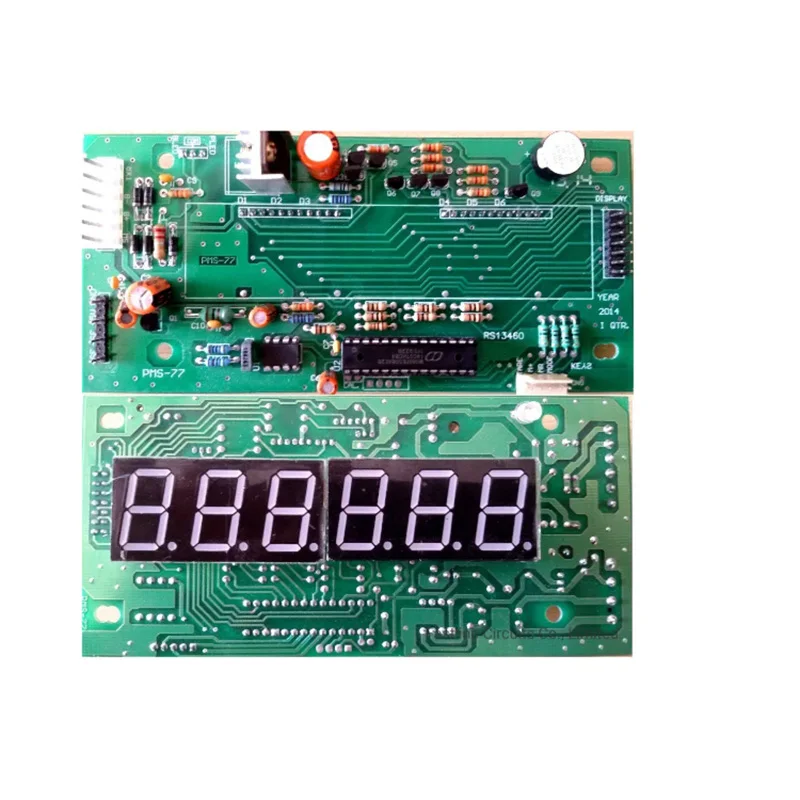

Профессиональные индивидуальные электронные весы для взвешивания печатных плат печатная плата необходимо предоставить файл или копировальную
0,10 $ - 1,00 $

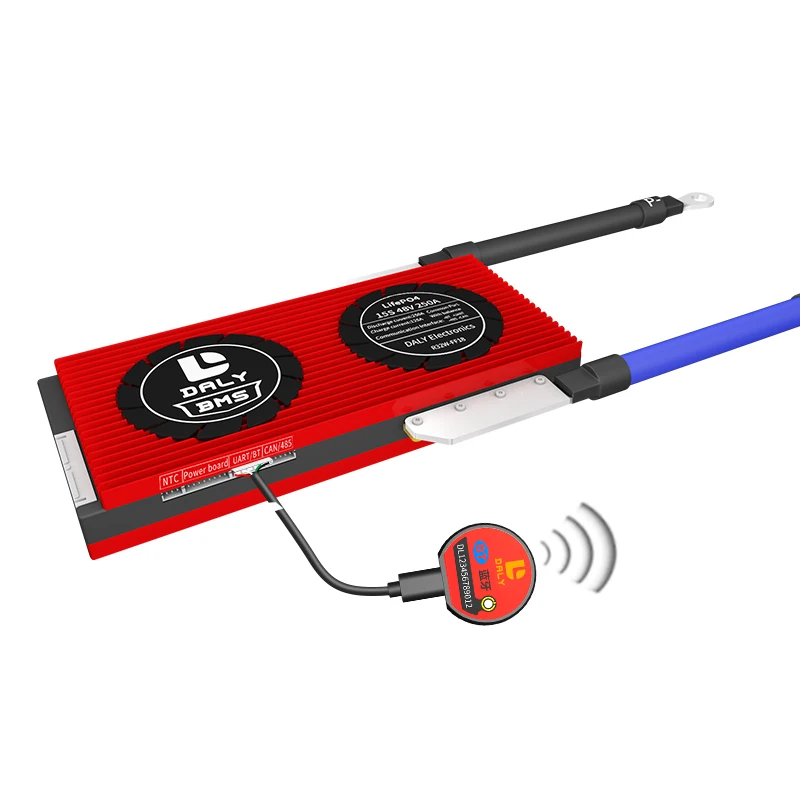

Аккумулятор Daly smart bms lifepo4 16s 200A 250A 48 в с UART BT 485 CAN для хранения на
