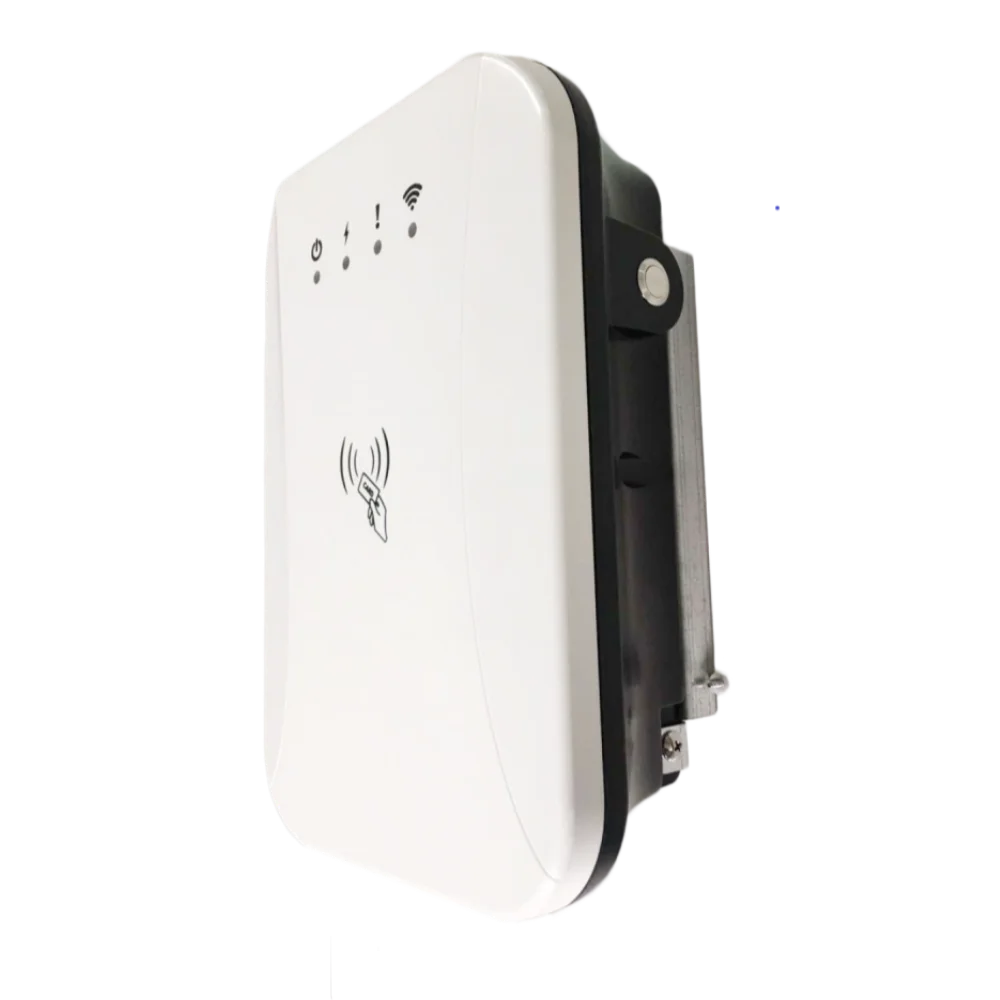

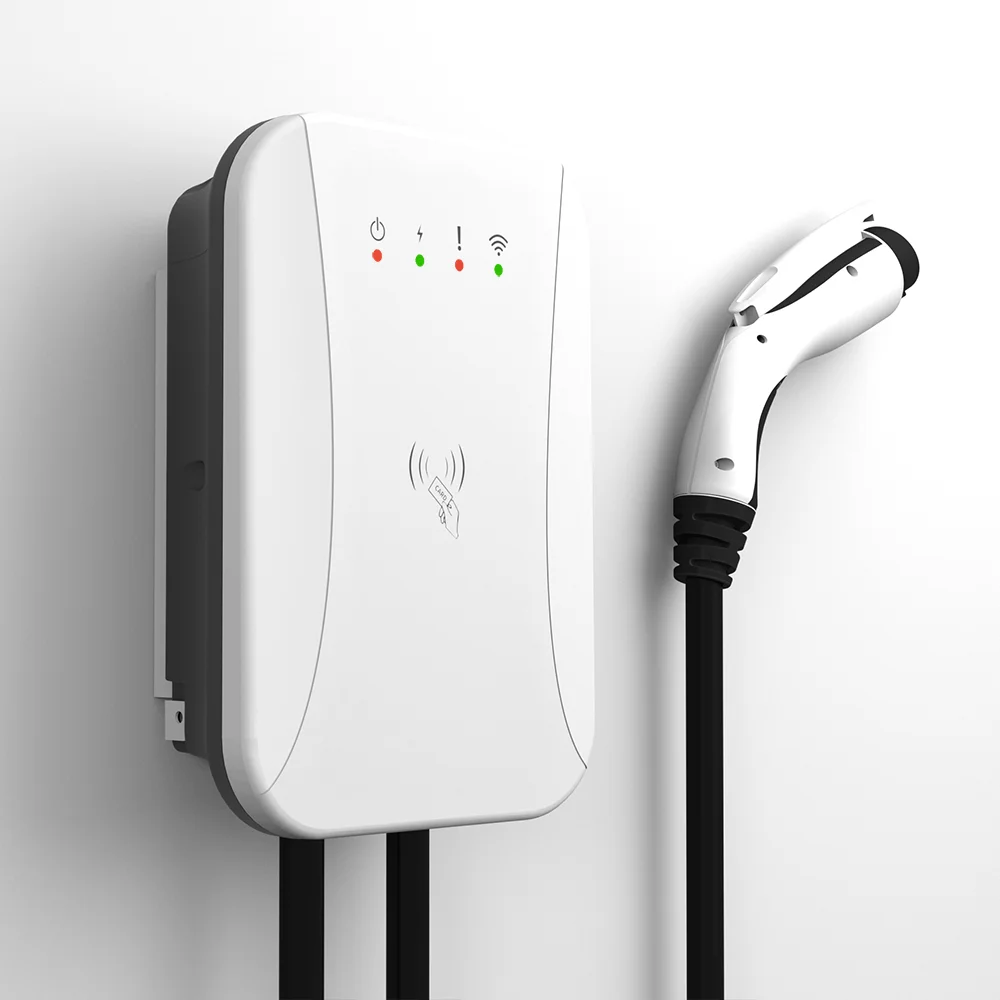

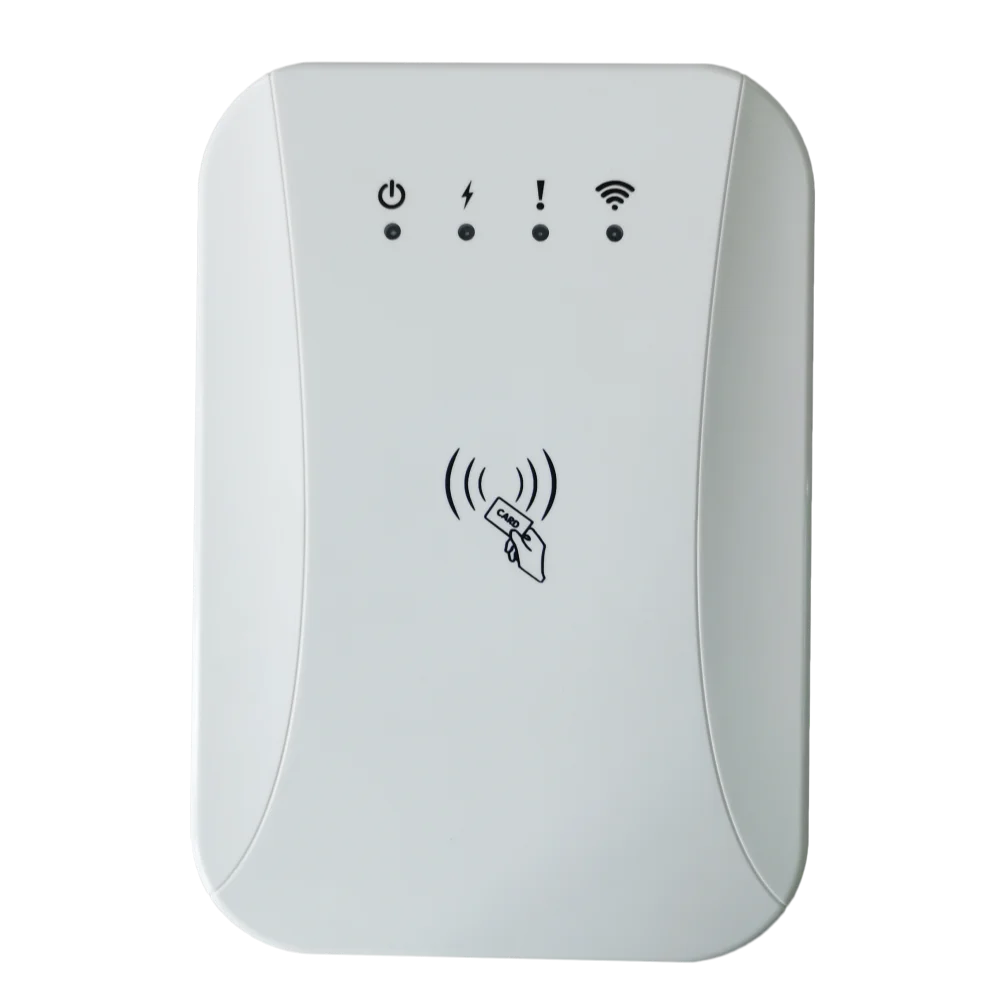

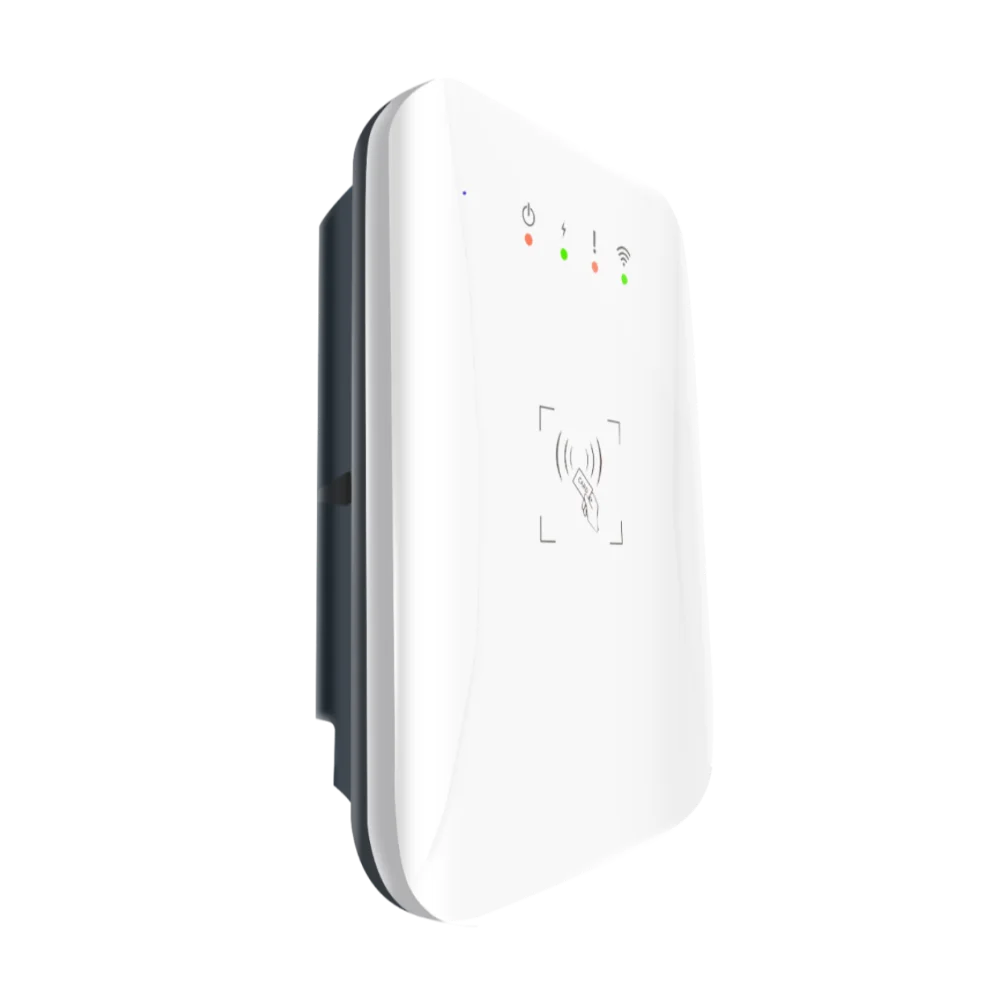

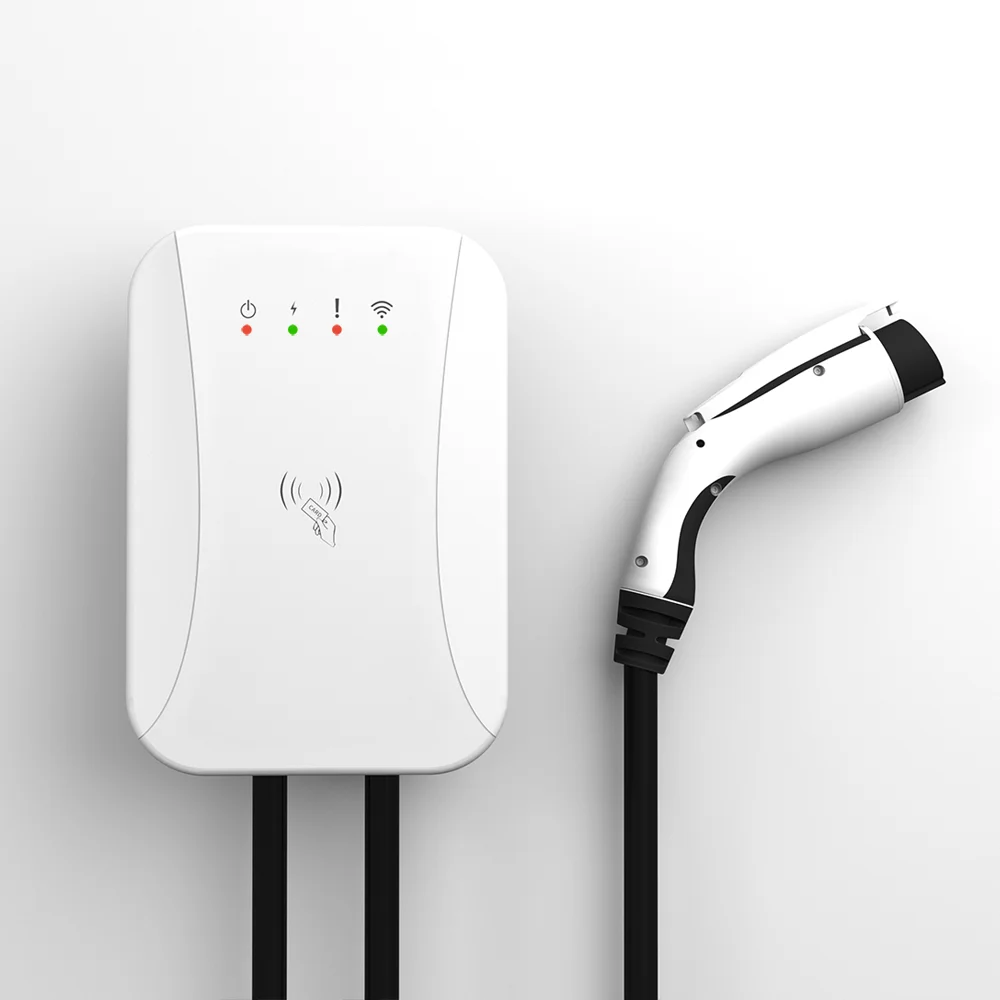

WEEYU EV Wall Charger with 5m Charging Extension Cable 32A Type 2
- Категория: Другие запчасти и аксессуары для электромобилей >>>
- Поставщик: Sichuan Weiyu Electric Co. Ltd.
Сохранить в закладки 1600087742645:
Описание и отзывы
Характеристики
Product Description
1. APP Control
Setting Current: you can set the current when the power grid is overload.
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market
* Controlling Stop & Start: Control the Stop & Start by your phone, you can control it in anywhere.
* Making an Appointment of Charging: If you want the electric vehicle to be charged in night, it is a good choice that you make an appointment of the charging by APP, it is very convenient.
* Record: you can check the charging record by APP in any time.
* The best Choice for home market
2. Load balance management
* Restricting the total charging load protects the local grid
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.
* Sharing the charging load cuts costs for the required electricity connection
* Choose an open type CT (current transformer) as the current sensor, It is no physical wiring between the devices, which has the advantage of open and close installation, convenient and fast wiring, no extra infrastructure or installation costs.
3. Specification
* OEM or ODM Available: Logo, brand, design, size, color, function, etc, customization available;
* IP 65：Indoor and outdoor applications with waterproof IP65 rated
* Versatile Installation wall mount or pedestal applications
* Communication: WIFI, LAN(RJ-45), RS-485, OCPP 1.6J
* UL Listed:
* FCC Listed;
4. Protection:
* RCD Type B inside.
* High quality production and design standards for safe and reliable use with multiple fault protection: Overvoltage Protection, Undervoltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground Protection, Over-temp Protection, Surge Protection and etc.
Power Specification | ||||||
US Standard | EU Standard | |||||

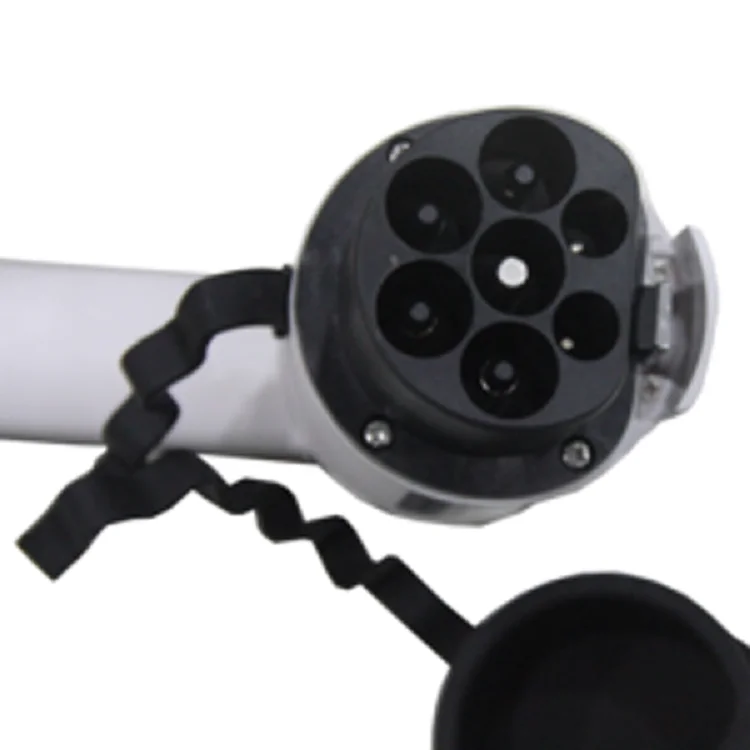

Charging Connector Type | SAE J1772 (Type 1) | IEC 62196-2 (Type 2) | ||||
AC Power Input Rating | AC Level 2, 240V | 230V±15% | ||||
Frequency Rating | 50/60 Hz | |||||
AC Power Output Rating | 3.5kw/16A | |||||
7kw/32A | ||||||
10kw/40A (US Standard optional) | ||||||
User Interface & Control | ||||||
Emergency Stop Button | Yes | Plug-and-Charging | Yes | |||
RFID Card Charging | Yes | App Charging | Yes | |||
Ethernet Interface | Yes | Wifi Function | Yes | |||
OCPP Protocol | OCPP 1.6 | |||||
Protection | ||||||
Over Voltage Protection | Yes | Under Voltage Protection | Yes | |||
Over Load Protection | Yes | Short Circuit Protection | Yes | |||
Earth Leakage Protection | Yes | Ground Protection | Yes | |||
Over-temp Protection | Yes | Surge Protection | Yes | |||
RCD | Type A | |||||
Environmental | ||||||
Storage Temperature | -40 ~ 75℃ | Operating Temperature | -30 ~ 55℃ | |||
Operating Humidity | Up tp 95%, non-condensing | Altitude | ≤2000m | |||
Cooling Method | Natural Cooling | |||||
M3P Wallbox Mechanical | ||||||
IP Code | IP65 | Dimension(H×W×D,mm) | 310×220×95 | |||
Weight | 7kg | Charging Cable Length | 5m or Customize | |||
Enclosure Material | PC | |||||
M3T Mounting Pole(Optional) | ||||||
Dimension(H×W×D,mm) | 1400×200×100 | Weight | ＜8kg | |||
Enclosure Material | Metal | |||||
Customize Service
Recommend Products
Our Advantages
WEEYU, an “EVSE” (electric vehicle supply equipment) brand of Sichuan Weiyu Electric Co., Ltd. Weiyu electric was founded in 2016. With the professional R&D and Sales & Service Team, we can not only provide the products mainly including all kinds of EV charging stations, but also a complete solution. In addition, OEM&ODM or engineering application assistance are available.
WEEYU is the wholly-owned subsidiary of a listed company (Stock Code: 300820)-Sichuan Injet Electric Co., Ltd. With Over 500 workers, 22000 ㎡ non-dust workshop, 169 patent certifications, 24 years’ experience in electric power industry, Injet has received high praise from international renowned enterprises for the superior products and service like ABB, Siemens, Schneider, GE, GT, SGG and etc.
We have our QC system, all the EV chargers would be tested before shippment, and the testing report will be sent together with electric car charging station.
We have experience in exporting to USA, Russia, Germany, Japan, Serbia, Dutch and etc. We will attend more than 10 exhibitions per year in Shenzhen Guangzhou and Shanghai.
We Weeyu and Injet have more than 180+ patents till now. For EV charging station, we can design and manufacture according to customer requirements.
We are the leading ev charger manufacturer of southwest China, having full production and operation experience in domestic DC and AC ev charging stations for public and commercial use.
FAQ
WHY US?
1. First, WEEYU’s chargers Compatibility with most global Electric Vehicles charging interface. WEEYU has the CE, ROHS, REACH certificate for European Market. and WEEYU are the first company that got the UL Listed of EV charger in China!2. WEEYU has a series of EV chargers to meet different customer’s needs. such as for home use or for commercial.
3. WEEYU is the directly manufacturer, our main products are AC Wallbox, AC Integrated EV Charger, DC fast charging stations, EV connectors. There is no the middleman, you can get the best price and services. WEEYU has strong R&D Capability, OEM and ODM are available.
4. How to promise the quality? First, WEEYU produce the chargers in strict accordance with quality management system standard
(ISO9000). Second, in the production, we will age and test the EV CHARGER 3times; Third, through the Digital Factory,
production can be traced and visualized, so as to ensure the stability of products.
5. Our mission is: Create higher value for customers with innovative products and services. Come and be our customers!
