New Topwisdom TL-A4 Laser Controller With 4 axes TL-403CB Replace By TL-A4 For CO2 Laser Engraving And Cutting Machine

 Product Details

The system is the laser engraving and cutting control system with 4 axes and 2 lasers.

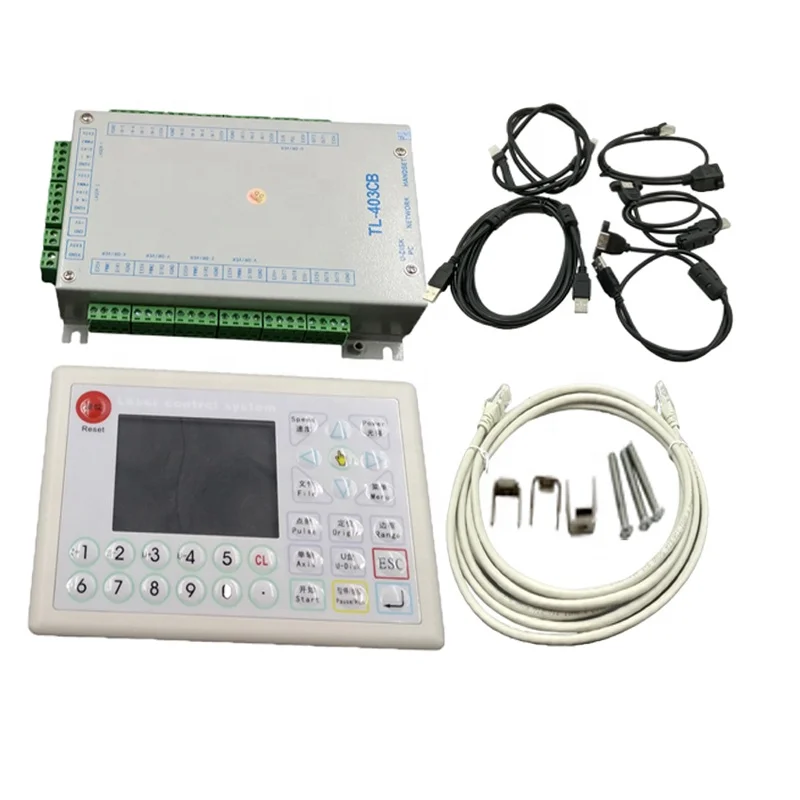

TL-403CB Replace By TL-A4

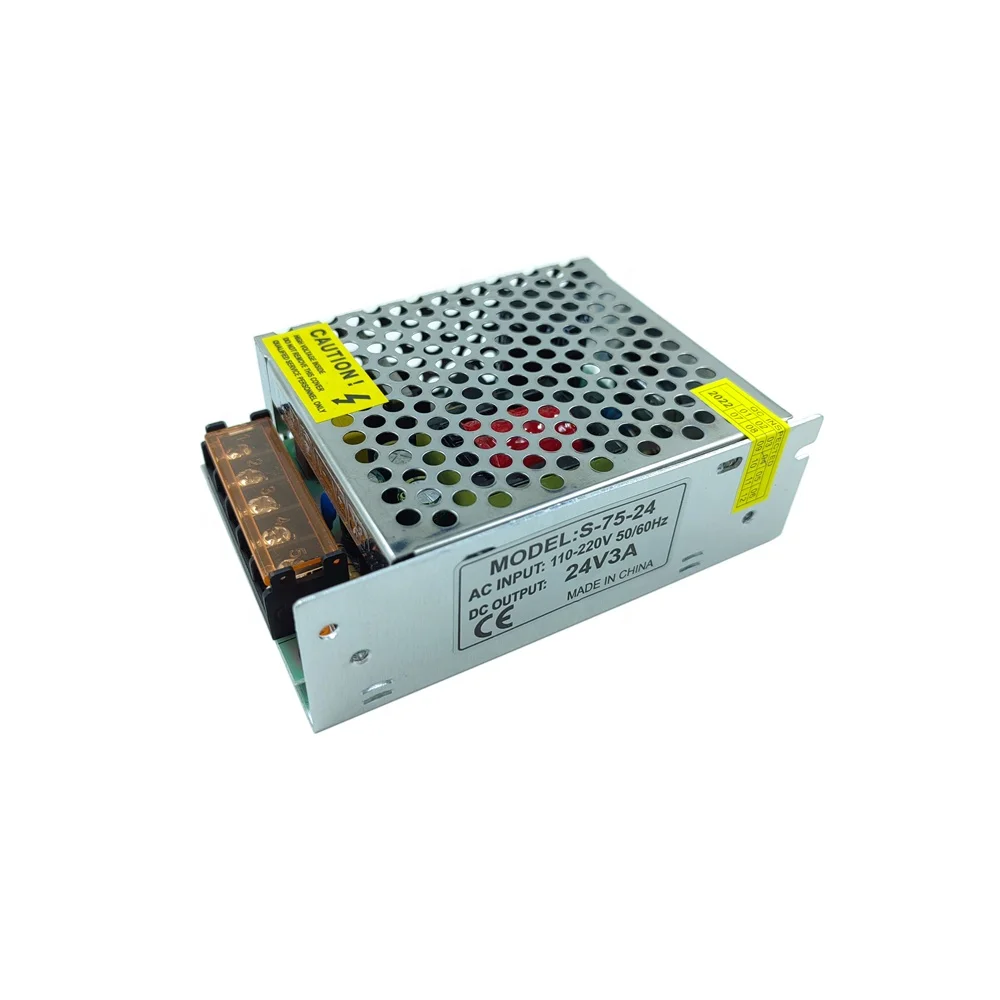

USE:DC24V/3A Power supply

With wifi transmission

The TL-A4 is the latest generation of laser engraving and cutting motion control system. Based on 4.3-inch colorful screen design, it has faster and more stable network and USB transmission capability. Support 4-axis motion control and 2-way laser control. Equipped with laser engraving and cutting software AutoLaser, support CorelDraw, AutoCAD, Illustrator export menu. Support custom development.

The main features of the Control System:

1. Power supply of DC24V/2A;

2. Use high-performance 32-Bit floating point ARM, 128M Flash, 512K RAM, 6 general outputs, 12 general inputs, TTL electrical level;

3. Equipped with 4.3", 480×272 LCD;

4. Support 4 axes motor control (X, Y axis used for horizontal motion, Z axis used for rotary cutter lift or synchronous double-head movement (double-head bidirectional movement model) , U axis for feeding or platform lift; motor shaft pulse frequency can be as high as 166KHz;

5. Adopt 7-segment S-shape acceleration and deceleration and adaptive speed planning algorithm, and support speed parameter setting and small circle speed limit with one button; different cutting parameters available for different graphics; support backlash compensation;

6. Support 2 lasers’ control, TTL electrical level, adjustable output voltage of laser control: 0~5V, adjustable PWM output: 1K~100K, adjustable duty cycle: 0~100%;

7. Support USB2.0 interface, support USB communication to computer, support reading and writing of U disk;

8. Support 100Mbps network transmission rate;

9. Support real-time clock, machine lock;

10. Support double-head bidirectional movement models, including mode of double head on single belt, mode of double head on double belt;

11. Support rotary cutting, marked-positioning cutting, rotating cutting height compensation, pressure feeding roller control;

12. Support track preview, continuous engraving after power off, real-time correction of power light intensity and speed during work, rotary engraving, switching of 2 platforms, split feeding, pressure feeding, automatic blowing, auto focus, foot switch, safety protection, upgrade, processing statistical information and other functions;

13. Support the languages of Chinese (simplified), English, Traditional Chinese, Korean, Russian, Italian, Spanish, Portuguese, Vietnamese and etc.

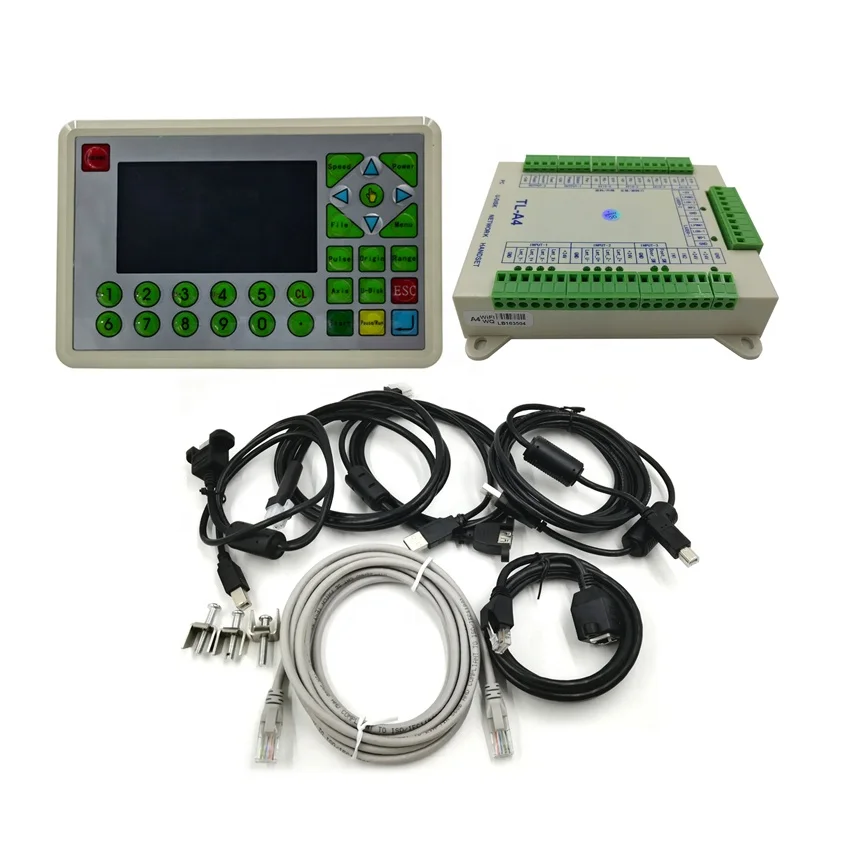

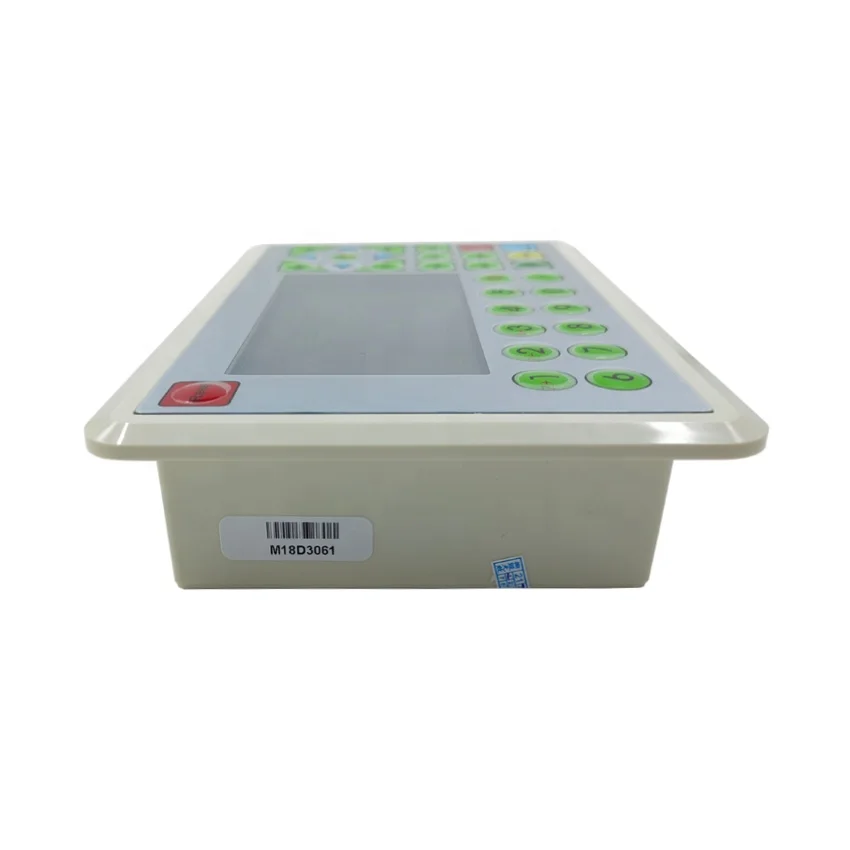

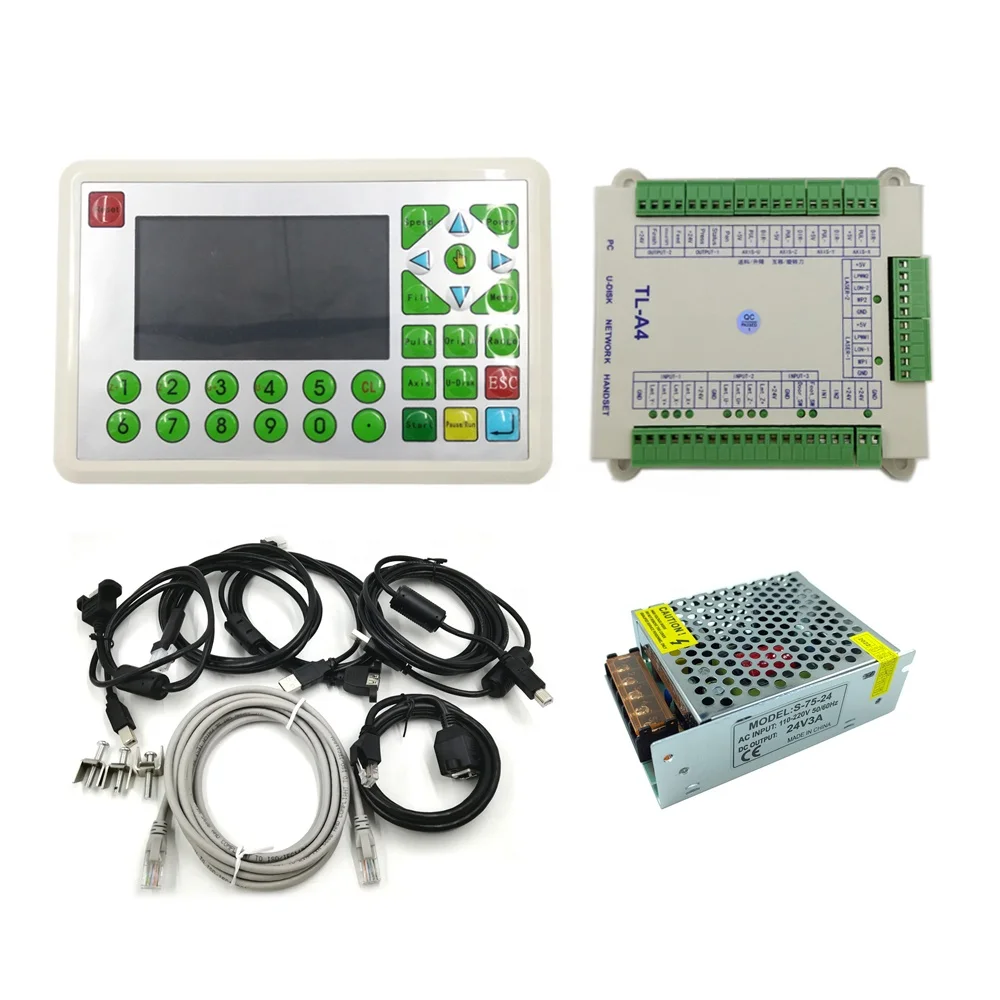

 Product Image

Size:

Controller: 123.1mm*123.1mm

Panel: 182.0mm*120.0mm (front), 145.5mm*100.8mm (rear)
