Полный диагностический сканер KONNWEI KW350 для автомобилей серии VAG считыватель кодов неисправностей OBD2 EOBD

Name:  KONNWEI KW350 Full system car diagnostic scanner

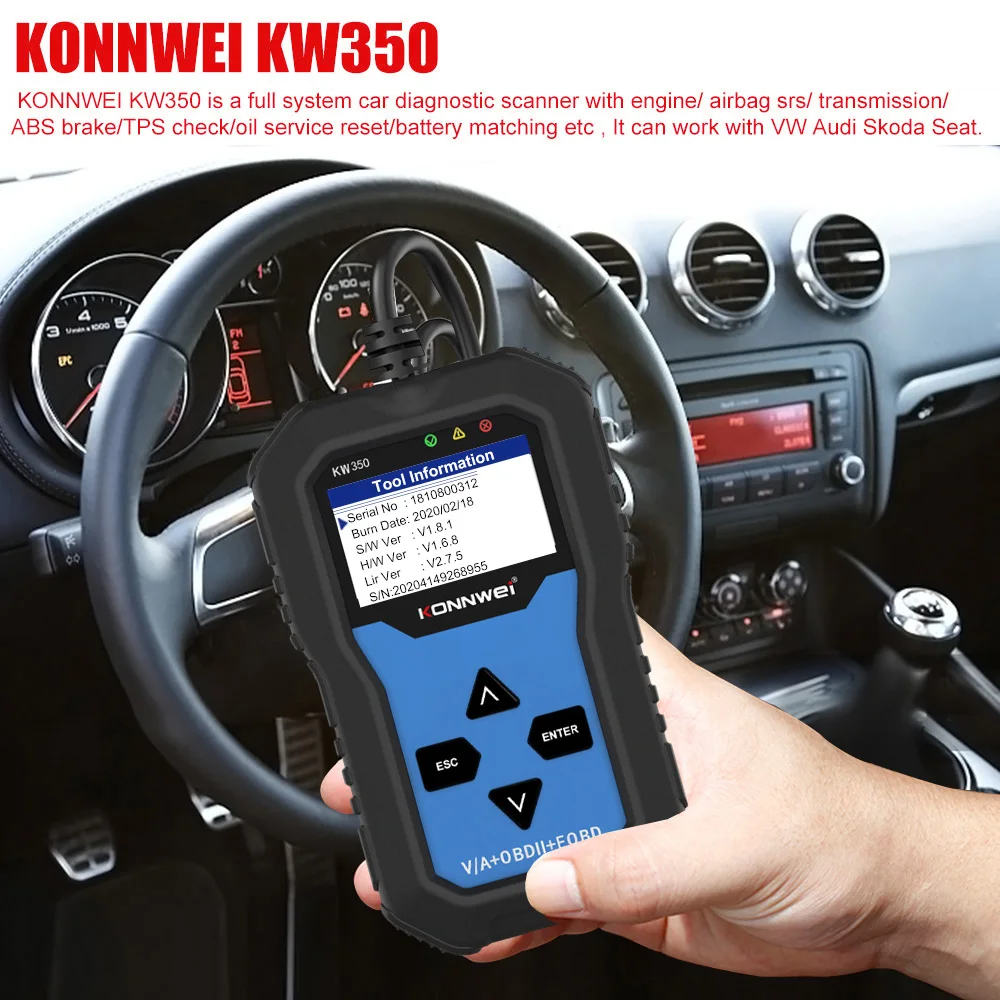

KONNWEI KW350 is a super scanner for detecting the Volkswagen Series and OBD II vehicles. KW350 is a good assistant for car owners, you could test all cars under VAG.

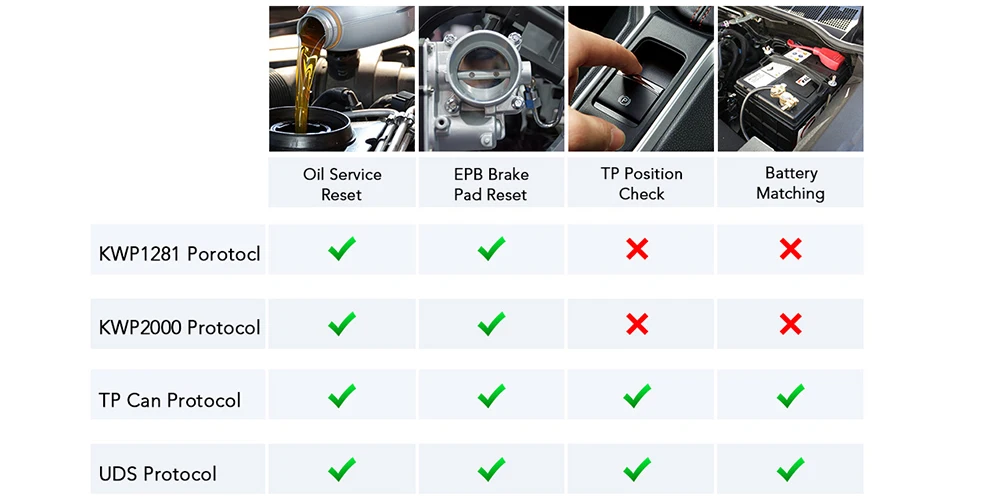

It supports not only the KWP, TP-CAN and New UDS protocols, but also all OBD II protocols. It is small, light, handy and versatile, it gets data quickly, we believe that you would love it.

It is a useful and necessary household tool for DIYers.

Plug and play, so easy to operate for even beginner.

Functions and Features:

Auto Transmission System
Airbag SRS System
ABS Brakes System
Center Lock System
EPB Reset
Oil Service Reset
Battery matching
TPS Check
Auto Air Condition HVAC
Steering Wheel
Instruments
Aux .Heat
CAN Gateway
Immobilizer
Centr .Locks
Central Cony
Throttle Adaptation
Read & Clear Error Code
Above is Supported For VW for Audi / For Skoda / For Seat etc V/W Series cars .

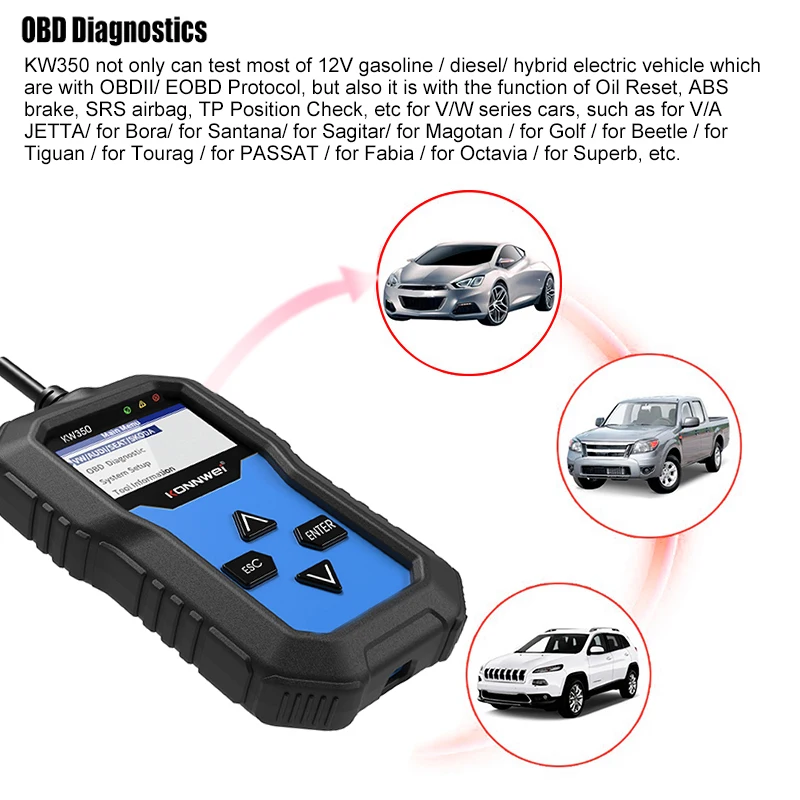

KW350 also can tested most 12V OBD2 Protocol cars after 1996 .

Fuctions for VAG:

01.  MENUCOMM: Engine, Auto_Trans, ABS_Brakes, Auto_HVAC, Cent_Elect, Airbags, Steering_Wheel, Instruments and so on.
02.  MENUDRIV: Engnie, Diesel Pump, AutoTrans, AWD etc.
03.  MENUCHAS: ABS Brakes, Susp_Elect, Chassis Control, Airbags, Steering Assist, Tire Pressure and so on.
04.  MENUCOMF: AutoHVAC, Position Sensing, Steering wheel, Aux_Heat, LaneChange, Central Cony etc.
05.  MENUELEC1: Immobilizer, Instruments, Cent_Elect, Navigation, CAN Gateway, Tow protection etc.
06.  MENUELEC2: Data Transfer, Media Player, CtrlHeadDash, Inform_Electr etc.

Top 6 Reasons to get KW350:
1.  Delicate and Portable
2.  Automatic Scanner System, easy to operate
3.  Multilingual Menu: English, German
4.  Economical and practical
5.  Oil Reset ABS brake system Airbag SRS system for vag
6.  Fast diagnosis and get data quickly

Application :
1) Full sytem is suitable for vehicles:

For VW

For AUDI

For SKODA

For SEAT
It matches all the functions of 1551/1552 for VAG

2) Engine system for vehicles:

It Works on all 1996 and newer cars & light trucks that are OBDII compliant (including the VPW, PWM, ISO, KWP 2000 and CAN protocols).

KW350 Specification :
1) Display: Backlit, 128 × 64 pixel display with contrast adjustment
2) Operating Temperature: 0 to 60°C (32 to 140 F°)
3) Storage Temperature: -20 to 70°C (-4 to 158 F°)
4) External Power: 8.0 to 18.0 V power provided via vehicle battery

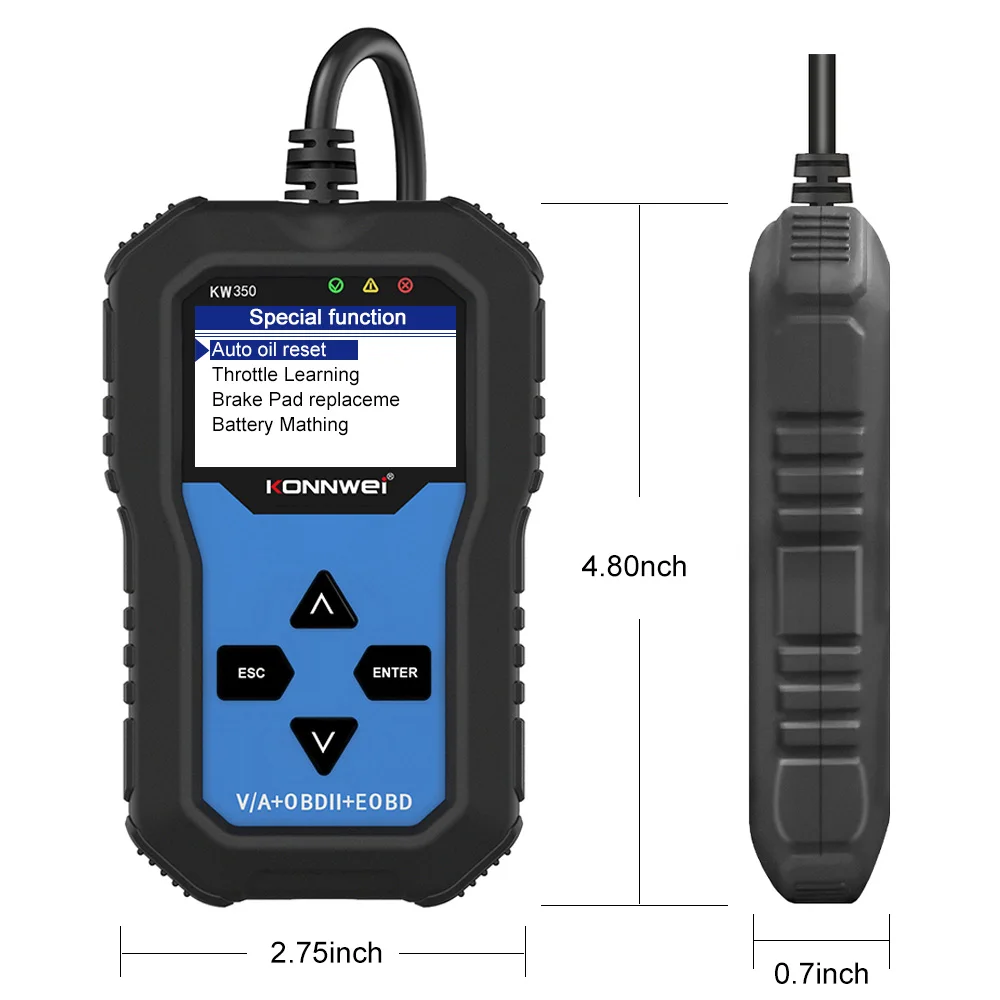

5) Dimensions: 12.7*7.8*2.0cm

Application :

1. Konnwei items Used For All 12V Gasoline And Diesel Car After 1996 With OBD2 EOBD Protocol

2. Konnwei items support the following 9 Protocol :

(1) SAE J1850 PWM(41.6Kbaud);

(2) SAE J1850 VPW(10.4Kbaud);

(3) ISO9141-2(5 baud init,10.4Kbaud);

(4) ISO14230-4 KWP(5 baud init,10.4 Kbaud);

(5) ISO14230-4 KWP(fast init,10.4 Kbaud);

(6) ISO15765-4 CAN(11bit ID,500 Kbaud);

(7) ISO15765-4 CAN(29bit ID,500 Kbaud);

(8) ISO15765-4 CAN(11bit ID,250 Kbaud);

(9) ISO15765-4 CAN(29bit ID,250 Kbaud).

Kindly Noted :

1)  Not Support Russian Cars before 2012, VAZ,UAZ,LADA ;

 2) As for for Renault, SsangYong, please contact us before purchasing.Not works with 24v trucks and JOBD2 cars .

3)  If Japanese car are OBD2 and EOBD protocol so that it can work with our konnwei item . But if Japanese car are JOBD2 protocol,it can't be used for konnwei items.

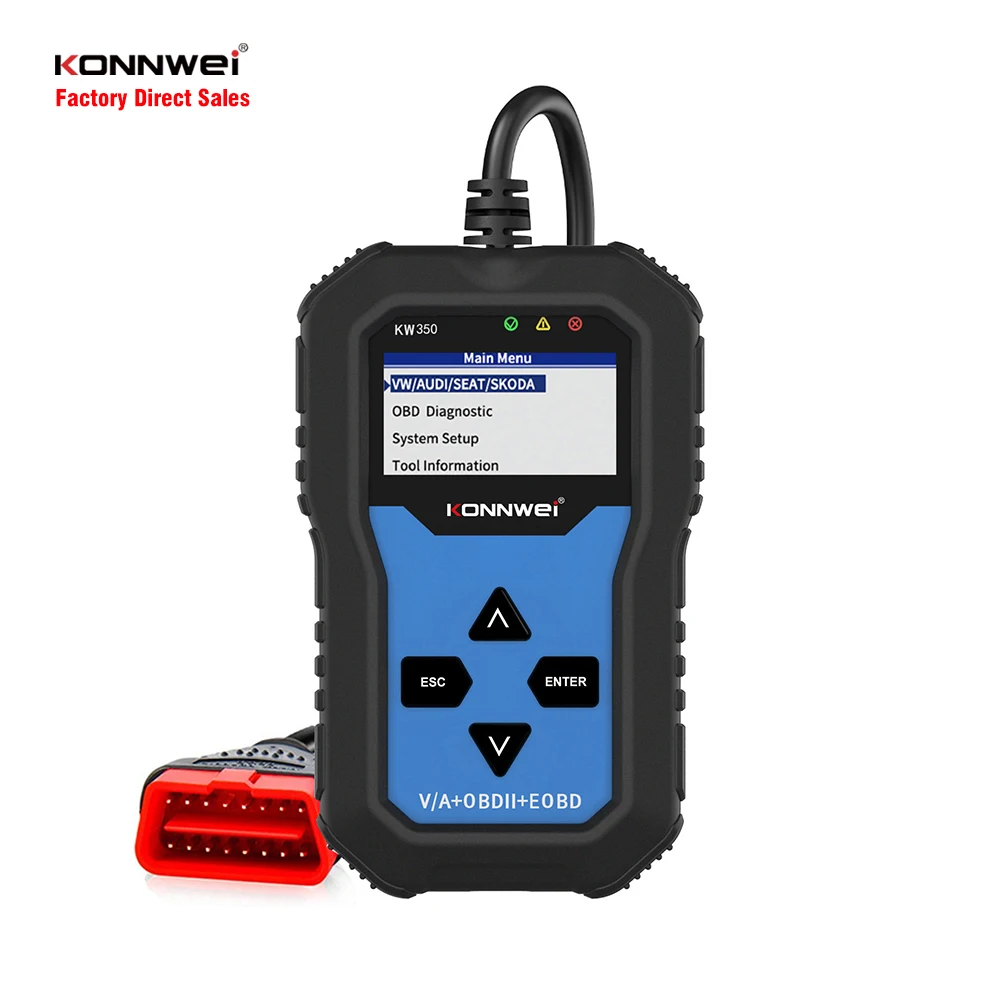

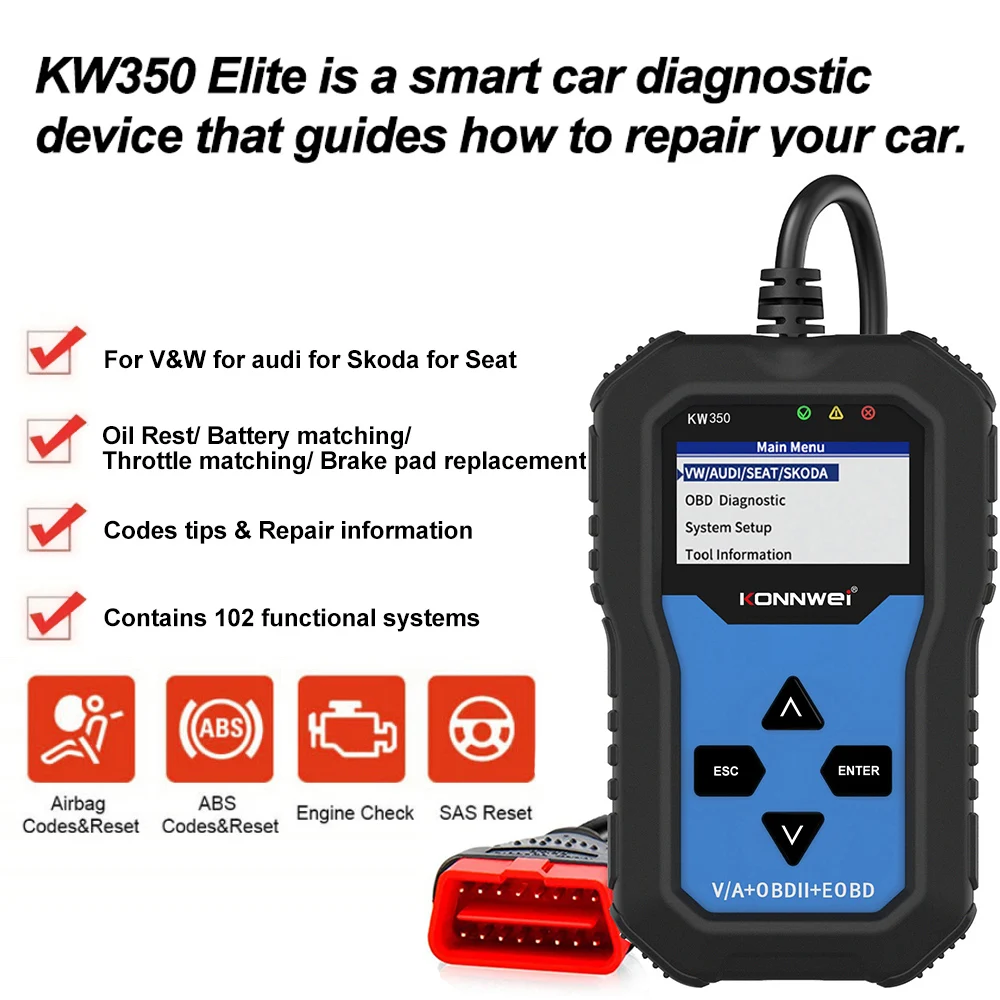

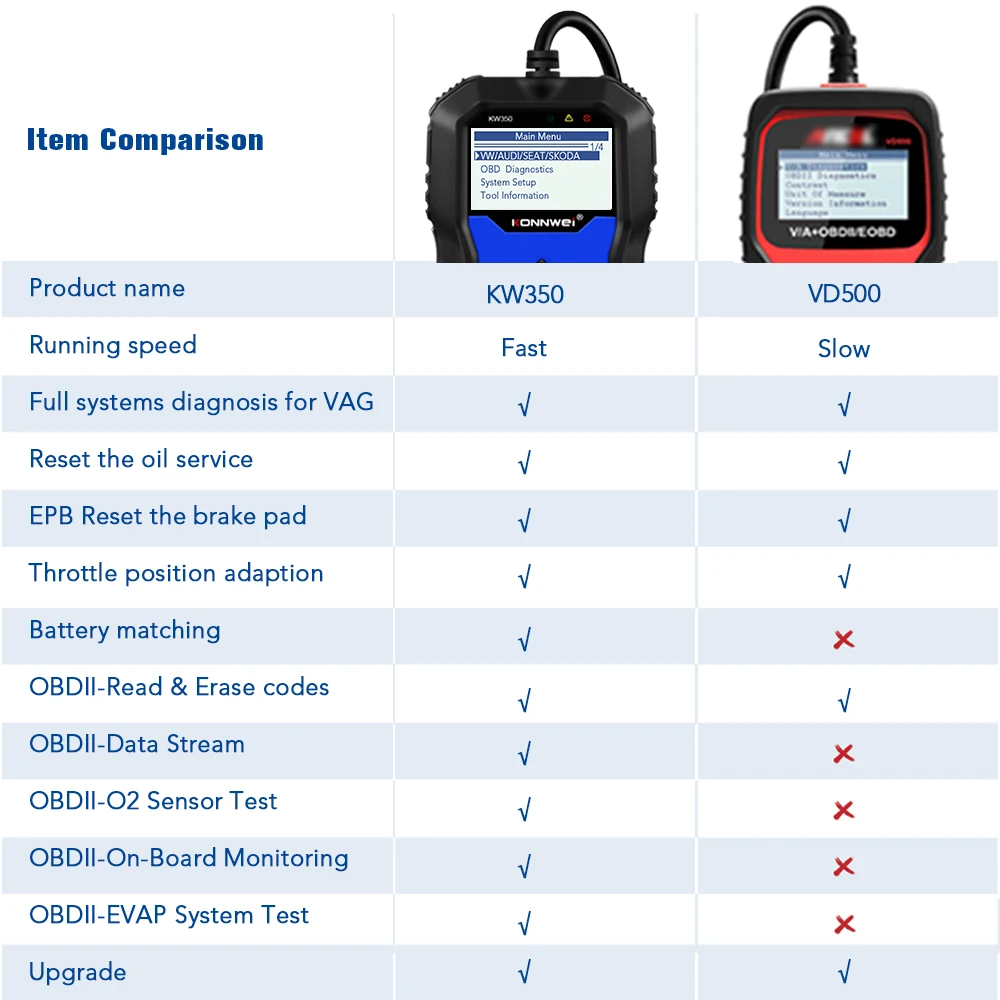

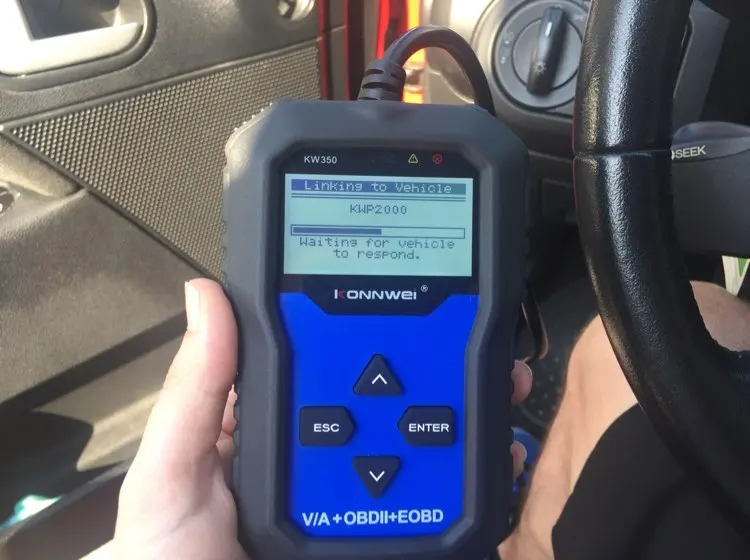

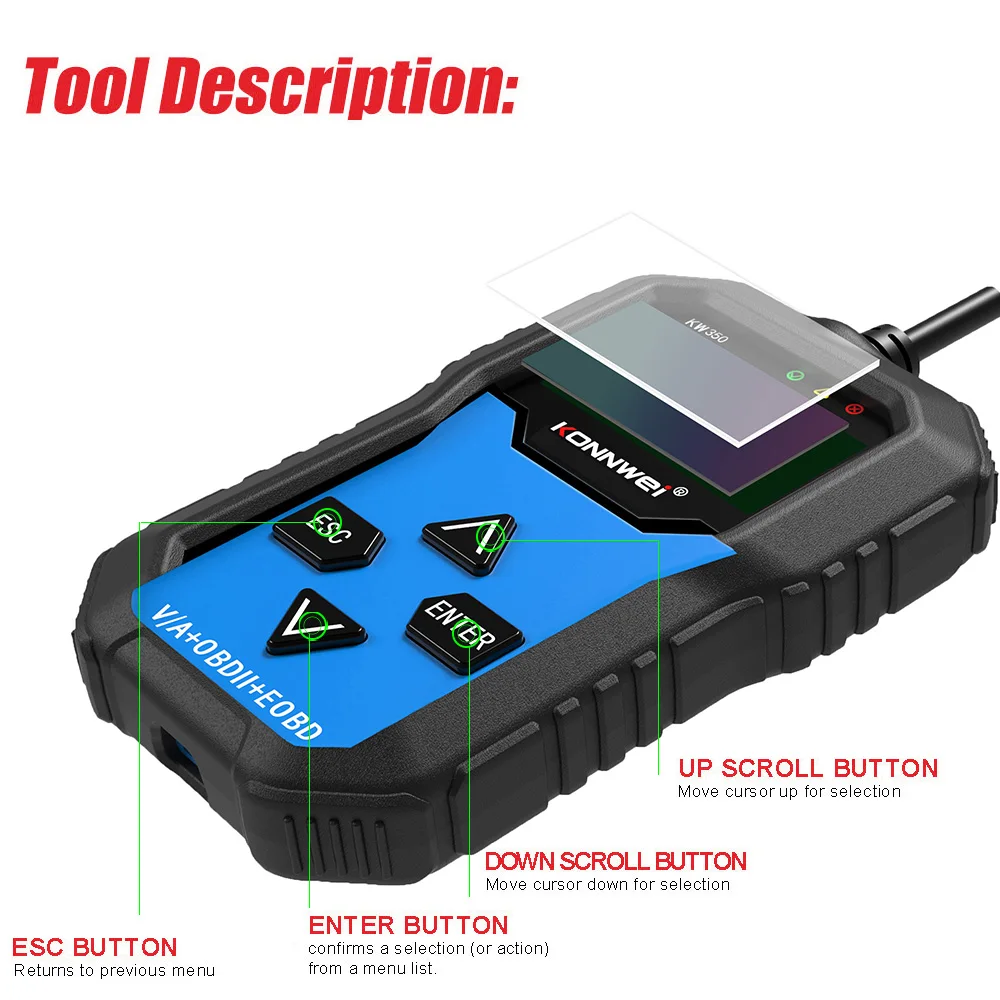

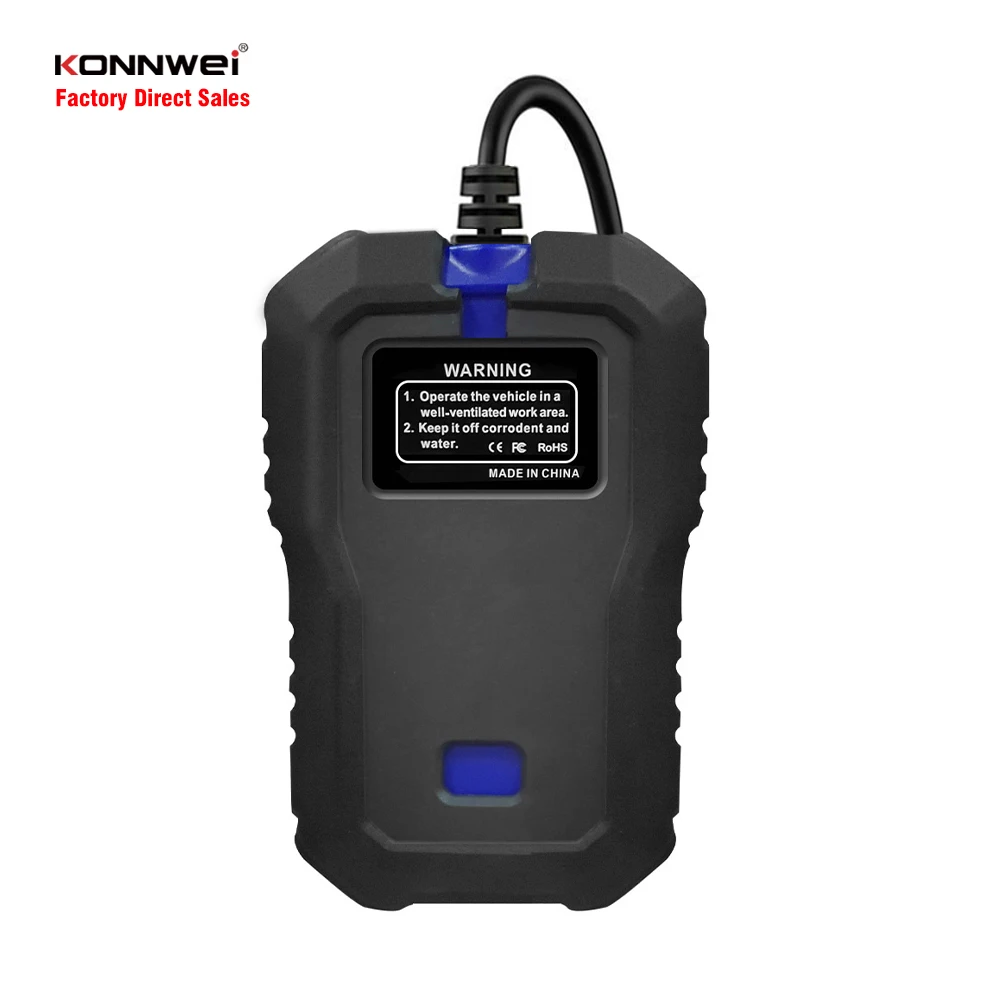

Here are pictures for you to know more about KW350:

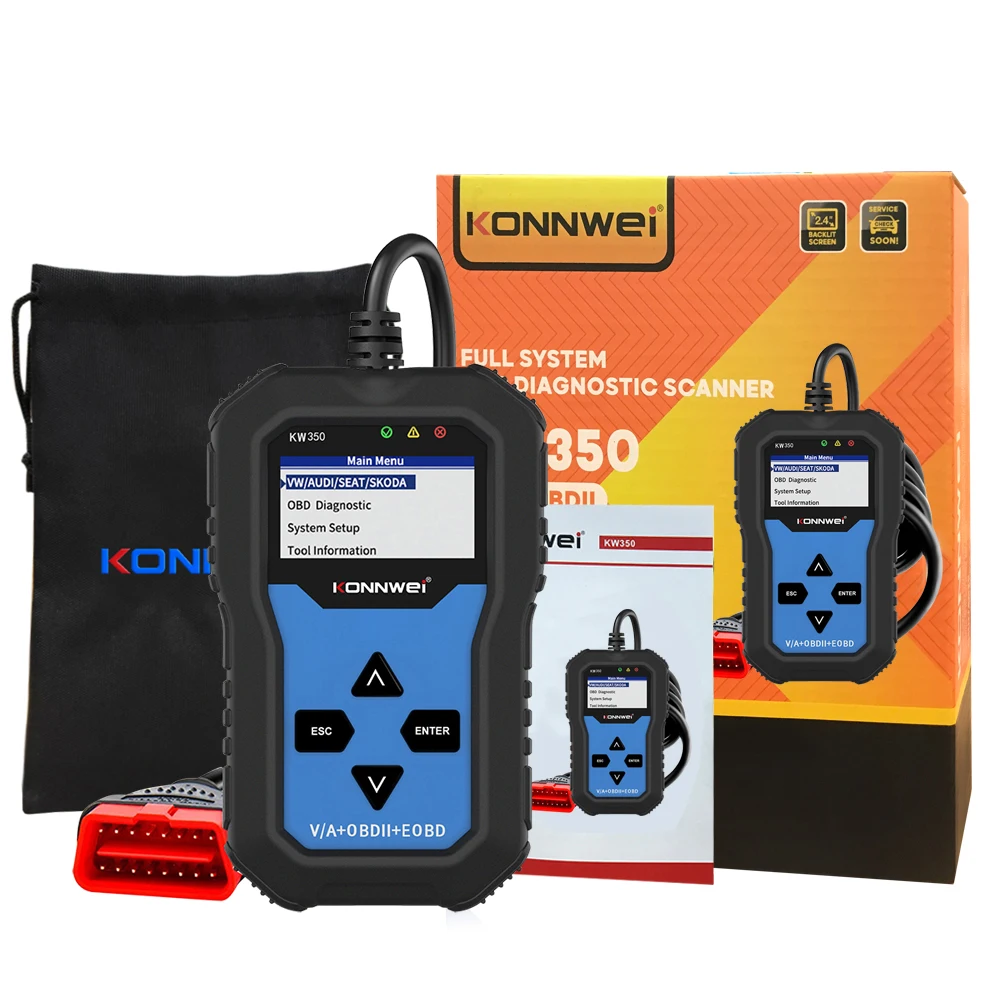

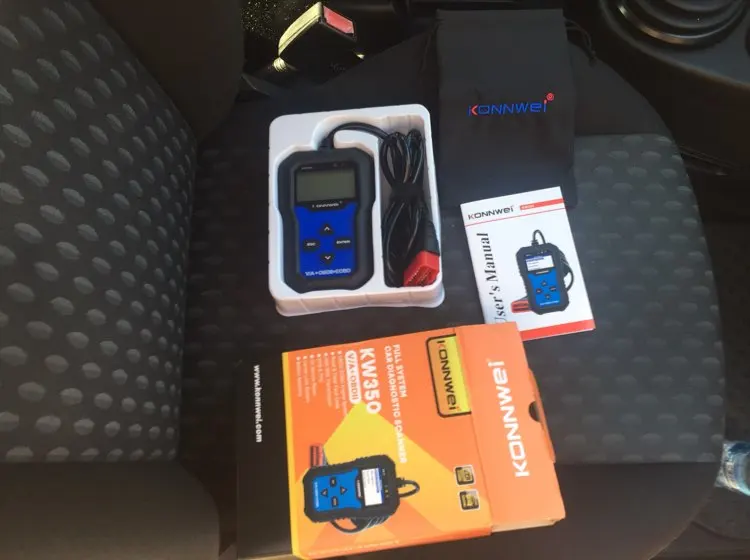

Package includes:

1* KONNWEI KW350 Scan Tool

1* User Manual in English

1* USB Cable

1* Durable Nylon Storage Case

Item size( cm): 12.7*7.8*2.0
Package size (cm): 18.3*5.3*15.2
Item Net weight(kgs): 0.34kg
Package Gross weight(Kg): 0.38kg
Qty/ctn: 50pcs/ctn
Carton size: 52*51*33.5CM,
Carton weight: 21.15KGS/carton

 ALL Support OEM and ODM, welcome distributors

KONNWEI factory specialize in vehicle OBD2 scanner and battery tester with 15 years’ experience, Our quality meet CE FCC ROHS MSDS REACH standard. All KONNWEI items on market originate from us.

• Shenzhen Jiawei Hengxin Technology Co., Ltd (Registered brand KONNWEI®)


• 16 years of R&D and manufacturing experience in vehicle diagnostic tools/scanner in Shenzhen,China


• All KONNWEI items on market are originated from us


• CE FCC RoHS REACH MSDS EMC certifications


• Trade Mark and Design Patent in US and EU

     Product Ranges:

• OBD2 Diagnostic Scanner ;

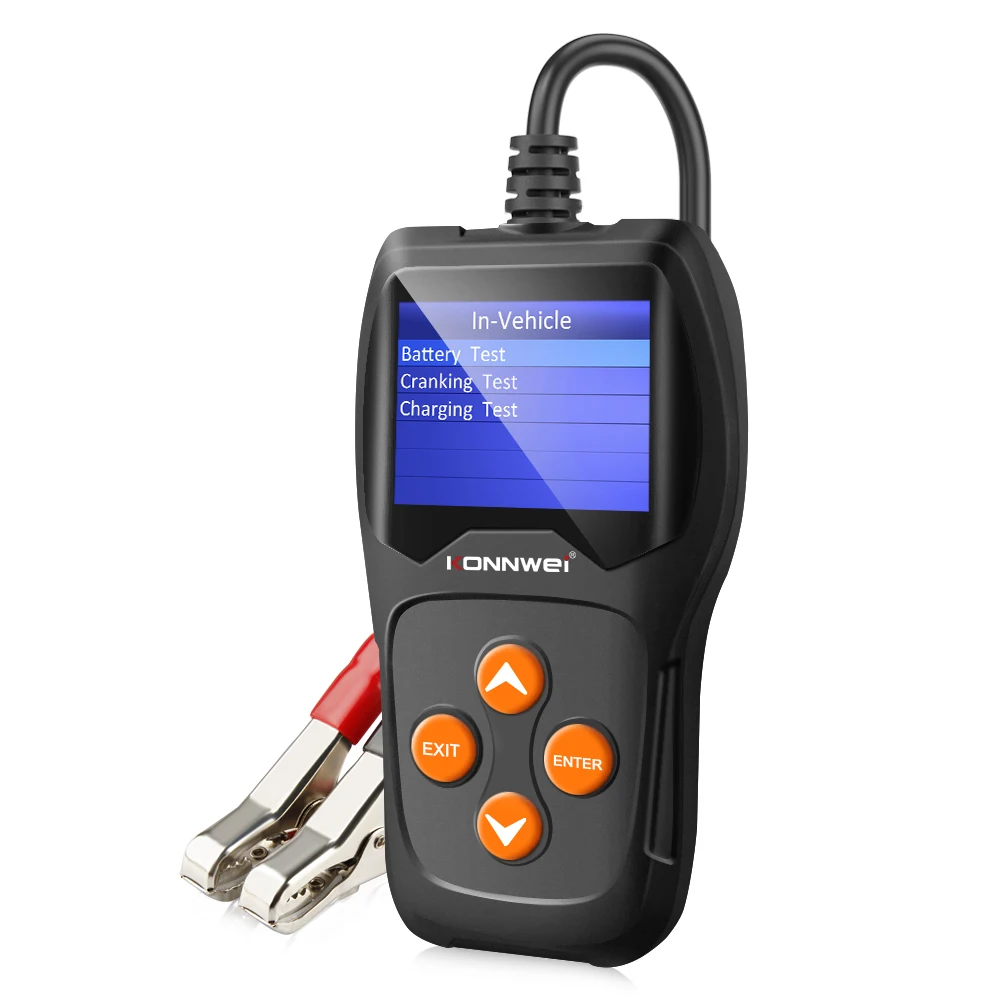

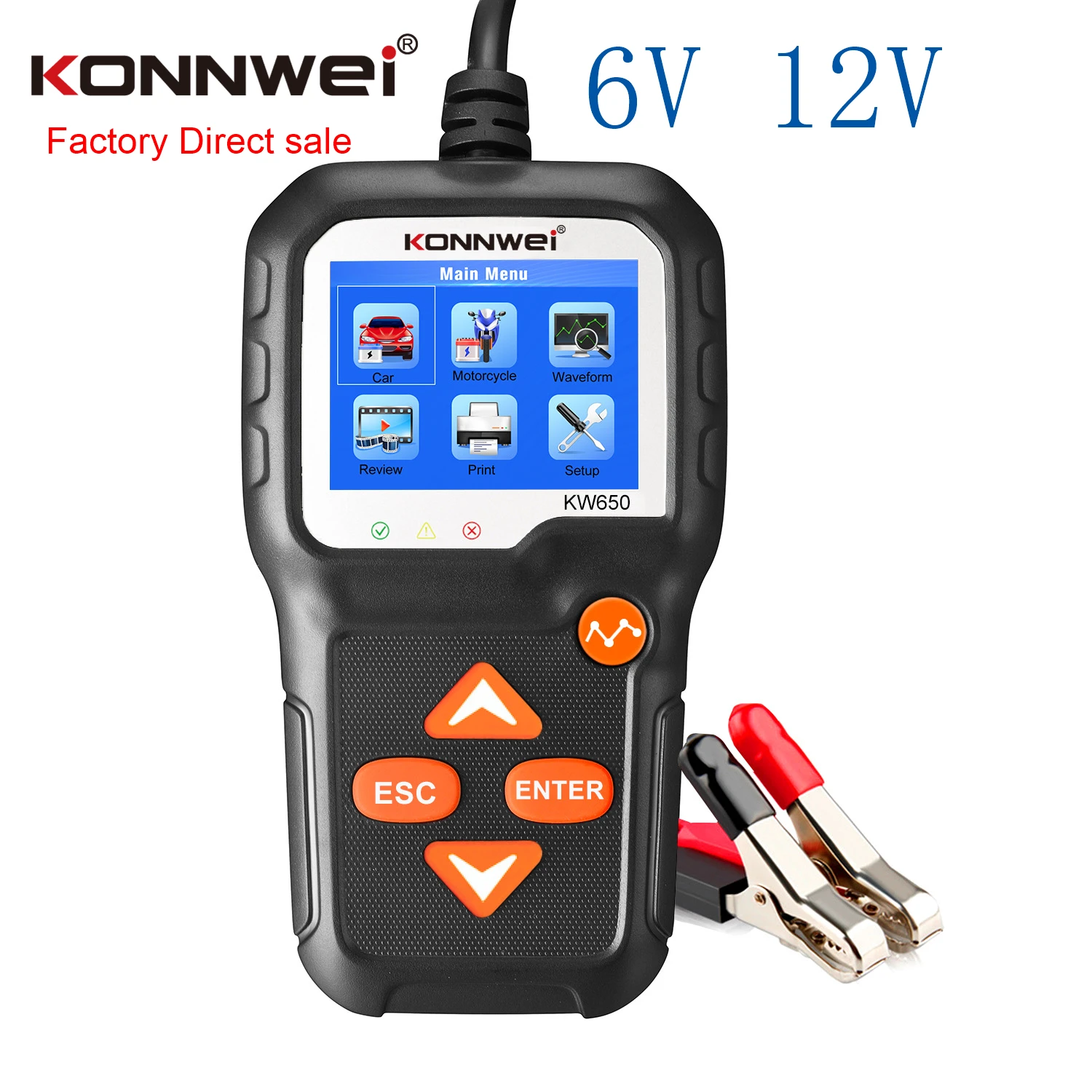

• 12V Car Battery Tester;


• Full System Scanner;

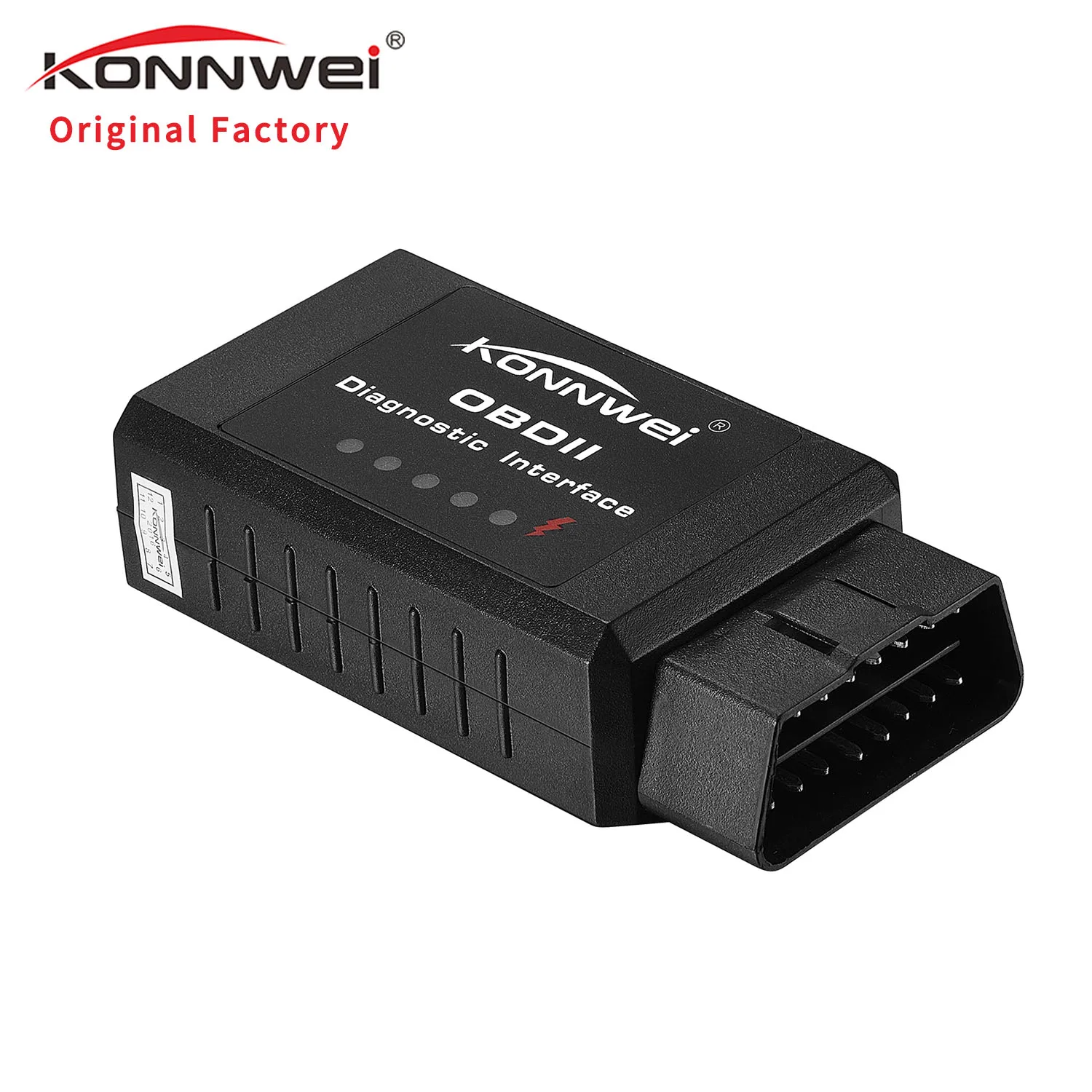

• OBD2 Engine diagnostic scanner ;

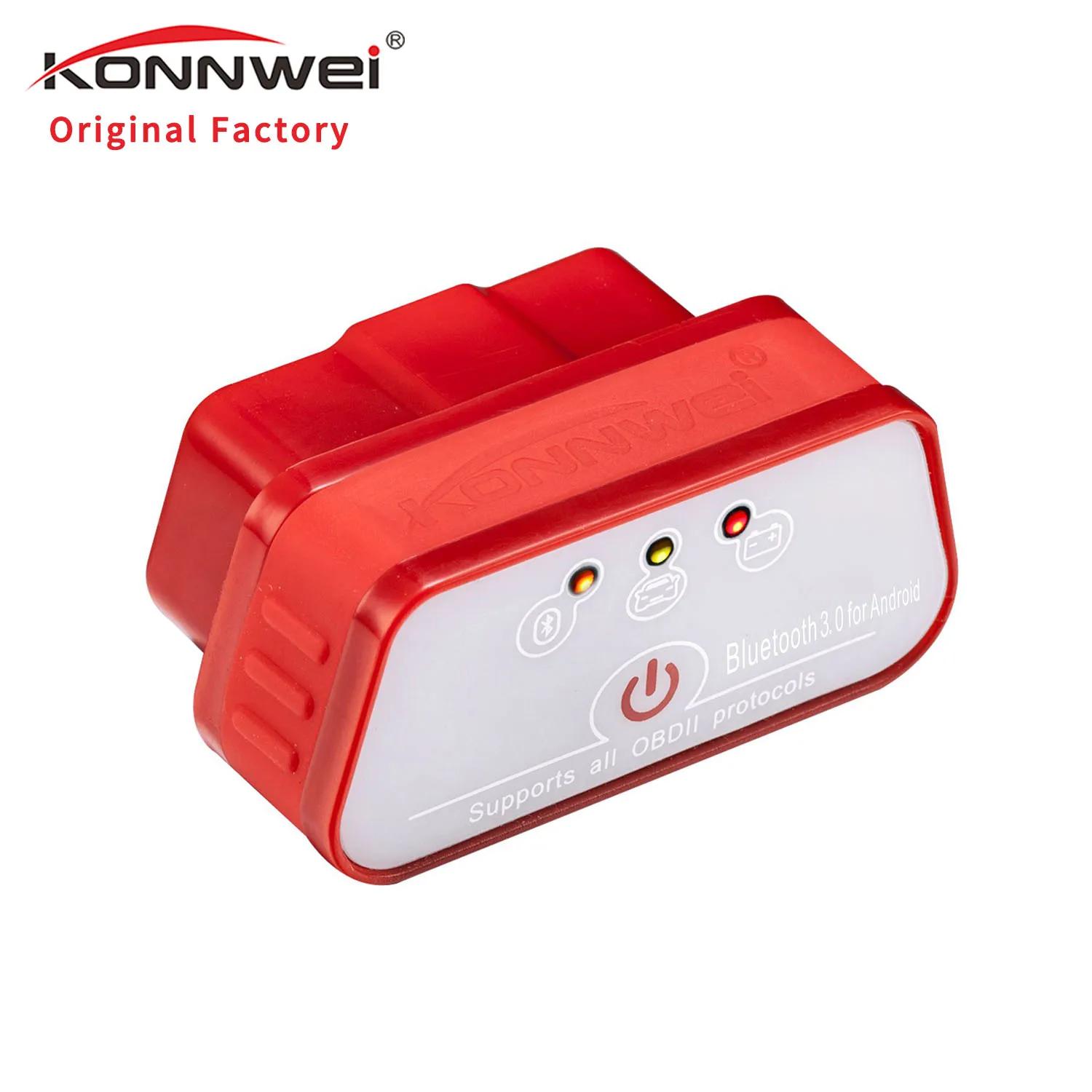

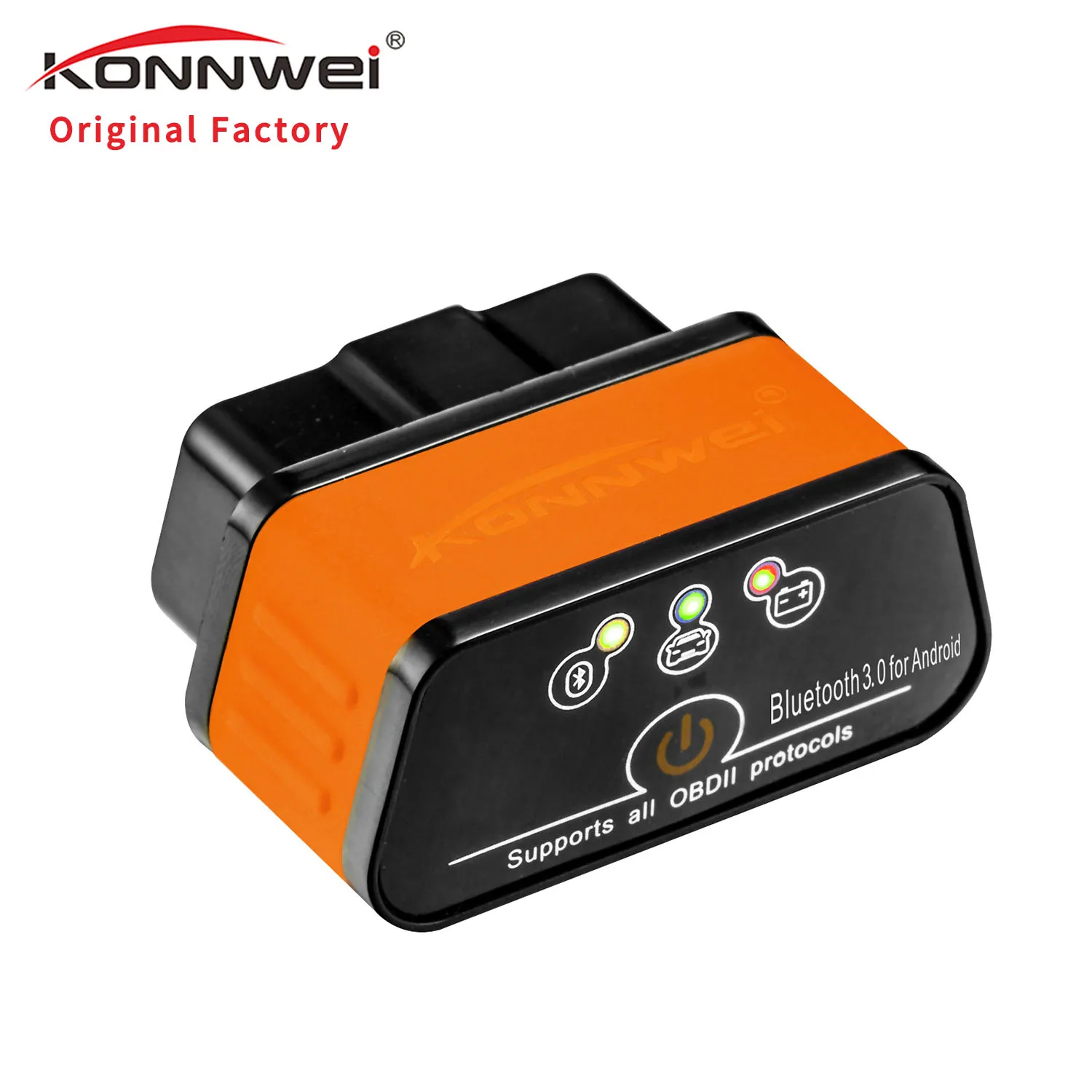

• OBD2 Mini BT wireless Code Reader;
