Product Description
Professional Manufacturer Hunan Hyster White iron chocky wear bars laminated wear blocks 700BHN
Chocky wear bar could be bent, cut and formed to suitable shape;
Typical application: for Bucket wear and impact protect;
Material Hardness: minimum 700BHN/63HRC;

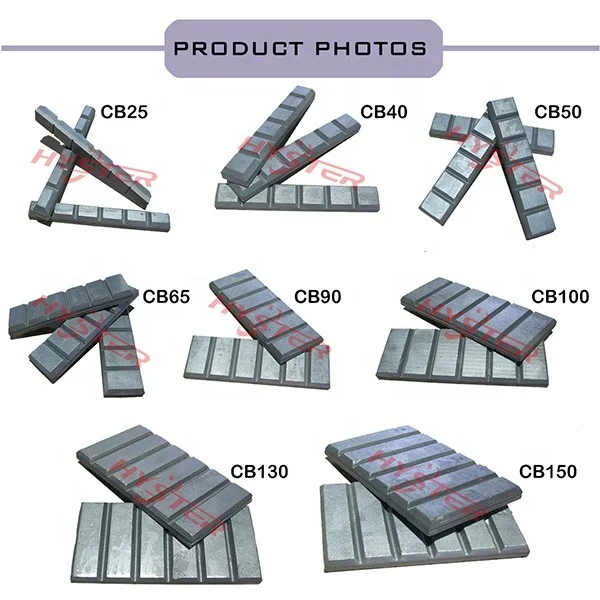

Popular models: CB25,CB40,CB50,CB65,CB80,CB90,CB100,CB130,CB150;
Chocky wear bar could be bent, cut and formed to suitable shape;
Typical application: for Bucket wear and impact protect;
Material Hardness: minimum 700BHN/63HRC;
Popular models: CB25,CB40,CB50,CB65,CB80,CB90,CB100,CB130,CB150;
Specification

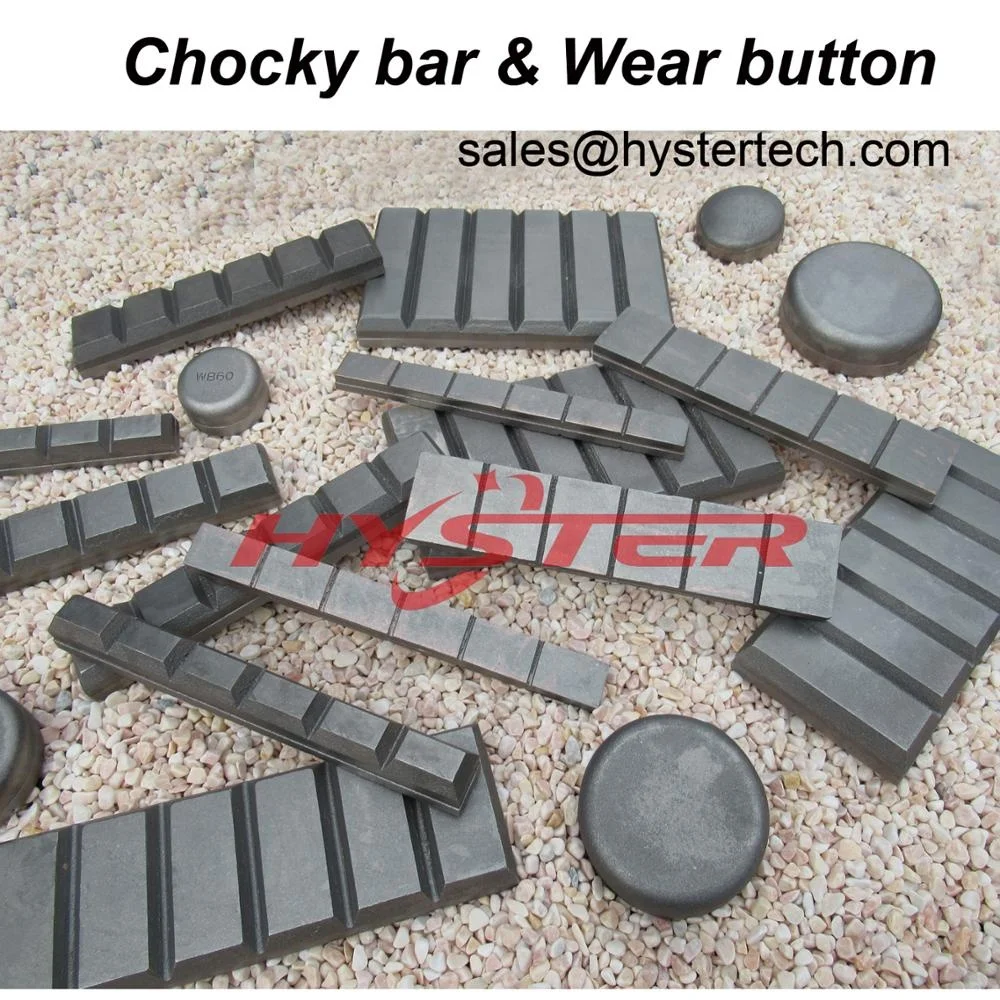

Bimetallic White Iron Chocky Wear Bars
The unique, formable design of Hyster-Wear chocky bars are available in various lengths, grades and sizes and can also be
customized as per the clients specific need. Applications for Chocky Bars are wide and varied, ranging from specific wear

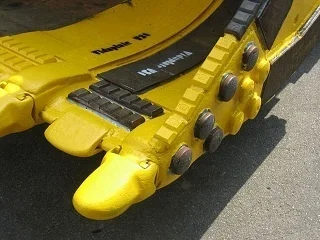

protection on buckets for loaders, excavators and draglines machines, or for weld-on hammer tips for the re-cycling industry, or chute linings and rock box edges.
They are easy to use and install. They can be bent, cut and formed to suit different surfaces.
The standard is 23mm thick, length is 240mm, width could be from 25mm from 150mm. We can also produce according to your special requests .
customized as per the clients specific need. Applications for Chocky Bars are wide and varied, ranging from specific wear
protection on buckets for loaders, excavators and draglines machines, or for weld-on hammer tips for the re-cycling industry, or chute linings and rock box edges.
They are easy to use and install. They can be bent, cut and formed to suit different surfaces.
The standard is 23mm thick, length is 240mm, width could be from 25mm from 150mm. We can also produce according to your special requests .
Item No. | Size (mm) | Dimension(mm) | N.W. (kg) | ||||||
A | B | C | D | ||||||
CB 25 | 240x25x23 | 240 | 25 | 15 | 23 | 0.9 | |||
CB 40 | 240x40x23 | 240 | 40 | 15 | 23 | 1.5 | |||
CB 50 | 240x50x23 | 240 | 50 | 15 | 23 | 1.9 | |||
CB 65 | 240x65x23 | 240 | 65 | 15 | 23 | 2.5 | |||
CB 80 | 240x80x23 | 240 | 80 | 15 | 23 | 3.2 | |||
CB 90 | 240x90x23 | 240 | 90 | 15 | 23 | 3.5 | |||
CB 100 | 240x100x23 | 240 | 100 | 15 | 23 | 3.9 | |||
CB 130 | 240x130x23 | 240 | 130 | 15 | 23 | 5.4 | |||
CB 150 | 240x150x23 | 240 | 150 | 15 | 23 | 6.0 | |||
Packing & Delivery
1. Standard packing material: PLY-Wood Crate/Pallet, with oil film inside.
1. To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Hyster wear system is more than just a product. It is a combination of products, services and metallurgical expertise to provide superior wear protection for mining equipment and other industrial applications. A key part of this package is the Bimetallic Wear Products, a comprehensive offering of buttons, blocks, bars, runners, tiles and overlay plate to match any application.
Hyster White Iron Wear Block(700BHN-63HRC)-- Range of products based on a composite white iron wear surface metallurgically bonded to a weldable mild steel backing plate. Wear block is fixed to the surface of fixed and mobile plant equipment, such as mining buckets and chutes, where protection from severe abrasion is required.
Hyster Overlay Wear Plates--Chromium carbide clad wear plate manufactured in HYSTER and marketed worldwide. Overlay plate is well suited to fixed and mobile plant equipment associated with the construction, mining and resource industries; particularly iron ore, coal, cement and steel applications.
Hyster NiHard--Abrasion and high impact resistant product. It is often cast into billets and liners and used extensively in the mining, construction and mineral processes industries, particularly in bulk handling situations.
Hyster White Iron Wear Block(700BHN-63HRC)-- Range of products based on a composite white iron wear surface metallurgically bonded to a weldable mild steel backing plate. Wear block is fixed to the surface of fixed and mobile plant equipment, such as mining buckets and chutes, where protection from severe abrasion is required.
Hyster Overlay Wear Plates--Chromium carbide clad wear plate manufactured in HYSTER and marketed worldwide. Overlay plate is well suited to fixed and mobile plant equipment associated with the construction, mining and resource industries; particularly iron ore, coal, cement and steel applications.
Hyster NiHard--Abrasion and high impact resistant product. It is often cast into billets and liners and used extensively in the mining, construction and mineral processes industries, particularly in bulk handling situations.
Hyster Tungsten Carbide—High standard abrasion resistant product. It is often used where the application has no impact force or very slightly impact.
Features and Benefits
Reduced Maintenance
• Protects any high wear area, eliminating the need for frequent rebuild or replacing wear plate
• Lasts longer than other wear protection
• Excellent alternative to hard facing which can lead to cracking of major structural components Increased Productivity
• Reduced maintenance ensures maximum machine availability
• Wide variety of shapes and sizes allows small areas to be protected, minimizing the affect on penetration and material flow
Lower Operating Cost
• Can be fit to flat or curved surfaces, eliminating the need to have wear plate formed to fit

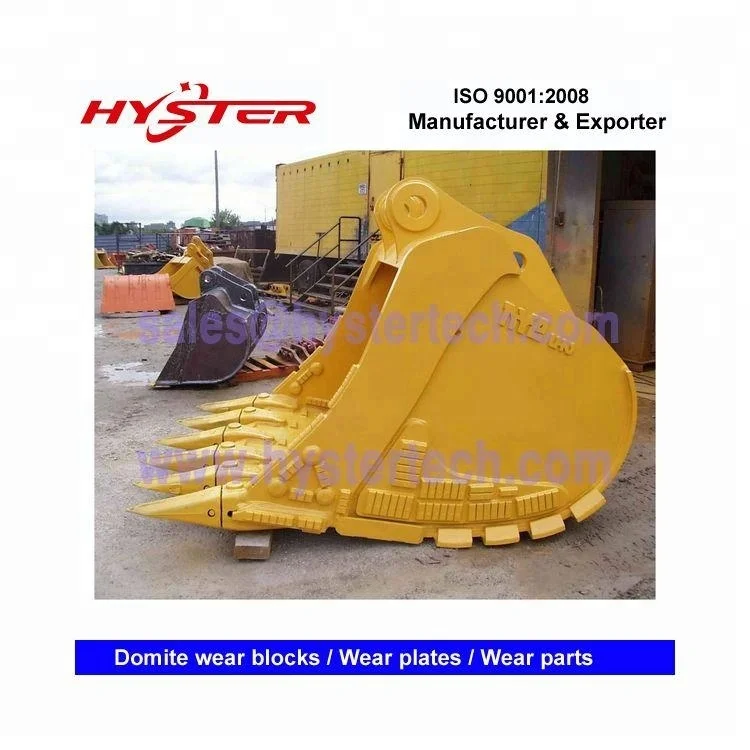

• Bucket life is significantly increased, minimizing repair and new bucket orders
Typical Data Numbers:
>white iron wear blocks life is 50% greater than that of Ni Hard Irons.
>At least 7 times longer than A.R. type steels 360/400 BHN
>5 times the wear rate of Manganese Steel
>3 times the wear rate of Tapco Weld Hardfacing
>4 times the wear rate of Astralloy-Vulcan
>16 times the wear rate of Carbon Steel
>3 times the wear rate of 500 BHN A.R. Plate
Features and Benefits
Reduced Maintenance
• Protects any high wear area, eliminating the need for frequent rebuild or replacing wear plate
• Lasts longer than other wear protection
• Excellent alternative to hard facing which can lead to cracking of major structural components Increased Productivity
• Reduced maintenance ensures maximum machine availability
• Wide variety of shapes and sizes allows small areas to be protected, minimizing the affect on penetration and material flow
Lower Operating Cost
• Can be fit to flat or curved surfaces, eliminating the need to have wear plate formed to fit
• Bucket life is significantly increased, minimizing repair and new bucket orders
Typical Data Numbers:
>white iron wear blocks life is 50% greater than that of Ni Hard Irons.
>At least 7 times longer than A.R. type steels 360/400 BHN
>5 times the wear rate of Manganese Steel
>3 times the wear rate of Tapco Weld Hardfacing
>4 times the wear rate of Astralloy-Vulcan
>16 times the wear rate of Carbon Steel
>3 times the wear rate of 500 BHN A.R. Plate
FAQ
Q: Are you a trade company or a manufacturer?
A: We are ISO9001:2015 Certificated factory with more than 25 years of production experience. .
Q: Where is your factory located ?
We are located in Changsha city, Hunan province. where is 2 hour flight away from Shanghai/Guangzhou.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or 15 days if the goods are not in stock. For customized products, it will
take about 25 days.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free(usually 5KG maximum), but we will not undertake the cost of freight.
Q: What is your terms of payment?
A: 30% in advance, balance against copy of BL, payable via TT. Or Negotiable.
Q: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q: Are the products High Quality?
Yes. All products will be checked before bulk production, and we will submit a Quality Report which include: the chemical
composition, hardness, microstructure, dimension, UT ahead of delivery, this can be considered as our quality gaurantee.
Q: How to place an order?
1. Please contact our salesperson by E-mail / Skype / Whats App below.
2. We will make a feedback to you ASAP after receive your order list.
Q: How we can trust your company ?
We support Aliababa trade insurance , 100% products quality protection, 100% on -time
shipment protection, 100% payment protection for your covered amount.
A: We are ISO9001:2015 Certificated factory with more than 25 years of production experience. .
Q: Where is your factory located ?
We are located in Changsha city, Hunan province. where is 2 hour flight away from Shanghai/Guangzhou.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or 15 days if the goods are not in stock. For customized products, it will
take about 25 days.
Q: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free(usually 5KG maximum), but we will not undertake the cost of freight.
Q: What is your terms of payment?
A: 30% in advance, balance against copy of BL, payable via TT. Or Negotiable.
Q: Is the price Competitive?
We have our own Factory. Thanks to strong production and distribution system, we promise to offer our customers the most competitive price.
Q: Are the products High Quality?
Yes. All products will be checked before bulk production, and we will submit a Quality Report which include: the chemical
composition, hardness, microstructure, dimension, UT ahead of delivery, this can be considered as our quality gaurantee.
Q: How to place an order?
1. Please contact our salesperson by E-mail / Skype / Whats App below.
2. We will make a feedback to you ASAP after receive your order list.
Q: How we can trust your company ?
We support Aliababa trade insurance , 100% products quality protection, 100% on -time
shipment protection, 100% payment protection for your covered amount.
Welcome to Contact Us:
Contact: Mrs. Shing Xiao
Technical sales manager
Hunan Hyster Material Technology Co., LTD.
Cell: +86-13786160497(Whatsapp/Wechat)
www.hystertech.com
Cell: +86-13786160497(Whatsapp/Wechat)
www.hystertech.com
Email: sales(@)hystertech(dot)com
Wear Parts & Wear Solutions!
Wear Parts & Wear Solutions!
Похожие товары

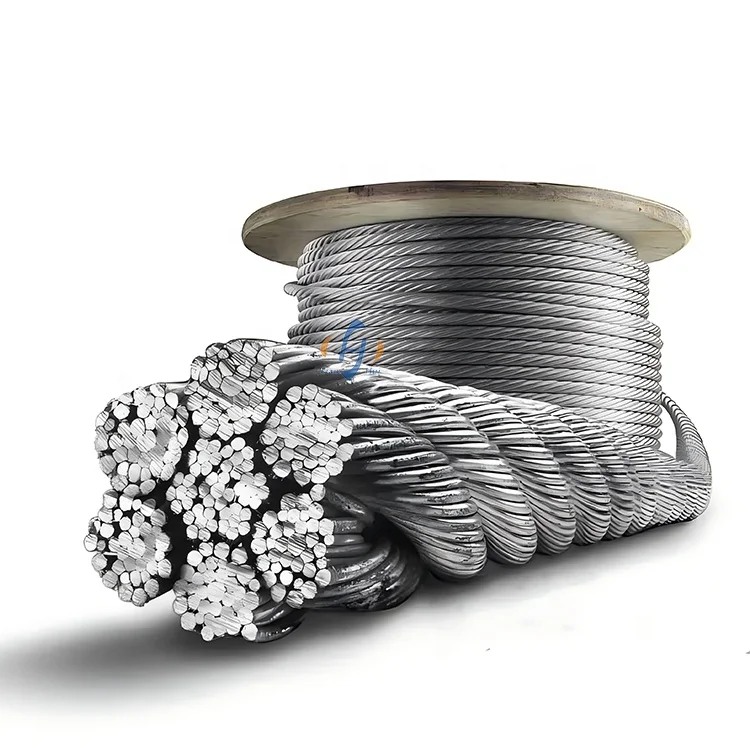

Сверлильный провод IWRC оцинкованный стальной трос
324,02 ₽ - 1 080,07 ₽
0665100012/U-кольцо/Детали буровой установки
194,42 ₽ - 324,02 ₽

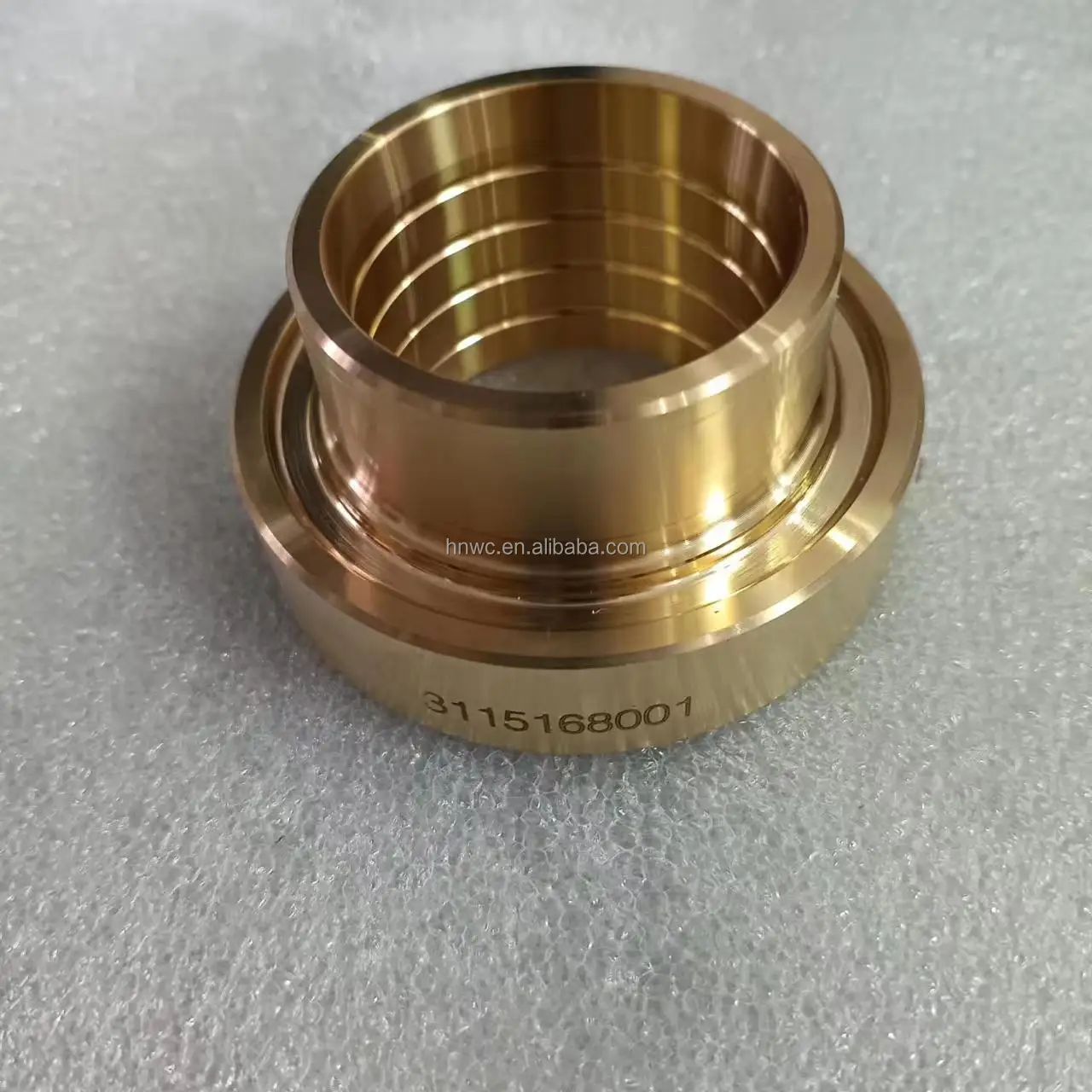

3115168000 детали для буровой установки с задним направляющим кольцом, энергетическое и минеральное оборудование, 1238 полицейский 1838
324,02 ₽

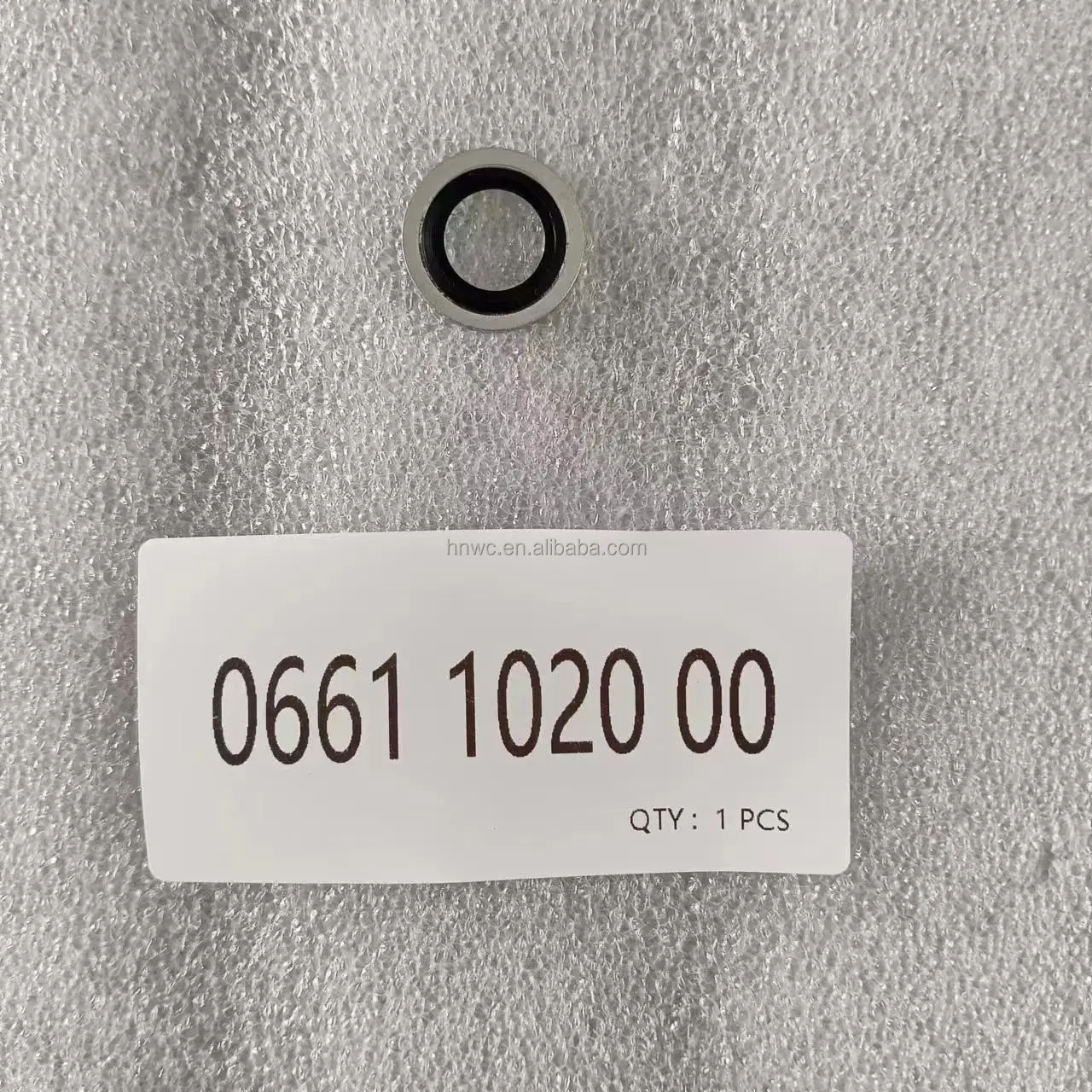

0661102000 уплотнение, детали для буровой установки, энергетическое и горнодобывающее оборудование Boltec 235 Cop 1838 +
604,84 ₽

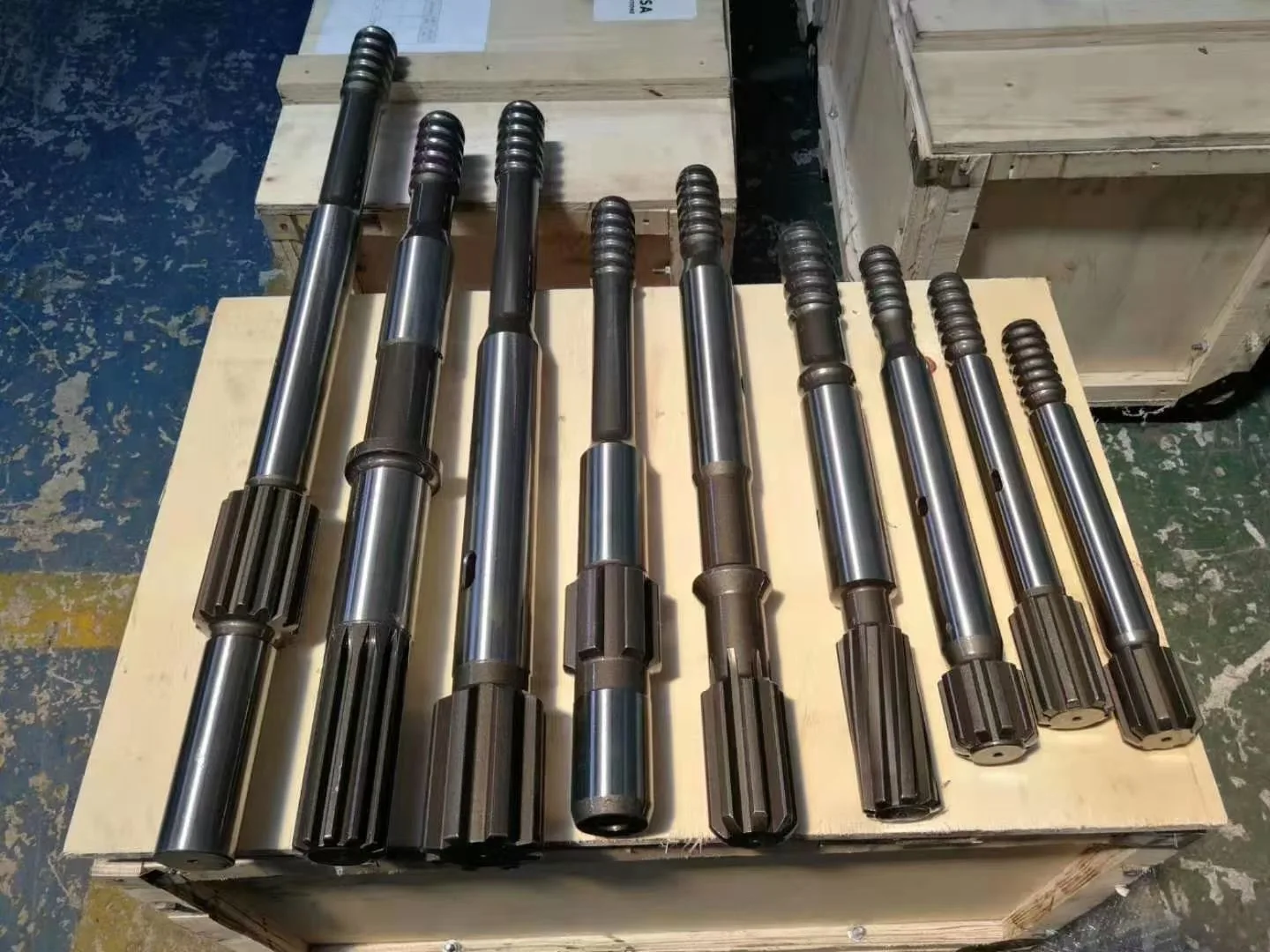

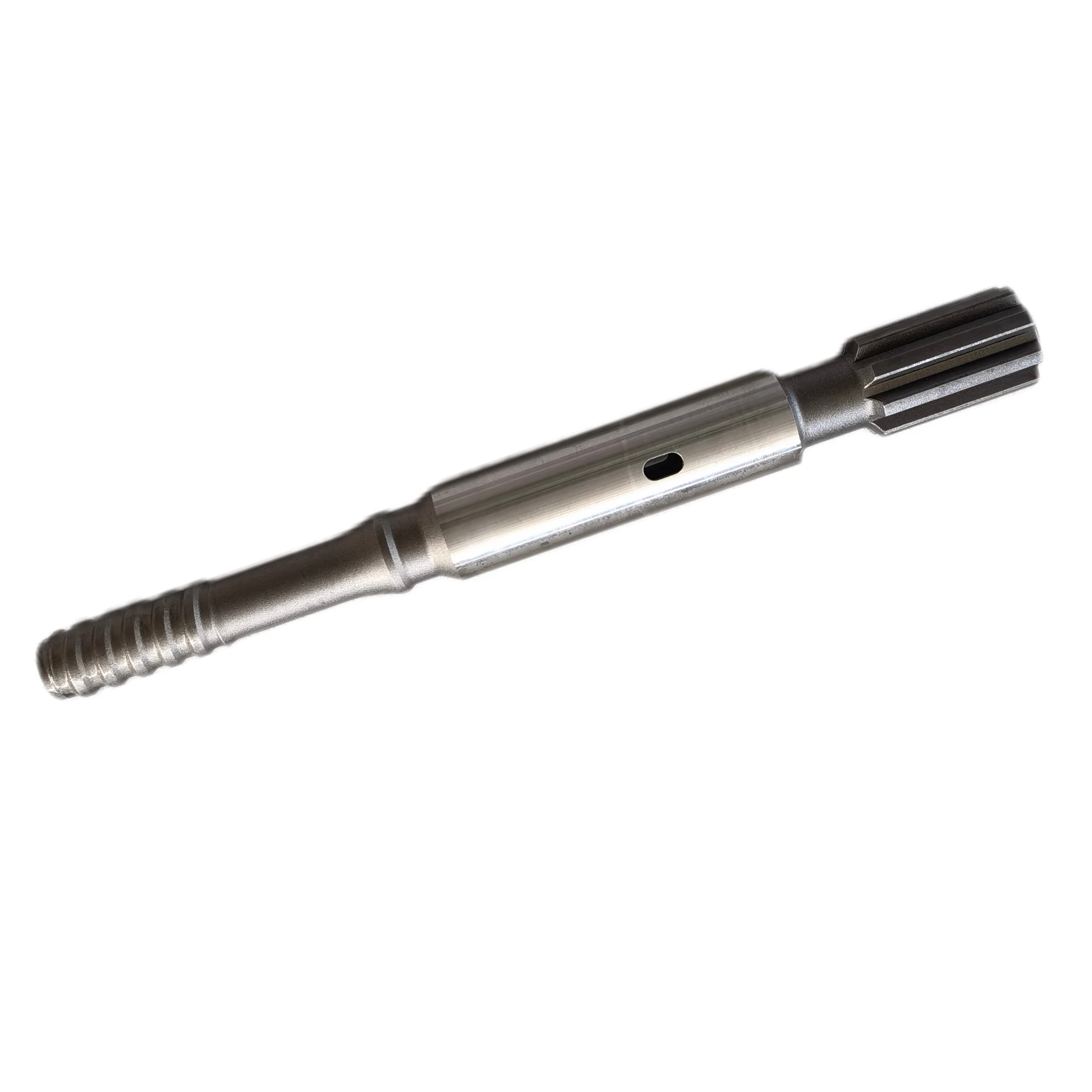

90516206 T45 525 мм адаптер хвостовика Для 1432, 1440, 1532, 1550, 1638, 1838, 2238 и + версия для сверления на скамейке
