Новый 40-футовый контейнеровоз полукаркасный прицеп с замком коробка для хранения грузового погрузчика наклонные контейнерные прицепы
9 000,00-10 000,00 $

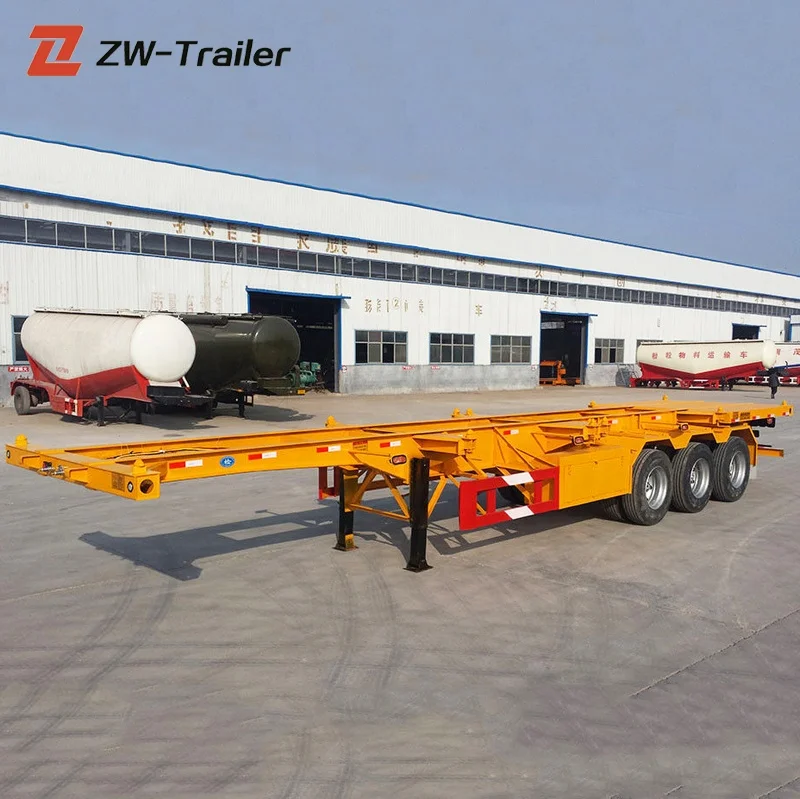

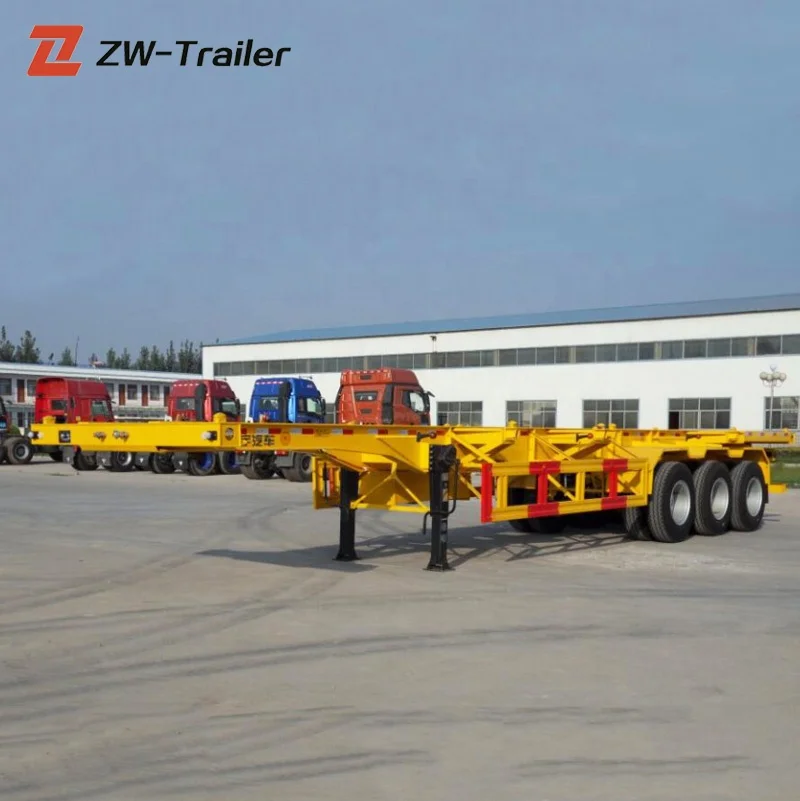

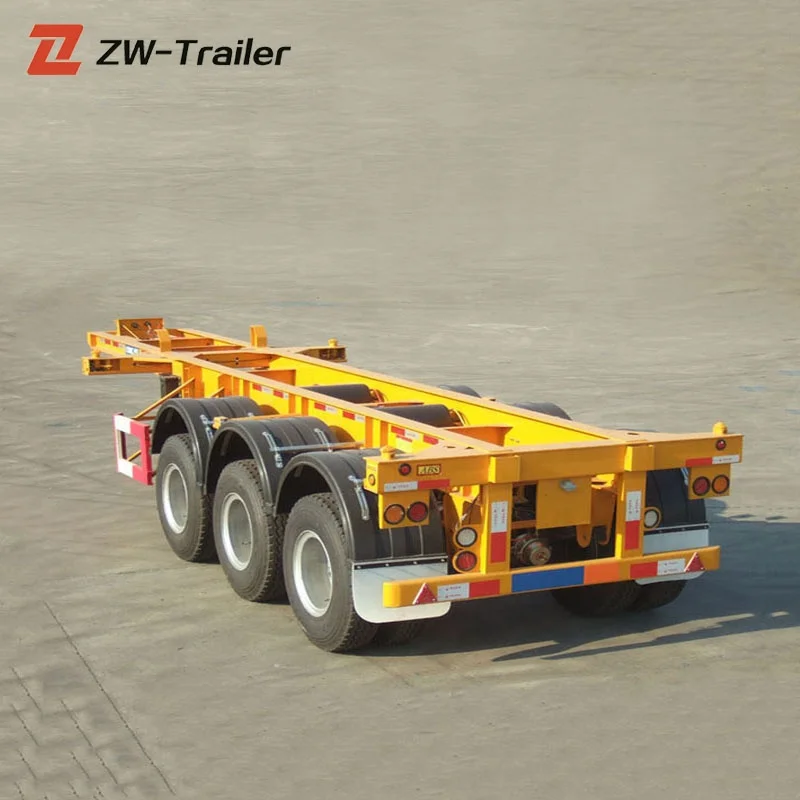

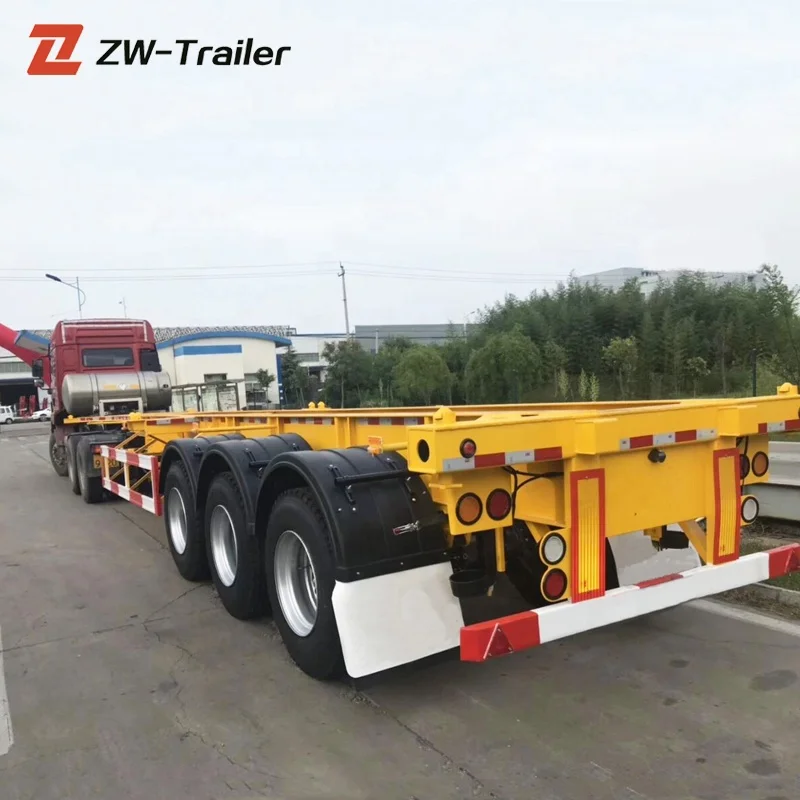

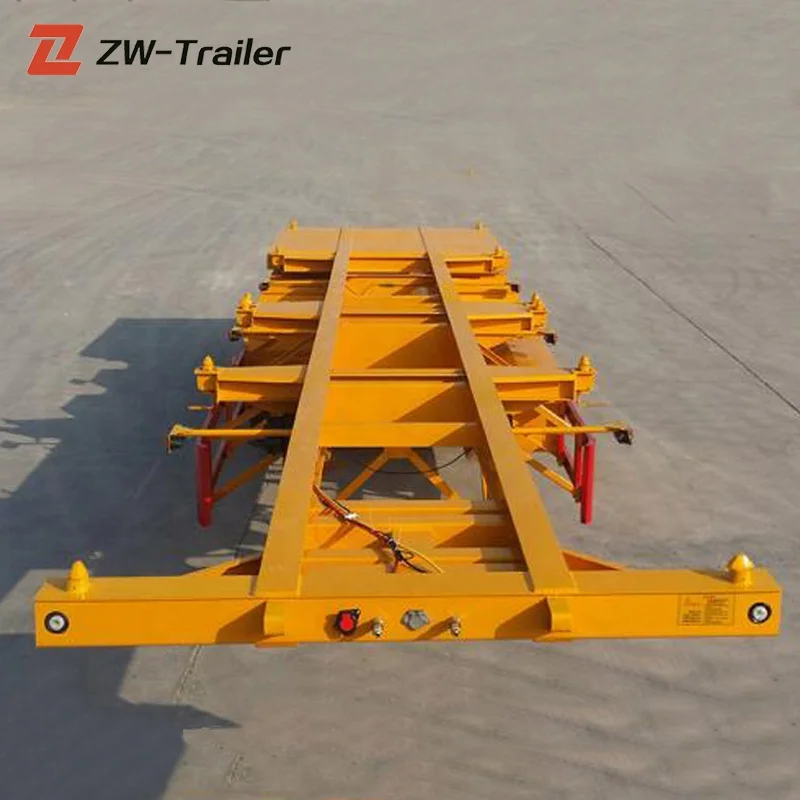

Шасси контейнера 40 футов скелетный прицеп с замками
- Категория: >>>
- Поставщик: Shandong Zhuowei International Trading Co. Ltd.Shandong Ltd.
Сохранить в закладки 1600089580102:
Описание и отзывы
Характеристики
Recommend Products
Container chassis 40 feet skeleton trailer with container twist locks
Product Description
Product Description

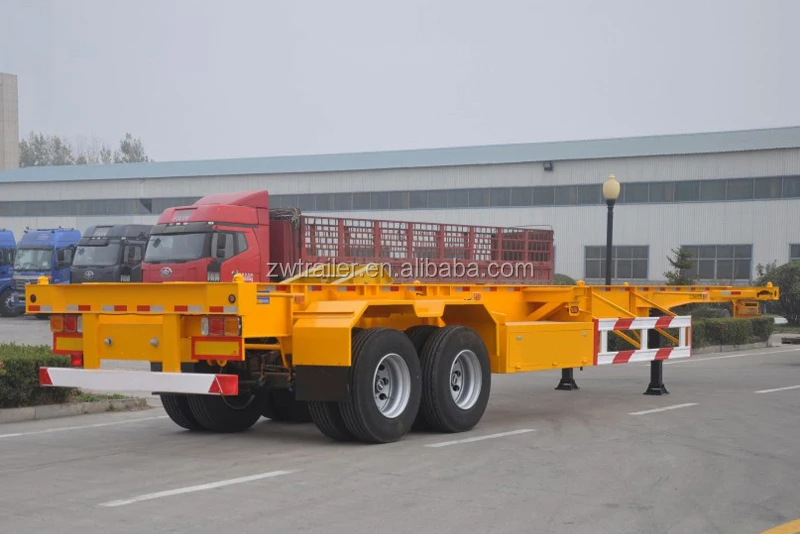

Container chassis 40 feet skeleton trailer with container twist locks
1 .Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Are
processes.Top flange 14mm,width 140mm;middle flange 8mm;bottom flange 16mm,width 140mm
2.The crossbeam is stamped with high-quality steel plate to form a groove, and the front and rear end beams are welded rectangular
sections. The middle container locking device is provided with an integral long beam to improve the bearing capacity of the
container locking device.
Container chassis 40 feet skeleton trailer with container twist locks
1 .Heavy duty and extra durability designed I beam;opting for high tensile steel Q345,welded by automatic submerged-Are
processes.Top flange 14mm,width 140mm;middle flange 8mm;bottom flange 16mm,width 140mm
2.The crossbeam is stamped with high-quality steel plate to form a groove, and the front and rear end beams are welded rectangular
sections. The middle container locking device is provided with an integral long beam to improve the bearing capacity of the
container locking device.

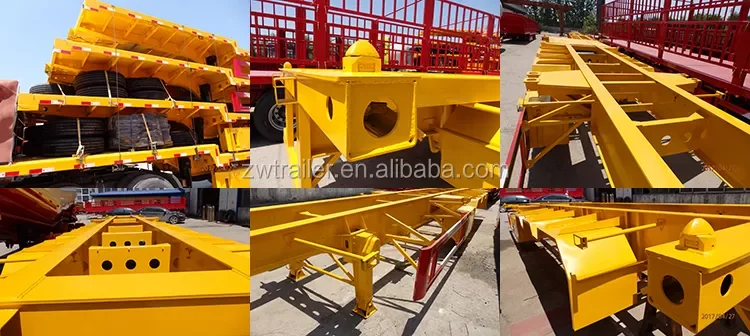

Details Images
Product Paramenters
Trailer Model | Container chassis 40 feet skeleton trailer with container twist locks |
Overall Dimension(Lx W x H) | 12500*2500*1550(mm) |
Tare Weight(KG) | 6500 |
Loading Weight( KG) | 60000 |
Axle | FUWA 13TON *3 Axle |
Wheelbase(mm) | 6260+1310+1310 |
Suspension system | Common Mechanical suspension |
Steel Spring | 10/10/10 leaf spring suspension |
The material of Main beam | The height of the beam is 500 mm, upper plate is 14mm,down plate is 16mm,middle plate is 8mm |
Tire Type and quantity | Factory brand 12R22.5 12units |
Traction Pin | 50mm or 90mm |
Spare Tire Carrier | 2 pieces |
Tool Box | 1 Standard |
Landing Gear | Standard 28ton |
Brake system | Dual Line braking system |
Brake air chamber | Six big chamber |
Electrical system | Voltage: 24v Receptacle: 7 ways (7 wire harness) |
Tail lamp with turn signal, brake light & reflector, side lamp etc | |
One set 6-core standard Cable | |
Side Guard | According to customer’s requirement |
Painting | Color by customer’s requirement |
Packing | NUDE packing, Polish with wax before shipping |
Twist lock | 12 sets |
Delivery way | Transfer to Qingdao Port, and carry by 45’HQ |
Customer Photos
1. Our company promise one-year warranty preiod,during this period,under normal use if there is damage to the accessories,we will provide our customers with free new accessories,
2. Operational problems,technical configuration issures,etc.,we will promptly provide feasible solutions for our customers.We are investing in the construction of a number of foreign service department,will be better to serve the globle customers.
2. Operational problems,technical configuration issures,etc.,we will promptly provide feasible solutions for our customers.We are investing in the construction of a number of foreign service department,will be better to serve the globle customers.
3. We offer high quality products and competitve price,customer's design is available.
4. You are guanranteed with fast deliveries and quick answer.Your satisfaction is our responsibility.
4. You are guanranteed with fast deliveries and quick answer.Your satisfaction is our responsibility.

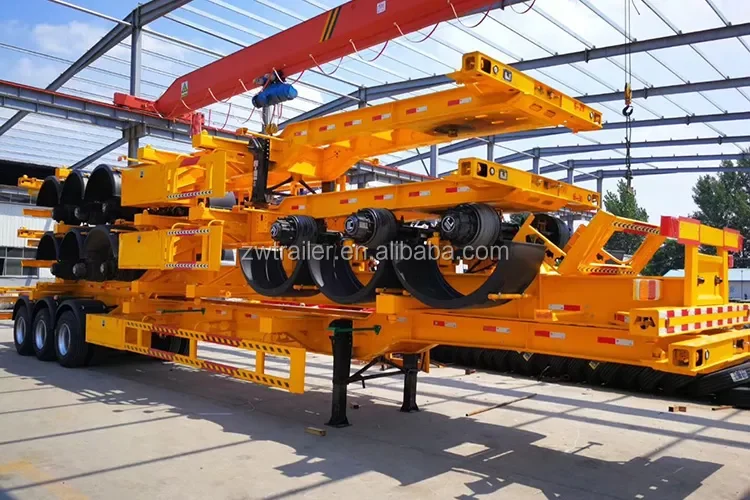

Product packaging
Company Profile
Shandong Zhuowei International Trading Co., Ltd was established in 2000 specialized in manufacturing various trailers, such as container trailers,construction equipment transporting trailers, tractors, trailers spare parts, etc. with advanced automatic equipment and excellent quality control.
With the good quality and reputation, we have been authorized ISO,CCC,CE and B&V certificates by government. We have our own factory established in 2000 which is a professional manufacturer with 500 employees an48,000,000 annual sales volume. Our products has been popular in South Asia, Middle East, Africa and South America.
FAQ
1.Does your company has your own factory?
Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous where is manufacturing
various trailers in Shan Dong,China.
2.Can you satisfy my special requirement?
Definitely!We can make the trailers based on your requirement.
3.What's your minimum quantity?
1 set.
4.How to trust us?
The good faith management is our philosophy,and you are welcome to visit our company at any time.
5.What's your payment term?
We accpet both T/T and L/C
T/T:30% deposit by T/T,70% balance should be paid before shipment.
L/C:100% irrevocable Credit of Letter.
Yes,we have a factory ourself,which is in this business for few years in China.Our factory is very famous where is manufacturing
various trailers in Shan Dong,China.
2.Can you satisfy my special requirement?
Definitely!We can make the trailers based on your requirement.
3.What's your minimum quantity?
1 set.
4.How to trust us?
The good faith management is our philosophy,and you are welcome to visit our company at any time.
5.What's your payment term?
We accpet both T/T and L/C
T/T:30% deposit by T/T,70% balance should be paid before shipment.
L/C:100% irrevocable Credit of Letter.
Похожие товары
20 40 футов подвижный каркас с замком коробка для хранения грузовой погрузчик наклонные контейнерные прицепы
7 000,00-8 000,00 $
Топ продаж 2-осевая тележка для бомбы прицеп грузовика/прицеп двора/каркасный полуприцеп причала
7 999,00-9 999,00 $
3 4 5 6 осей платформа низкая низкорамный погрузчик продажа кровать грузовик
7 500,00-10 500,00 $
Бортовой прицеп для транспортных средств транспорт и лебедка
9 000,00-9 500,00 $

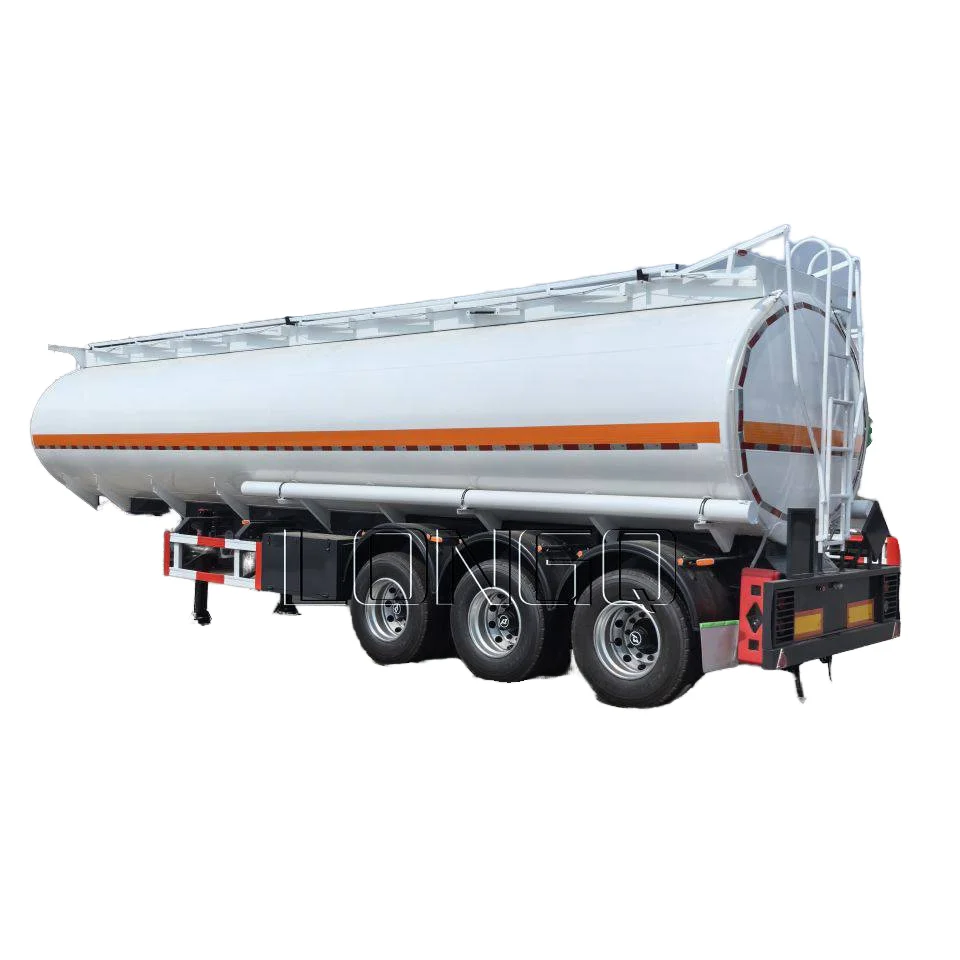

40000 литров 45000 нефтяной танкер трейлер Топливный Танкер Трейлер для продажи
