Центробежный насос для сельскохозяйственного орошения большой емкости
1 850,00 $ - 1 950,00 $
30HP дизельный двигатель мощность 12 дюймов сельскохозяйственная поливальная машина насос
- Категория: >>>
- Поставщик: Weifang Best Power Equipment Co. Ltd.
Сохранить в закладки 1600091774039:
Описание и отзывы
Характеристики
Product Description

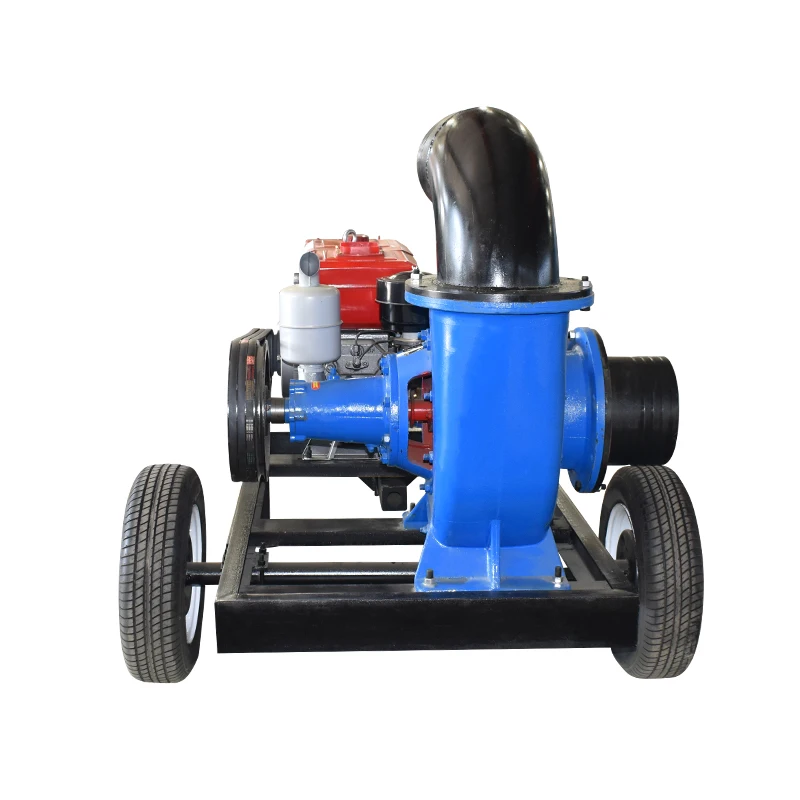

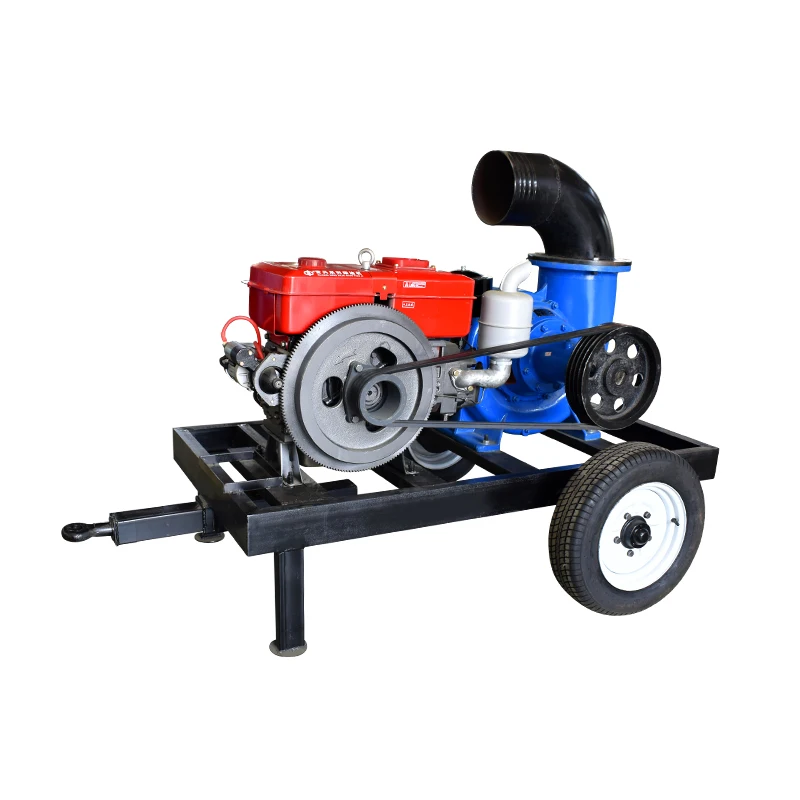

This type of diesel engine water pump adopts the form of two wheeled simple mobile trailer, equipped with telescopic traction frame, large flow and large caliber agricultural mixed flow pump, the flow can reach about 800 square meters per hour, the highest lift is 5 meters, the water absorption height is 5 meters, the inlet and outlet diameter is 300 mm.

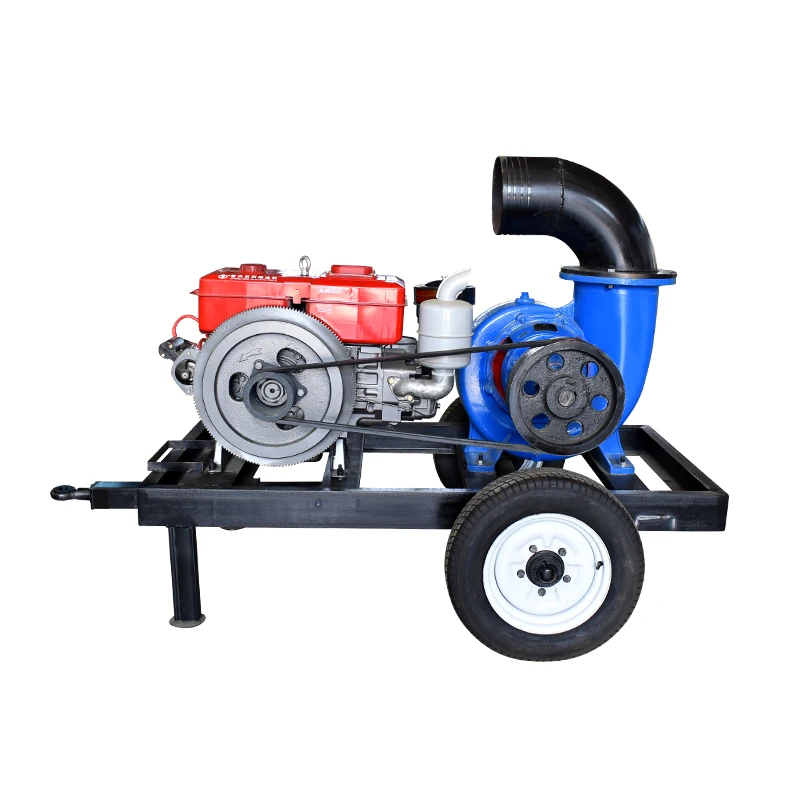

The diesel engine and the water pump are connected to the common base of the trailer with a pulley. The overall length is about 1.8 meters, width is about 1 meters, height is about 1.1 meters, and weight is about 500 kilograms.
Using changzhou 30-horsepower single-cylinder diesel engine, the maximum power is about 22 kw, which can be started by hand and electric. Meanwhile, we can customize the inlet pipe, outlet pipe, bottom valve, flange pipe and other accessories for customers.
Mainly used for agricultural irrigation, flood control projects, flood fighting and emergency, etc.
The diesel engine and the water pump are connected to the common base of the trailer with a pulley. The overall length is about 1.8 meters, width is about 1 meters, height is about 1.1 meters, and weight is about 500 kilograms.
Using changzhou 30-horsepower single-cylinder diesel engine, the maximum power is about 22 kw, which can be started by hand and electric. Meanwhile, we can customize the inlet pipe, outlet pipe, bottom valve, flange pipe and other accessories for customers.
Mainly used for agricultural irrigation, flood control projects, flood fighting and emergency, etc.
SPECIFICATIONS FOR 12 inch 300HW-5 irrigation water pump | ||||||
Pump | Flow | m³ | 792 | |||
Head | m | 5 | ||||
Speed | r/min | 970 | ||||
Motor | kw | 17kw | ||||
Entrance | mm | 300 | ||||
Exit | mm | 250 | ||||
Diesel engine | Model | ZS1130 | ||||
Rated power | kw | 22KW | ||||
Speed | rpm | 2200 | ||||
Max output power | kw | 23KW | ||||
Speed way | Mechanics | |||||
Air inlet | Closed water cooled | |||||
No.of Cyls | 1 | |||||
Fuel cons | g/kw.h | less or equal than 228 | ||||
Stoke | 4 stokes | |||||
Bore/trip | mm | 130/115 | ||||
Other followed parts
Under bottom valve suction and out pipe Silent box Trailer
Battery Vacuum pump Water tank Small diesel generator
Main Features
1.Good wear resistance and long life. The flow-through component is made of high-chromium alloy (Cr28) wear-resistant material;
2.Strong suction. Using advanced fluid mechanics and finite element analysis to optimize the design, the cavitation performance is good, the suction stroke is high, and the underwater pumping depth can reach more than 50 meters;
3.The extraction concentration is high. The concentration of the extraction and transport medium can reach 60% (by weight);
4.The transport distance is long. The pump head is high, and multiple pumps can be used in series to achieve long-distance transportation;
5.Easy to install, easy to operate, easy to maintain.
Size:(L*W*H)4700*1100*2200
Weight: 5TON
Specifications:The normal package is wooden box(Size: L*W*H). If the machine is too large, we will choose the container..
Specifications:The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Certifications
About Best Power Equipment Co.,Ltd
Established in 1992, Weifang Best Power Equipment Co., Ltd. is a collectivized company integrating production, sales, and trade. Now we have five subordinate factories, a product development team including 30 professional researchers and 300 staff members. The production fields include construction machinery, power machinery and food machinery. The main products, like concrete mixer truck, gensets, and pumps, have been exported to Australia, the Middle East, Malaysia, Mongolia, Russia, etc. we have 7 dealers worldwide. With the tenet, "Credit First, Mutual Benefit and Common Development", Best power has become an excellent enterprise which is deeply trusted by customers.
Producing the top-class products. Providing the top-class services.
Best power, do it the best!
With our clinets
FAQ
1.Q:Are you trading company or manufacturer ?
A: We are a factory not a dealer.We produce and sale products all by our self, and provide our customers high quality pre-sale services and after-sale services.
2.Q:How do you control the quality?
A:We warmly welcome you to take a visit of our factory. Each quality control personnel be responsible for the process they take. And we always choose high quality suppliers to provide key parts, both domestics and overseas.
3.Q: How long is your delivery time?
A: If you order within five units, the delivery time will be five to seven days. If the quantity is more than 5 units, then the delivery time will be ten to fifteen days.
4.Q: Do you provide samples ? is it free or extra ?
A: Yes, we need to charge sample fees, but it also depends, if you sell the product well in your country, next time when you set order, we can pay back a certain percent of your sample fee, it depend on your selling amount.
5.Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact with me as below:
Похожие товары

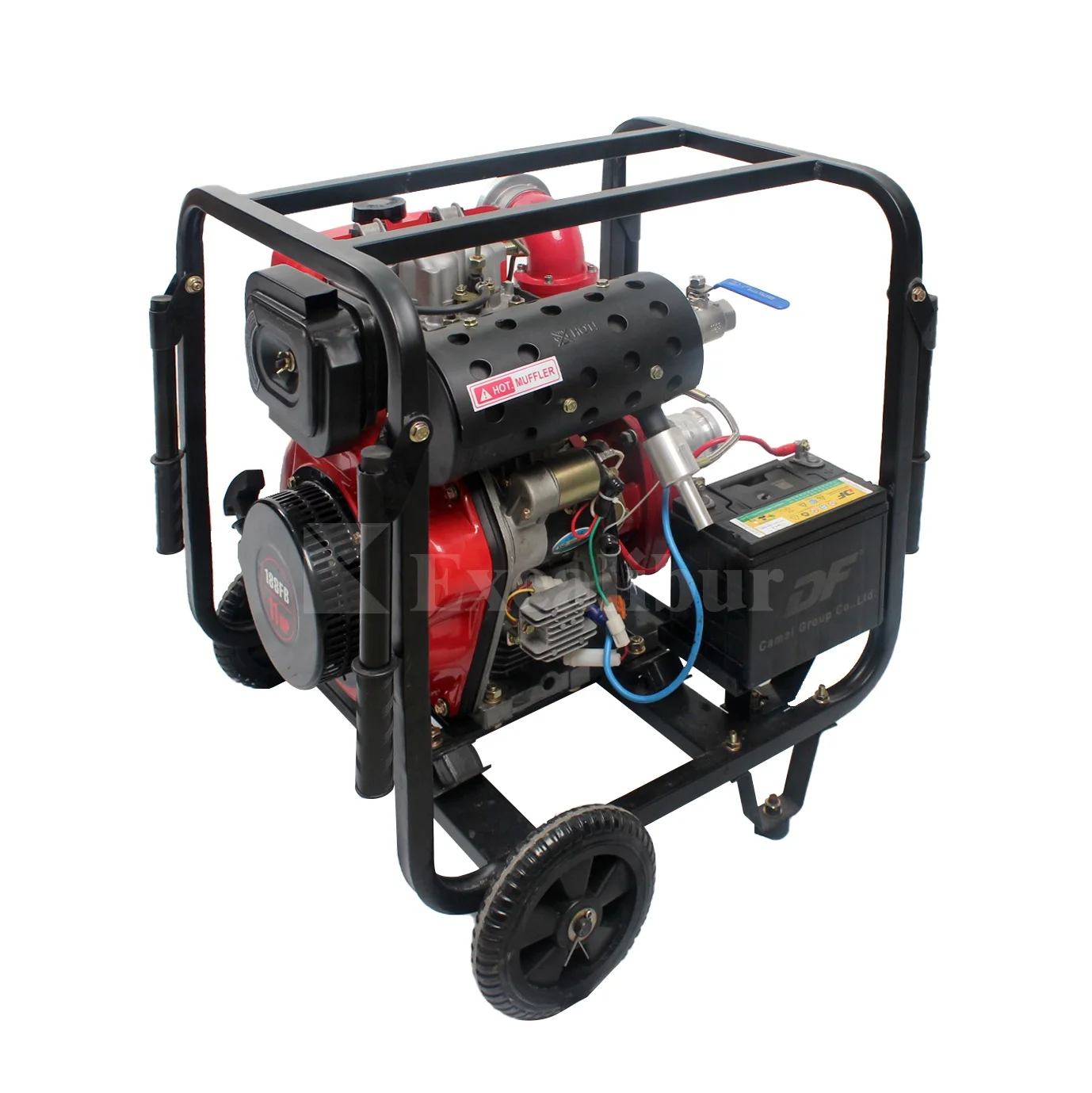

Excalibur, чугунный материал, оборудование для орошения под высоким давлением для пожарной борьбы с насосом двигателя
390,00 $ - 410,00 $

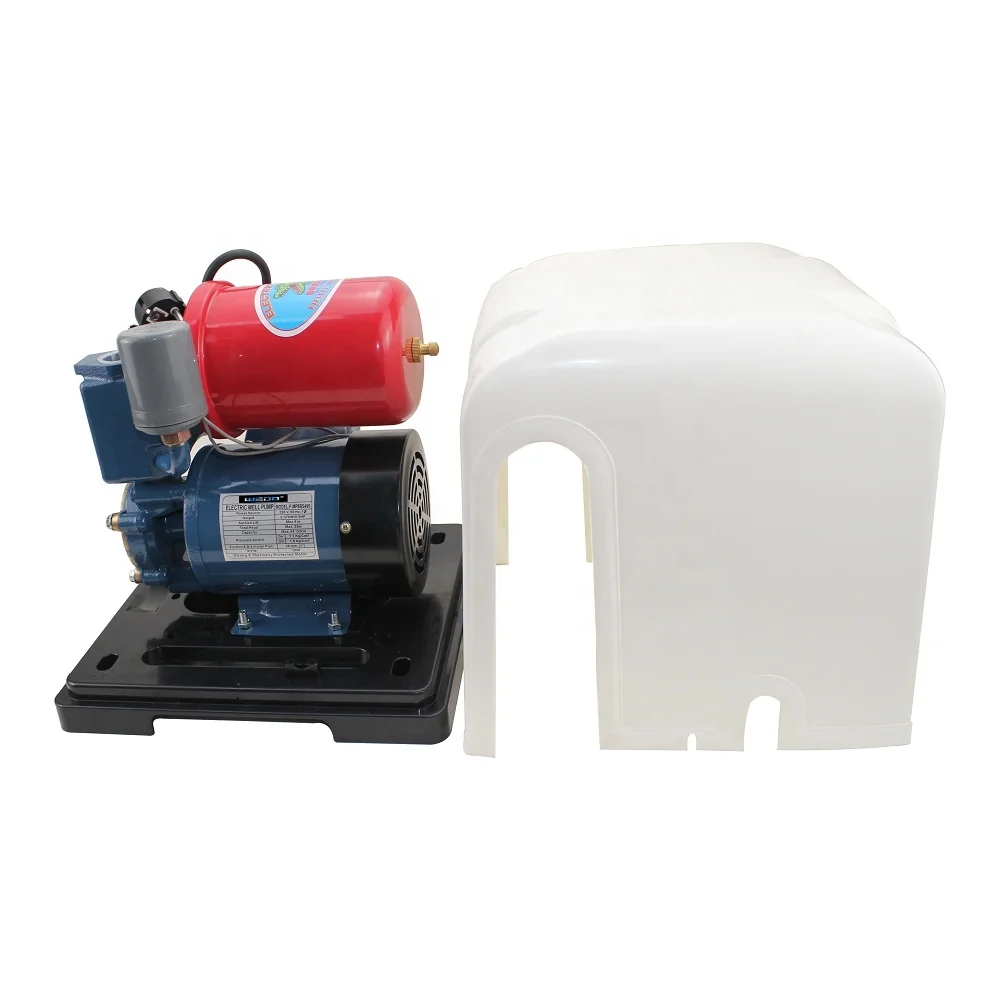

Высокое качество GP130 Электрический для полива и орошения самогрунтовой водный насос с крышкой
29,00 $ - 34,80 $
Водяной насос BJZ Series, периферийный водяной насос высокого давления
Оптовая продажа, уличные Дорожные Кружки, изоляционная вакуумная колба с двойными стенками, Подарочная чашка, Спортивная бутылка для боулинга из нержавеющей стали с текстурой древесины
Оптовая продажа, сельскохозяйственный водяной насос высокого давления для орошения
1 999,00 $ - 2 590,00 $

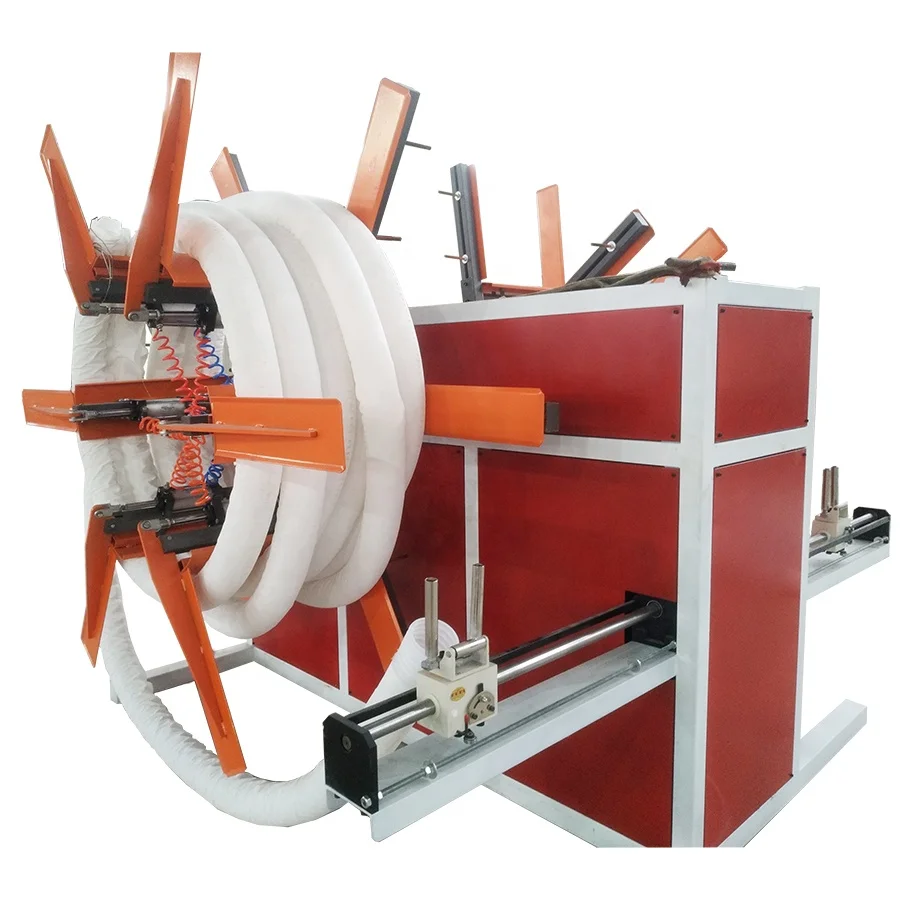

Одностенная машина для производства гофрированных труб из ПЭ, ПП, ПВХ, Экструзионная линия для пластиковых гибких труб
20 000,00 $ - 22 000,00 $

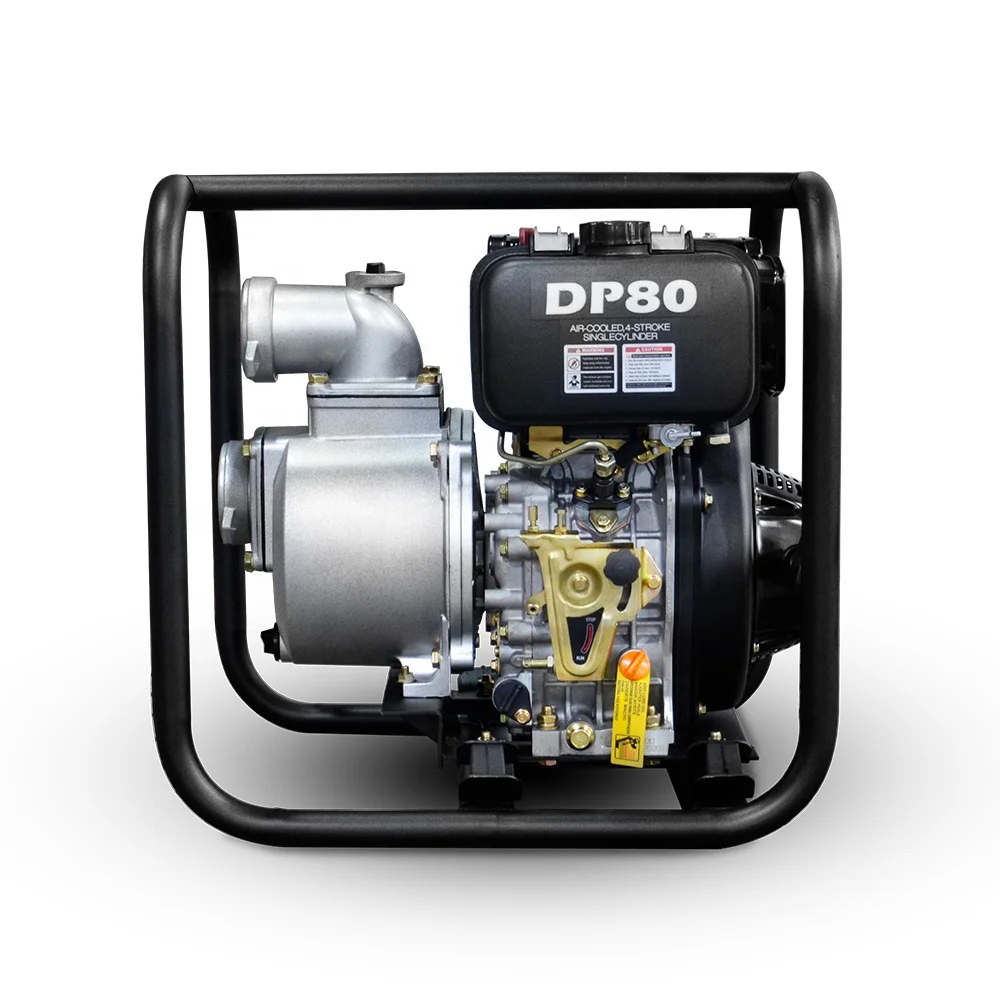

Небольшой 3-дюймовый портативный дизельный водяный насос для полива и орошения цена
