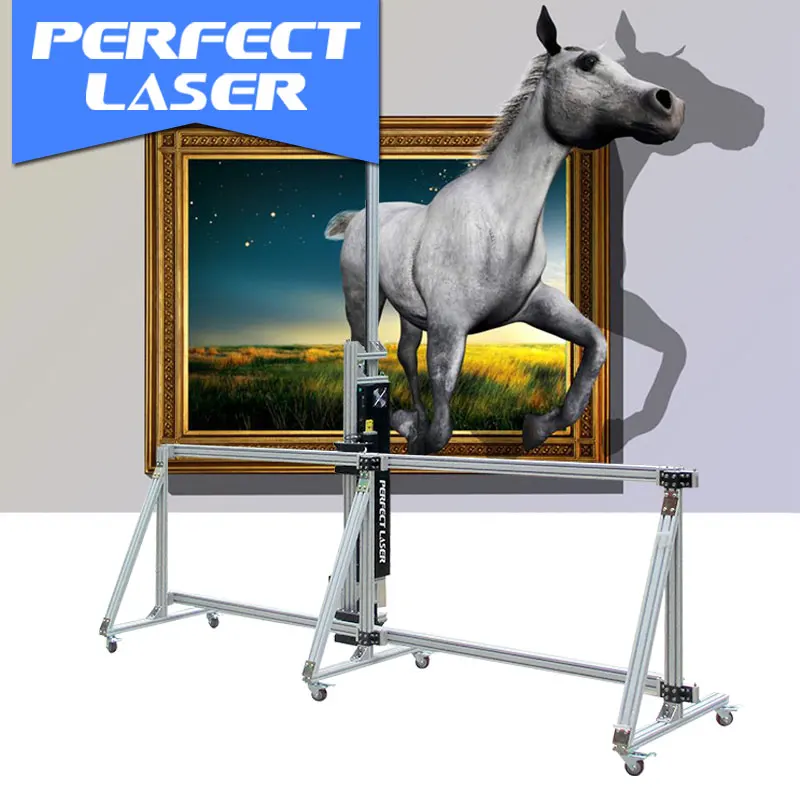

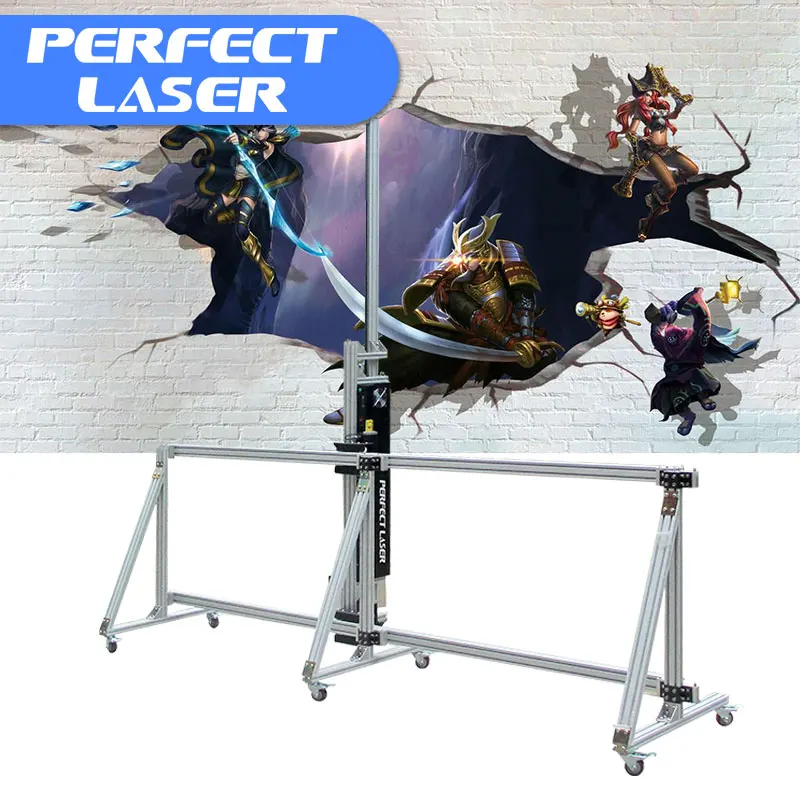

Direct to Wall CMYK Mural Painting High Speed Double Nozzles Wall Printing Machine
(Model: PE-S80)
Contact: Maggie Wechat/Whatsapp: +8613659885038 Email: sales08(@)perfectlaser.net
Product Description
This High Quality Direct to Wall CMYK Mural Painting High Speed Double Nozzles Wall Printing Machine For outdoor and indoor painting has wide range of applications, high printing precision, and printing quality of wall printer is perfect and colorful,can achieve 3D effect easily.
The design of Direct to Wall CMYK Mural Painting High Speed Double Nozzles Wall Printing Machine nozzle is different from that of conventional wall printing machine. It has a higher printing speed, can satisfy large-scale work for a long time, and is more stable in performance. And the standard track of the wall printing machine can be up to 4.5M, more widely used.
The design of Direct to Wall CMYK Mural Painting High Speed Double Nozzles Wall Printing Machine nozzle is different from that of conventional wall printing machine. It has a higher printing speed, can satisfy large-scale work for a long time, and is more stable in performance. And the standard track of the wall printing machine can be up to 4.5M, more widely used.
Application
The wall printing machine is widely applied in interior and exterior wall putty walls, latex paint walls, white, imitation porcelain walls, tiles, glass, rice paper, canvas, wall clothing, color coating glaze, shell powder, color grain paint and other walls.
Main Features
Main Features of Direct to Wall CMYK Mural Painting High Speed Double Nozzles Wall Printing Machine
1. Aluminum-magnesium alloy wall printing machine body, which has higher strength, high structural accuracy, light weight and durability.
2. The actual printing size of the inkjet printer for wall mural: height 2000mm, the track standard width is 6m and the 3d vertical wall printer can be extended if need.
3. High-precision brushless servo motor control system, vector positioning, no strip grating, motor brushless, (avoids cleaning, maintenance, garbled graphics after wear, need to be replaced regularly, etc.) to achieve higher painting accuracy, faster painting speed, and maintenance-free of the inkjet printer for wall mural.
4. The inkjet printer for wall mural using high-definition piezoelectric ink jet technology, high precision, high speed, and durability. Special designed nozzle for industry usage.
5. Adopt VSDT variable ink drop technology, supporting a new program algorithm, the smallest drop of 3d vertical wall printer is 3.5PL, the largest 47PL. The combination of advanced ink drop control method with high fault tolerance feathering technology ensures the output quality is more perfect and the 3d vertical wall printer can adapt to the painting of more special materials, such as: interior and exterior wall putty wall surface, latex paint wall surface, big white, imitation porcelain wall Surfaces, tiles, glass, rice paper, canvas, wall clothing, color coating glaze, shell powder, color grain paint and other walls.
6. The sprinkler data signal of the inkjet printer for wall mural adopts optical fiber integrated transmission (its advantages are: faster speed, strong anti-interference ability, high reliability, more stable transmission data).
7. Automatic breakpoints memory, automatic recovery of the starting position. The inkjet printer for wall mural can continue to start tomorrow and there is no need to reset, the wall printing machine is equipped with built-in UPS power supply, automatic charging, automatic switching to built in power supply.
8. Self-developed CPLD programmable logic control system, after years of practice, stable performance, in line with military-grade standards.
9. Advanced AC servo control technology to ensure more high-precision printing, better stability and longer service life of the wall printing machine.
10. Integrated head design and separable structure of the wall printing machine is effectively avoid the damage caused by bumping in the carriage.
11. All-round nozzle protection mounting plate, effectively reducing the damage rate of the wall printing machine nozzle.
12. Simple multi-color ink cartridge ink supply system, stable, convenient, quick and easy to support water and electricity separation of the inkjet printer for wall mural.
13. The improved ink absorber has good sealing performance, high cleaning efficiency of the 3d vertical wall printer nozzle, less ink consumption, and strong adsorption of the ink absorber, and should not be dropped.
14. The inkjet printer for wall mural using the United States imported sensor system, dual sensors, two-way induction up and down, surface tracking, automatic positioning, automatic solution to the uneven wall, wall tilt and other issues, effectively reducing the risk of damage to the inkjet printer for wall mural head.
15. The output module was upgraded and the output of industrial models increased by one time.
2. The actual printing size of the inkjet printer for wall mural: height 2000mm, the track standard width is 6m and the 3d vertical wall printer can be extended if need.
3. High-precision brushless servo motor control system, vector positioning, no strip grating, motor brushless, (avoids cleaning, maintenance, garbled graphics after wear, need to be replaced regularly, etc.) to achieve higher painting accuracy, faster painting speed, and maintenance-free of the inkjet printer for wall mural.
4. The inkjet printer for wall mural using high-definition piezoelectric ink jet technology, high precision, high speed, and durability. Special designed nozzle for industry usage.
5. Adopt VSDT variable ink drop technology, supporting a new program algorithm, the smallest drop of 3d vertical wall printer is 3.5PL, the largest 47PL. The combination of advanced ink drop control method with high fault tolerance feathering technology ensures the output quality is more perfect and the 3d vertical wall printer can adapt to the painting of more special materials, such as: interior and exterior wall putty wall surface, latex paint wall surface, big white, imitation porcelain wall Surfaces, tiles, glass, rice paper, canvas, wall clothing, color coating glaze, shell powder, color grain paint and other walls.
6. The sprinkler data signal of the inkjet printer for wall mural adopts optical fiber integrated transmission (its advantages are: faster speed, strong anti-interference ability, high reliability, more stable transmission data).
7. Automatic breakpoints memory, automatic recovery of the starting position. The inkjet printer for wall mural can continue to start tomorrow and there is no need to reset, the wall printing machine is equipped with built-in UPS power supply, automatic charging, automatic switching to built in power supply.
8. Self-developed CPLD programmable logic control system, after years of practice, stable performance, in line with military-grade standards.
9. Advanced AC servo control technology to ensure more high-precision printing, better stability and longer service life of the wall printing machine.
10. Integrated head design and separable structure of the wall printing machine is effectively avoid the damage caused by bumping in the carriage.
11. All-round nozzle protection mounting plate, effectively reducing the damage rate of the wall printing machine nozzle.
12. Simple multi-color ink cartridge ink supply system, stable, convenient, quick and easy to support water and electricity separation of the inkjet printer for wall mural.
13. The improved ink absorber has good sealing performance, high cleaning efficiency of the 3d vertical wall printer nozzle, less ink consumption, and strong adsorption of the ink absorber, and should not be dropped.
14. The inkjet printer for wall mural using the United States imported sensor system, dual sensors, two-way induction up and down, surface tracking, automatic positioning, automatic solution to the uneven wall, wall tilt and other issues, effectively reducing the risk of damage to the inkjet printer for wall mural head.
15. The output module was upgraded and the output of industrial models increased by one time.
Machine Details
Technical Data
Machine Name | Direct to Wall CMYK Mural Painting High Speed Double Nozzles Wall Printing Machine | ||||||
Model | PE-S80 | ||||||
Mode of Operation | Wireless touch screen | ||||||
Nozzle Type | Japan imported small industrial sprinkler (special) | ||||||
Ink | Special ink for wall printing | ||||||
Data Transfer | Integrated head, telecommunication transmission system with grade optical fiber data | ||||||
Surface Tracking | USA Banner sensor | ||||||
Painted Resolution | Indoor | Outdoor | |||||
720X300dpi; 720X600dpi; 720X1200dpi; 720X2400dpi; 720X4800dpi | VL720X300dpi; VL720X600dpi; VL720X1200dpi; VL720X2400dpi; VL720X4800dpi | ||||||
Image Type | JPG、BMP、TIFF、PDF、AI、PSD、CDR | ||||||
Actual Painted Size | 2000×4500mm (Standard) Width could be extended infinitely by adding guide rails | ||||||
Atlas Type | The machine can store electronic files and external usb drives, Mobile hard disk could use when plug | ||||||
Power | AC110V(90-132V) / AC220V(180—264V) Alternating current，47-63HZ | ||||||
The power consumption | 20W(no load), 75W(general) ,250W (maximum) | ||||||
Noise | Standby < 20dBA, drawing < 50dBA | ||||||
Operation | -10℃ -60℃ (14°F-140°F) 10 -80% relative humidity with non - coagulated state | ||||||
Storage | -30℃-60℃ (-22°F-140°F) 10%-80% relative humidity with non - coagulated state | ||||||
System Platform | WindowsXP/Win7/Win8/Win9/Win10 | ||||||
Main-boardConfiguration | 8 core CPU, 4GBDDR memory, USB2.0/3.0 data interface | ||||||
Machine Language | Chinese, English (customizable) | ||||||
Recognize | Green environmental certification, national standard test (GB18582-2001, GBT9756-2001), CE certification | ||||||
Print Mode | Speed Mode | Speed (m2/h) | |||||
Mode of Wall Outside | High | 18 | |||||
Middle | 14 | ||||||
Low | 10 | ||||||
Mode of Wall Inside | High | 6 | |||||
Middle | 5 | ||||||
Low | 4 | ||||||
Dazzle colour pattern | Adding dazzle mode, greatly enhance color saturation and the picture is more vivid, beautiful | ||||||
Equipment features | The actual size | Rack packing size | Horizontal track packing size | ||||
Length | 4500mm | 2610mm | 1200mm | ||||
Width | 670mm | 450mm | 900mm | ||||
Height | 2640mm | 560mm | 390mm | ||||
Packing And Shipping
FAQ:
Q: What’s the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don’t worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Company Profile
Perfect Laser, as a 25 years history industrial equipment manufacture in this field, 13 year Golden Supplier in Alibaba, with CE/ISO certification, we aims to make high quality products, and also our products have been exported to more than 180 different countries and areas.
Contact
Any interest? Welcome to contact me at once!
Contact: Maggie / Sales Manager
MP: 0086-13659885038
Tel: 0086-27-86791986
Fax: 0086-27-86775865
E-mail: maggie(@)perfectlaser.net
Whatsapp: 0086-13659885038
Skype: perfectlaser08
Wechat: 0086-13659885038
QQ: 874197596
Add: HengRuichuangzhi Technology Park,No.13YangQiaohu Road, Jiangxia Dist, WH, Hubei,China(430200)
