Высококачественная пуленепробиваемая кевларовая ткань UD утка свободная непрерывная производственная линия ламинирующая машина для волокна UHMWPE
- Категория: >>>
- Поставщик: Jiangsu Honghua Special Equipment Co. Ltd.
Сохранить в закладки 1600092061485:
Описание и отзывы
Характеристики
Product Description

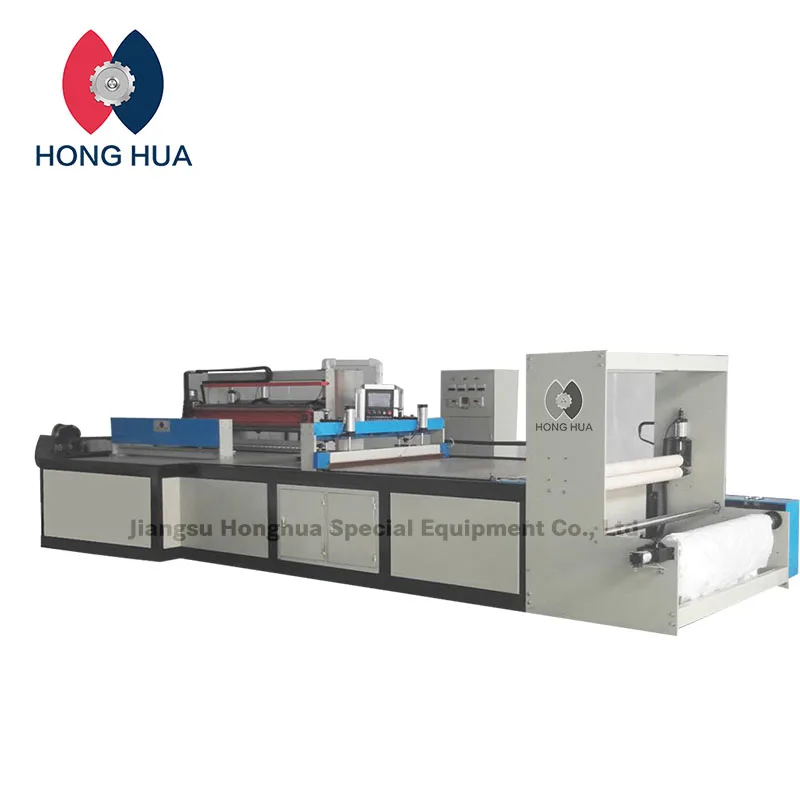

The weft free cloth continuous production line is a combination of creel, welding machine, cutting bed, and flat film laminating machine.
This weft free cloth continuous production line is suitable for continuous production of non-weft cloth such as body armor,helmet,shield,chest plate,armored vehicle,explsion-proof blanket,fiberglass cloth,carbon fiber cloth and so on.This machine can produce PE and aramid fiber cloth,both water-based and oily adhesive can be used.PLC control system is applied featured by easy operation,high efficiency and less labour.Use mirror roller for fiber string and laying to ensure hamless to the fiber itself.The whole machine adopts the gear drive system which allows the producing process lower noise and higher stability.
Specification
Technical parameter | Main technical parameters and configuration: |
Model / Model: HH-2017A-1600 | 1.Material: PE cloth |
Machine power: 70KW | 2.Composite thickness: 5mm |
Production efficiency: 7m / min | 3.Maximum effective compound width: 1650 mm |
Number of workers: 2-3workers | 4.Heating zone (plate) temperature: max. 200 ℃. |
The effective width: 1600mm | 5.Temperature tolerance of heating zone: ± 5 ℃ |
6.Pitch adjustment: 0-100mm (gap between upper and lower heating plate) | |
7.Conveyor belt thickness: 0.50mm | |
8.Conveyor belt form: anti-static Teflon belt (with connector) | |
9.Mechanical speed: 0.5-15m / min | |
10.Maximum working pressure of conveyor belt: 0-50N / cm2 | |
11.Heating power: 108kW (about) | |
12.Heating zone length: 1500mm; cooling zone length: 1000mm; | |
13.Total power: 120kW | |
14.Maximum unwinding diameter of material: 400mm |
Features
1. This machine is applicable for the continuous producing of UD laid fabric for military protective equipment such as body armor, helmet, shield, chest inserts, armored vehicles, anti-explosion blankets and etc.
2. This machine can produce PE and aramid fiber cloth, both water-based and oily adhesive can be used.
3. PLC control system is applied featured by easy operation, high efficiency and less labour.
4. Use mirror roller for fiber string and laying to ensure harmless to the fiber itself.
5. The whole machine adopts the gear drive system which allows the producing process lower noise and higher stability.
2. This machine can produce PE and aramid fiber cloth, both water-based and oily adhesive can be used.
3. PLC control system is applied featured by easy operation, high efficiency and less labour.
4. Use mirror roller for fiber string and laying to ensure harmless to the fiber itself.
5. The whole machine adopts the gear drive system which allows the producing process lower noise and higher stability.
Applications
The ud cloth welding machine is suitable for the continuous production of UD non-weft cloth such as bulletproof vests, helmets, shields, chest flaps, armored vehicles, explosion-proof blankets, etc. for military protective equipment.
Why choose us
Advantage：
well-distributed fiber placement
stable control of constant tension
whole machine gear-drive
Human Machine Interaction, user-friendly control
well-distributed fiber placement
stable control of constant tension
whole machine gear-drive
Human Machine Interaction, user-friendly control
Our company spends 500,000 yuan on technical research every year. At present, the technology is stable and the performance of the machine is the best among the international counterparts. It exports 10 sets of equipment to foreign countries every year. Ud weft free cloth continuous production line adopts automatic constant tension unwinding and rewinding device, adding conductive oil device to greatly reduce working time. Use wool blanket belt to speed up the transmission speed. The ud weft free cloth continuous production line increases the workload by 4~5 times compared with traditional sheet compounding. Please believe in our technology and your choice.
Packing & Delivery
All parts are packaged in combination, using film and cardboard packaging, professional export container export.
About Us
Honghua Special Equipment Co., LTD is a professional manufacturer and distributor of composite machinery and special equipment machinery. Company has our own power plant, has ten years of experience in this field.We can provide:Mesh belt type laminating machine, Flame laminating machine, Adhesive laminating machine, Hot melt adhesive laminating machine, Glue point transfer laminating machine, Laminating materials production lines, Continuous production line for UD without weft cloth, Wall cloth compound machine, Teflon belt laminating machine, Cutting machine, Cutting bed, etc.
Adhering to the development path of scientific and technological innovation, Honghua Machinery has established close technical trade relations with Russia, Turkey, Japan, France, Czech Republic, India, Vietnam and other countries. Our products are exported to more than 20 countries and regions. The company's product quality has been recognized by customers at home and abroad and enjoys a high reputation. All of our equipment can be customized.Welcome to our factory site investigation and cooperation!
Contact Us
Exhibition
Partner
Shipping Case
Certificate
The products of Jiangsu Honghua Special Equipment Co., Ltd. passed the ISO9001: 2000 quality system demonstration,
There are 40 products that have obtained patented products, and 12 products have passed the provincial new product scientific and technological achievements appraisal. The technical content of the products can replace imported products.
There are 40 products that have obtained patented products, and 12 products have passed the provincial new product scientific and technological achievements appraisal. The technical content of the products can replace imported products.
FAQ
1. Are you a trading company or a manufacturer?
We are a manufacturer with more than 30 years of manufacturing and R&D experience.
2. Where is your factory?
We are located in Dagang Metallurgical Industrial Park, Yandu District, Yancheng, just 1 hour from Shanghai High Speed Rail.
3. Does your company have a research and development department?
Yes, we have established Honghua R&D Center with Nantong University, Shanghai Tongji University, National Taiwan University. Honghua Machinery Co., Ltd. is a special equipment manufacturer with more than 30 years of experience in various laminating machines and UD laminating machines. We always believe in technology and market-oriented research. Every year, we develop a series of solutions for practical field application problems and develop new machines for customers, such as Tesla, Toyota, BMW, KIA, 3M, Volkswagen, Mercedes-Benz and other customers. We can also provide customized machine services according to the actual needs of customers.
Our goal is to solve every customer's on-site problem, achieve better material finishing/processing effect, and become a customer's think tank. If you have any new ideas about our machines, please feel free to contact us!
4. How can I trust your quality?
We have a strict and scientific quality control management system, and passed strict CE and ISO international certification to maximize product quality. We are committed to the research and development of new materials and new technology production lines. We have 100 new invention patents and 80 practical patents.
We have professional quality control personnel. For each step of our machine production, a group of quality control teams will be responsible for inspection. Before the item passes all inspections, the following steps can be performed.
At the end of the machine assembly, a series of tests will be performed. We will not deliver until the machine passes all tests.
We provide a one-year warranty for our machines. Usually, our customers have been using our machines for at least 10 years, 15 years or even 30 years. Throughout the life of the machine, parts will be replaced at cost.
5. How to operate the machine?
You have never used such a machine before. You just want to expand our business and start a new business. do not worry! When buying our first machine, almost most overseas customers were in the same situation. We have skilled and experienced follow-up service personnel who have developed complete solutions to meet the needs of customers like you. In addition, we have a team of professional engineers with rich experience in installation and commissioning, which can perform the installation, testing and operation guidance of overseas machines.
6. What is the transaction process?
Determine the plan, pay 30%-40% deposit, bring the test machine, if you are not satisfied with the sample test, we can refund the deposit. Pay the final payment and deliver.
We are a manufacturer with more than 30 years of manufacturing and R&D experience.
2. Where is your factory?
We are located in Dagang Metallurgical Industrial Park, Yandu District, Yancheng, just 1 hour from Shanghai High Speed Rail.
3. Does your company have a research and development department?
Yes, we have established Honghua R&D Center with Nantong University, Shanghai Tongji University, National Taiwan University. Honghua Machinery Co., Ltd. is a special equipment manufacturer with more than 30 years of experience in various laminating machines and UD laminating machines. We always believe in technology and market-oriented research. Every year, we develop a series of solutions for practical field application problems and develop new machines for customers, such as Tesla, Toyota, BMW, KIA, 3M, Volkswagen, Mercedes-Benz and other customers. We can also provide customized machine services according to the actual needs of customers.
Our goal is to solve every customer's on-site problem, achieve better material finishing/processing effect, and become a customer's think tank. If you have any new ideas about our machines, please feel free to contact us!
4. How can I trust your quality?
We have a strict and scientific quality control management system, and passed strict CE and ISO international certification to maximize product quality. We are committed to the research and development of new materials and new technology production lines. We have 100 new invention patents and 80 practical patents.
We have professional quality control personnel. For each step of our machine production, a group of quality control teams will be responsible for inspection. Before the item passes all inspections, the following steps can be performed.
At the end of the machine assembly, a series of tests will be performed. We will not deliver until the machine passes all tests.
We provide a one-year warranty for our machines. Usually, our customers have been using our machines for at least 10 years, 15 years or even 30 years. Throughout the life of the machine, parts will be replaced at cost.
5. How to operate the machine?
You have never used such a machine before. You just want to expand our business and start a new business. do not worry! When buying our first machine, almost most overseas customers were in the same situation. We have skilled and experienced follow-up service personnel who have developed complete solutions to meet the needs of customers like you. In addition, we have a team of professional engineers with rich experience in installation and commissioning, which can perform the installation, testing and operation guidance of overseas machines.
6. What is the transaction process?
Determine the plan, pay 30%-40% deposit, bring the test machine, if you are not satisfied with the sample test, we can refund the deposit. Pay the final payment and deliver.
Похожие товары
Пользовательский Перманентный клей a4 бумажные наклейки листы цветной принтер
0,05 $ - 0,30 $

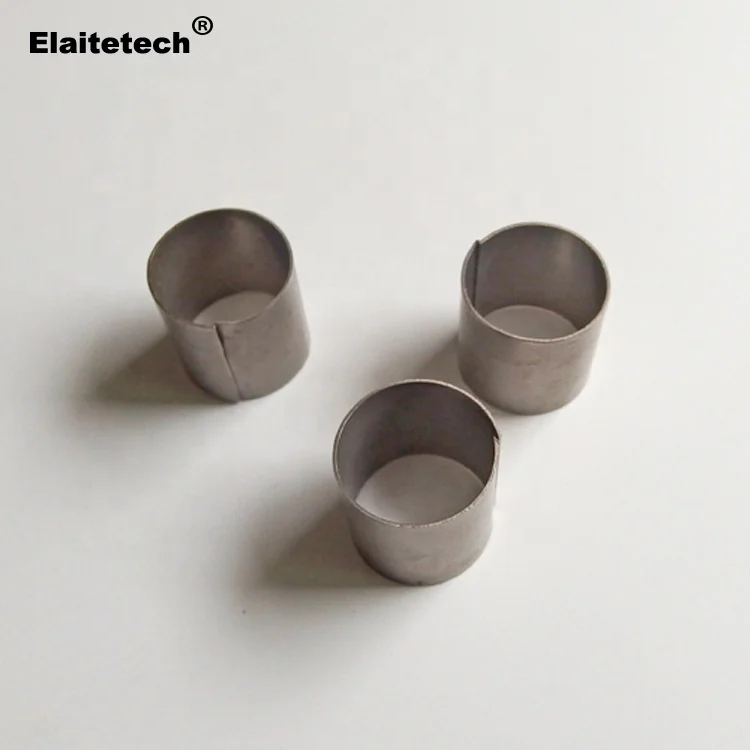

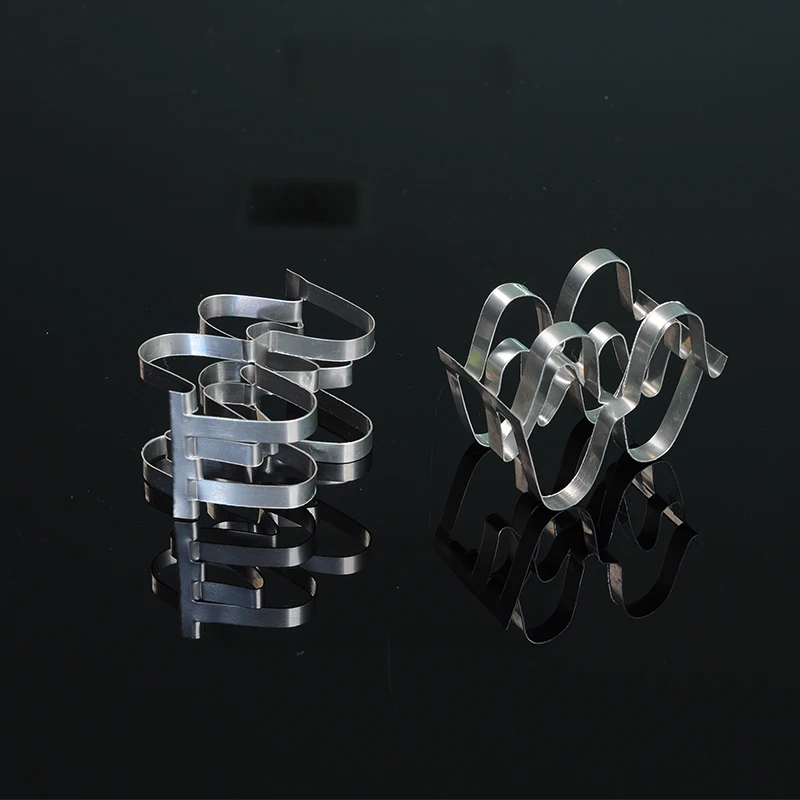

Xingfeng металлическое кольцо Raschig случайная башня упаковка в наличии

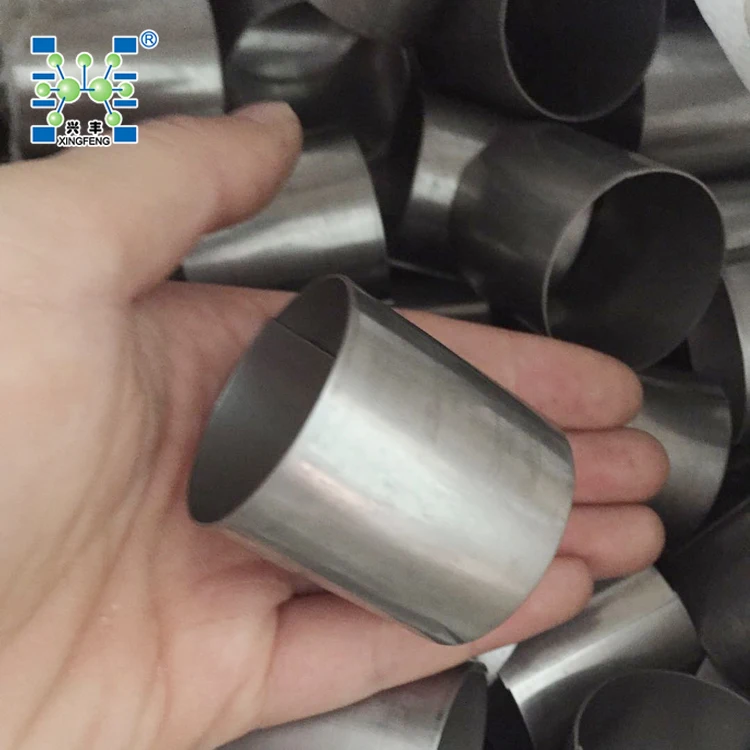

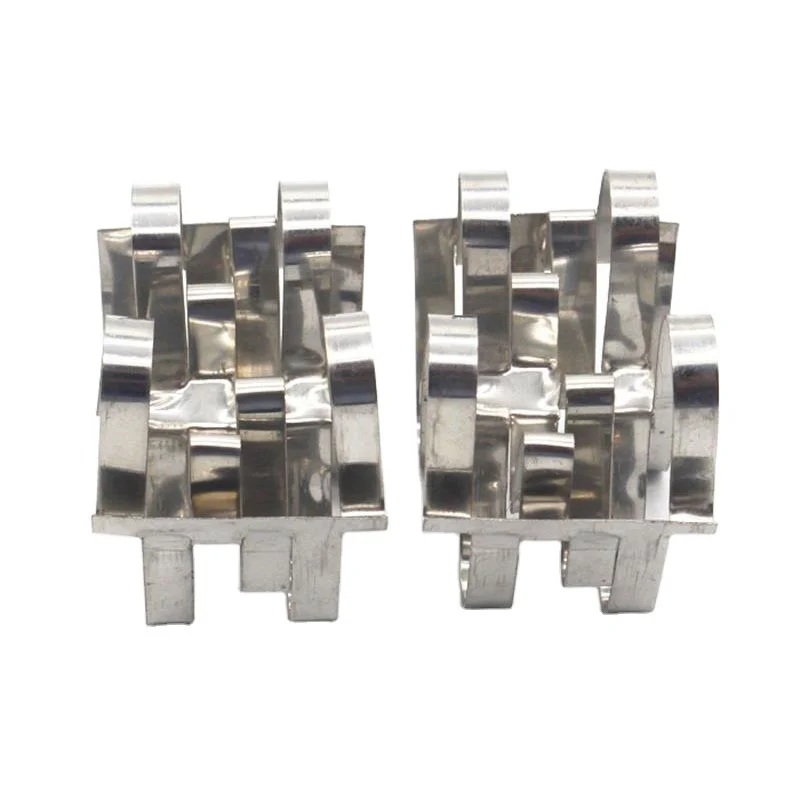

SS304 SS316L супер кольцо raschig для упаковки башни

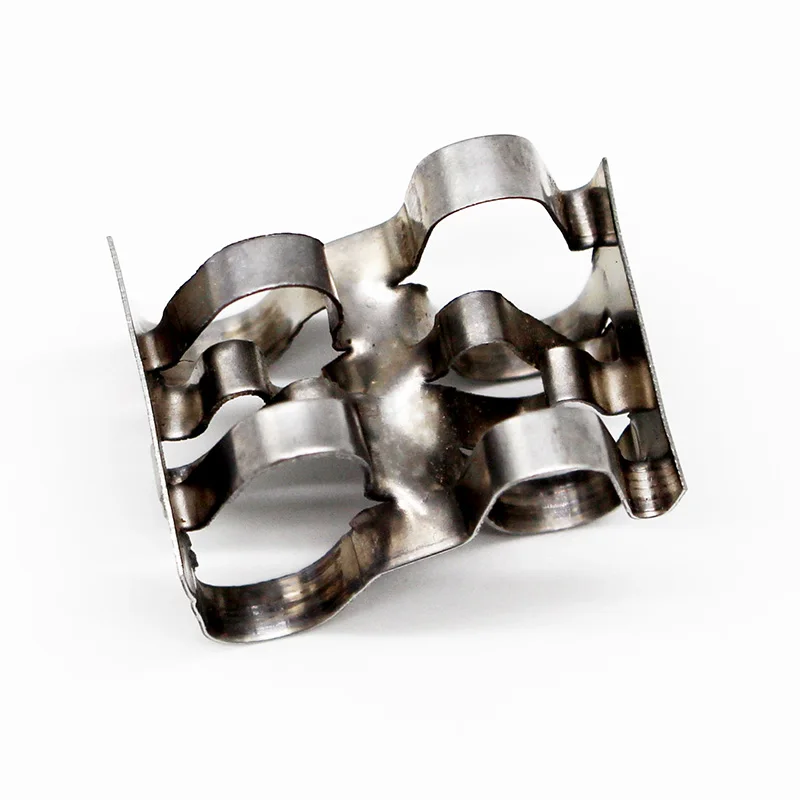

5/8 дюйма, 1 дюйм, 1,5 дюйма, 2 дюйма, 3 дюйма, металлическое рашпильное кольцо из нержавеющей стали
Недорогое металлическое кольцо для башенной упаковки из нержавеющей стали от китайского поставщика

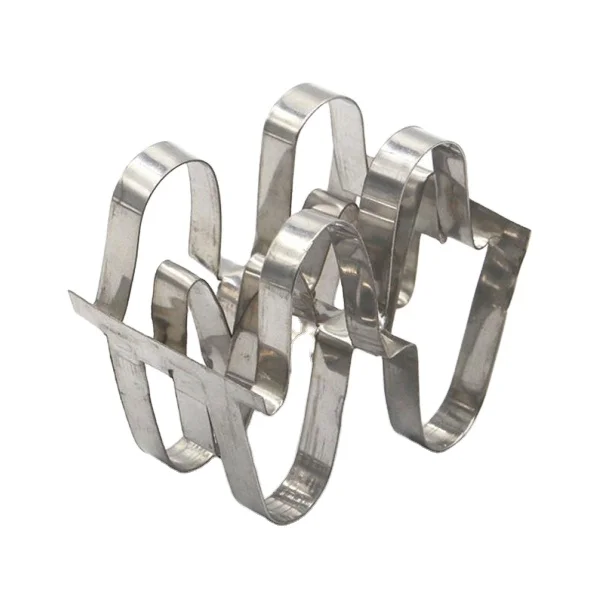

Металлическая Башня, упаковка из нержавеющей стали, металлическое кольцо super Raschig
