Product Description
Product Application
Symons Cone Crusher is suitable for processing gravels, ores, slag and construction waste and used for second, thrid or fourth level crushing of stones and slag.
Features
1. Unequaled output and uniform product throughout a wide range of capacities;
2. High working efficiency, greater crushing force;
3. Largest head displacement provides greater production capacity;
4. Long lasting bearing with stand crushing loads and severe environmental conditions;
5. Hydraulic controls providing fast setting changes and simply clearing;
6. Long working life, low operating and maintenance costs;
7. All parts can be exchanged with Nordberg Symons cone crusher.
Application
Symons cone crusher are widely applied in metallurgy, construction, road building, chemical and phosphatic industry. It is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, grit stone, etc...
Cavity type of the crushing is decided by the application of the ores. Standard type is applicable to medium crushing, middle type is applicable to fine crushing and short-head type is applicable to super fine crushing.
Working Principle
1. When the Mine barite Symons cone crusher is working, the engine rotates around a fixed point driven by the belt wheel or the coupling.
2. The transmission shaft and the conical part of cone crusher swing under the force from the eccentric bushing, which makes the crushing wall of the Symons cone crusher close to the pierced mortar wall at intervals.
3. Then, the ores will be impacted, squeezed and bent constantly in the crushing chamber.
4. At last, the whole ore crushing process is finished.
5. The perfect combination of high-performance crushing chamber and high crushing frequency improves the handling ability of cone crusher to a greater degree.
Features
1. Unequaled output and uniform product throughout a wide range of capacities;
2. High working efficiency, greater crushing force;
3. Largest head displacement provides greater production capacity;
4. Long lasting bearing with stand crushing loads and severe environmental conditions;
5. Hydraulic controls providing fast setting changes and simply clearing;
6. Long working life, low operating and maintenance costs;
7. All parts can be exchanged with Nordberg Symons cone crusher.
Application
Symons cone crusher are widely applied in metallurgy, construction, road building, chemical and phosphatic industry. It is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, grit stone, etc...
Cavity type of the crushing is decided by the application of the ores. Standard type is applicable to medium crushing, middle type is applicable to fine crushing and short-head type is applicable to super fine crushing.
Working Principle
1. When the Mine barite Symons cone crusher is working, the engine rotates around a fixed point driven by the belt wheel or the coupling.
2. The transmission shaft and the conical part of cone crusher swing under the force from the eccentric bushing, which makes the crushing wall of the Symons cone crusher close to the pierced mortar wall at intervals.
3. Then, the ores will be impacted, squeezed and bent constantly in the crushing chamber.
4. At last, the whole ore crushing process is finished.
5. The perfect combination of high-performance crushing chamber and high crushing frequency improves the handling ability of cone crusher to a greater degree.
SPECIFICATIONS FOR 7FT EHD-STD SYMONS CONE CRUSHER | ||||||||||
Item/Type | 7FT EHD - STD | |||||||||
F | M | E | EC | |||||||
Diameter of Cone(mm) | 2134(7') | |||||||||
Feed Diameter(mm) | 278 | 334 | 369 | 460 | ||||||
Discharge Opening(mm) | 19 - 38 | 25 - 51 | 31 - 64 | 38 - 64 | ||||||
Capacity(t/h) | 540 - 1026 | 855 - 1413 | 1116 - 1800 | 1242 - 1926 | ||||||
Main Motor | Power(kW) | 400 | ||||||||
Speed(r/min) | 490/985 | |||||||||
Voltage(V) | 6000 | |||||||||
Overall Dimensions | Length(mm) | 5930 | ||||||||
Width(mm) | 3771 | |||||||||
Height(mm) | 4372 | |||||||||
Weight of Machine(kg) | 106500 | |||||||||
Main Features
1. Higher capacity and less wear costs.
2. Wide range of application suitability.
3. Spring cone crusher machine is Easy to maintain, reduce the downtime and maintenance costs.
4. Stable running performance and easy operation.
5. Stable bevel wheel transmission device.
6. Balanced runout rotation ensures best capacity.
7. Proper operation, continuously load until the machine shut down scheduled.
2. Wide range of application suitability.
3. Spring cone crusher machine is Easy to maintain, reduce the downtime and maintenance costs.
4. Stable running performance and easy operation.
5. Stable bevel wheel transmission device.
6. Balanced runout rotation ensures best capacity.
7. Proper operation, continuously load until the machine shut down scheduled.
Detailed Image

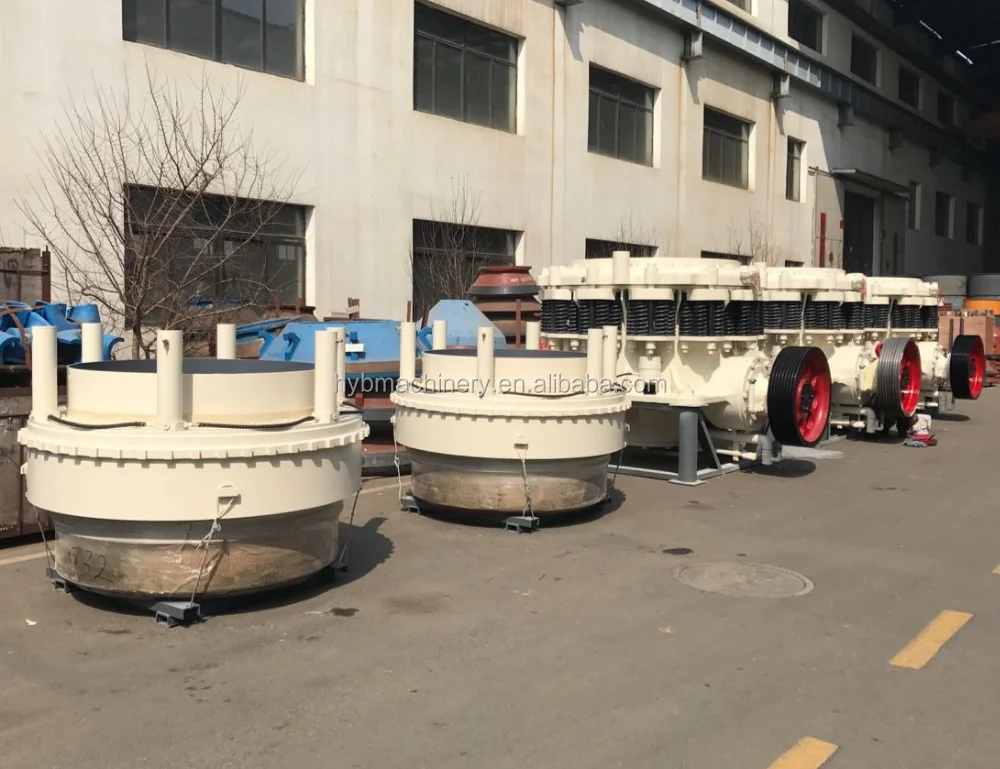

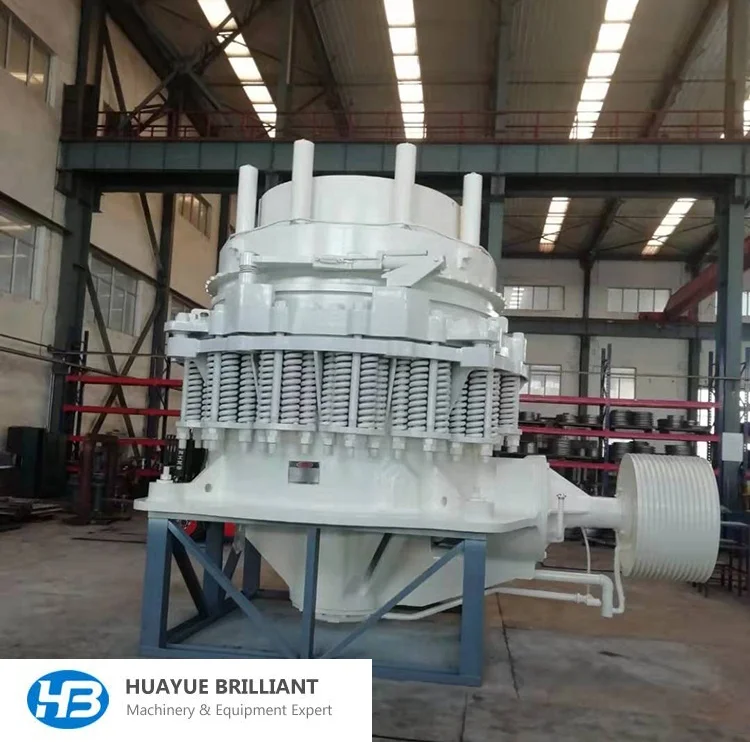

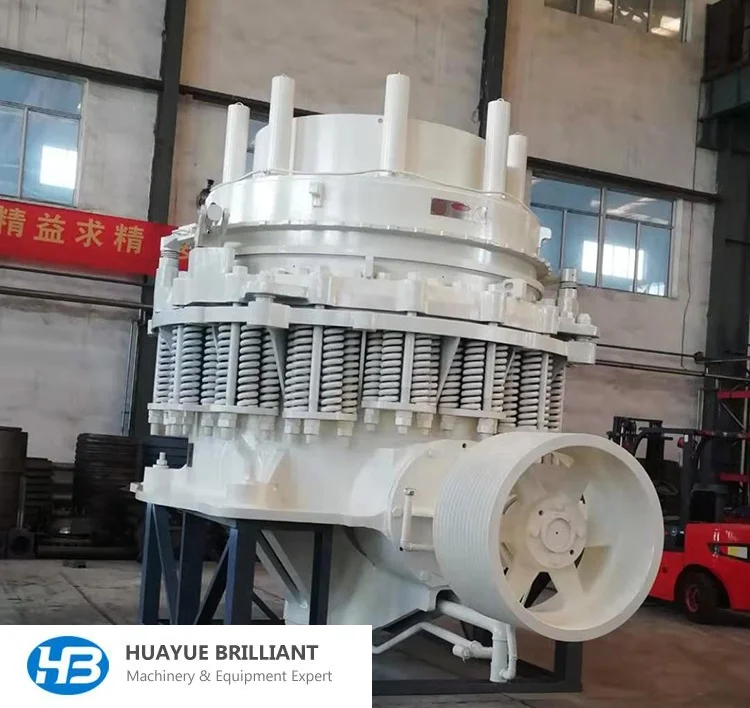

Symons Cone Crusher
Name: Symons Cone Crusher
Brand: HYB
Original: China Mainland
Domestic famous mine equipment manufactory.
Quality creates best brand, honest creates double win!!
Hydraulic Cone Crusher
Name: Hydraulic cone crusher
Brand: HYB
Original: China Mainland
Domestic famous mine equipment manufactory.
Quality creates best brand, honest creates double win!!
Single Cylinder Hydraulic Cone Crusher
Name: Single Cylinder Hydraulic Cone Crusher
Brand: HYB
Original: China Mainland
Domestic famous mine equipment manufactory.
Quality creates best brand, honest creates double win!!
Spring Cone Crusher
Name: Spring cone crusher
Brand: HYB
Original: China Mainland
Domestic famous mine equipment manufactory.
Quality creates best brand, honest creates double win!!
Company Information
VR
Shenyang Huayue Brilliant Machinery&Equipment Co.,Ltd is a manufacturer of a wide variety of Mining equipment, which we provide to customers all over the world. Our primary products include: Jaw Crusher, Cone Crusher, Ball Mill, Feeding Equipment, Vibrating Screen, and their related spare parts.
As a direct manufacturer and dealer of mining equipment with 10 years of experience in this field, in addition to our professional technology support, HYB is able to offer the most reliable, high-quality mining equipment to our customers. Our premium products are widely used in various fields, such as: the mining, metallurgy, highway, railway, and chemical industries. Our Crushers are widely used for stone crushing in the fields of mining, metallurgy, and building material; Ball Mill are widely used for Gold Mining, Copper Mining and so on.and our Vibrating Screens are sought after for dry and wet screening in the coal, mining, quarry, and other industries.
Our Service
Pre-Sales Service
Our goal is to provide minining equipment of excellent quality and reliability, in order to establish a reputation and relationship with our customers which will keep them customers for life.
We have a strict quality control system in place throughout the entire production process, so our products are all of the highest quality and reliability.

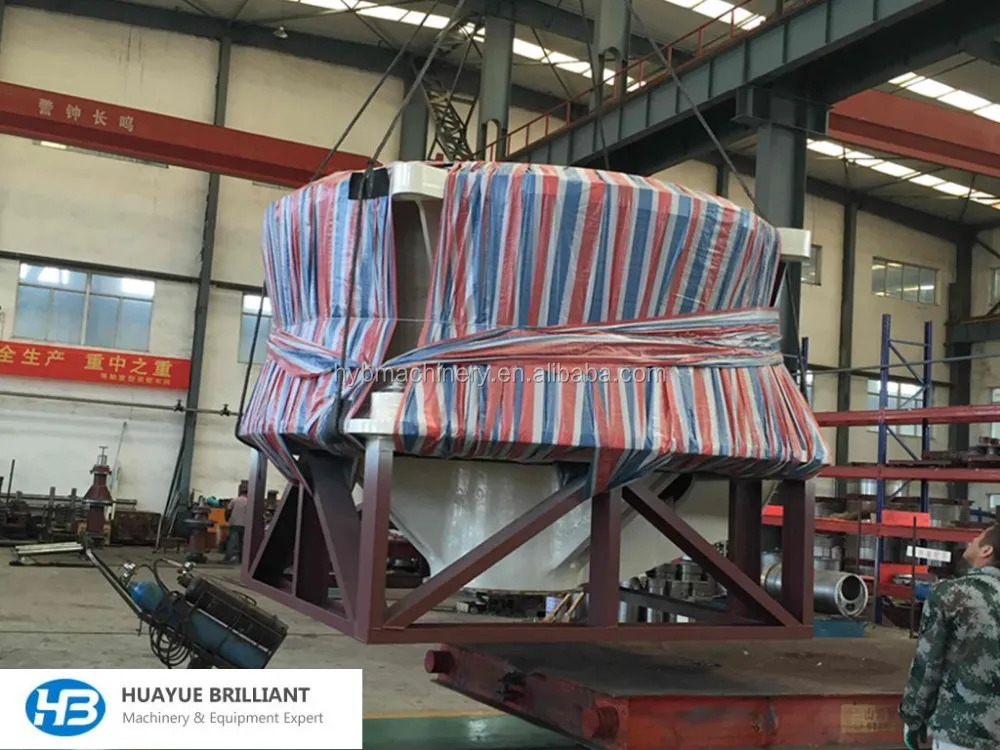

Packing & Delivery
Related Products
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
Products Name with link
91.8% Response Rate
FAQ
Q: Hi, are you mining machinery manufacturer?
A: Yes, our company warmly welcome clients to visit our plant at anytime. We can also provide samples test, mine design, equipment manufacture, after-sale service, etc...
Q: Which country have your products been exported?
A: We have been exported business for 10 years and we have lots of customers and agents in the world, such as Middle East, Malaysia, South Africa, Canada, America, etc...
Q: What information should customers give us, so that we can be able to provide you suitable quotation and service.
A: What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of HYB equipments is one year. And of course we will supply the spare parts for you at lowest cost.
Q: If I need the complete mineral processing line, can you help us to build it?
A: Yes, we can help you combine a complete mineral processing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas. HYB can set a complete processing line just as your require.
