Заводская поставка Светодиодная панель с подсветкой 595x595 40 Вт светодиодная
- Категория: >>>
- Поставщик: Shenzhen Lowcled Lighting Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1600092452612:
Описание и отзывы
Характеристики
Features
* Backlit 600*600 40W LED panel light.
* High efficiency & energy saving. Under the condition of the same illumination. It saves more than 67% energy compared with the traditional lamp.
* Wide input voltage(200-240V); Free-flicker.
* No UV & IR . It won’t distribute ray radiation.
* Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won’t generate EMI.
* High-performance external constant current driver, flat and smooth frame, very easy to clean.
* High efficiency & energy saving. Under the condition of the same illumination. It saves more than 67% energy compared with the traditional lamp.
* Wide input voltage(200-240V); Free-flicker.
* No UV & IR . It won’t distribute ray radiation.
* Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won’t generate EMI.
* High-performance external constant current driver, flat and smooth frame, very easy to clean.

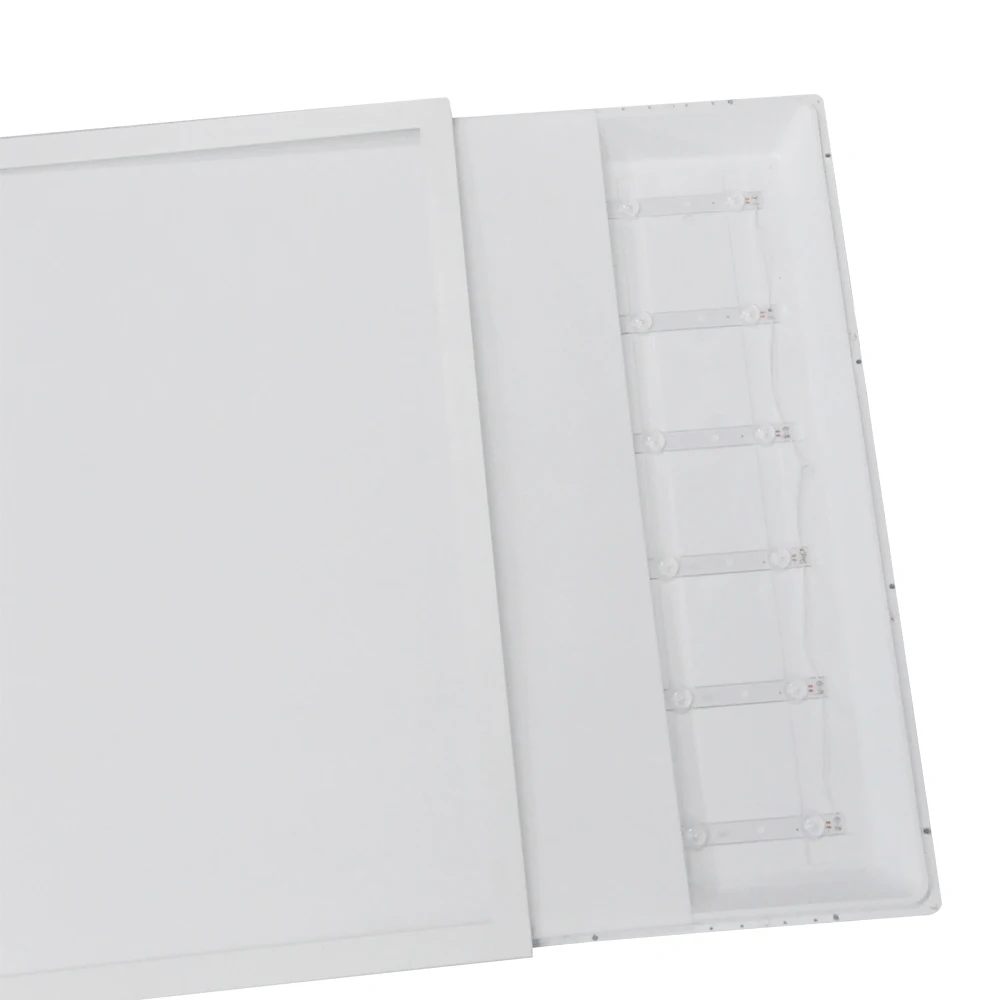

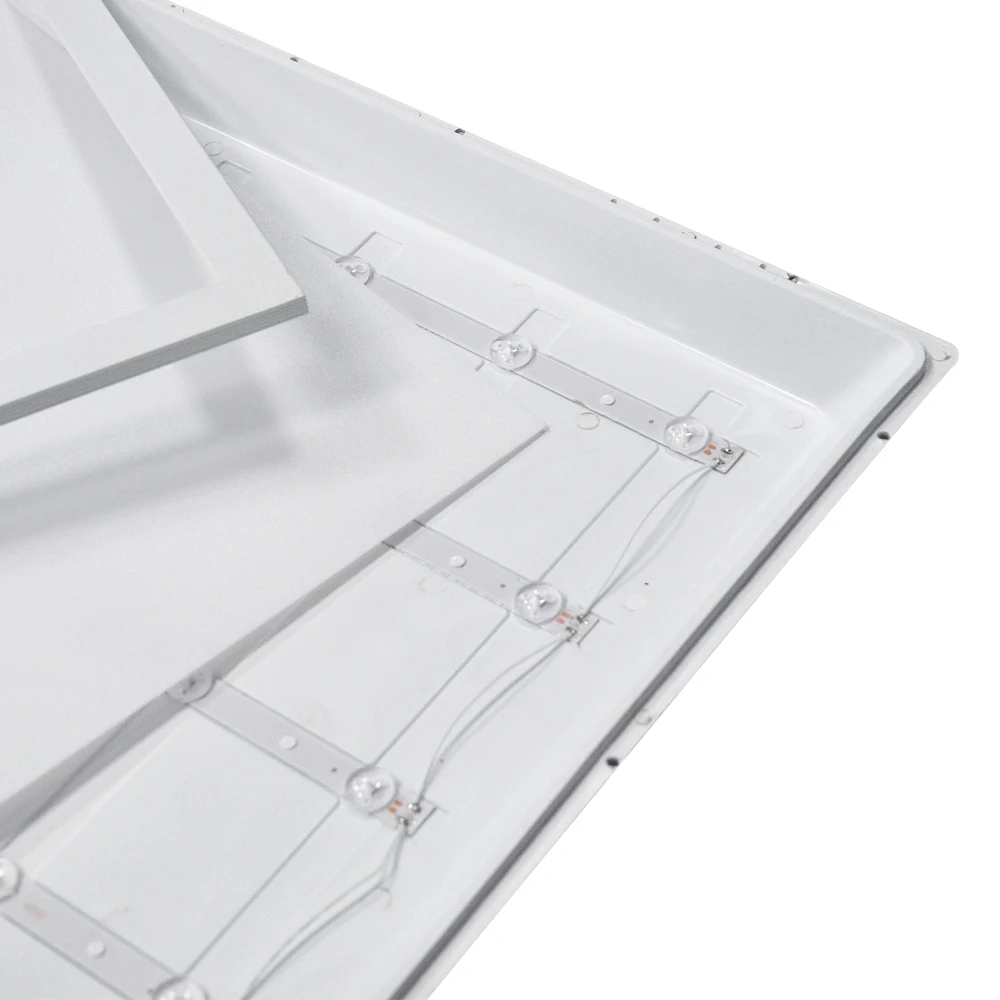

1. All sides are lined with LED's to grant optimal illumination.
2. Wide angle of deflection with even light distribution.
3. No start-up time, no flickering, no humming.
4. Independent LED circuit prevents complete blackout in case an LED fails.
5. Environmentally friendly, mercury and lead free.
6. Causes no electromagnetic interference.
7. Over 50'000 hours life expectancy.
2. Wide angle of deflection with even light distribution.
3. No start-up time, no flickering, no humming.
4. Independent LED circuit prevents complete blackout in case an LED fails.
5. Environmentally friendly, mercury and lead free.
6. Causes no electromagnetic interference.
7. Over 50'000 hours life expectancy.
Item No. | Size | Power | Lumen | LED | CCT | Voltage | Ra | Solution |
LL-ZPL-295X295-20W-001 | 295*295*30MM | 20W | 100LM/W | 3030SMD | 2700-6500K | 200-240VAC | ≥80 | Iron backplate |
LL-ZPL-295X595-20W-001 | 295*595*30MM | 25W | 100LM/W | 3030SMD | 2700-6500K | 200-240VAC | ≥80 | Iron backplate |
LL-ZPL-595X595-40W-001 | 595*595*30MM | 40W | 100LM/W | 3030SMD | 2700-6500K | 200-240VAC | ≥80 | Iron backplate |
LL-ZPL-295X1195-40W-001 | 295*1195*30MM | 40W | 100LM/W | 3030SMD | 2700-6500K | 200-240VAC | ≥80 | Iron backplate |
LL-ZPL-595X1195-60W-001 | 595*1195*30MM | 60W | 100LM/W | 3030SMD | 2700-6500K | 200-240VAC | ≥80 | Iron backplate |
Product Description
Product Presentation
Model | LL-ZPL-595X595-40W-001 |
Power（±10%） | 40W |
Input(Frequency) | AC 220-240V（50/60Hz） |
Lumen | 3600lm |
Input Current | 0.2A |
Output Voltage | DC30-40V |
Output Current | 9600mA |
PF | >0.9 |
LED Type | SMD2835 |
CCT(K) | 3000K / 4000K / 6000K |
CIR(Ra) | ≥80 |
Beam angle | 120° |
Working Temperature | -20℃～40℃ |
Storage Temperature | -30℃～60℃ |
Life span of Light Source | ≧30000 H |
IP Grade | IP40 |
Body Materials | PP+Aluminum |
Product Dimension | 595*595*30mm |
Carton Size | 690*245*640mm(6pcs) |
Gross Weight | 16.3 kg (6pcs) |
Size
Unit: mm
Application
* Direct replacement for luminaires with 6x8 W fluorescent lamps
* Corridors
* Offices
* Conference rooms
* Reception areas
* Foyers
* Elevators
* Suitable for recessed ceiling systems with grid size of 595x595 or 600x600 mm.
* Corridors
* Offices
* Conference rooms
* Reception areas
* Foyers
* Elevators
* Suitable for recessed ceiling systems with grid size of 595x595 or 600x600 mm.
Shipping
Certificate
Company Introduction
VISION
Better illumination for all.
MISSION
Advance lighting technologies to make our life brighten.
CORE VALUES
Align with our customers
Value and enrich our people
Be precise and practical
Always forge ahead
Lowcled Lighting Co., Ltd. is a high-tech enterprise which is specialized in developing, production and marketing of indoor and outdoor LED lighting products. We are established in 2004 based in Shenzhen, China. Our mission is to create a cleaner, greener, healthier environment by developing more energy efficient LED light fixtures. Through years of hard work and continuous innovation, we have won the excellent reputation as one of the high quality and trusted suppliers in China.
We provide a wide range of LED Light fixtures including LED flood light, LED stadium light, LED street light, LED high bay light, LED wall pack, LED canopy light, LED tri-proof light, LED tube, LED panel light, LED downlight, LED grow light, LED bulbs, LED strip light, LED track light, LED smart light etc. Our products have been highly approved by customers from Europe, North America, and Australia for its excellent quality, good service and endless innovation.
As a professional LED lighting manufacturer, our company, strictly sticking to" Customer first" business philosophy as well as taking environmental protection as our own commission, has launched many series of energy-saving, environment-friendly led lighting fixtures in the past few years. At the same time, we will be always like to continuously improve, innovate ourselves to meet up worldwide customers.
Better illumination for all.
MISSION
Advance lighting technologies to make our life brighten.
CORE VALUES
Align with our customers
Value and enrich our people
Be precise and practical
Always forge ahead
Lowcled Lighting Co., Ltd. is a high-tech enterprise which is specialized in developing, production and marketing of indoor and outdoor LED lighting products. We are established in 2004 based in Shenzhen, China. Our mission is to create a cleaner, greener, healthier environment by developing more energy efficient LED light fixtures. Through years of hard work and continuous innovation, we have won the excellent reputation as one of the high quality and trusted suppliers in China.
We provide a wide range of LED Light fixtures including LED flood light, LED stadium light, LED street light, LED high bay light, LED wall pack, LED canopy light, LED tri-proof light, LED tube, LED panel light, LED downlight, LED grow light, LED bulbs, LED strip light, LED track light, LED smart light etc. Our products have been highly approved by customers from Europe, North America, and Australia for its excellent quality, good service and endless innovation.
As a professional LED lighting manufacturer, our company, strictly sticking to" Customer first" business philosophy as well as taking environmental protection as our own commission, has launched many series of energy-saving, environment-friendly led lighting fixtures in the past few years. At the same time, we will be always like to continuously improve, innovate ourselves to meet up worldwide customers.
