Пневматическая телескопическая мачтовая лампа 20 м и антенна для камеры PTZ
- Категория: >>>
- Поставщик: Tianjin Talents International Trade Co. Ltd.
Сохранить в закладки 1600092989326:
Описание и отзывы
Характеристики
Product Description
Talents large payload telescopic mast series
they are specifically designed for use with large payloads, and used with a variety of military battle vehicles,
within the scope of special security-technical applications by which the most sensitive optronic systems, objective determination systems or heavy-weight radar systems are used, Talents masts are the first choice worldwide.
height up to 30m, payload up to 600kg at height slected.
Classification of masts
Model"AT8"---no cable and no lock, for Short time using and small head load.
Model"AT9"---with lock. for long time using and large head load.
Model"AT7"---with cable. for mounting camera, lights or antenna.

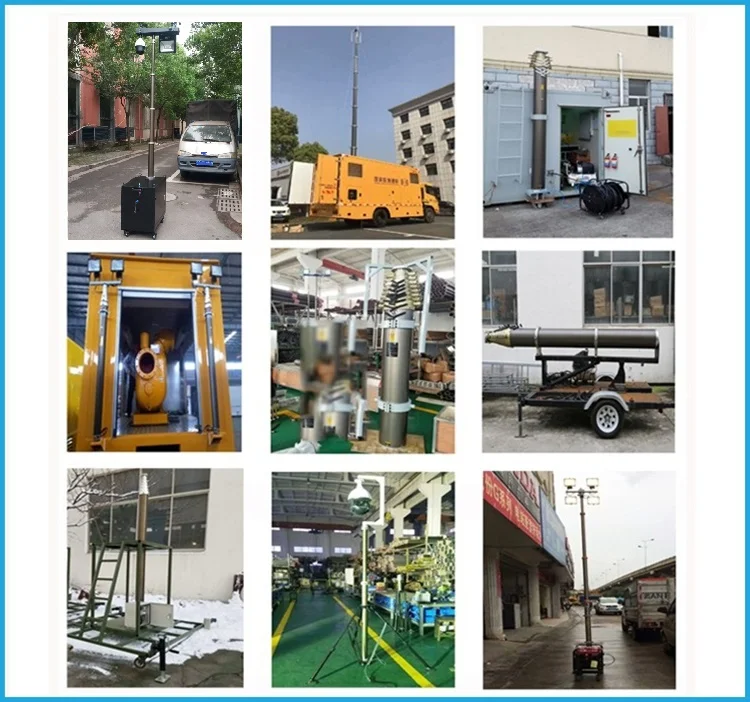

Common application
10m telescopic mast, that can deploy loads from 50kg to 600kg, usually used by army or international forces to enhance capabilities like communication, security, surveillance, reconnaissance and detection of targets throughout the battlefield.
Mast specification
Available Extended height:2m to 30m
Head load capacity:1kg to 600kg at height selected
Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.
If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.
Essential features
Model | TAL-P20-3.6-100 |
payload | 100kg |
height extended | 20m |
height retracted | 3.6m |
No. of section | 10 |
outer tube diameter | 279-252-229-202-180-160-140-118-98-82-66mm |
wind loading capaicty | 110km/h with guy wires fixed |
working air pressure | 0.20Mpa |
working temperature | -20 deg C to +70 deg C |
accessories | DC12V/24V/AD220V/110V air compressor-------1pc tripod or car clamp----------------------------------------------1pc air hose----------------------------------------------------------------1pc guy wires-------------------------------------------------------------4pcs ground anchors---------------------------------------------------4pcs control valve--------------------------------------------------------1pc top plate--------------------------------------------------------------1pc bottom base--------------------------------------------------------1pc |
Packing & Delivery
package | ||||||
carton packed | normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request | |||||
plywood packed | normal package is plywood case for extended height more than 10m, weight more than 70kg mast | |||||

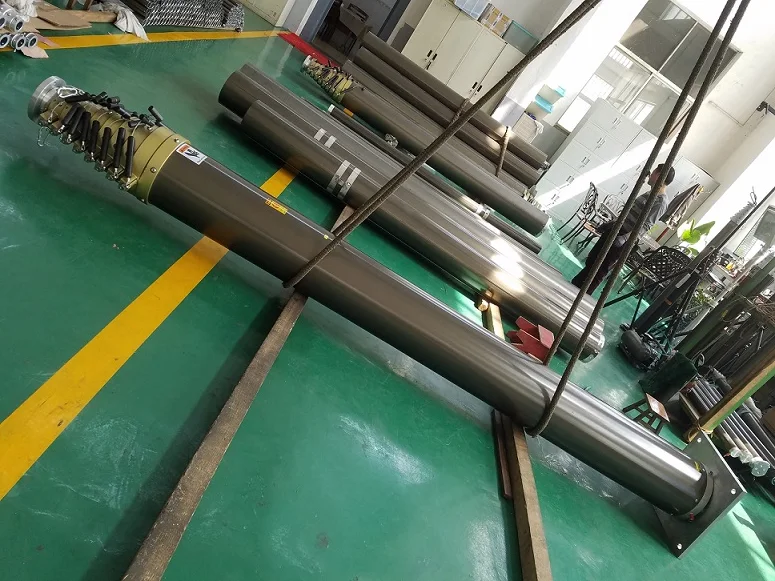

Detail
Mast material is aluminum alloy 6063-T5
Tube surface treatment is Hard anodizing
Color:Bronze, white and balck for choose.

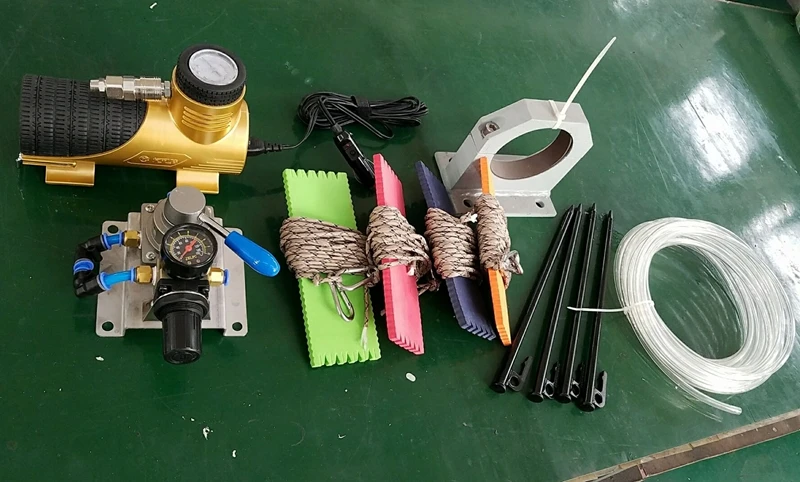

Acessories
Certifications
Catalog
Pneumatic telescopic mast | ||||||||||||
MODEL No. | Extended Height (m) | Retracted Height (m) | Bottom OD (mm) | TOP OD (mm) | Section NO. | Head-load (KG) | ||||||
TAL-2.0-1.3-150-AT8 | 2 | 1.3 | 118 | 98 | 2 | 150 | ||||||
TAL-3.0-1.5-50-AT8 | 3 | 1.5 | 98 | 66 | 3 | 50 | ||||||
TAL-4.0-1.3-20-AT8 | 4 | 1.3 | 87 | 43 | 4 | 20 | ||||||
TAL-4.5-1.65-50-AT9 | 4.5 | 1.65 | 118 | 66 | 4 | 50 | ||||||
TAL-5.0-1.7-40-AT8 | 5 | 1.7 | 98 | 51 | 4 | 40 | ||||||
TAL-5.0-1.75-30-AT9 | 5 | 1.75 | 98 | 51 | 4 | 30 | ||||||
TAL-6.0-1.7-30-AT8 | 6 | 1.7 | 118 | 51 | 5 | 30 | ||||||
TAL-6.0-1.75-12-AT8 | 6 | 1.75 | 87 | 28 | 5 | 12 | ||||||
TAL-6.0-2.0-50-AT9 | 6 | 2 | 118 | 66 | 4 | 50 | ||||||
TAL-6.0-1.95-30-AT8 | 6 | 1.95 | 87 | 43 | 4 | 30 | ||||||
TAL-6.0-1.5-25-AT9 | 6 | 1.5 | 118 | 51 | 5 | 25 | ||||||
TAL-7.0-1.95-40-AT8 | 7 | 1.95 | 118 | 51 | 5 | 40 | ||||||
TAL-8.0-1.8-50-AT9 | 8 | 1.8 | 160 | 51 | 7 | 50 | ||||||
TAL-8.0-2.2-60-AT7 | 8 | 2.2 | 140 | 66 | 5 | 60 | ||||||
TAL-8.0-2.0-25-AT8 | 8 | 2 | 118 | 36 | 6 | 25 | ||||||
TAL-9.0-2.15-30-AT8 | 9 | 2.15 | 140 | 51 | 6 | 30 | ||||||
TAL-10.0-2.4-30-AT7 | 10 | 2.4 | 140 | 51 | 6 | 30 | ||||||
TAL-12.0-2.7-250-AT8 | 12 | 2.7 | 279 | 140 | 7 | 250 | ||||||
TAL-15.0-3.5-150-AT9 | 15 | 3.5 | 229 | 98 | 6 | 150 | ||||||
TAL-16.0-3.0-30-AT8 | 16 | 3 | 180 | 51 | 8 | 30 | ||||||
TAL-18.0-3.0-100-AT8 | 18 | 3 | 279 | 66 | 10 | 100 | ||||||
TAL-20.0-3.3-55-AT8 | 20 | 3.3 | 229 | 66 | 9 | 55 | ||||||
TAL-30.0-4.0-30-AT8 | 30 | 4 | 316 | 51 | 13 | 30 | ||||||
NOTE:
above specification are standard model, customized size accepted
3 differents mast are in great demand recently
6m 30kg payload pneumatic mast
click the picture to view more details
15m 50kg payload motorized mast
click the picture to view more details
18m hand crank manual mast
click the picture to view more details
FAQ
Q1: How long is warranty? A1: 1 year
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
Welcome to contact
Company profile
About"Talents"
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers an one for one timely information feedback, we have organized an expert team for quality control and inspection system, we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer.
We think outside the box and are continually developing new products to meet customer requirements, what you are asking for is our motive power of task, we wish one of our products will well-meet what you demand.
Any questions or inquiry, welcome to contact us at any time
Reply the inquiry by email within 24 hours
by Skype/Whatsapp/Wechat immidately
Похожие товары
Коллекция 2021 года, куртка с логотипом на заказ, мужская бейсбольная куртка, куртка-бомбер, куртка kadin ceketi, Женская куртка
29,50 $ - 34,80 $
Greenpedel bafang Средний двигатель 36 в 250 Вт с литиевой батареей, китайский Электрический велосипед
1 075,00 $ - 1 125,00 $
Последние популярные сексуальные волосы для волос, норковые бразильские волосы от поставщика Fumi волосы с двойным нарисованным рисунком, оптовая продажа, двойные нарисованные волосы Fumi
Новое поступление со склада автоматическая раздвижная дверь/система ворот/оператор по заводской

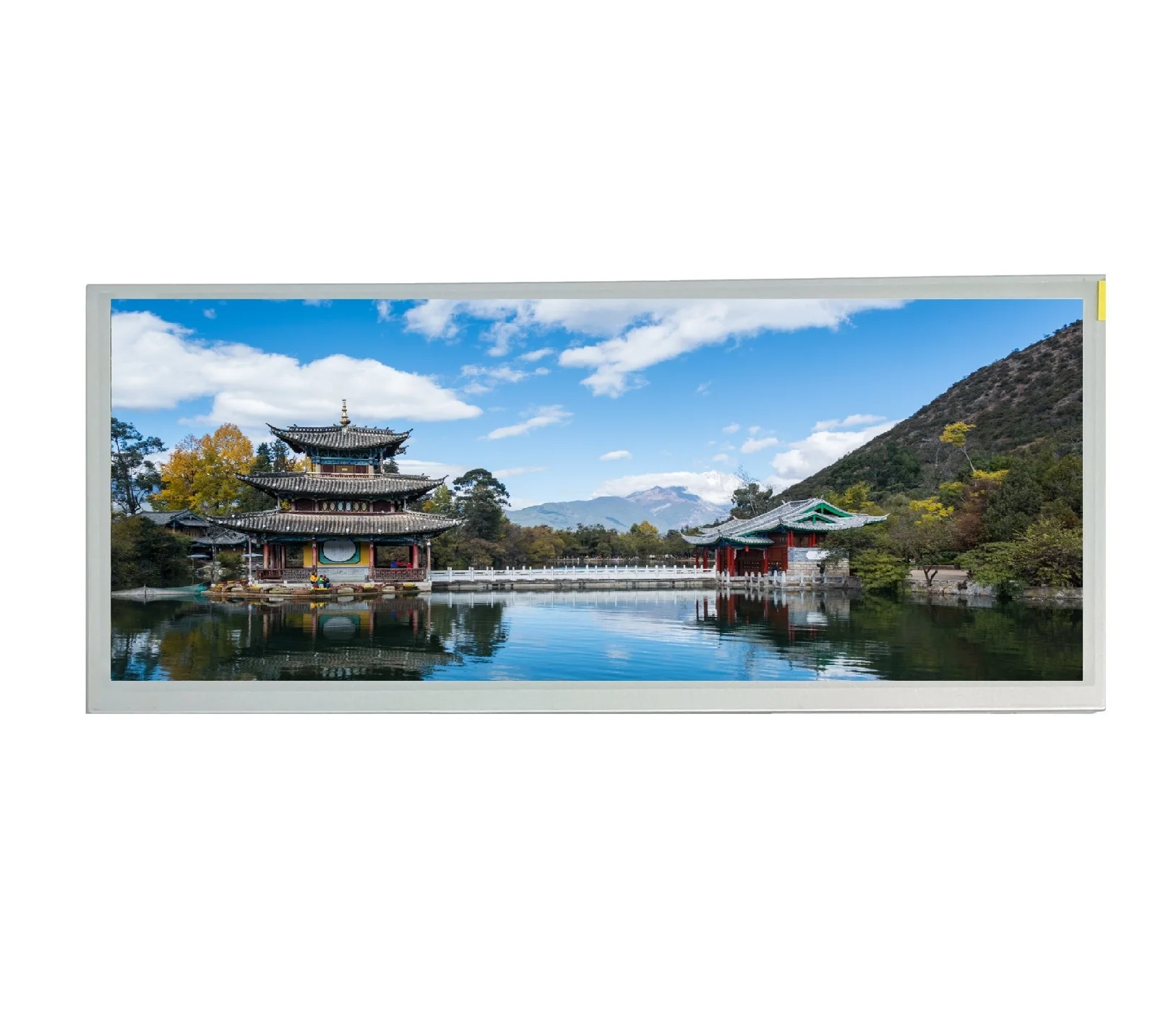

Оригинальный ЖК-дисплей класса А 10,25 дюйма, Tft-дисплей 1280x480, модуль 60pin, высокая яркость, Lvds, автомобильная панель, кластер экрана
