Поплавок из ПЭНД для дноуглубительной трубы распродажа
- Категория: >>>
- Поставщик: Tianjin Dingrunda Technology Co. Ltd.
Сохранить в закладки 1600094152398:
Описание и отзывы
Характеристики
Products Description

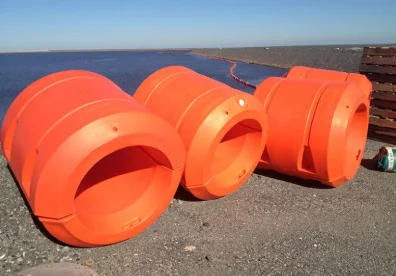

PE PIPE FLOATERS
The cover material is density polyethylene plastic, it can provide great buoyancy.The filled material is Polyurethane foamed plastic .The thickness ranges from 5mm--66mm. The polyethylene foam float usually cover outside the HDPE pipe and rubber hoses to provide great buoyancy.Constructed from 100% closed cells reticulated foam, embedded layers of high tenacity fabrics and hot sprayed elastomer skin coating, PE cylindrical floats are produced by rotational moulding Available in two halves with coupling bolts or in monolithic version without bolts.
Specification
Nominal Diameter(mm) | Floater Inner Diameter(mm) | Floater Inner Diameter(mm) | Floater Length | Buoyancy(kg) |
100 | 130 | 500 | 500 | 90 |
150 | 180 | 500 | 800 | 140 |
200 | 230 | 600 | 700 | 170 |
250 | 280 | 700 | 900 | 340 |
300 | 330 | 1000 | 1000 | 500 |
350 | 380 | 1100 | 1100 | 550 |
400 | 430 | 1200 | 1200 | 1100 |
450 | 480 | 1300 | 1300 | 1150 |
500 | 530 | 1300 | 1400 | 1300 |
550 | 580 | 1400 | 1500 | 1600 |
600 | 630 | 1450 | 1650 | 1900 |
650 | 680 | 1500 | 1800 | 2100 |
700 | 730 | 1600 | 1900 | 2200 |
750 | 780 | 1700 | 1900 | 2700 |
800 | 830 | 1800 | 2000 | 3100 |
850 | 880 | 2000 | 2500 | 4600 |
900 | 930 | 2200 | 2600 | 5000 |

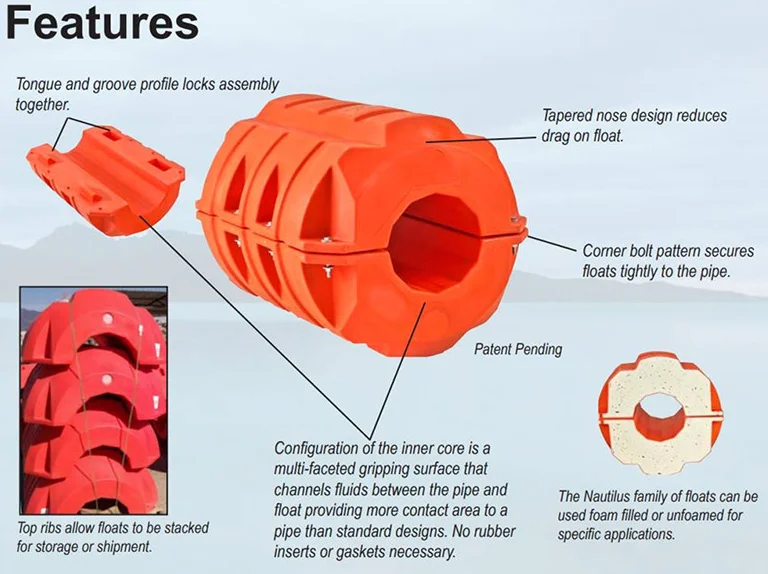

Features
1. gasoline-resistance, diesel oil-resistance
2. light weight,good toughness
2. light weight,good toughness
3. convenient to install and demount
4.very low absorption rate
5.reuse is available
6.anti-wave,anti-aging
7.Simple installation and low maintenance costs
8. service temperature range-60°C-80°C
8. service temperature range-60°C-80°C
Advantages
1.Used in many industries; mining, water treatment, aquaculture, dredging
2.Heavy duty, high impact rotomoulded polyethylene floats
3.Suitable for floating cables, pipes and hoses diameters from 10mm to 1000mm
4. Quick-release strap option saves time,money
5.Convenient storage / security holes Locating pins for ease of installation
6.Extensive colour range and optional foam filled models available
2.Heavy duty, high impact rotomoulded polyethylene floats
3.Suitable for floating cables, pipes and hoses diameters from 10mm to 1000mm
4. Quick-release strap option saves time,money
5.Convenient storage / security holes Locating pins for ease of installation
6.Extensive colour range and optional foam filled models available
Connection Methods
Title goes here.
1.Ensure correct Pipe Float size prior to installation.
2.Position one Pipe Float half alongside designated pipe.
3.Lift pipe onto Pipe Float.
4.Place second Pipe Float half over pipe. All 4 lugs should engage with opposite Pipe Float half.
5.Insert all 4 sets of bolts and washers ensuring that a washer is used under each bolt head and each nut.
6.Tighten all 4 sets finger tight so that the gap between the two float halves is approximately equal on both sides.
7.Using spanners or socket wrenches, tighten all 4 bolt sets sequentially, tightening no more than one full rotation on each set
2.Position one Pipe Float half alongside designated pipe.
3.Lift pipe onto Pipe Float.
4.Place second Pipe Float half over pipe. All 4 lugs should engage with opposite Pipe Float half.
5.Insert all 4 sets of bolts and washers ensuring that a washer is used under each bolt head and each nut.
6.Tighten all 4 sets finger tight so that the gap between the two float halves is approximately equal on both sides.
7.Using spanners or socket wrenches, tighten all 4 bolt sets sequentially, tightening no more than one full rotation on each set

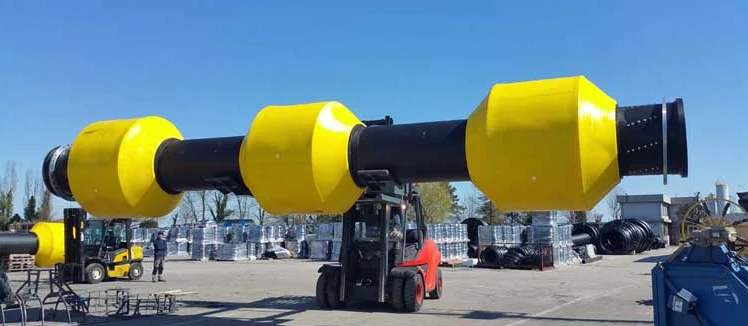

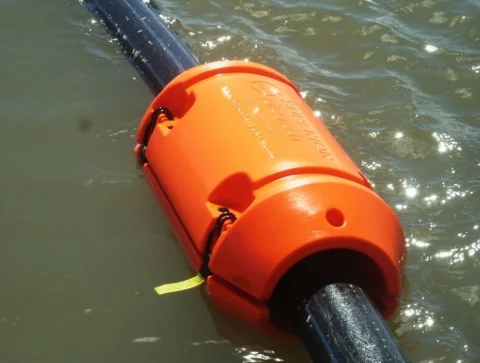

Appication Show
CONTACT：
Mobile: +0086-18222118739
(WhatsApp, Wechat, Linkedin Facebook)
FAQ
Q: How to Select Dredging Pipeline Floaters?
A:The polyethylene floaters are usually used for the dredging projects, land reclamation projects in the world. They are the ideal floating material for pipelines.
When choosing the floaters, we must know the following points:
1.Buoyancy: usually the buoyancy need to be 30% higher than the pipelines weights(including 1.3 ration slurries). When the
pipeline working, the floaters above the water surface should be about 1/4 of the height of steel pipes.
2.Weight: no less 3-5% than the ordered goods. The weight of the floaters is related to the hull weight and the foam’s density and volume. The foam density should be about 35kg/m³.
3.Plastify strength: the plasticized well floaters will have a flat and smooth surface without obvious particles, with best
tensile strength.
4.Foam’s density: about 35kg/m³,with tensile strength of 0.2 Mpa. There is a little bit flexibility without stick and crisp. The
floaters have such properties will be the best and most durable floaters.
Q: The Signal of the orange color of the floater?
A: The orange color of the floaters has following indications:
ensure the floating of the pipelines
A:The polyethylene floaters are usually used for the dredging projects, land reclamation projects in the world. They are the ideal floating material for pipelines.
When choosing the floaters, we must know the following points:
1.Buoyancy: usually the buoyancy need to be 30% higher than the pipelines weights(including 1.3 ration slurries). When the
pipeline working, the floaters above the water surface should be about 1/4 of the height of steel pipes.
2.Weight: no less 3-5% than the ordered goods. The weight of the floaters is related to the hull weight and the foam’s density and volume. The foam density should be about 35kg/m³.
3.Plastify strength: the plasticized well floaters will have a flat and smooth surface without obvious particles, with best
tensile strength.
4.Foam’s density: about 35kg/m³,with tensile strength of 0.2 Mpa. There is a little bit flexibility without stick and crisp. The
floaters have such properties will be the best and most durable floaters.
Q: The Signal of the orange color of the floater?
A: The orange color of the floaters has following indications:
ensure the floating of the pipelines
Other Related pipe ：flexible pvc pipe,floating cage,floating fish cage ,hdpe butt welding machine,hdpe conduit,hdpe corrugated pipe,hdpe duct ,hdpe fish cgae floating,hdpe pipe,hdpe pipe 1 inch,hdpe pipe 100mm,hdpe pipe 110mm price ,hdpe pipe 250mm,hdpe pipe 3 inch,4 inch pvc pipe,5 inch pvc pipe,6 inch diameter hdpe pipe,6 inch diameter pvc pipe,63mm hdpe pipe,75mm hdpe pipe price ,8 inch pvc water pipe ,black pe pipe,butt fusion welding machine,cage fish farming ,conduit pvc pipe,diameter 1000mm hdpe pipe ,dreger pipe,dredging pipe ,1 inch pvc pipe price ,10 inch diameter pvc pipe.100mm diameter pvc pipes,12 inch hdpe pipe prices ,12 inch pvc pipe,14 inch hdpe pipe.14 inch pvc pipe,150mm hdpe pipe,160mm hdpe pipe price ,20 inch diameter pvc pipe ,2000 pvc pipe price ,20mm pvc pipe ,24 inch drain pipe ,4 inch black plastic irrigation pipe price
Похожие товары

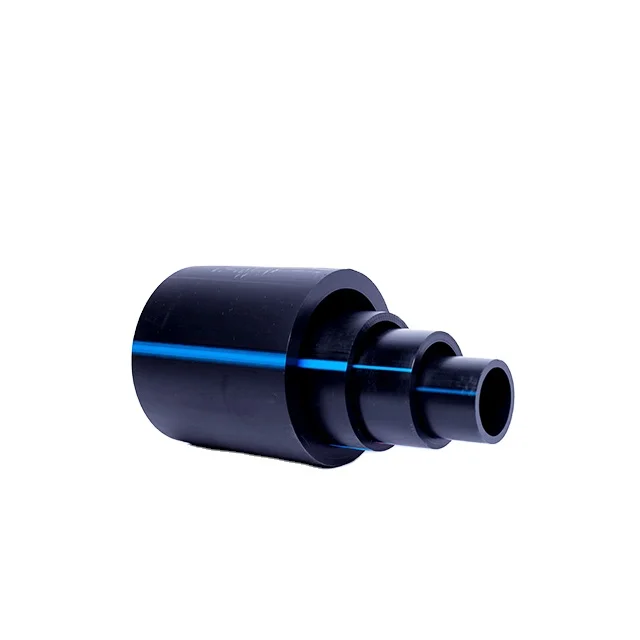

40 мм HDPE класс 10 пластиковых труб 450 мм HDPE водопроводная труба
31,33 ₽ - 312,14 ₽

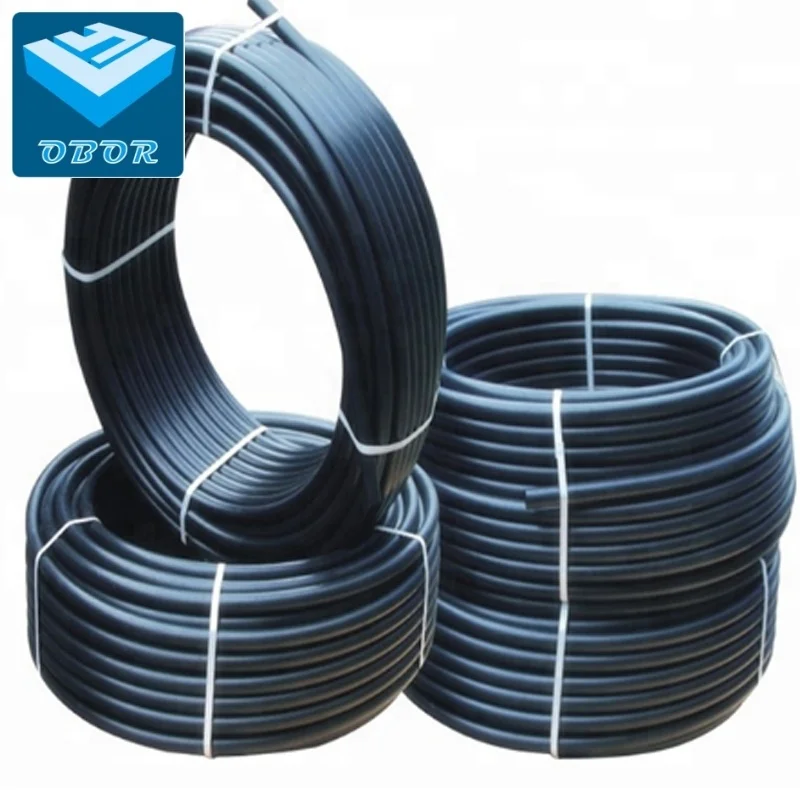

3 4 6 10 12 24 36 дюймов 150 мм 160 мм 200 мм 250 мм 300 мм 600 мм 16 бар pe100 ПЭНД труба прайс-лист
Полиэтиленовый шланг из ПВХ, шланг высокого давления, силовой распылитель
12,97 ₽ - 24,85 ₽

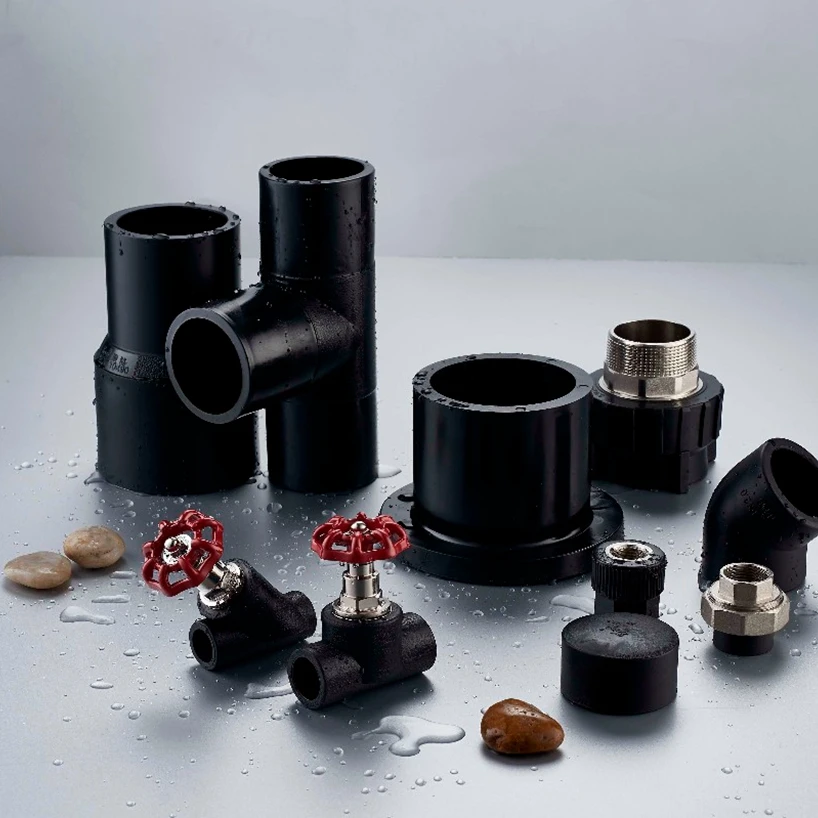

Бренд REHOME, труба и фитинги HDPE PE100, класс 8, класс 10, труба PE 12,5
16,21 ₽ - 34,57 ₽
Китай Цена по прейскуранту завода-изготовителя 20 мм-1400 мм Спецификация водопроводные трубы из полиэтилена высокой плотности 40 мм используется для полива и орошения 10 дюймов водопроводные трубы из полиэтилена высокой плотности для продажи
27,01 ₽

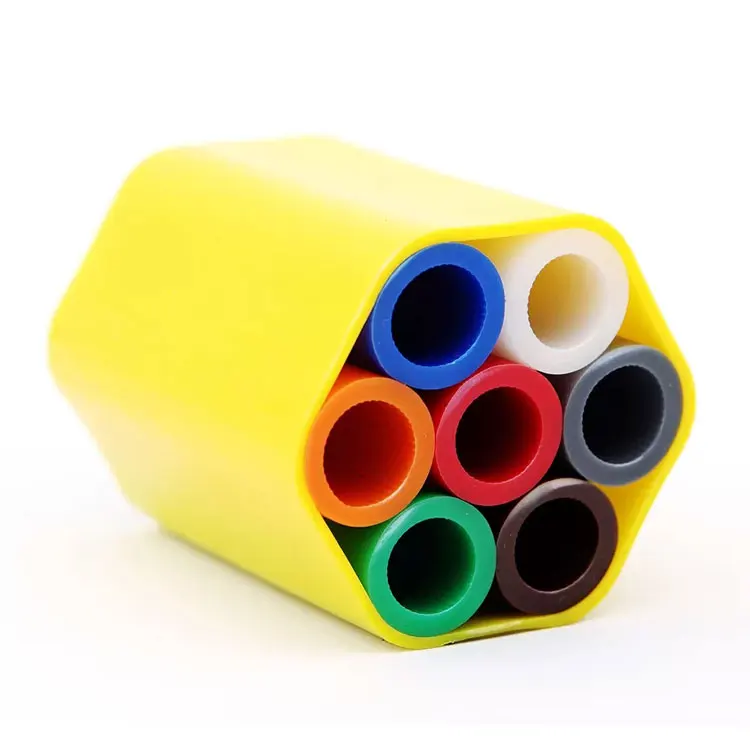

Комплект микроканалов из полиэтилена высокой четкости, 7 каналов, 14/10 мм
11,89 ₽ - 132,85 ₽

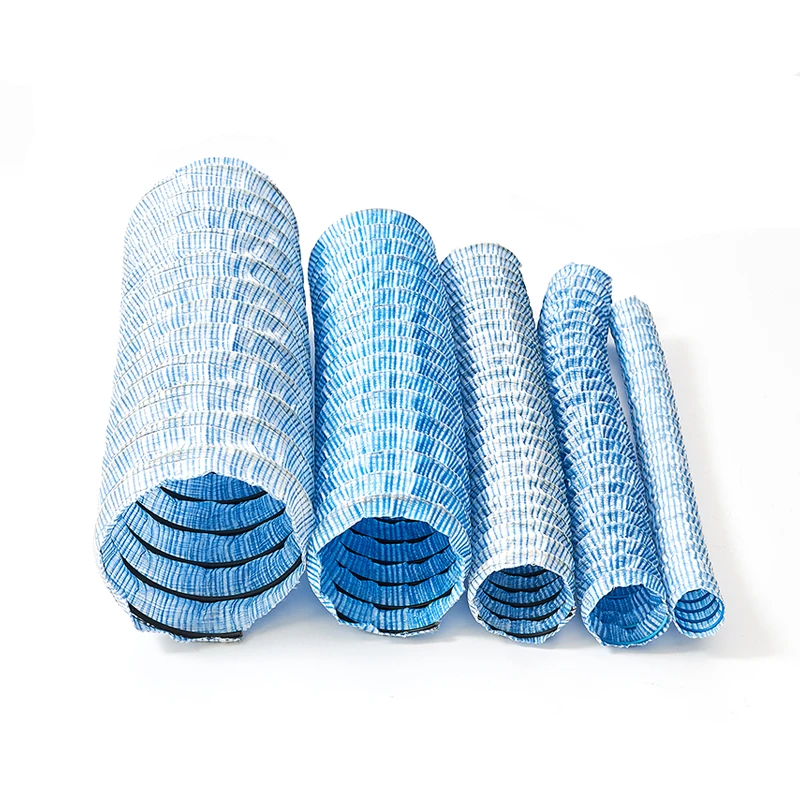

Садовые подземные склоны дренажные системы прочный мягкий проникающий Водопровод
