Машина для изготовления флексографских пластин компьютер печати цена
- Категория: >>>
- Поставщик: Henan Minko Machinery Co. Ltd.
Сохранить в закладки 1600094540766:
Описание и отзывы
Характеристики
Product Description

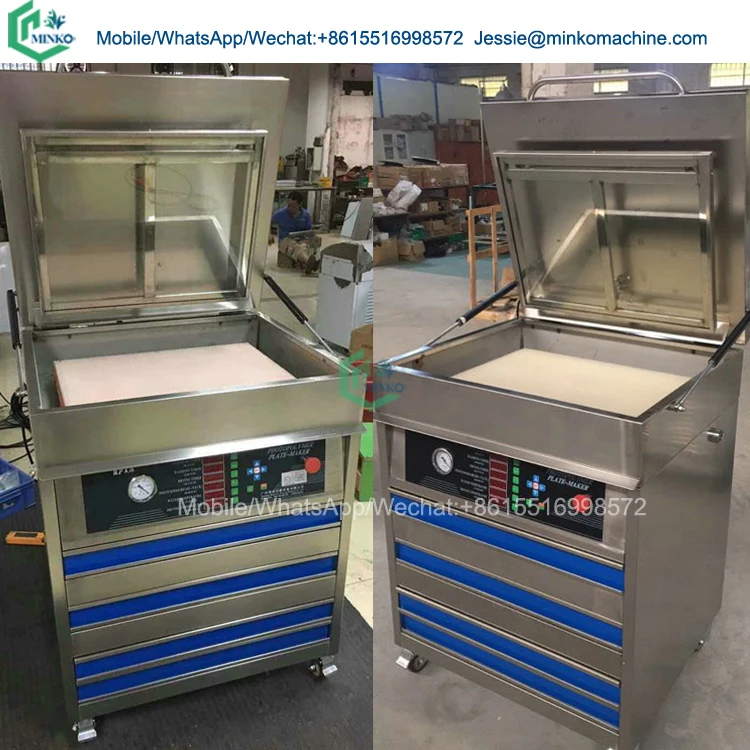

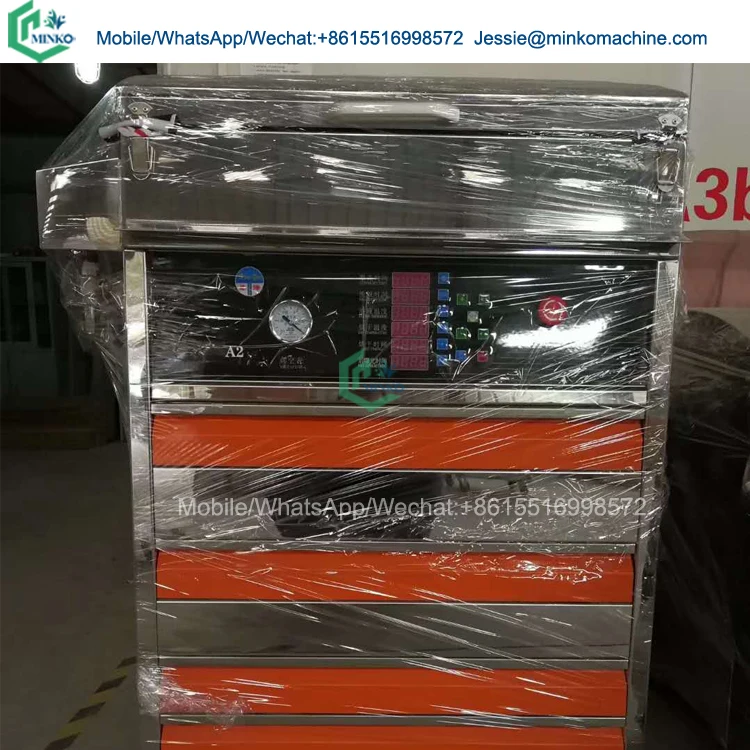

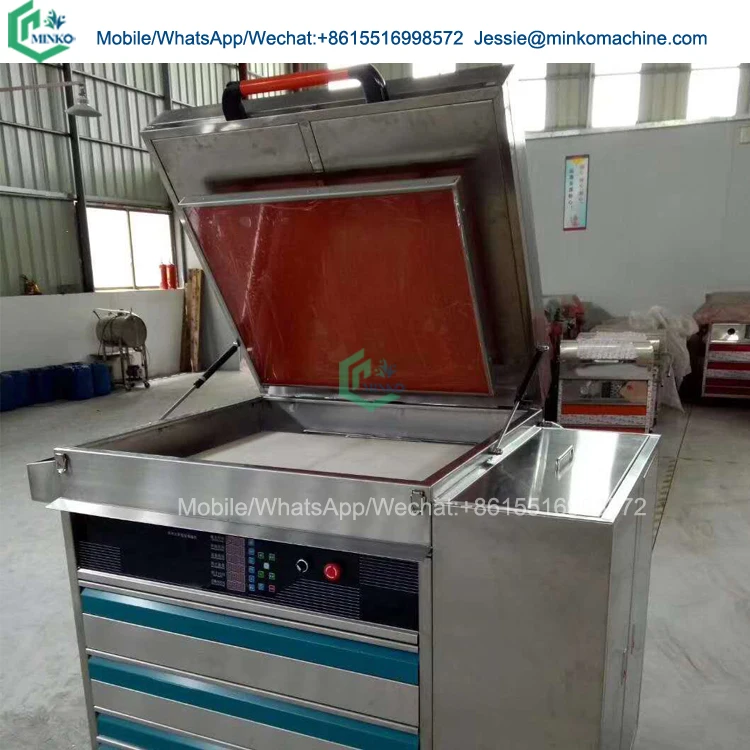

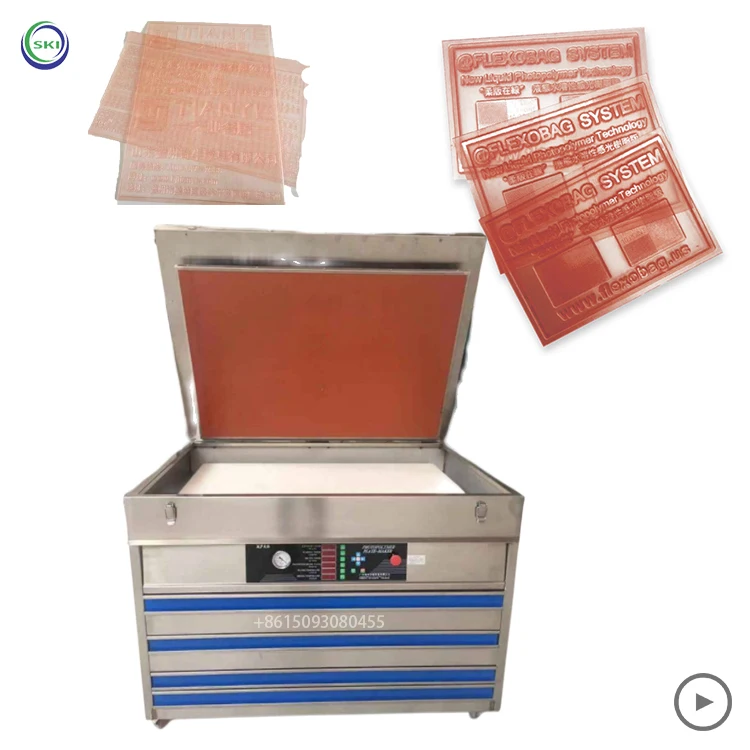

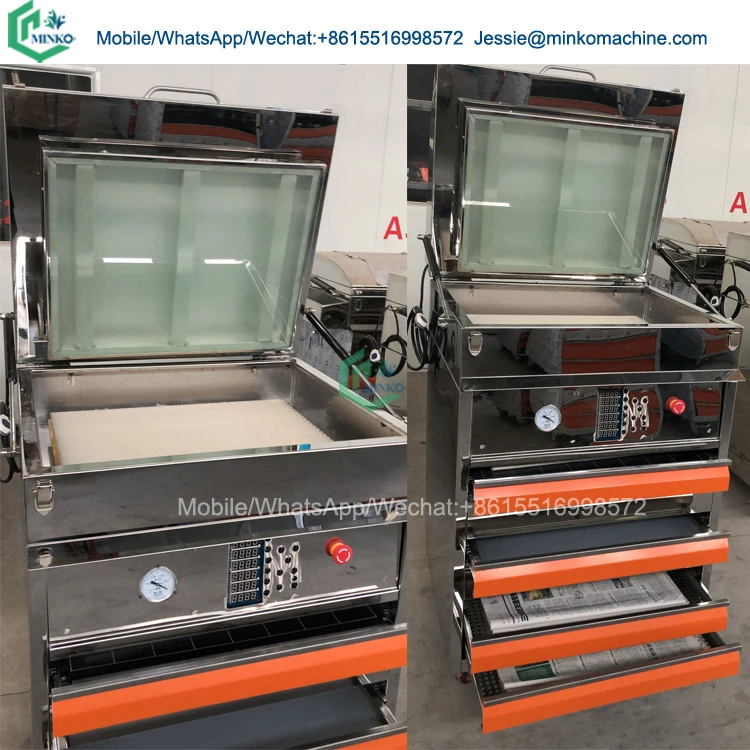

flexo plate maker machine computer to plate printing machine price
according to different plate thickness. Usually we called into two types: water wash machine and solvant wash machine.
1. Integrate several functions of exposure, washing, drying and sticking.
2. Digital display, computer intelligent control.
3. Imported Philips lamp, professional electronic ballast, real and perfect reproduction of graphics and text, work more stable.
4. Powerful vacuum device, high-strength ultra-flat suction plate.
5. Water filtration circulation device to effectively ensure the purity of the washing water
6. Water tank intelligent heating constant temperature system, dry burning protection device.
7. The plate is automatically pasted, and the work is done.
1. Integrate several functions of exposure, washing, drying and sticking.
2. Digital display, computer intelligent control.
3. Imported Philips lamp, professional electronic ballast, real and perfect reproduction of graphics and text, work more stable.
4. Powerful vacuum device, high-strength ultra-flat suction plate.
5. Water filtration circulation device to effectively ensure the purity of the washing water
6. Water tank intelligent heating constant temperature system, dry burning protection device.
7. The plate is automatically pasted, and the work is done.
Flexo plate making machine | ||||||||
Model | Plate making size | Power | Dimensions | Weight | ||||
HYD230 | 400*230mm | 220V/50HZ 1.5KW | 920*530*420mm | 55kg | ||||
HYD300 | 400*300mm | 220V/50HZ 1.3KW | 940*530*450mm | 60kg | ||||
HYD320 | 450*320mm | 220V/50HZ 1.4KW | 950*620*450mm | 65kg | ||||
HYD450 | 450*600mm | 220V/50HZ 2KW | 1050*750*650mm | 115kg | ||||
HYD500 | 500*700mm | 220V/50HZ 3.2KW | 1130*900*750mm | 145kg | ||||
If you have other requirements, please contact Jessie +8615516998572 | ||||||||
Flexo plate making machine
Product specifications:
400x250mm
400x600mm
900x600mm
800x1200mm
400x250mm
400x600mm
900x600mm
800x1200mm
Liquid resin plate making machine
Product specifications:
800X600 (MM)
800X1200 (MM)
800X1400 (MM)
900X1800(MM)
800X600 (MM)
800X1200 (MM)
800X1400 (MM)
900X1800(MM)
Details Images

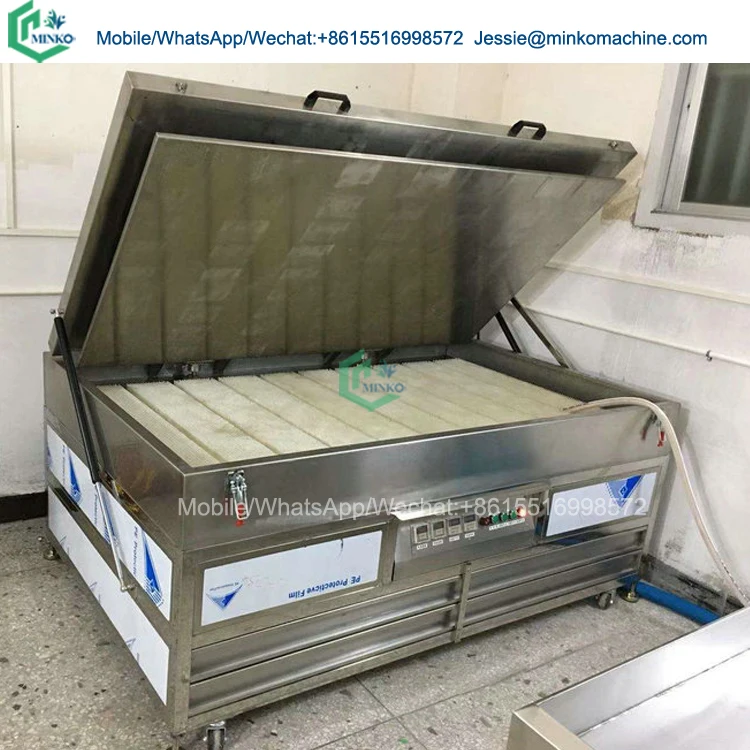

Liquid resin plate making machine
This equipment consists of an automatic lifter and a flat plate washer/water treatment/baking/curing machine.
1. Automatic lift exposure machine
The equipment consists of automatic lifting, bottom exposure, preheating and automatic glue injection system. It adopts imported drive motor combined with unique lifting system and injection system to make the equipment lifting and filling (paving) more stable and durable. The exposure system adopts imported Philips UVA lamp combined with special high-quality 25MM glass to ensure the flatness and precision of the printing plate. Thickness error is less than plus or minus 0.05mm
2. Flat plate washing / water treatment / baking / curing machine
This equipment adopts imported conveyor, brush-washing, with filtered water circulation and thermostat. In addition to adhesion and light curing, imported Philips UVA/UVC lamps are used respectively. Suitable for making liquid resin plates of various thicknesses, such as printing plastics, paper packaging, woven bags, etc. Suitable for environmental protection requirements
1. Automatic lift exposure machine
The equipment consists of automatic lifting, bottom exposure, preheating and automatic glue injection system. It adopts imported drive motor combined with unique lifting system and injection system to make the equipment lifting and filling (paving) more stable and durable. The exposure system adopts imported Philips UVA lamp combined with special high-quality 25MM glass to ensure the flatness and precision of the printing plate. Thickness error is less than plus or minus 0.05mm
2. Flat plate washing / water treatment / baking / curing machine
This equipment adopts imported conveyor, brush-washing, with filtered water circulation and thermostat. In addition to adhesion and light curing, imported Philips UVA/UVC lamps are used respectively. Suitable for making liquid resin plates of various thicknesses, such as printing plastics, paper packaging, woven bags, etc. Suitable for environmental protection requirements
Finished picture
Recommend Products
Packaging&Shipping
Package
*Moisture-proof inner package *Shockproof inner package
*Insect-proof wooden box package
*Iron fastening tape
*Insect-proof wooden box package
*Iron fastening tape
Shipping
*Land shipping *Rail transportation
*Sea transportation
*Air shipping
*Sea transportation
*Air shipping
Documents
Bill of loading . packing list
Commercial invoice .C/O
FORM A FORM E (as you require)
Company &Certifications
Our Service
FAQ
Contact
