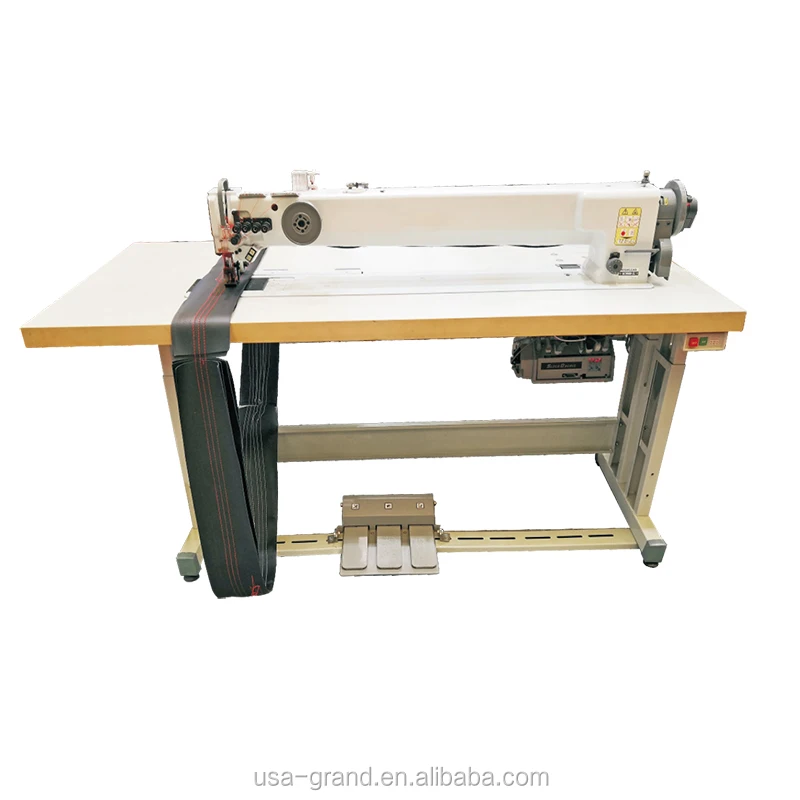

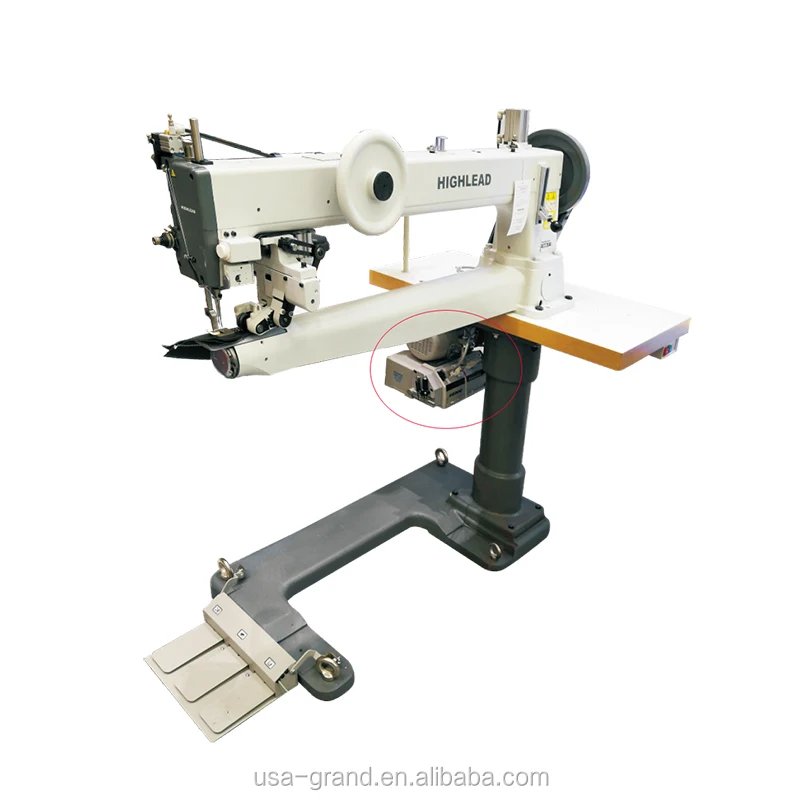

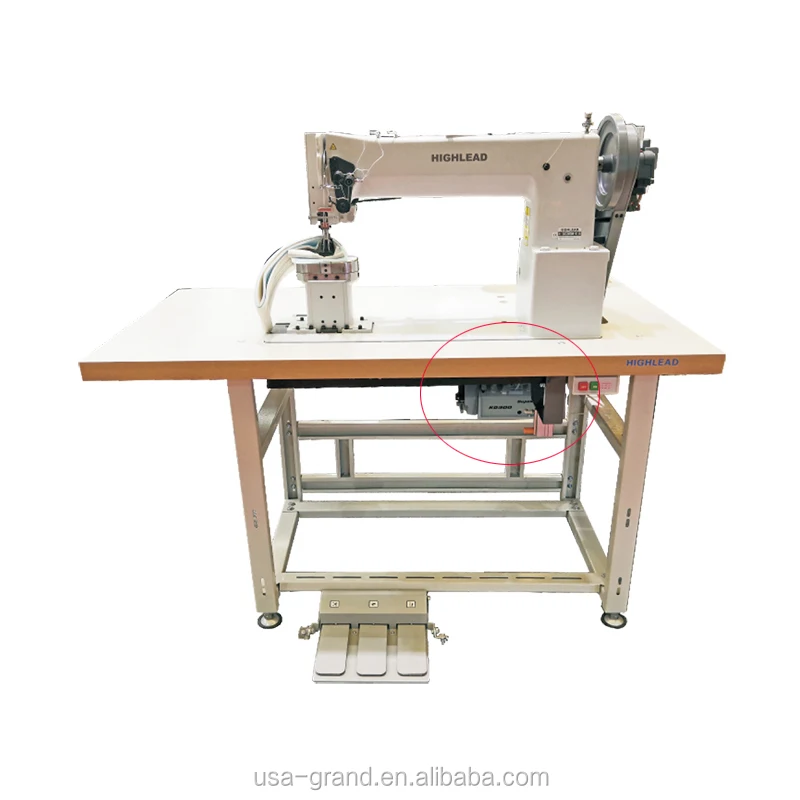

SD85-KE300-HIGHLEAD Energy Saving Hanging attaching type Servo Motor with Special sewing machine:
Product Name: | SHOKEI Energy Saving Hanging attaching type Servo Motor with Special sewing machine ( with optional auto suction, thread trimmer, tape cutting, foot lifter...) |
Product model: | SD85-KE300-HIGHLEAD |
Product features:
| 1,Motors are confirmed with ROHS. 2,Right on position and matches with various sewing machines and easy to exchange. 3,For lockstitch, heavy duty, height post and special machines. 4,High power, low vibration and low noise 5,Switching power supply system and reduce the use of electricty efficeiently. 6,Software and Hardware has 2 way protection system, reliable quality. 7,Powerfu parametersystem and easy to adjust. 8,Solenoid with layers of protection. 9,Selft-Diagnostic function. |
Contorl Box Specification | |||
Function | D9/ | KD300 | |
One Shot Positing | √ | √ | |
Needle Up/down | √ | √ | |
Soft Start | √ | √ | |
Presser Foot Lifting | √ | √ | |
Trimmer/wiper | √ | √ | |
Automatic Back-tacking | √ | √ | |
Power Module Protection | √ | √ | |
Power Transistor Protection | √ | √ | |
Power Voltage Range | Single phase220-240/100-120V | Single phase220-240/100-120V | |
Solenoid Sing Output Port | 5 | 8(14-Option) | |
Input Signal Port | 12 | 12 | |
Solenoid Voltage | 24V | 31V | |
Gross Weight | 3KGS | 3KGS |
Motor specifications | ||||
Hanging attaching | Hanging attaching | |||
Type | SD55 | SD85 | ||
Motor Rated Output | 550W | 750W | ||
Rated speed | 3400 r/min | 2500 r/min | ||
Rated Torque | 1.75N.m | 2.4N.m | ||
Pulley Size | 60-120mm | 60-120mm | ||
Gross weight | 12kgs | 13kgs |
Under normal circumstances, the main components are separately identified and packaged with transparent bags, placed in anti-collision foam boxes, and assembled in cartons to ensure that the products will not be collided during transportation.
Usually, a complete set of products consists of one to two cardboard boxes, with relevant product information (such as model, place of origin, and name) marked on the outer surface of the cardboard boxes.
After packaging, we will carefully load the goods and then send them to the nearby port (zhongshan//guanzhou/shengzhen/hongkong). Most of them are based on sea transportation.
If you have special needs, or you can provide your own logistics mode, welcome to negotiate and communicate with our salesman.
1. One year warranty for the entire machine (excluding vulnerable parts);
2. If you purchase a large quantity of complete machines, you can send engineers to provide on-site installation guidance;
3. Remote online guidance for equipment installation and maintenance;
4. The final interpretation of the warranty for the above products belongs to GRAND Company.
