Large crane plastic stability plate/HDPE plastic crane outrigger pad/Hdpe outrigger pads for cranes
RV Utility Blocks, Camper Jack Pads,Trailer Levelers
rubber jack pad for car jack, UHMWPE Jack pad
UHMWPE Crane Leg Pad UHMWPE Jack Stand Foot Pads
PE outrigger pads, UHMW crane pad, PE jack pad
uv outrigger jack pad mat
UHMWPE track outrigger pads, trailer plate jack pads, track support mat
Large crane plastic stability plate/HDPE plastic crane outrigger pad/Hdpe outrigger pads for cranes
Large crane plastic stability plate/HDPE plastic crane outrigger pad/Hdpe outrigger pads for cranes
Large crane plastic stability plate/HDPE plastic crane outrigger pad/Hdpe outrigger pads for cranes
Large crane plastic stability plate/HDPE plastic crane outrigger pad/Hdpe outrigger pads for cranes
Large crane plastic stability plate/HDPE plastic crane outrigger pad/Hdpe outrigger pads for cranes
Large crane plastic stability plate/HDPE plastic crane outrigger pad/Hdpe outrigger pads for cranes
Large crane plastic stability plate/HDPE plastic crane outrigger pad/Hdpe outrigger pads for cranes
For more information ,you can contact by our emai
UHMWPE material has the following advantage :
-Apply the Right material for your application
- good tensile strength
-good impact intensity
-super compression strength
-good breaking elongation
-15 Percent the weight of steel pads
-Chemically inert, serviceable from 180° F to - 250° F
-Corrosion, chemical, wear and moisture resistant.
-Non-stick surface, easy to clean.
-Compressive loads up to one million pounds
-Up to 15,000 pounds per square foot
Benefits:
-Work in sub zero temperatures
-Easy to mount, replace
-Reduced downtime.
-Lower maintenance costs.
-Cost Efficient compared to Steel or Aluminum

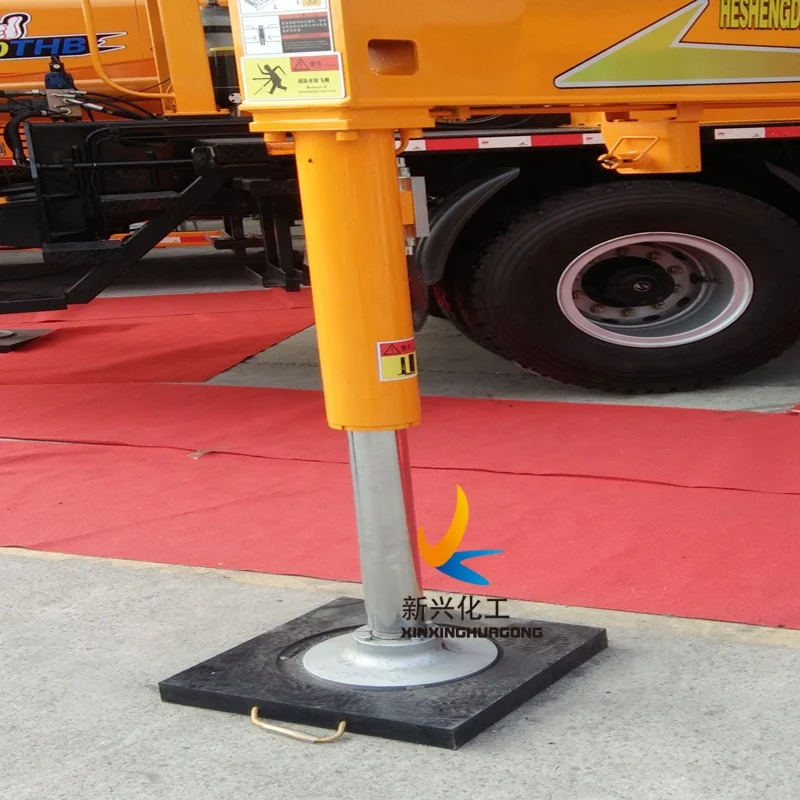

Application :Our Outrigger Pads put under the support-leg of Truck Crane, Crawler Crane, Rough Crane, Boom Pump, Concrete Pump and so on. It can support Max. load at least 35 MT, for making the machine work safely!
Why Choose Us
l More than 15 years' professional manufacturing experience with own factory.
l Virgin 100% material produced, high quality with good surface and color make ensured
l GB/T 19001-2008 ; ISO 9001:2008 certification.
l Competitive price, In stock, Fast delivery, and Excellent service.
l OEM available. Special character is available :According to different requirements with different application, color, size, shape and special specifications can be customized, such as anti-UV, anti-static and so on.

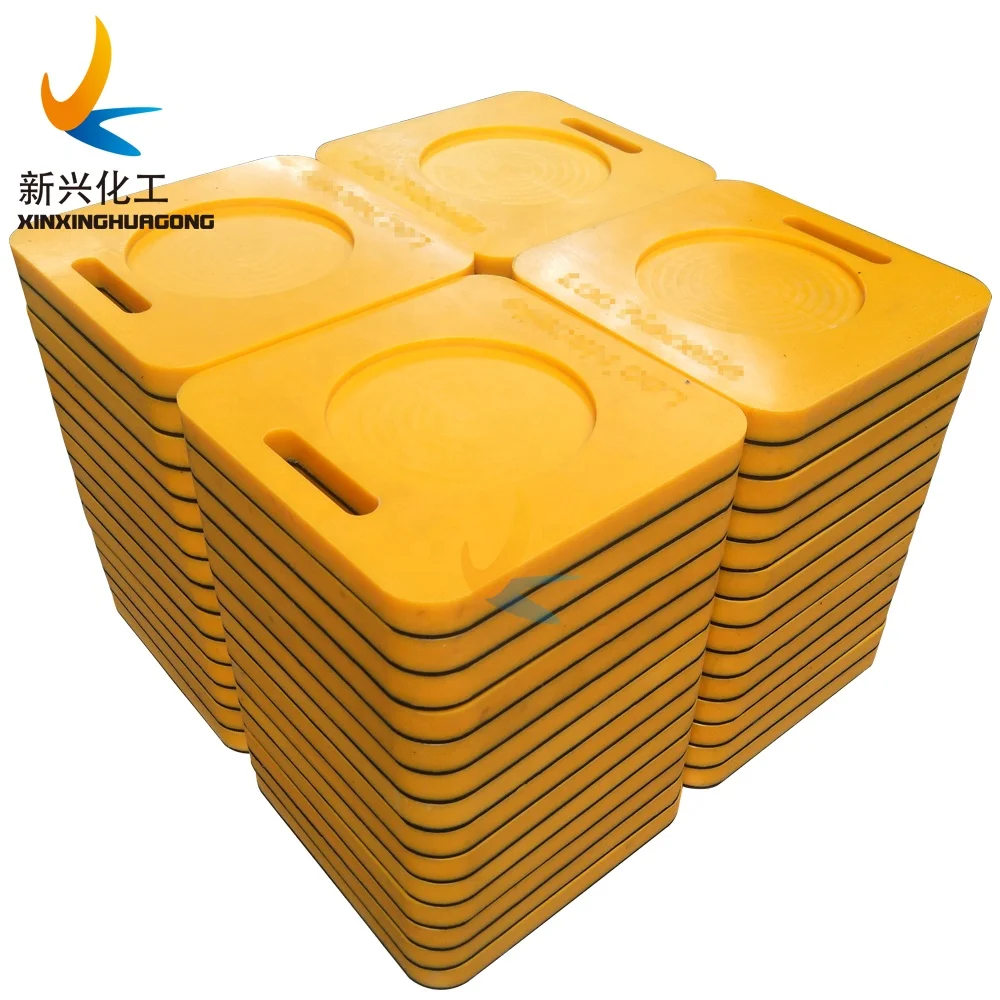

XinXing outrigger pads
are made in UHMWPE, an engineering material that offers a superior combination of impact strength, wear and chemical resistance. Each pad is equipped with a durable wire handle to allow for easy storage and mobility.
PE Outrigger Pads are an alternative to wood pads due to their superior characteristics and performance which allows them to last longer.
Max. Load:350 MT

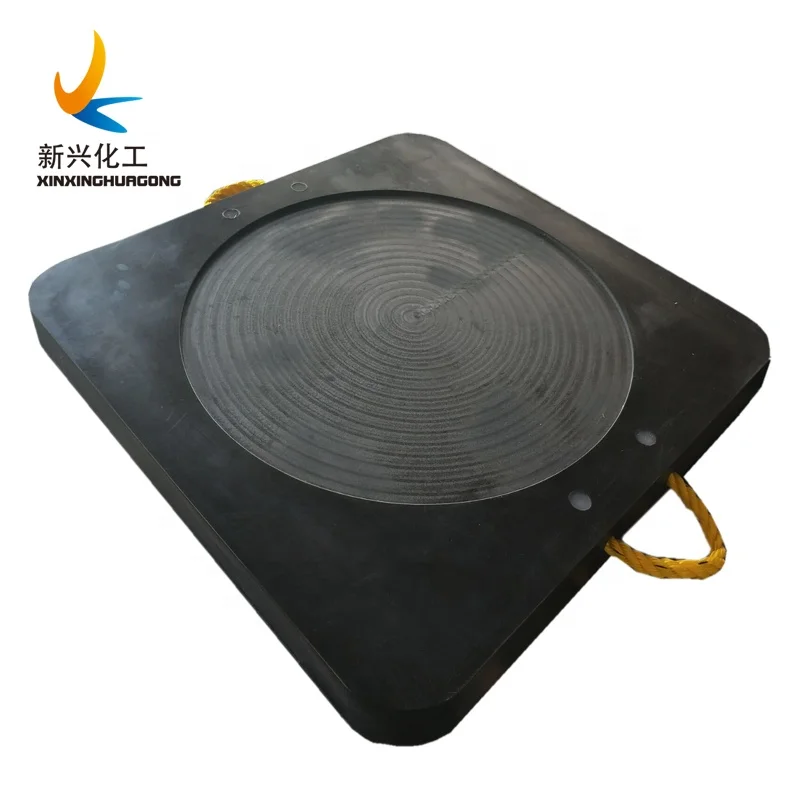

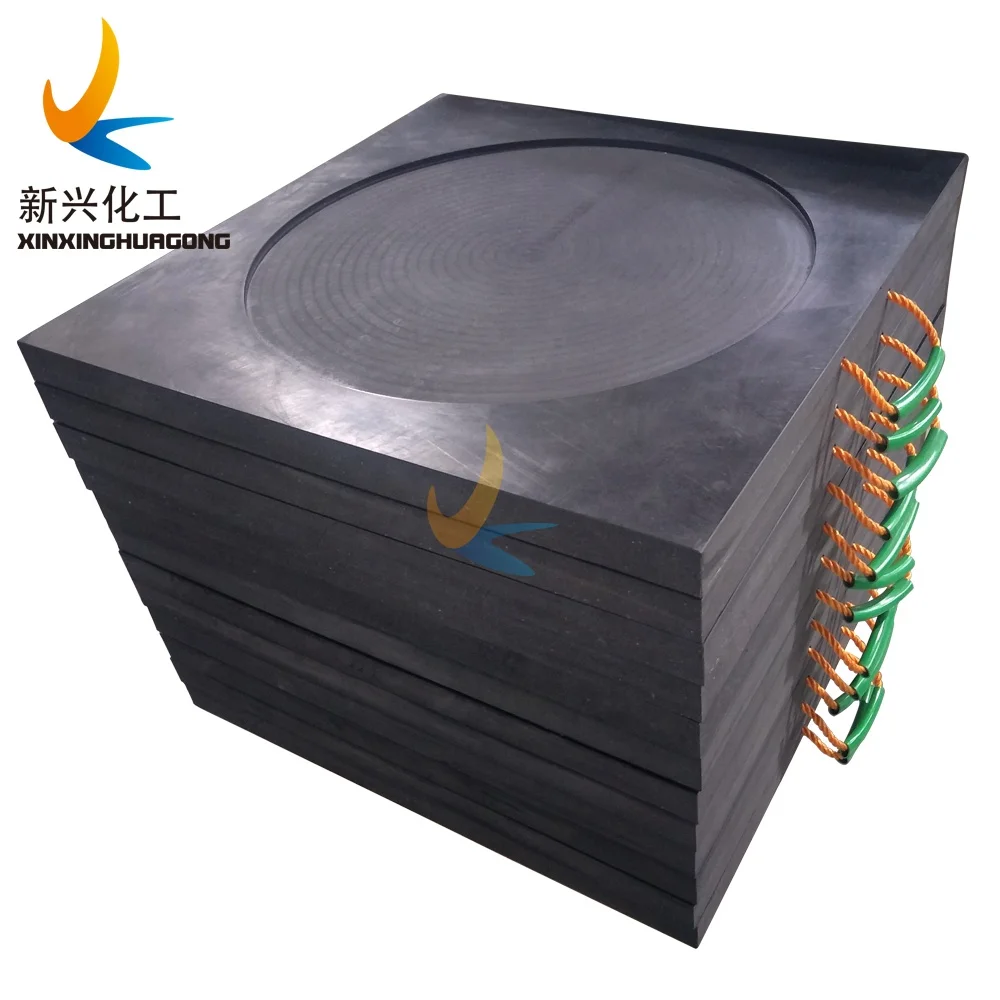

Feature: Square with rope handle, Convex mark face (skid-proof)
Both virgin and recycled UHMWPE outrigger pads is available
XINXING provides a very strong, durable, and cost-effective footing for all your our Outrigger Pads applications.
XINXING outrigger pad is made of PE material
Because PE material has the following advantage :
--Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
--Do not absorb moisture and will not swell up over time due to exposure outdoors.
--Good impact intensity,Do not lose their impact strength over time.
--Good breaking elongation,so they will bend but not break under extreme loads.
--Non-stick surface, easy to clean.
--Corrosion and chemical resistant.
--Noise- absorption, Vibration-absorption
--Super compression strength
--15 Percent the weight of steel pads and easier to handle
--Compressive loads up to one million pounds
--Up to 15,000 pounds per square foot
--Non-Conductive
--Non-Toxic and smell
Benefits:
--Work in sub zero temperatures
--Easy to mount, replace
--Reduced downtime.
--Lower maintenance costs.
--Storage-Friendly
--Durable & Long Lasting
--Cost Efficient compared to Steel or Aluminum
--Safer to use in the field compared to other wood based pads.
Our standard outrigger pads size:
| Dimensions(mm) Square | Weight(kg) | Vertical Jack Capacity (tonne) | Crane Capacity(tonne) |
400*400*40 | 6.3 | 10 | 12 |
| 500*500*40 | 9.9 | 12 | 15 |
| 600*600*40 | 14.2 | 20 | 20 |
| 700*700*40 | 19.4 | 22 | 30 |
| 800*800*40 | 25.3 | 25 | 30 |
| 1000*1000*40 | 39.2 | 30 | 35 |
| 400*400*50 | 8 | 11 | 15 |
| 500*500*50 | 12.2 | 15 | 18 |
| 600*600*50 | 18 | 23 | 30 |
| 800*800*50 | 31.3 | 30 | 35 |
| 1000*1000*50 | 48 | 40 | 50 |
| 400*400*60 | 9.5 | 12 | 15 |
| 500*500*60 | 14.5 | 20 | 25 |
| 600*600*60 | 21.2 | 25 | 30 |
| 800*800*60 | 38.4 | 35 | 45 |
| 1000*1000*60 | 58.5 | 50 | 65 |
| 1200*1200*60 | 85 | 70 | 80 |
| 800*800*70 | 44 | 40 | 50 |
| 1000*1000*70 | 68.5 | 70 | 80 |
| 800*800*80 | 50.4 | 50 | 60 |
| 1000*1000*80 | 78 | 80 | 100 |
| 1200*1200*80 | 113 | 100 | 120 |
| 1000*1000*80 | 98 | 110 | 140 |
| 1200*1200*100 | 141 | 140 | 160 |
Xinxing UHMWPE sheet standard sizes:
1.Thickness: 6 - 300mm
2. Width: max 2000mm
3. Normal standard size:
Length(mm) | Width(mm) | Thickness(mm) |
2000 | 1000 | 6-300 |
3000 | 1500 | 6-300 |
4700 | 1200 | 6-300 |
5000 | 1300 | 6-300 |
4500 | 2000 | 6-300 |
3050 | 1220 | 6-100 |
Any small size need us to cut , we can satisfy your special need .
Packaging : pallet packing or as client need.
Xinxing other products :
Packaging : pallet packing or as client need.
Related product link
| Crane outrigger pads | composite ground mats |
 |  |
| ground proction mat | HDPE hollow rig mats |
 |  |
Xinxing other products :
TRACK MATS ground protection mat ,
CNC machined UHMW-PE wear part,
Paper machinery dewatering elements,
we look forward to receiving your any enquiries |
XINXING can provide various UHMWPE & HDPE products with the good quality at reasonable price according to your requirement.
Any questions, please feel free to contact us.
Many thanks for you visit us !

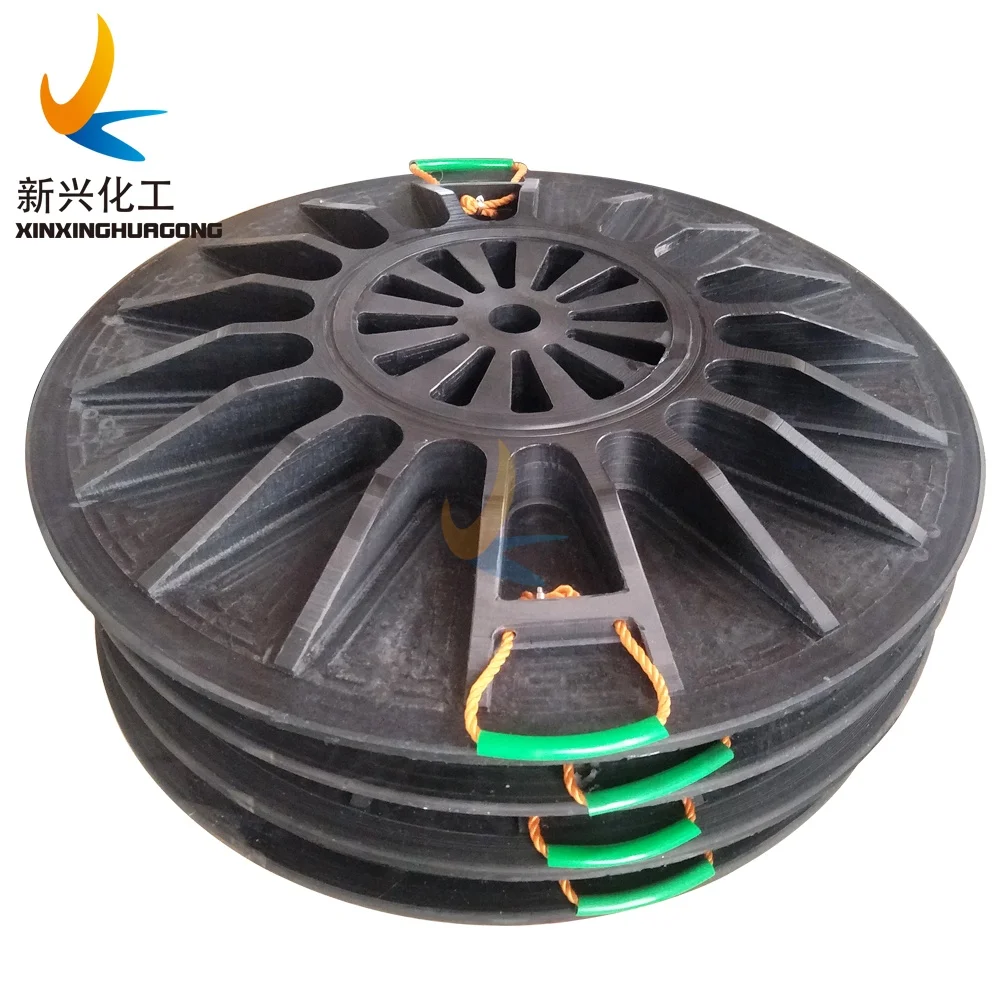

Round UHMWPE/HDPE polyethylene crane outrigger pad
The agent of round outrigger pads
uhmwpe round outrigger pad uhmwpe crane pads plastic support pad
concrete pump outriggers pad
plastic crane pads
crane outrigger pads requirment
big foot crane pads
crane stabilizer pads
mobile crane outrigger pad
crane pads sale
crane stabiliser pads
crane foot pads
crane foot support
Outrigger pads-all mobile cranes
polyethylene pad
crane pad
uhmwpe pad
hdpe outrigger pad
outrigger pad
crane outrigger pad
outrigger pad for crane
crane outrigger pads
stabiliser pad
pe outrigger pad
price of outrigger pad
outrigger pad size
Large crane plastic stability plate
HDPE plastic crane outrigger pad
Hdpe outrigger pads for cranes
Похожие товары
Многоразовые полиуретановые гелевые листы нано-ленты Die Cut двойной самоклеящиеся PU липкие прокладки 0 5 мм до
712,72 ₽ - 986,84 ₽
Pmma лист акриловый для платы дисплея/карты дисплея SGS Auditted

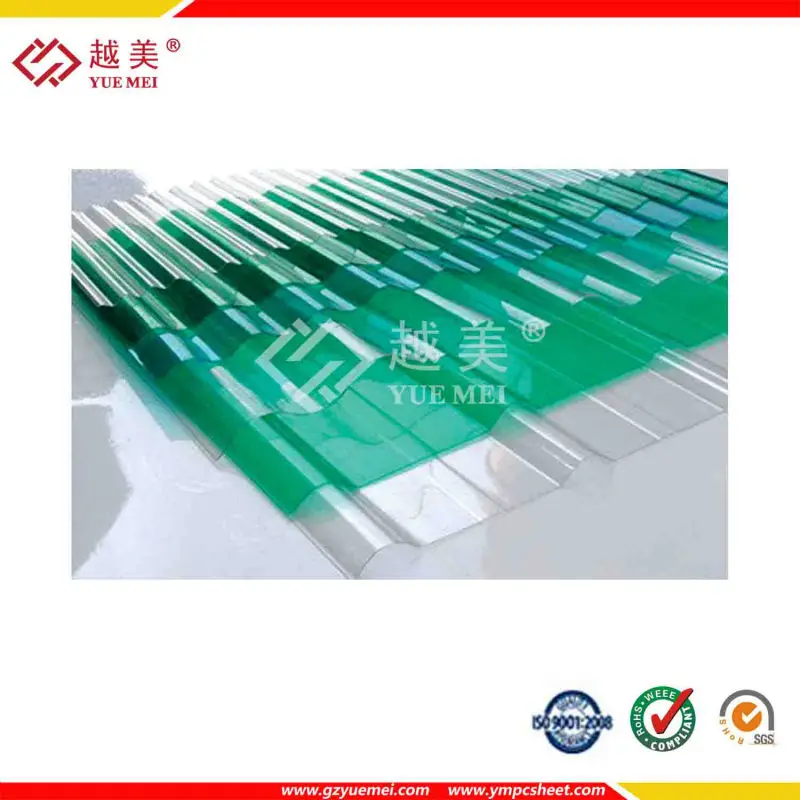

Десять лет гарантии Lexan pc гофрированный кровельный поликарбонатный лист с цена от производителя
