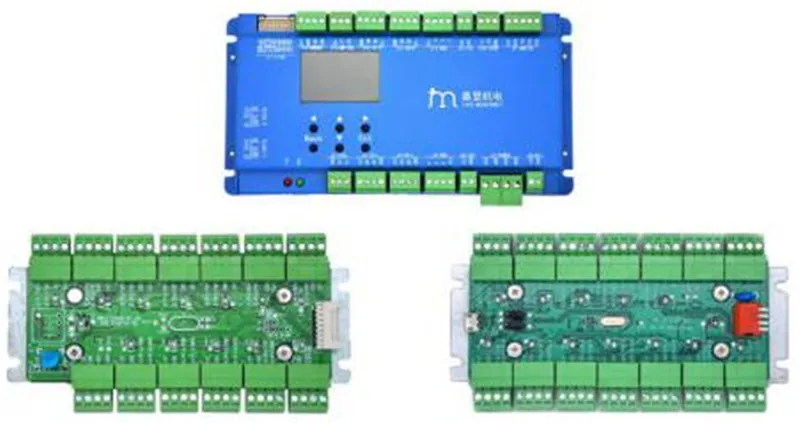

Бесщеточный контроль доступа серводвигатель с логикой для распашной скорости заслонка раздвижной барьер ворота поддержка может RS232 RS485 протокол
- Категория: >>>
- Поставщик: Shenzhen Jiayu Mechatronic Co. Ltd.
Сохранить в закладки 1600096257301:
Описание и отзывы
Характеристики
Feature:
● Applicable to railway station, subway station, airport, building and other places with access control.
● Suitable for swing gate, wing gate and other standard channel gate.
● Work with EPS2408, APS8010 servo driver, constitute the channel gate control system.
● Provide control protocol, data can be obtained by upper computer in real time.
● Suitable for swing gate, wing gate and other standard channel gate.
● Work with EPS2408, APS8010 servo driver, constitute the channel gate control system.
● Provide control protocol, data can be obtained by upper computer in real time.
Functions:
● Suitable for EPS2408, APS8010 channel gate dedicated servo driver, provide the complete pass-through logic control of channel gate.
● Modular input design, up to 36 infrared sensors can be independently connected.
● Real-time detection of channel status and passing behavior, high security level of anti-tracking control effect.
● Built-in multiple channel modes, standard design has 6 groups, 8+4 groups of infrared layout, suitable for different usage
scenarios.
● Support RS232, RS485, provide Modbus communication protocol, connect access control, PC software.
● Modular input design, up to 36 infrared sensors can be independently connected.
● Real-time detection of channel status and passing behavior, high security level of anti-tracking control effect.
● Built-in multiple channel modes, standard design has 6 groups, 8+4 groups of infrared layout, suitable for different usage
scenarios.
● Support RS232, RS485, provide Modbus communication protocol, connect access control, PC software.
item | value |
Warranty | 3months-1year |
Certification | ce |
Place of Origin | China |
Brand Name | jiayu |
Model Number | JMC1514 |
Input Voltage | DC 24 ~ 30V |
Communication | RS232 / RS485 / CAN |
Infrared Input | PNP / NPN NO / NC,up to 36 independently |
Sound Control | Three types of indicator lights,Buzzer / Voice optional |
Alarm Detection | Break-in,Trailing,Overtime,Reverse |
Power-off Auto Open | 24VDC Battery,Super-capacitor |
Working Temperature | -20℃ ~ 55℃ |
Application | swing,wing&sliding gate |
Import and Export Mode | swipe card, free,prohibit |
Power off switch | 24v Battery, super capacitor |
standard package
Shenzhen Jiayu Mechatronic CO., Ltd, is a high-tech enterprise with multiple invention patents and software copyrights such as servo drive and channel gate control technology. Jiayu is committed to the R&D, production, sales and pre-sales and after-sales service of the core module of the automatic gate control movement. It is a main module supplier in the domestic gate control industry and provides professional product solutions for customers.
The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable.
The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.
Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.
In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.
The company's technology stems from mature domestic and foreign technology transfer and independent research and development. The products are localized and the core technology is independently controllable.
The company introduced advanced control technology and manufacturing technology from Germany and Switzerland, and has an experienced R&D and manufacturing team. In the application field of security gate control gate equipment, it has realized infrared and light curtains. The industry's logic and control technology for the gate movement module, the self-developed and manufactured electronic control module for pedestrian passage gates and vehicle barrier gates have covered customers in various industries such as high-speed rail stations, subway stations, airports, ports, highways, etc. group.
Since its establishment, our company has won the recognition and support of our customers by virtue of "excellent quality, honest service". Now the factory covers an area of more than 2,000 square meters and has passed the ISO9001:2015 quality management system certification. In the channel gate equipment industry, tens of thousands of electronic control products developed and manufactured by Jiayu Mechatronic Co., Ltd. have been shipped on supporting customers' complete equipment, which are spread all over the country, as well as overseas regions such as Europe, Middle East, and Southeast Asia. The field has contributed a lot.
In the future, the company will focus more on the improvement of product performance and quality, and continue to build the top brand of electronic control of channel gates.
1. Are you Factory or Trader?
We are factory,and have professional R&D team as introduced in company information.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate control technology.
Committed to the R&D,production,sales and pre-sales and after-sales service of the core module of the automatic gate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,
Professional solutions in installation and maintance.
6. Do you get the relevant certifications?
All products are made according to ISO9001, CE requirements.
7. How about the delivery?
－Sample: 3-5 days,
－Bulk order: 15-30 days.
We are factory,and have professional R&D team as introduced in company information.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment.
3. What can you buy from us?
Access servo drive,speed gate drive,turnstile controller,swing gate drive,barrier gate controller,servo motor,mechanism.
4. Why should you buy from us not from other suppliers?
We are with multiple invention patents and software copyrights such as servo drive and channel gate control technology.
Committed to the R&D,production,sales and pre-sales and after-sales service of the core module of the automatic gate control movement.
5. What is your after-sale service?
Free maintance within 12 months guarantee,lifetime consultant,
Professional solutions in installation and maintance.
6. Do you get the relevant certifications?
All products are made according to ISO9001, CE requirements.
7. How about the delivery?
－Sample: 3-5 days,
－Bulk order: 15-30 days.
