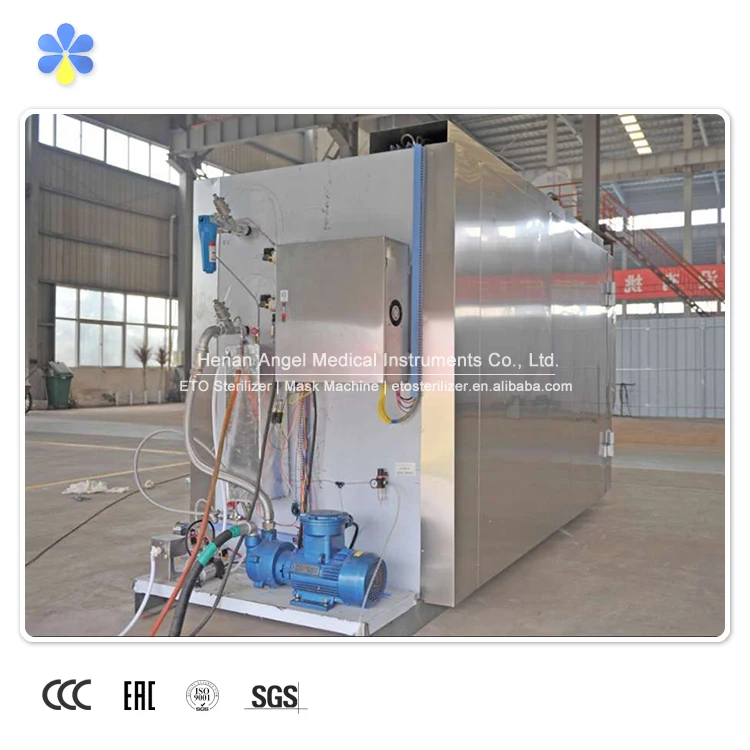

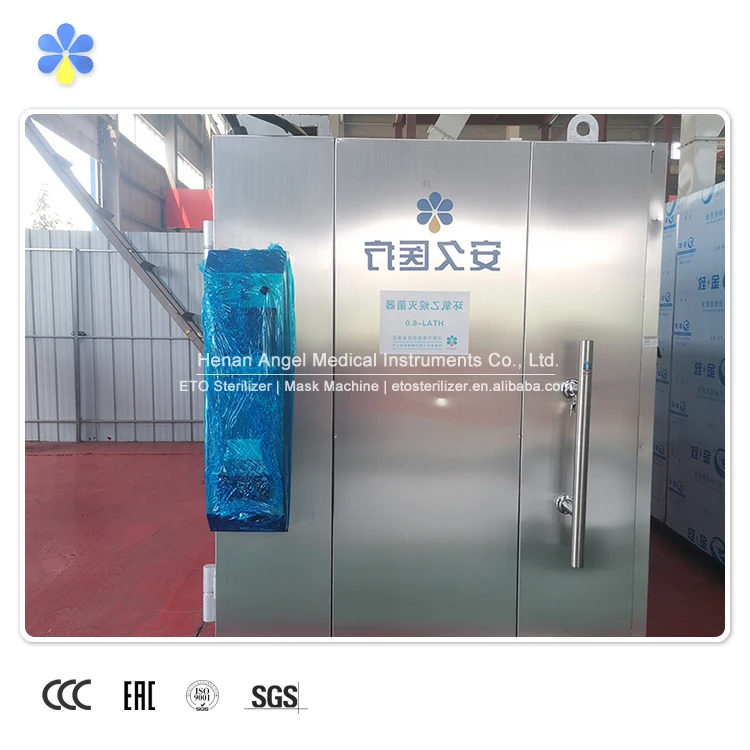

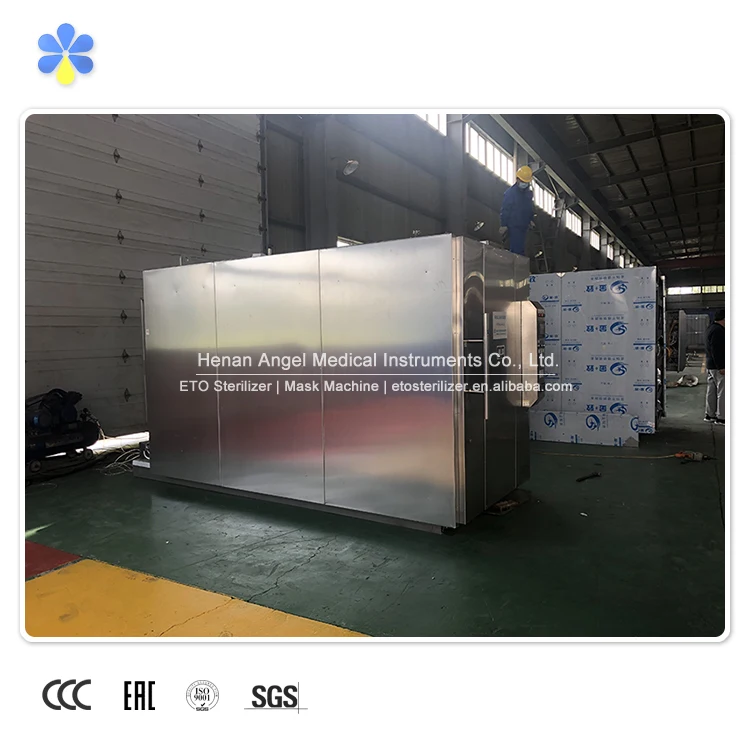

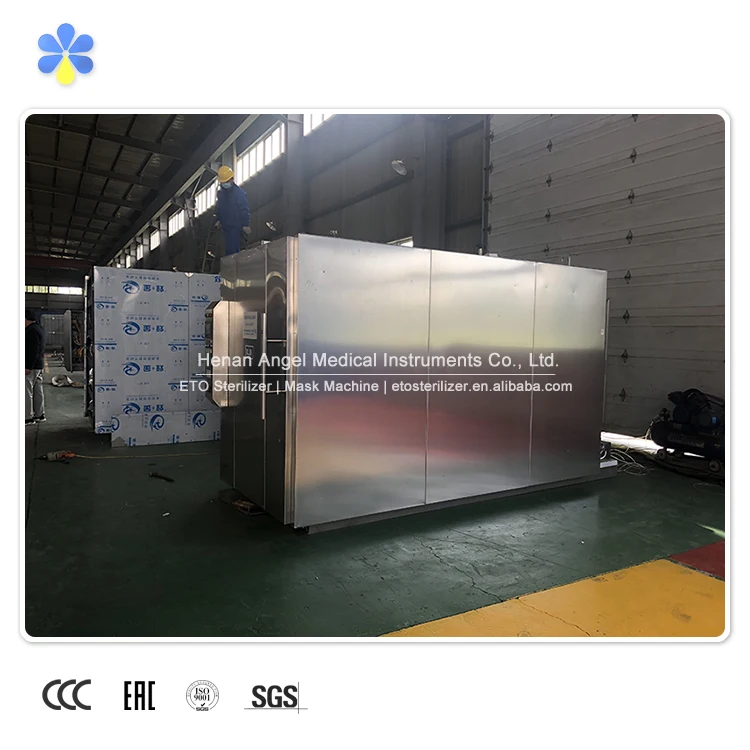

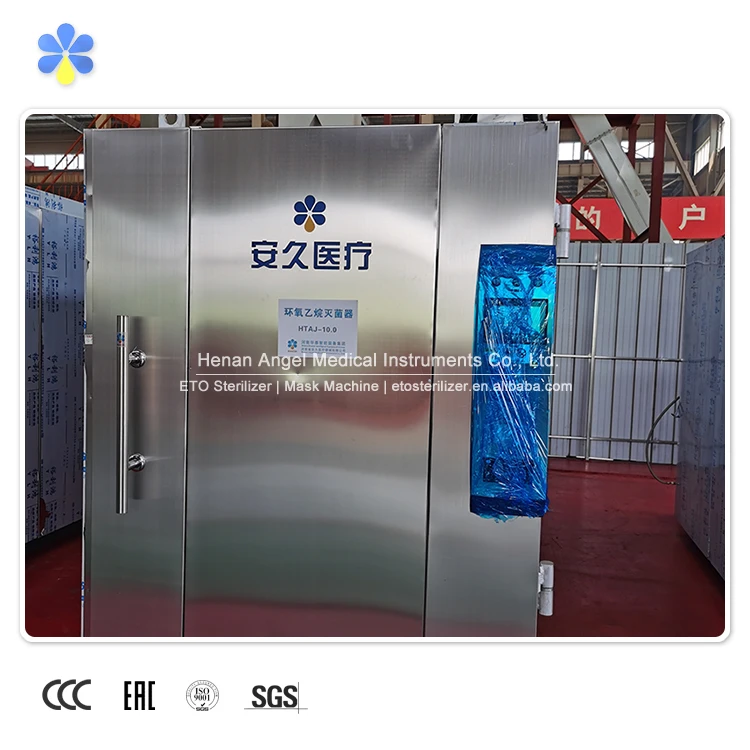

>Industrial Manufacturer ETO/EO gas disinfector autoclave sterilizer



Sterilizer parameter






















































Model Number



HTAJ-20CBM



Disinfection mode



Low temperature eto sterilizer



Rated power



35KW



Liner specifications length * width * height (mm)



6000*1750*1950



Liner specifications length * width * height (mm)



6950*2120*2620



Working pressure



-60Kpa~0



Adjustable range of working temperature



30℃~50℃



Working humidity



30%-80%



Sterilization time



0-99 hours adjustable



Material of disinfection room



304 anticorrosive stainless steel



Company name



Henan Angel Medical Instruments Co.,ltd



Product name



>Industrial Manufacturer ETO/EO gas disinfector autoclave sterilizer






Product Description


Industrial Manufacturer ETO/EO gas disinfector autoclave sterilizer is a kind of use of pure ethylene oxide and ethylene oxide mixed gas at a certain temperature, pressure, humidity and-a fixed period of time, for the items enclosed in the sterilization chamber special equipment for low temperature fumigation. Ethylene oxide gas is a very active chemical disinfectant, which can not only achieve broad-spectrum sterilization, but also achieve a reliable sterilization effect.





Ethylene oxide safety protection principles and precautions:


1) Keep ethylene oxide sterilizers and cylinders or cans away from sources of ignition and static electricity.


2) Ethylene oxide storage should be free of ignition sources, no rotating motor, no sun, good ventilation, and the temperature is lower than 40 ℃, but it should not be placed in the refrigerator. Dispose of in strict accordance with the relevant national storage requirements for flammable and explosive materials.


3) Do not use too much force when administering or opening the bottle, so as not to spray the liquid.


4)Monitor the air concentration of the ethylene oxide working environment every year. 5)Ethylene oxide staff should be trained in expertise and emergency management.


_01





Technical details


Technical description of Industrial Manufacturer ETO/EO gas disinfector autoclave sterilizer


[Air replacement] Automatic ventilation, the number and interval of ventilation can be set freely.


[Full-automatic control system] One-touch start to finish, the whole process is automatically completed with printing records.


[Display status] Display temperature, humidity, pressure, disinfection time, residual gas treatment time and frequency.


[Printer] Record and print the disinfection information for the whole process for verification.


[Humidity sensor] The built-in humidity sensor automatically detects the humidity in the cavity to ensure that the humidity in the cavity is not less than 45% RH.


[Pressure sensor] The built-in pressure sensor automatically detects the pressure in the cavity to ensure effective disinfection of the pressure in the cavity.


[Temperature sensor] The built-in temperature sensor automatically detects the temperature in the cavity to ensure that the temperature in the cavity is maintained within the disinfection range of 50 ° C ± 3 ° C.


[Humidification system] Pulsed humidification under vacuum conditions, to ensure that the humidity in the cavity is uniform and controllable; the humidity in the disinfection room should be controlled within the range of relative humidity 45% -80%.


[Residual gas treatment device] The removal rate of the filter with a particle diameter ≥ 0.3 μm is not less than 99.5%.


[Leak rate in sterilization room] The leakage rate is measured under the condition of no-load and sterilization room temperature, the test pressure is -50kPa, and the measurement time is 1h.


[Vacuum speed] Under no-load conditions, the time for the disinfection cabinet to reach -60kPa from normal pressure should be ≤30min.


[Vacuum system] The oil-free vacuum pump is used, which is simple and convenient, the vacuum rate is fast, and the service life is long.


[Heating system] It adopts explosion-proof electric heating device, which is more convenient and quick.


[Tray rack] Use 304 stainless steel tray rack.


[Various protection functions] With over-voltage and over-temperature protection function, it is more safe and reliable.


[Casters] Yes.


[Alarm system] There is a high temperature alarm system and an ultra-low pressure alarm system; when the disinfection temperature of the disinfection room exceeds 59 ° C, it should be able to sound an alarm.


[Category] Class II medical instruments.








Production Flow


Direction for use of Industrial Manufacturer ETO/EO gas disinfector autoclave sterilizer

Angel's ethylene oxide sterilizer is an intelligent all-in-one machine with intelligent one-button operation, which is mainly divided into three stages
* Pre-treatment stage (to reach the optimal environment before sterilization)
* Sterilization stage (time can be adjusted freely)
* Compulsory elimination of ethylene oxide gas residual stage (freely adjustable times)

The device takes up little space and is easy to install:
Each device only needs to provide an independent space larger than twice the size of the device, installation only needs to be connected to water, drainage, power supply and air compressor to operate.





Functions


>Performance characteristics of Industrial Manufacturer ETO/EO gas disinfector autoclave sterilizer:


1. High-quality materials:


*6mm thickened high quality stainless steel
*Good sterilization effect
*Sterilization rate reaches 100%





2. Intelligent operation:


*Fully automatic PLC control
*Digital real-time display
*Print record archive





3. Good security:


*Automatic control of pressure, temperature and humidity
*filtering system
*Effectively filter residual drugs





FAQ


Q: Our company method?


A: 30% deposit and 70% balance before delivery.





Q:Do you inspect the finished products?


A: Yes, each step of production and finished products will be inspect by QC department before shipping.





Q: Are you a manufacturer?


A: Yes,we are the professional manufacturer set up in 1970, located at Zhengzhou city.

Q: Can you provide the overseas service?


A: Yes, after machine arrive your factory ,we will arrange engineer go to install the machine and train the operators.

Q:Can we visit the factory ?


A:Of course, we highly welcome clients come to our factory ,it will be our great honor to meet you.

Q:How can you guarantee the quality ?


A:100% qualified products before delivery. The clients can inspect the product at our factory. 1 year warranty, lifetime provide the spare parts.





Company Information


Henan Angel Medical Instruments Co., Ltd. is a wholly-owned subsidiary of Henan Huatai Intelligent Equipment Group. The group is a comprehensive group company integrating R & D, manufacturing, sales and installation of cereals and oils machinery, medical instruments and environmental protection equipment. The subsidiaries of Henan Huatai Intelligent Equipment Group include Henan Huatai Cereals and Oils Machinery Co., Ltd., Henan Angel Medical Instruments Co., Ltd., Henan Huatai Environmental Engineering Co., Ltd., Henan Huazhen Steel Trading Co., Ltd., and Henan Huatai Agriculture Co., Ltd.


The Group has gathered professionals in the field of medical instruments, concentrated technical forces and invested heavily in R & D and has rapidly risen in the field of medical instruments. With great investment in research, development and innovation, the company has achieved a series of results in related fields such as ethylene oxide sterilizers. Combined with the 5G intelligent AI platform, the intelligent operation of the device is achieved, its convenience, safety and sterilization effect exceed the standards required by customers. We always treat our customers with a high standard and a high responsible attitude. The corporate philosophy of being a person first, then working; simply being a person and working attentively has laid a solid foundation for the group company to deepen its cultivation in the medical instruments industry. Huatai Machinery is listed on New OTC Market (stock code: 837819). It is a National High-tech Enterprise, a Provincial Enterprise of Observing Contract and Valuing Credit, a Provincial Engineering Technology Center, and has been awarded “Henan Provincial Excellent Private Enterprise” by the provincial party committee and provincial government.


_06





Certifications of Industrial Manufacturer ETO/EO gas disinfector autoclave sterilizer
